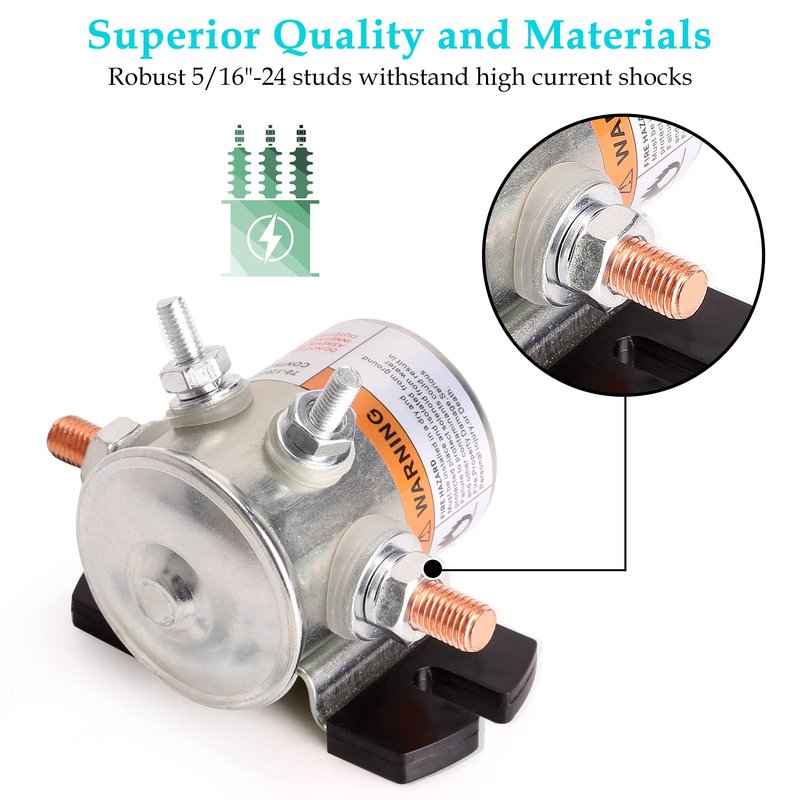

10L0L #70 Series Continuous Duty Solenoid Relay for 36 Volt EZGO Electric Golf Cart, Includes Resistor & Diode, OEM# 27855G01 11761G1 27855G02

Brand: 10L0L

Features:

• 36 Volt 4 terminal SPNO heavy-duty solenoid for EZGO TXT Marathon 1980-2010 electric golf cart
• Replaces part#: 70-120224, 11761GA, 11761-G1, 27855-G01, 27855-G02, 3016, 31680-G1, cole hersee 24080, resistor 21764-G1, diode 30353-G1
• Acts as the conduit between the golf car battery and starter motor, provides the electrical energy necessary to activate the vehicle's ignition system

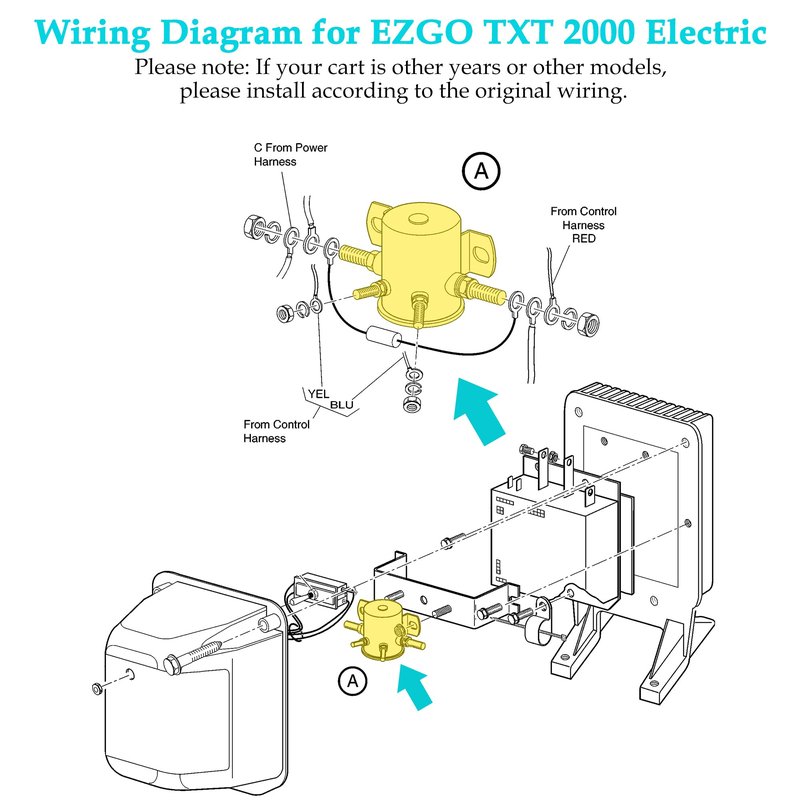

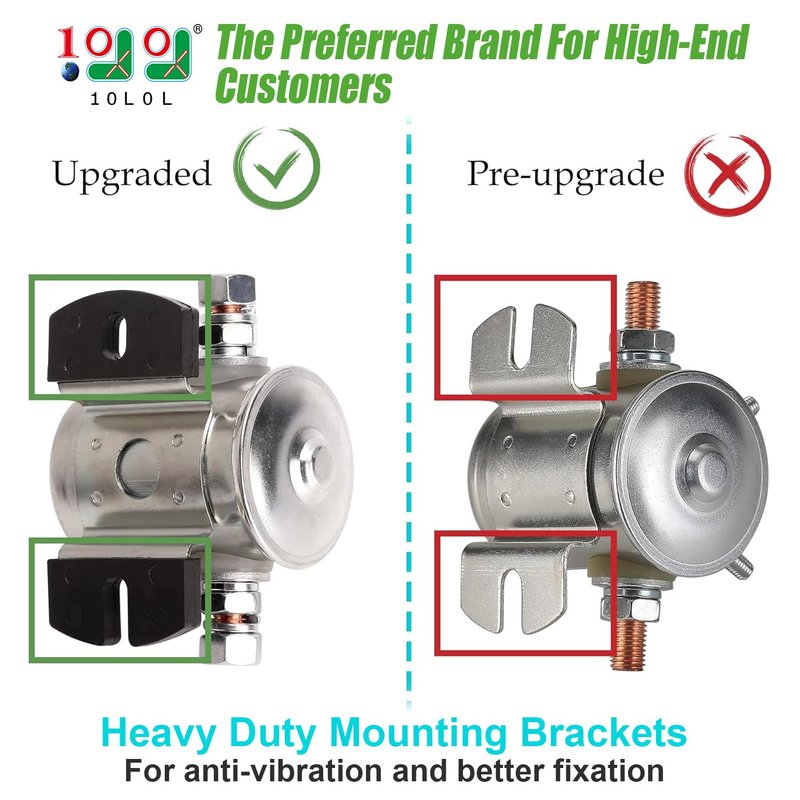

• Same as original solenoid, the base must be fixed when assembling, clamping the ends of the wires between inner and outer nuts

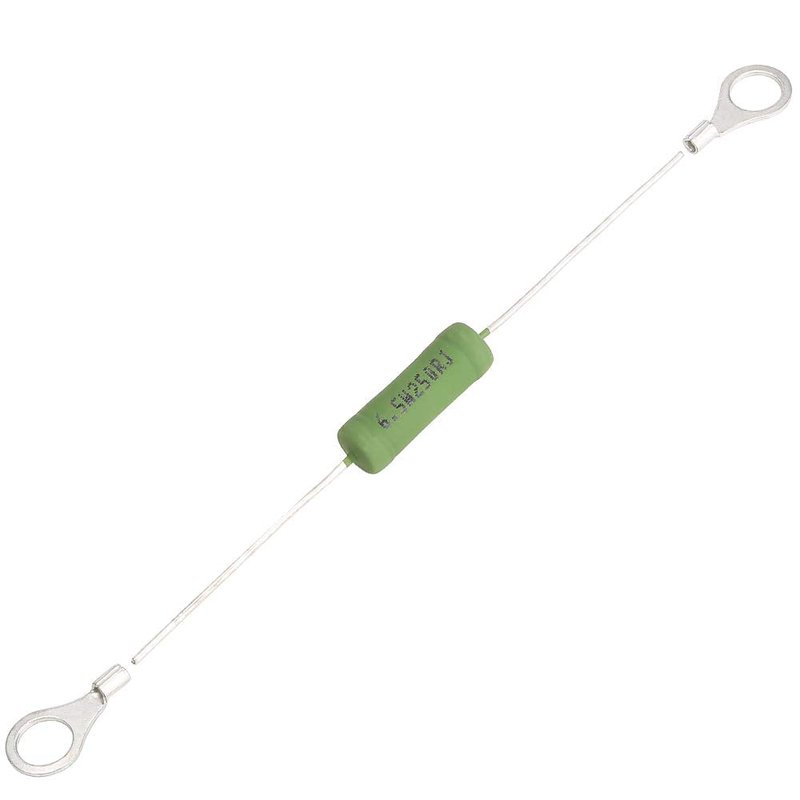

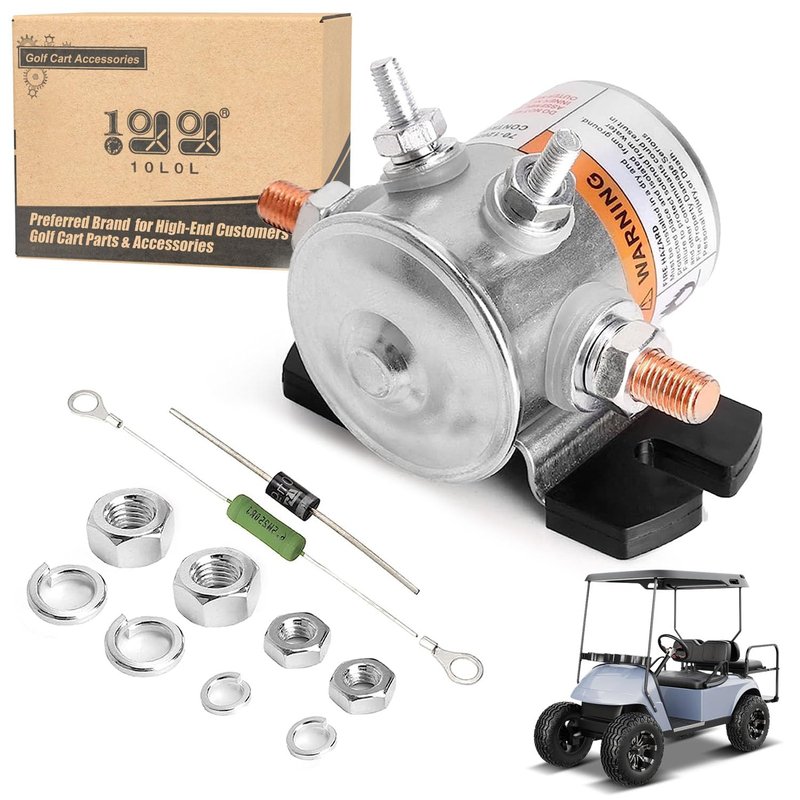

• Kit includes resistor & diode, make sure the diode is in the correct direction with the line pointing to the positive side

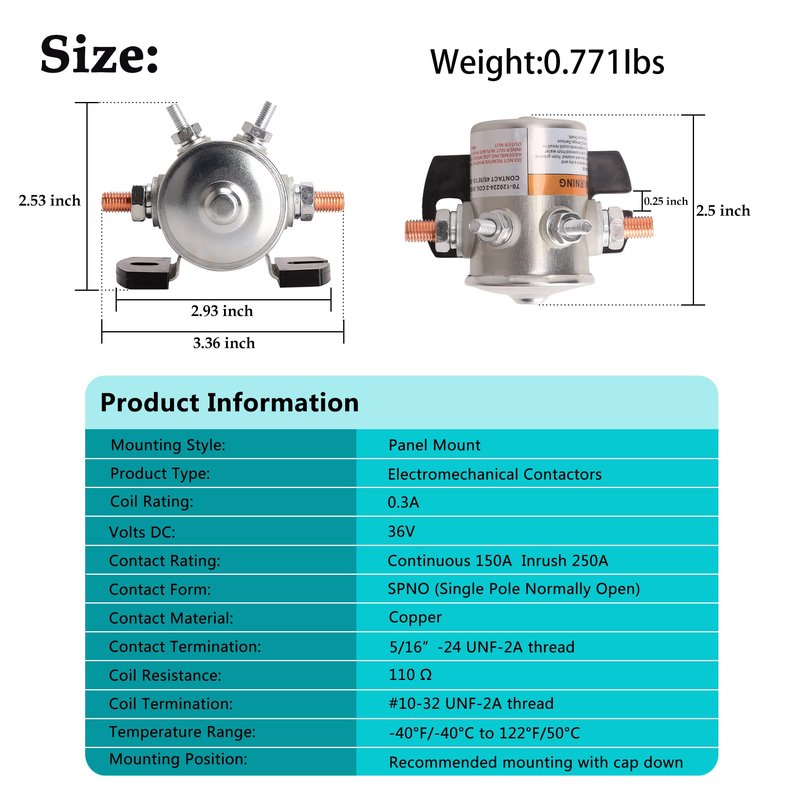

Package Dimensions: 3.6 x 2.8 x 2.8 inches
