2-Stroke Engine Motor Kit for Motorized Bicycle with 80cc 100cc 110cc Options

#80cc

Features:

• A complete engine kit for converting your bike

• Heavy duty metal engine body for added durability

• Super fuel-efficient, only consuming 2.5 litre fuel per 100km

• Fast and smooth, can speed up to 38km/h

• Comes with all needed hardware for easy installation

• Fit for most type 26" and 28" bikes, such as mountain bikes, road bikes,cruisers, choppers.

Specification:

• Mode of Engine:Single cylinder, air-cooling, 2-stroke

• Bore & Stroke:47mm & 40mm

• Rated Power:2.5Kw/5000r/min (3 horsepower/5000r/min)

• Max Power:3.5Kw/6000r/min (5-6 horsepower/6000r/min)

• Ignition Mode:CDI

• Model of Chain: 415

• Chain Length: 110 links

• Compression Ratio:6:01

• Driving Ratio:18:01

• Fuel Type:No.90

• Capacity of Tank:2L

• Speed Limitation:38km/hour

• Lubrication Oil: oil of 2-stroke petrol engine (Or oil for 10W/40.10W/30)

• Mixing Ratio of Fuel and engine Oil:16:1 for new sets, 20: 1 after running 500km

• Type of Sparking Plug:Z4C 14MM

• Volume of oil Consumption:2.5L/100km

• Type of Clutch:Friction Plate / Dry

• Cooling Mode:Natural air cooling

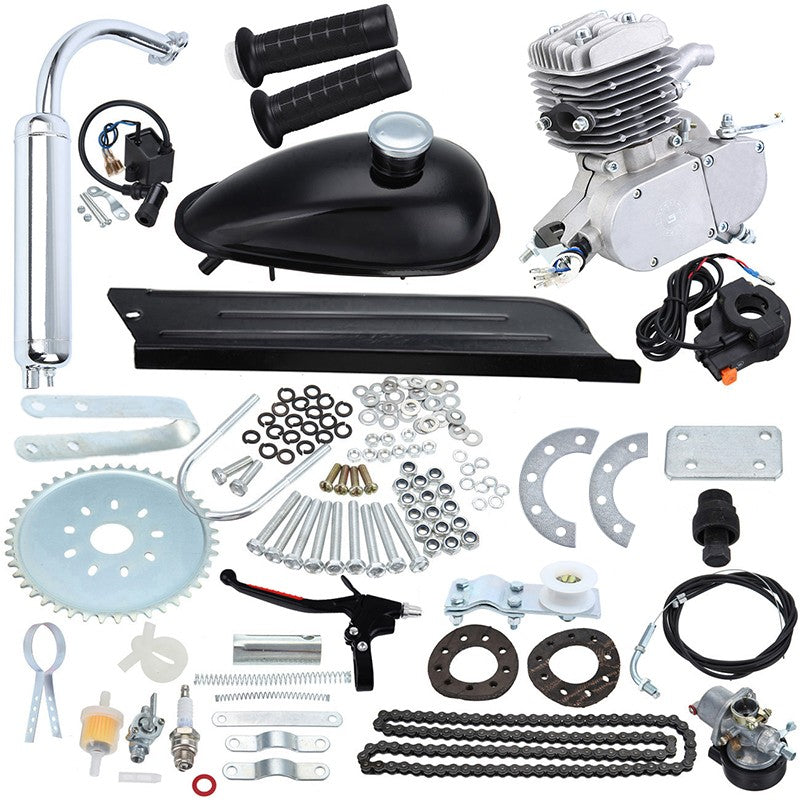

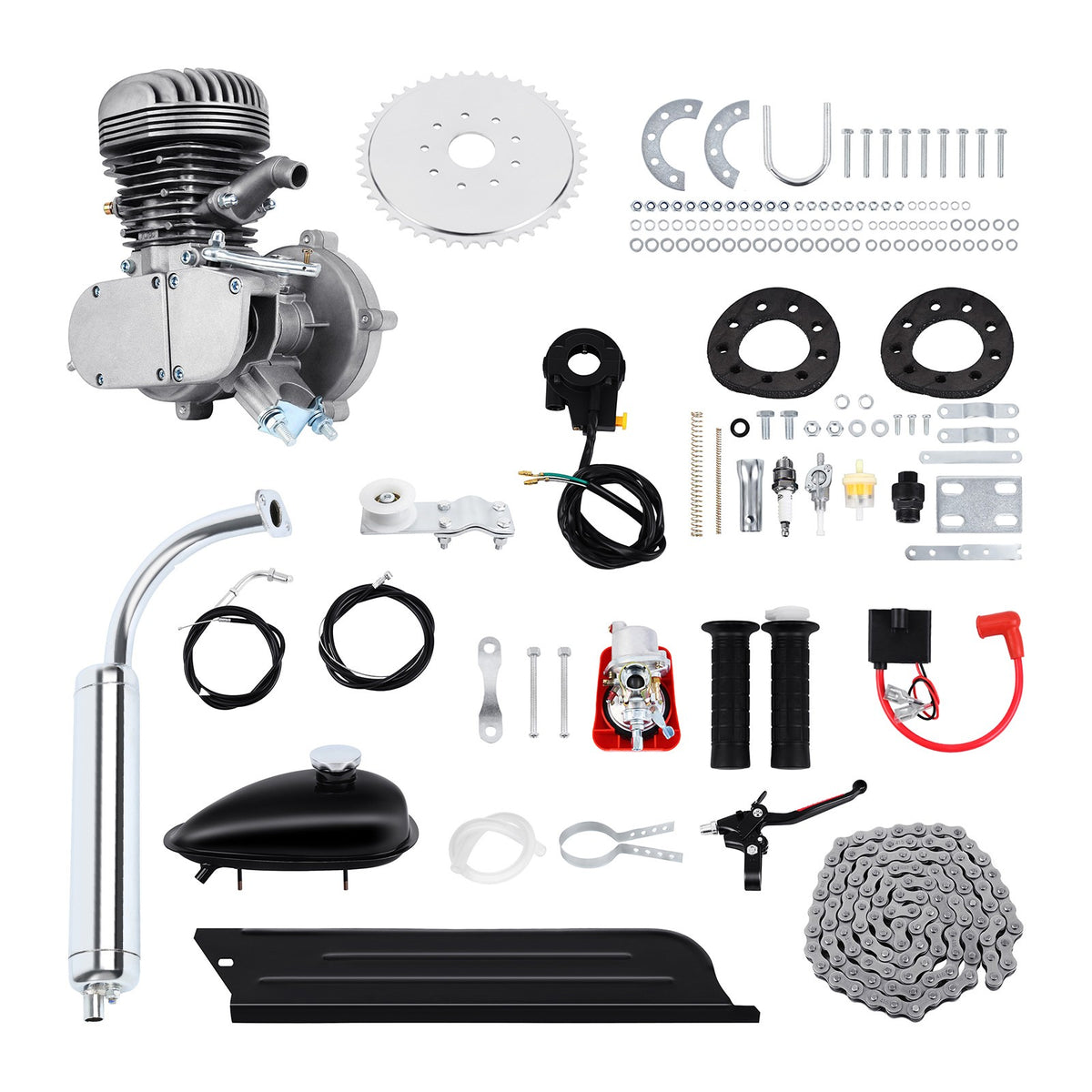

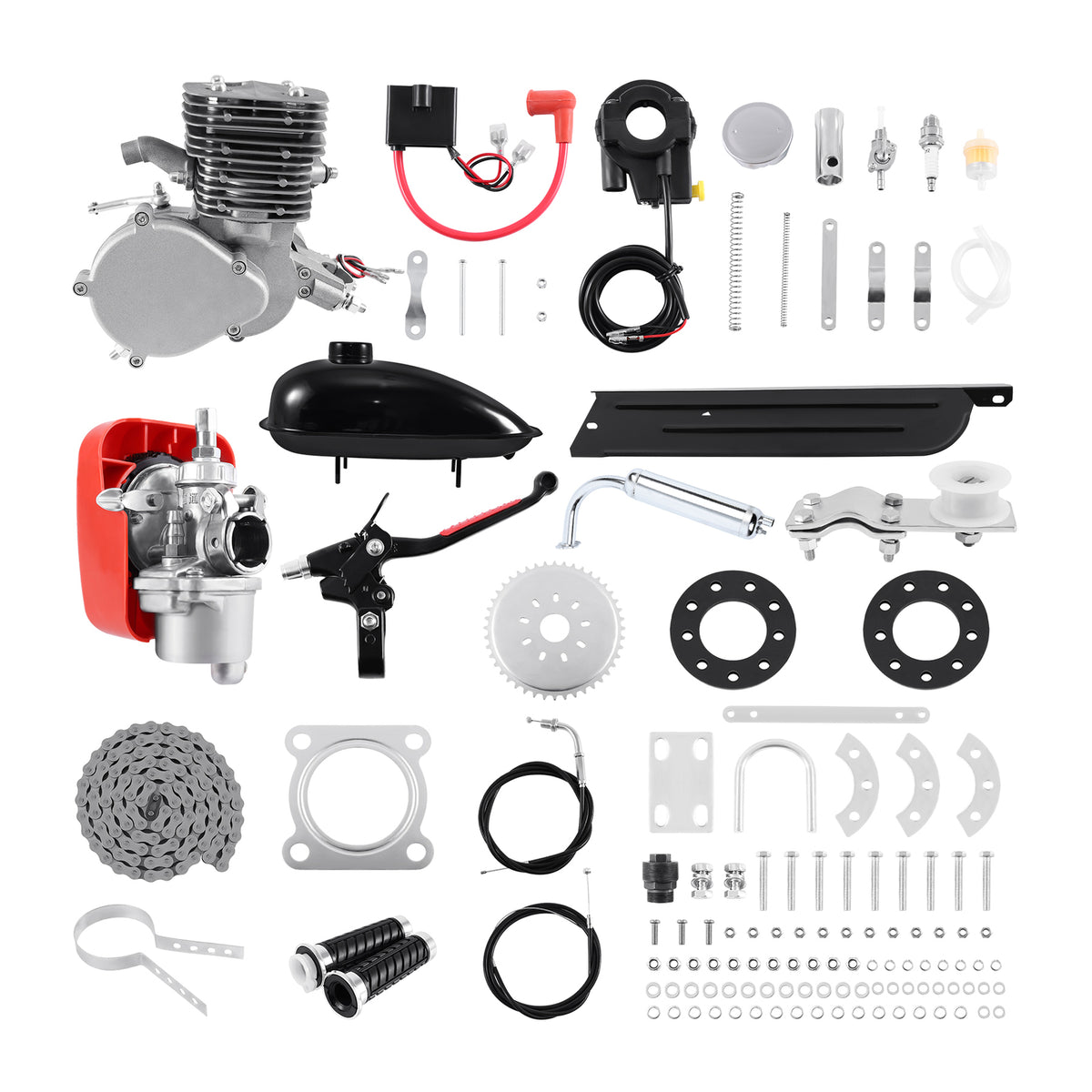

Package included:

• 1x Silver 80cc 2-stroke engine

• 1x Sprocket clamp assembly with hardware

• 1x Exhaust muffler

• 1x Push button clutch

• 1x Heavy duty chain

• 1x Bearing chain tensioner / idler

• 1x Carburetor

• 1x CD ignition coil

• 1x Kill switch (on throttle)

• 1x Chain guard

• 1x Spark plug

• 1x Black gas tank with mounting brackets

• 1x Exhaust pipe clamp

• 1x Plug removal tool

• 1x Manual

• All the needed mounting brackets, gaskets, and hardware

Note:

• The kit includes all the parts and instructions necessary to convert your bike.
• Please also keep in mind that the motor will use a mix of gasoline and oil. The oil is used as a lubricant. Without it, the performance and longevity of the motor will be reduced. Please refer to the manual for further information including gasoline/oil ratios.
• If you have any questions,please contact us for technical solutions.

#80CC W/ Digital Speedometer

Specifications:

• Type of Engine: 80 Feet Start Engine
• Model of Engine: Single Cylinder air cooling 2 stroke
• Bore & Stroke: 47x40mm=80cc
• Rated Power: 2.5KW/5000r/min
• Max. Power: 3.5KW/6000r/min
• Ignition Model: CDI
• Compression Ratio: 6/0.1
• Driving Ratio: 18/0.1
• Fuel: No.90
• Type of speaking Plug: Z4C 14mm
• Volume of Oil Consumption: 2.5L/100km
• Type Clutch: Friction plate dry
• Cooling Mode:Natural air cooling
• Speed limitation:38km/h
• Net Weight of Main Set: 7KG
• LUB. Oil: Oil of 2 stroke gasoline engine(or oil for 10W/40.10W/30)
• Mixing Ratio of fuel & engine Oil: 16:1 for the new sets/20:1 after running 500km

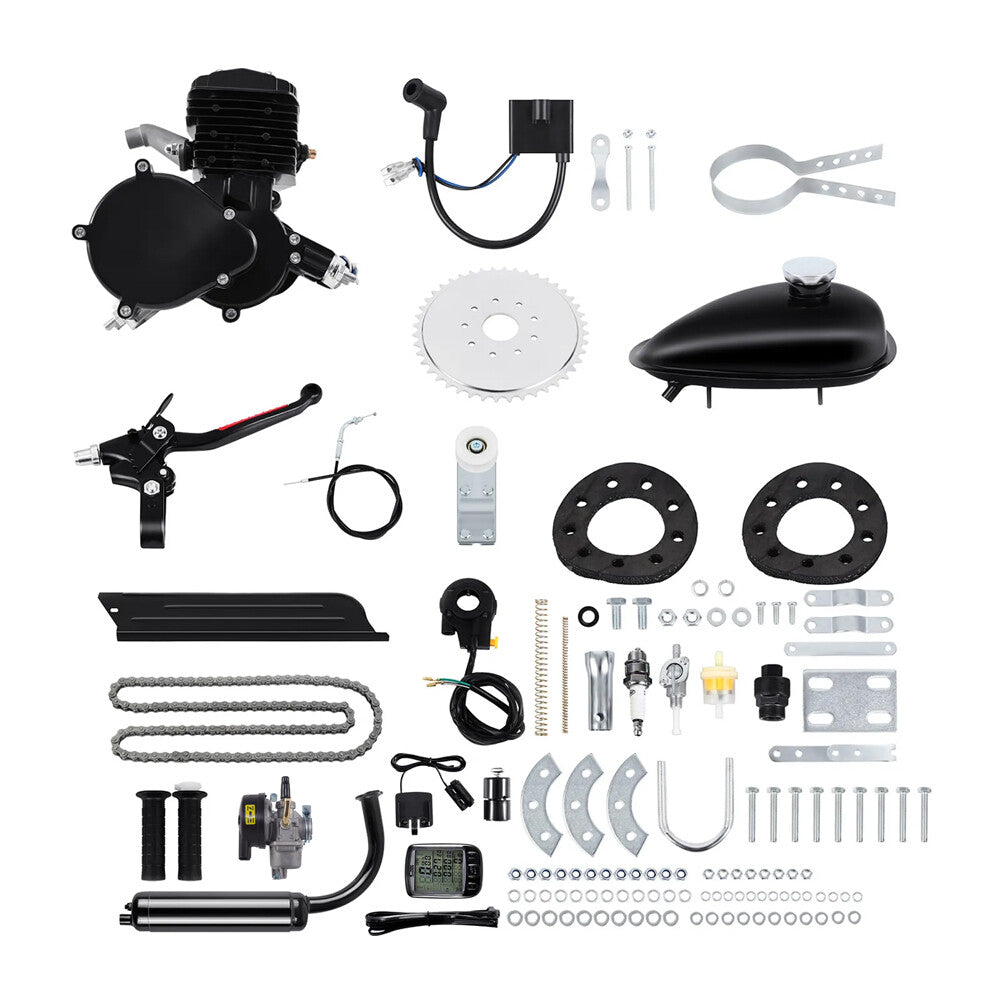

Package Included:

• 1 x 2 Stroke Engine
• 1 x Fuel Tank
• 1 x digital speedometer
• 1 x Fuel Tank Cap
• 1 x Chain
• 1 x Exhaust Pipe
• 1 x Kill Switch
• 1 x Clutch Cable And Throttle Cable,
• 1 x Clutch Lever
• 1 x CDI
• 1 x Carburetor
• 1 x Chain Guard
• 1 x Chain,
• 1 x U Brackets And Bolts
• 1 x Chain Tensioner
• 1 x Exhaust Muffler Fixer
• 1 x Throttle Handle
• 1 x Rubber Sheet
• 1 x Fixed Iron
• 1 x Spark Plug Tool
• 1 x Fuel filter
• 1 x Fuel Valve
• 1 x Spring
• 1 x Spark Plug
• 1 x Fuel line
• 1 x Withdrawal Tool
• 1 x Install Screw

#100cc
