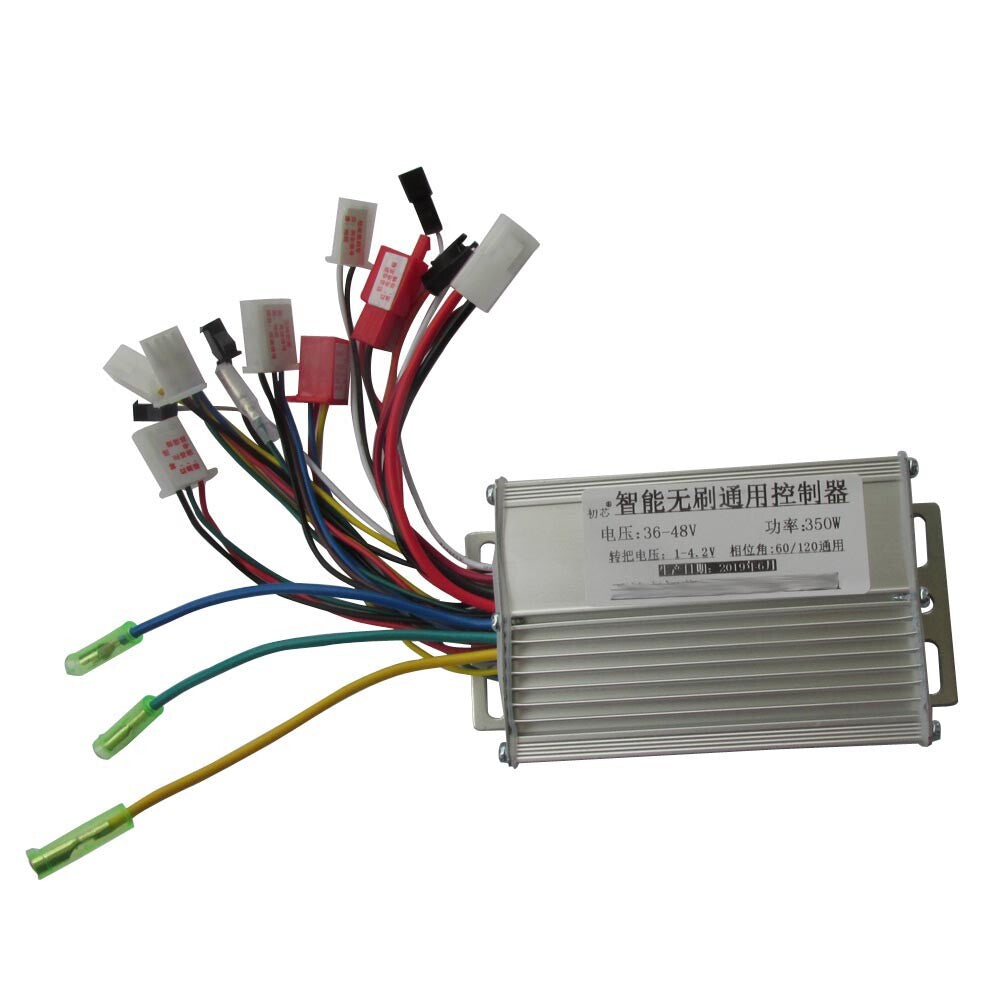

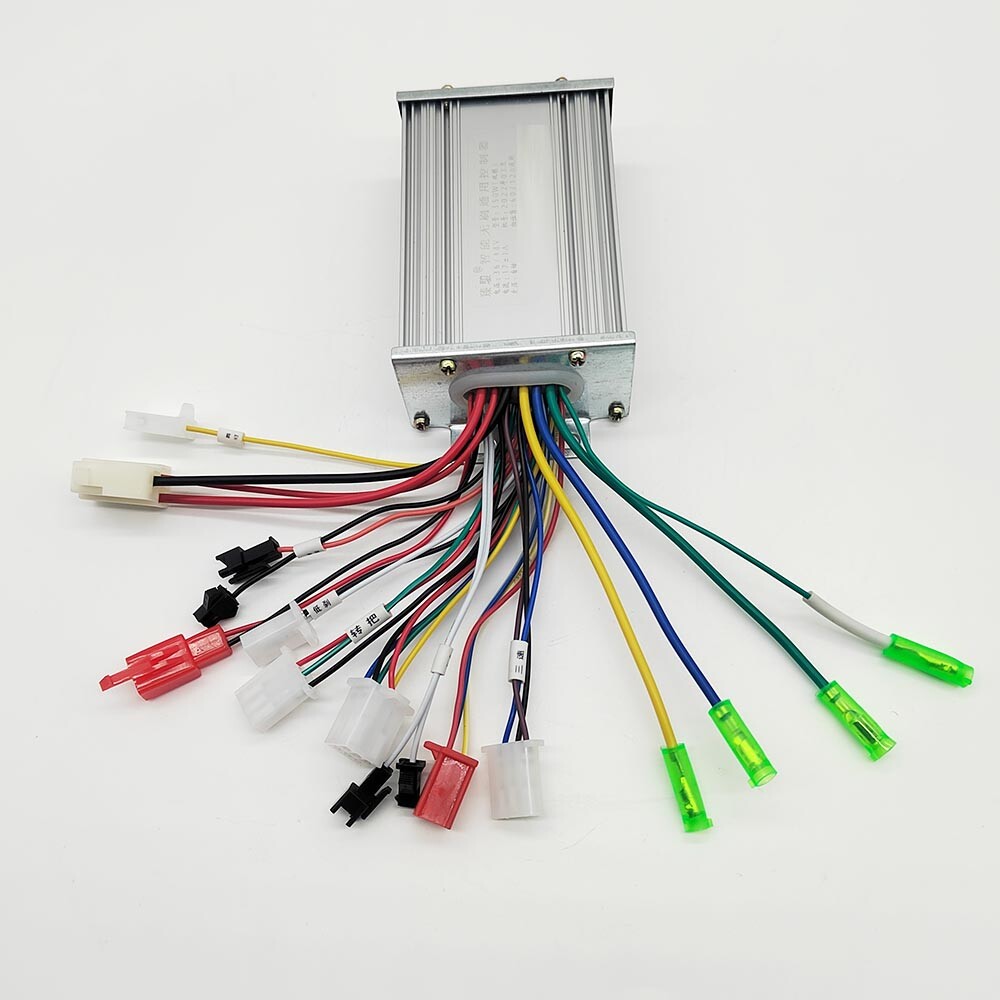

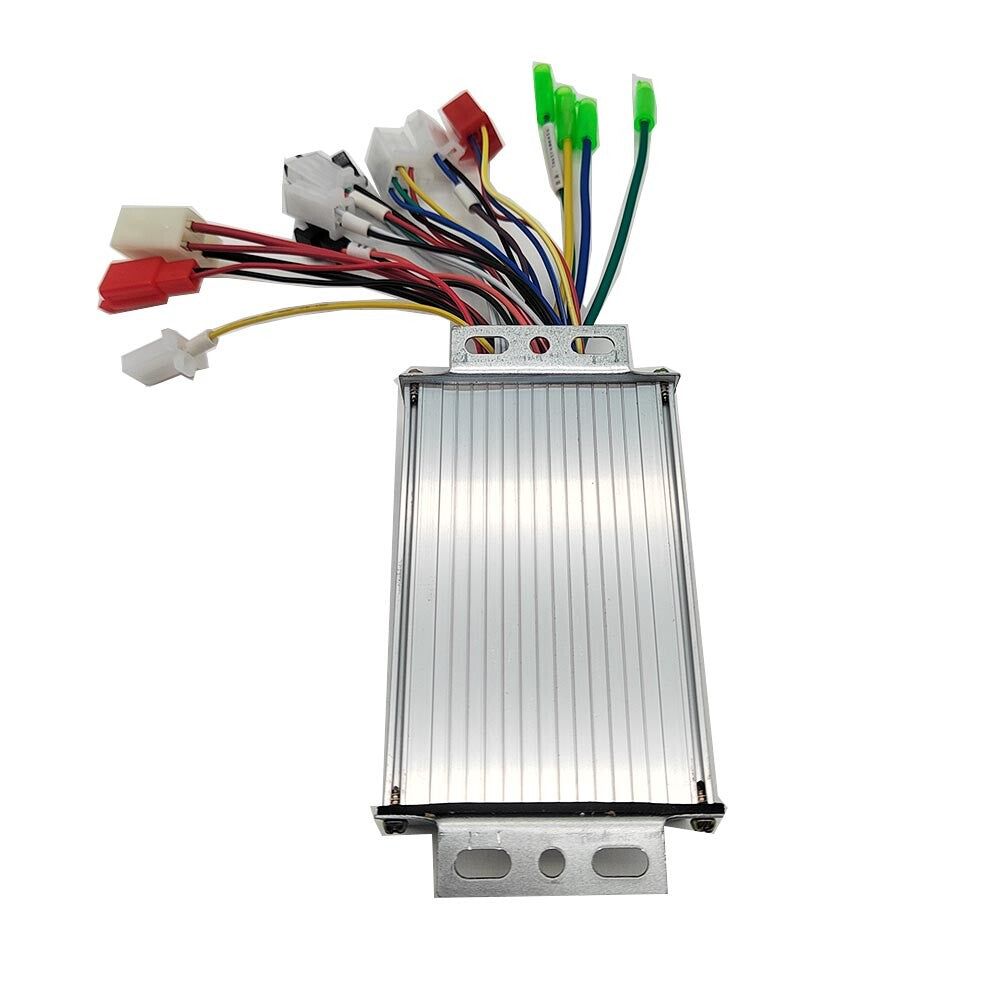

36V-48V 350W Electric Bicycle Motor Controller for E-Bikes & Scooters

36V-48V 350W controller can work with hall sensor/hall sensorless

Rated Voltage: 36V/48V

Low Voltage : 31V/42V±0.5V

Rated Power: 350W

Limit Current: 17A

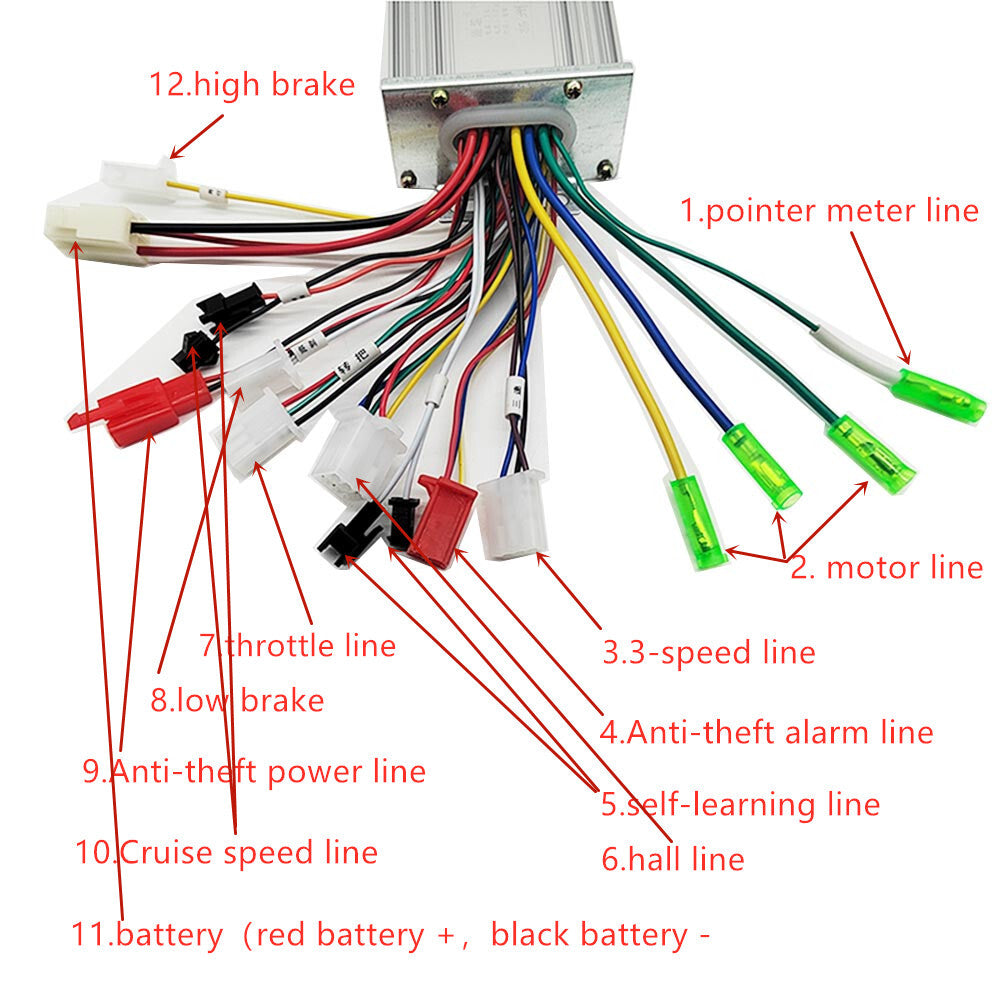

1.pointer meter line

2. motor line

3.3-speed line

4.Anti-theft alarm line

5.self-learning line

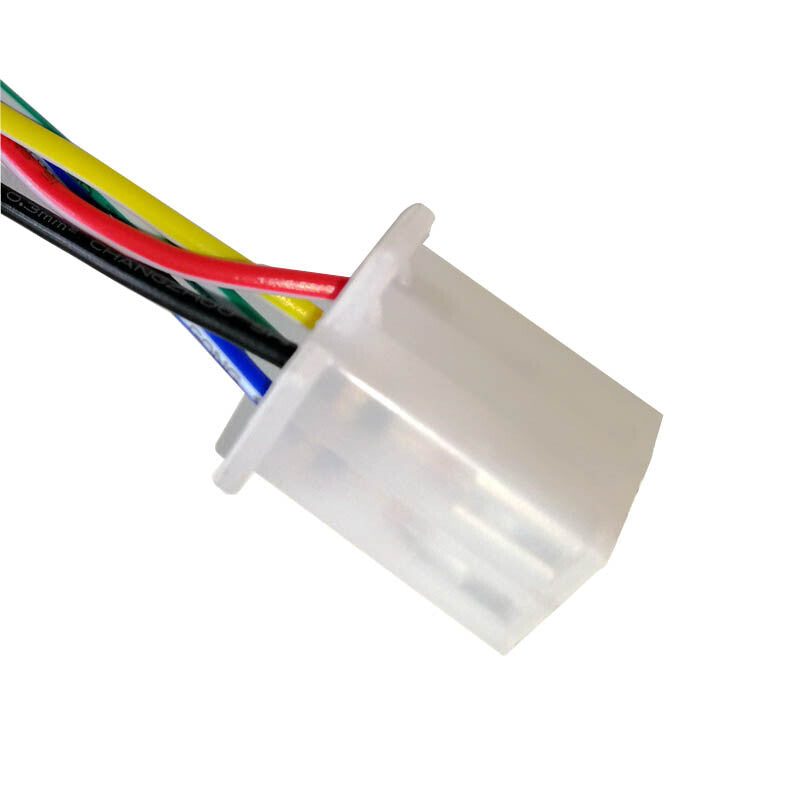

6.hall line

7.throttle line

8.low brake

9.Anti-theft power line

10.Cruise speed line

11.battery（2 red wires battery +，black battery -）

12.high brake

1.connect the motor line (color to color）

2. connect the battery line(2 red wires :battery + , black:battery-)

3. connect the controller throttle line（color to color）

4. connect the hall line(if motor without hall line, don’t need connect)

5.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.)

6.other functions can be connected as needed.
