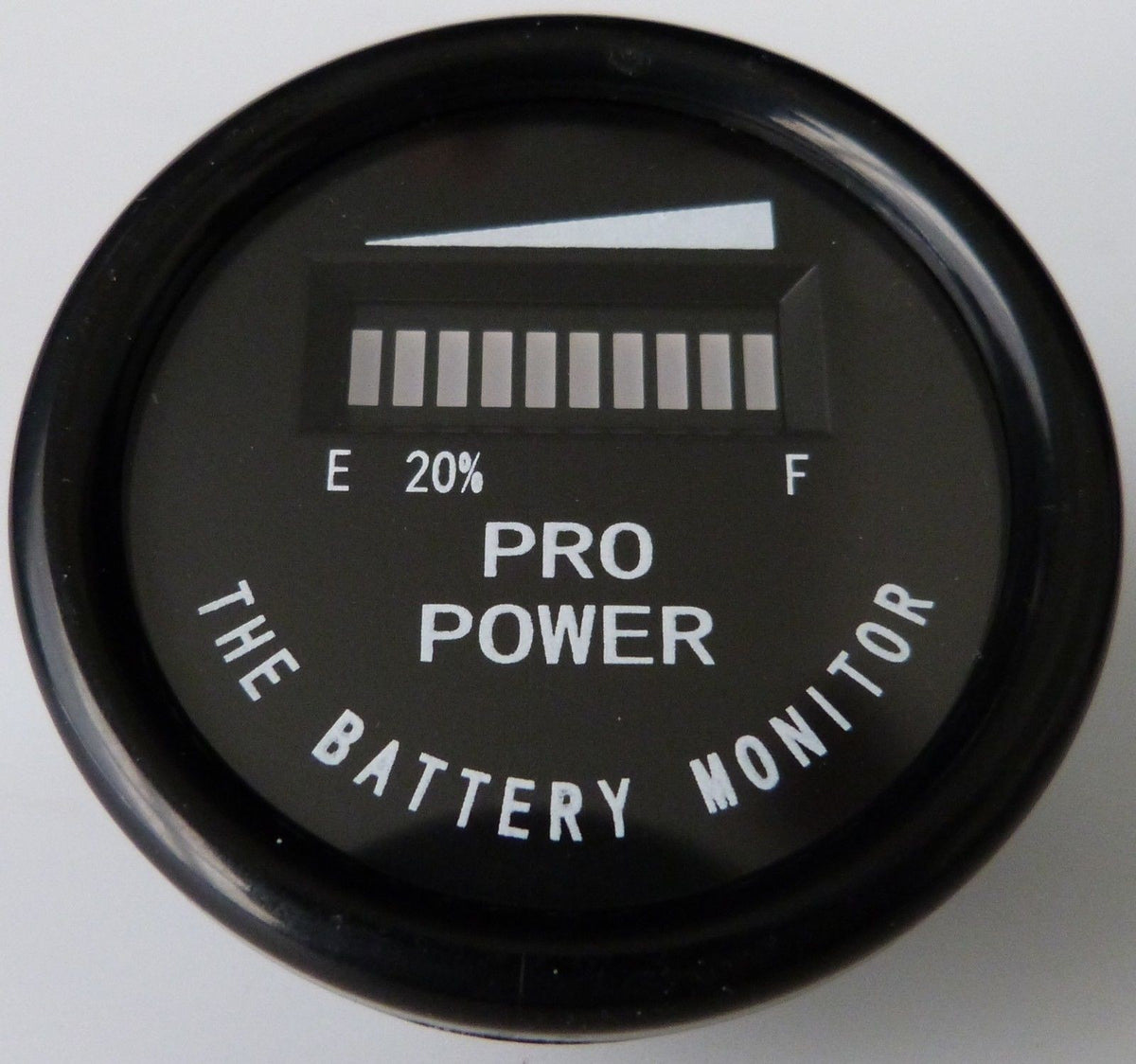

48V Battery Meter Indicator for Golf Carts and Electric Vehicles

48V Battery Meter Indicator for Golf Carts and Electric Vehicles

$68.99 USD
$129.99 USD $68.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

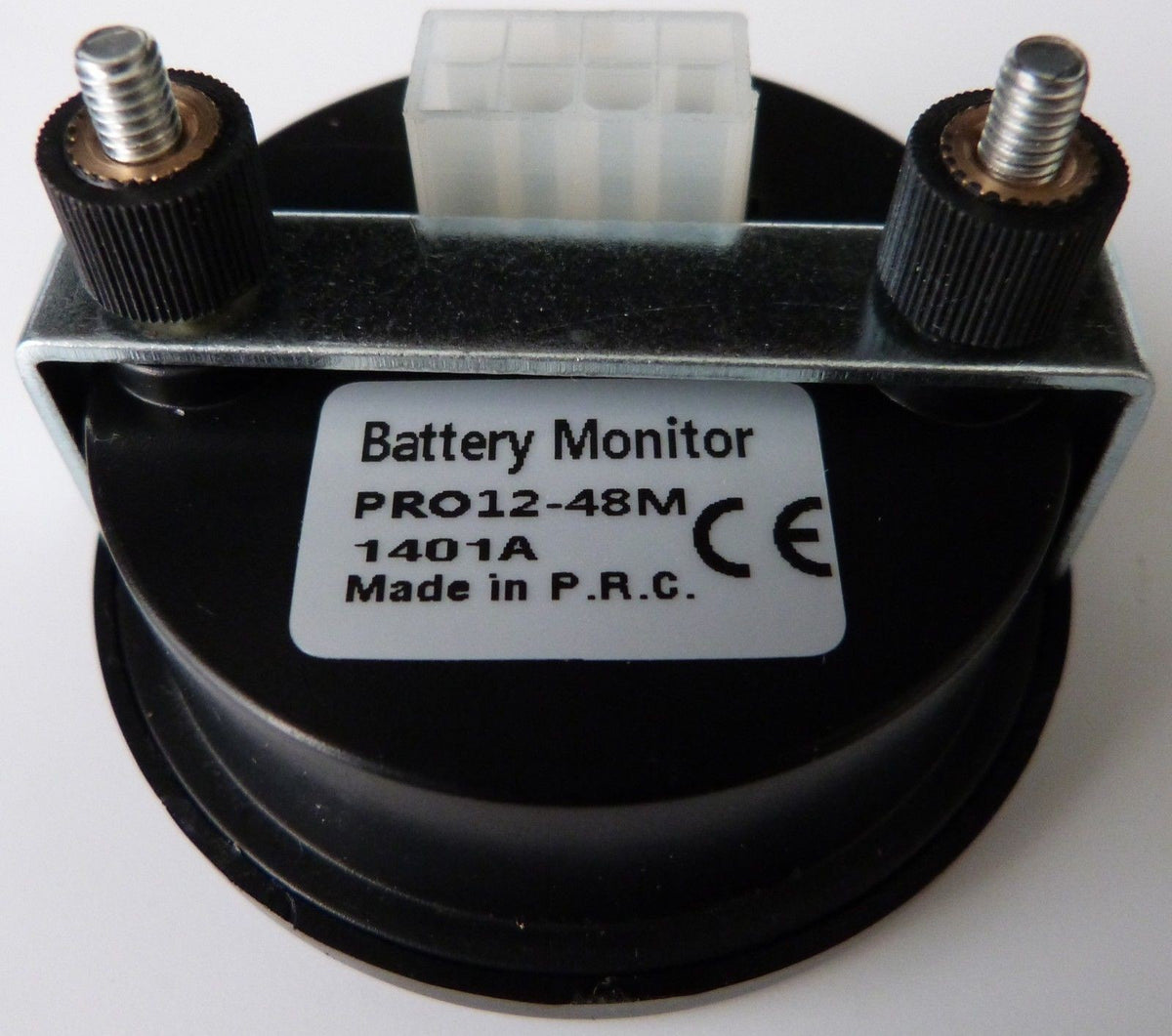

PRO12-48M TM     For 48 Volt Battery Packs

  • Does not work on Optima, Brute Force or Lithium batteries.
  • Works on standard lead acid batteries and the newer generation batteries made by Exide, Trojan, Interstate, Walmart, PowerTron, US Battery and other brands. Check the voltage range below for compatibility before ordering.

  • Standard Lead Acid Batteries that have a state of charge range from 41.5 to 49.3 volts.
  •  New generation batteries with a state of charge range from 46.2 to 50.9 volts.
  • Internal Relay - can be wired for Normally Open or Normally closed operation for controlling secondary devices- limited to 200 ma.
  • Relay opens or closes (depending on how you wire it) when the display shows fully discharged - flashing red #1 and yellow #2 LEDs
  • Can be used on forklifts, golf carts, solar sytems and any other battery powered equipment

  • Battery Status
    • The battery meter has 10 LEDS that will light to show the battery condition. When fully charged, only the 10th LED will light shown a green LED.

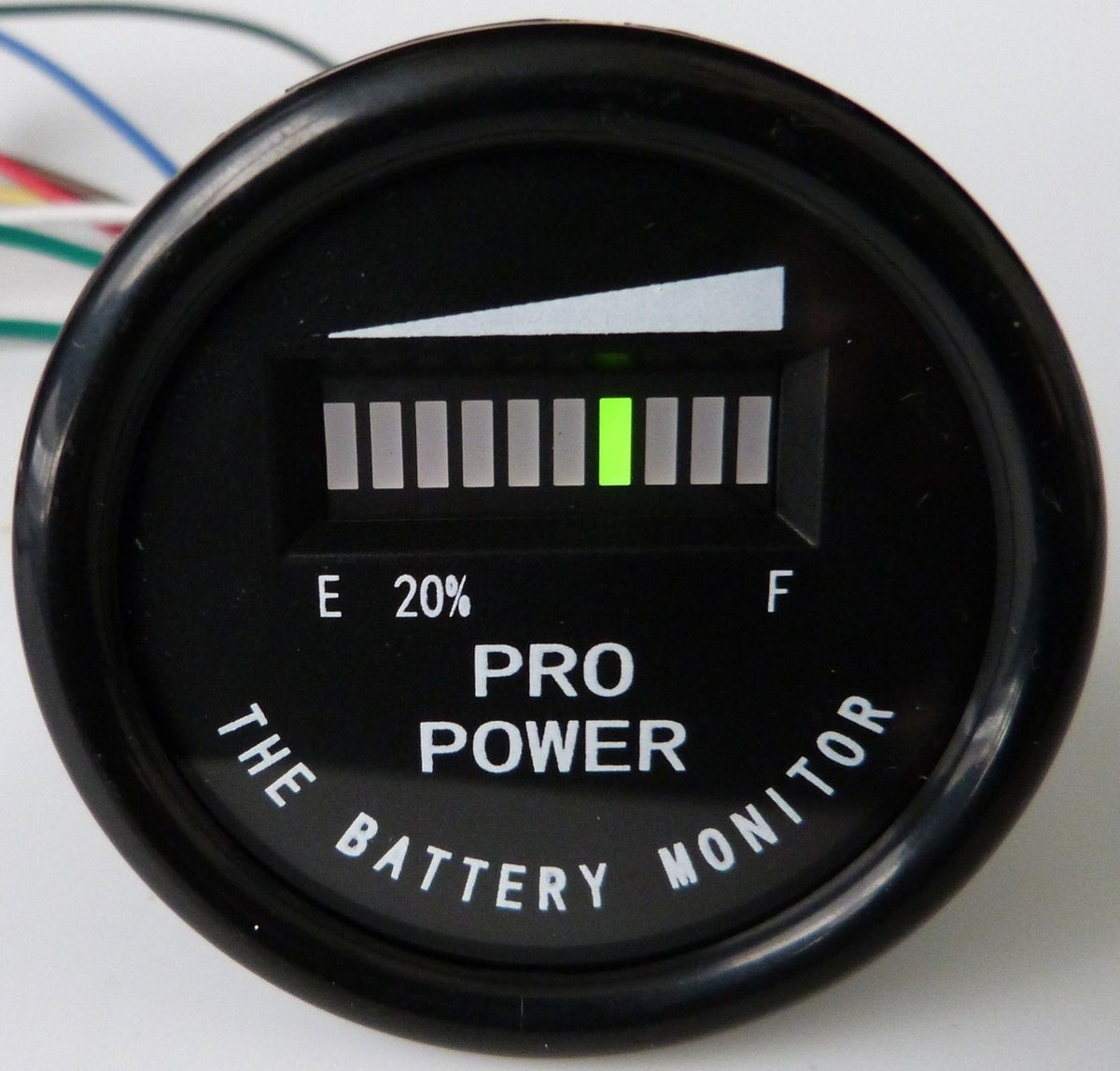

    • As the battery discharges, successively lower LEDs will light; the 9th, 8th, 7th and so on lighting only 1 LED.

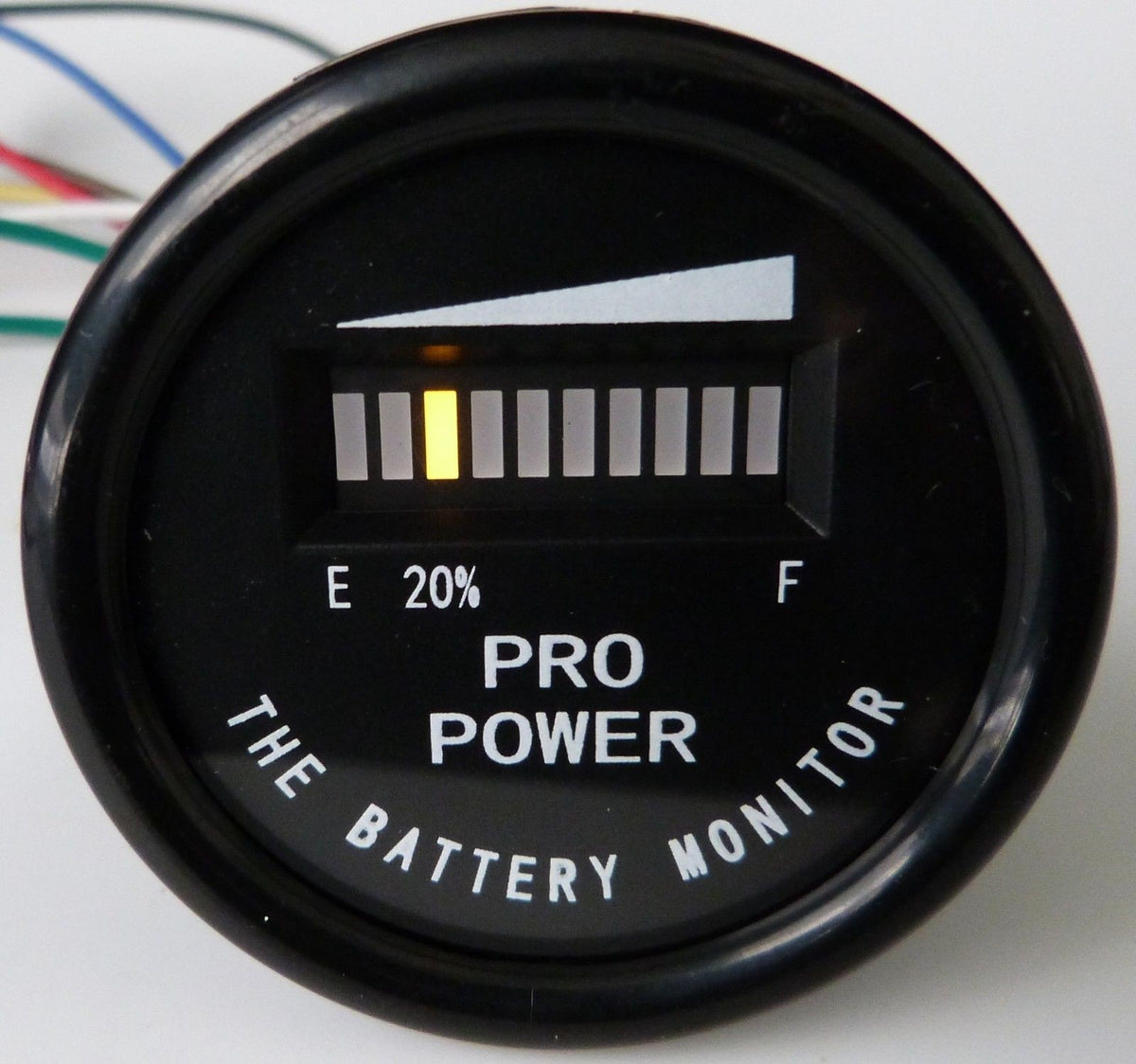

    • At approximately 30% battery life, the #3 LED will light and the color is Yellow as a caution indicator.
    • At approximately 20% battery life remaining, the #2 LED will light as a Flashing Yellow.

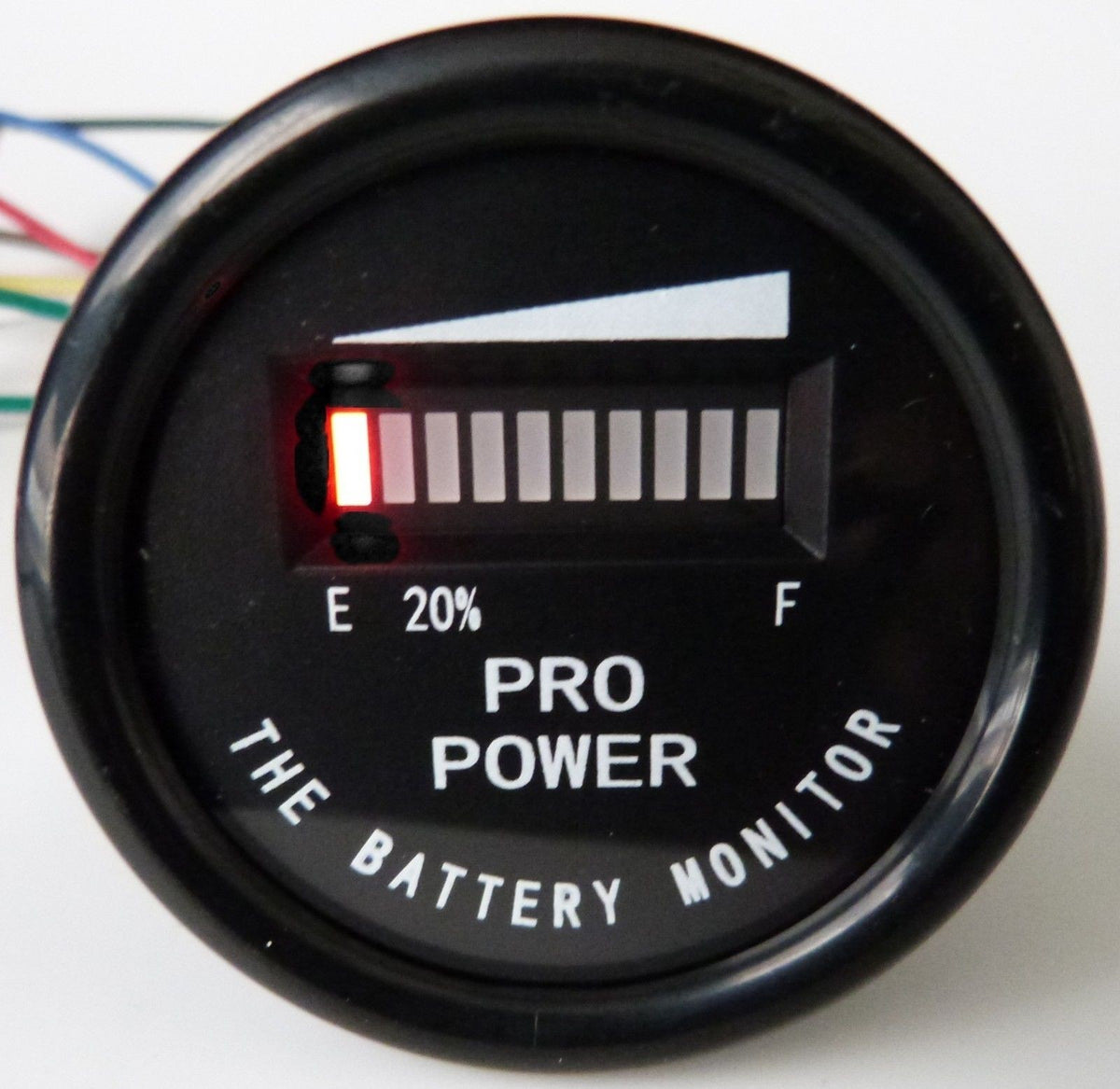

    • When the battery discharges to approximately ~10% remaining life, the #1 LED will start FLASHING RED with the #2 LED FLASHING Yellow alternately.

      It is recommended to have the battery or batteries recharged when the #3 LED lights Yellow as a safety margin to prevent dead batteries.

      CAUTION: This is not a full proof device and no warranty is made that your battery/batteries is/are in good condition.

      Reading

      10 LEDs, #10 being fully charged and #1 being fully discharged

      Voltage Indicator Range for Golf Carts, Fork Lift Trucks and other battery powered equipment.

      48 Volt Range - Cruve #1 49.31 volts Full; 41.52 volts Empty

      48 Volt Range - Cruve #2 50.88 volts Full; 46.23 volts Empty

      Weight

      2 Ounces

      Voltage Supply

      48 Volts DC

      Temperature Range

      -40 to 185 Fahrenheit; -40C to 85C

      Power Consumption

      20 ma max (0.020 Amps)

      Dimensions
      • OD   2.25"

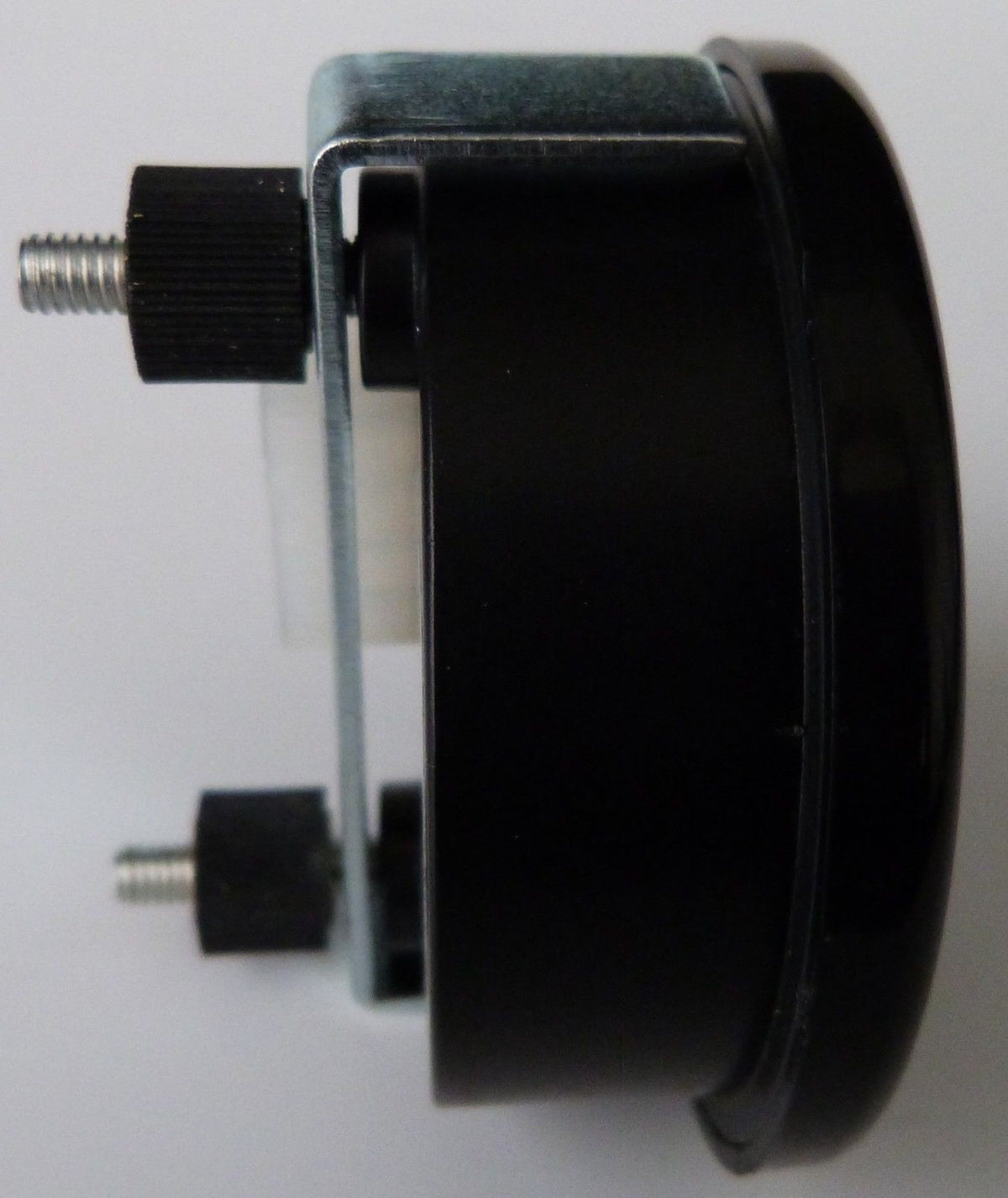

      • Depth Behind front meter flange to end of mating female connector - 1 7/16 inches
      • Hole size - 2 "
