Adjustable Stainless Steel Rocket Launcher Rod Holders for Fishing Boats — 4 to 8 Tubes

Product Description

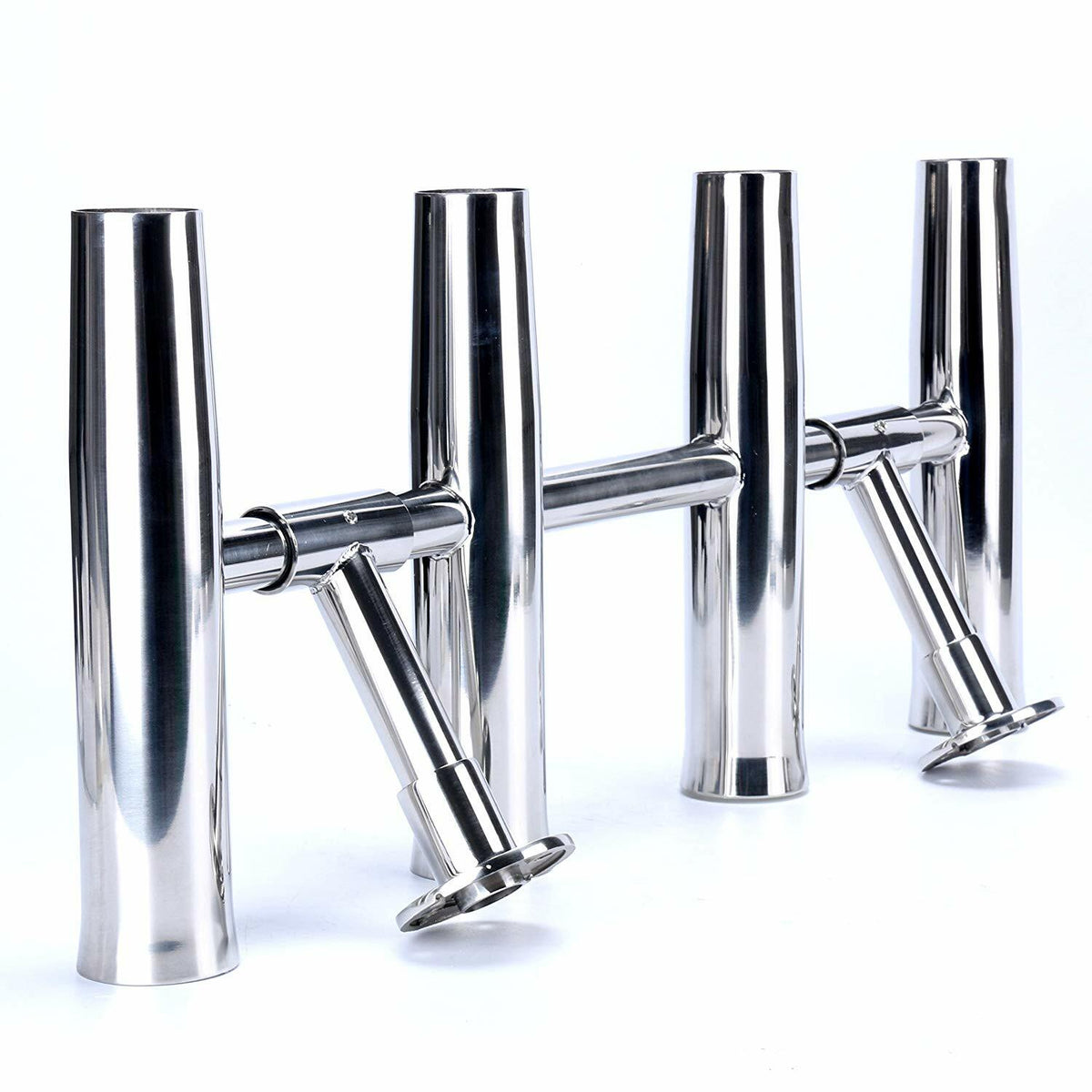

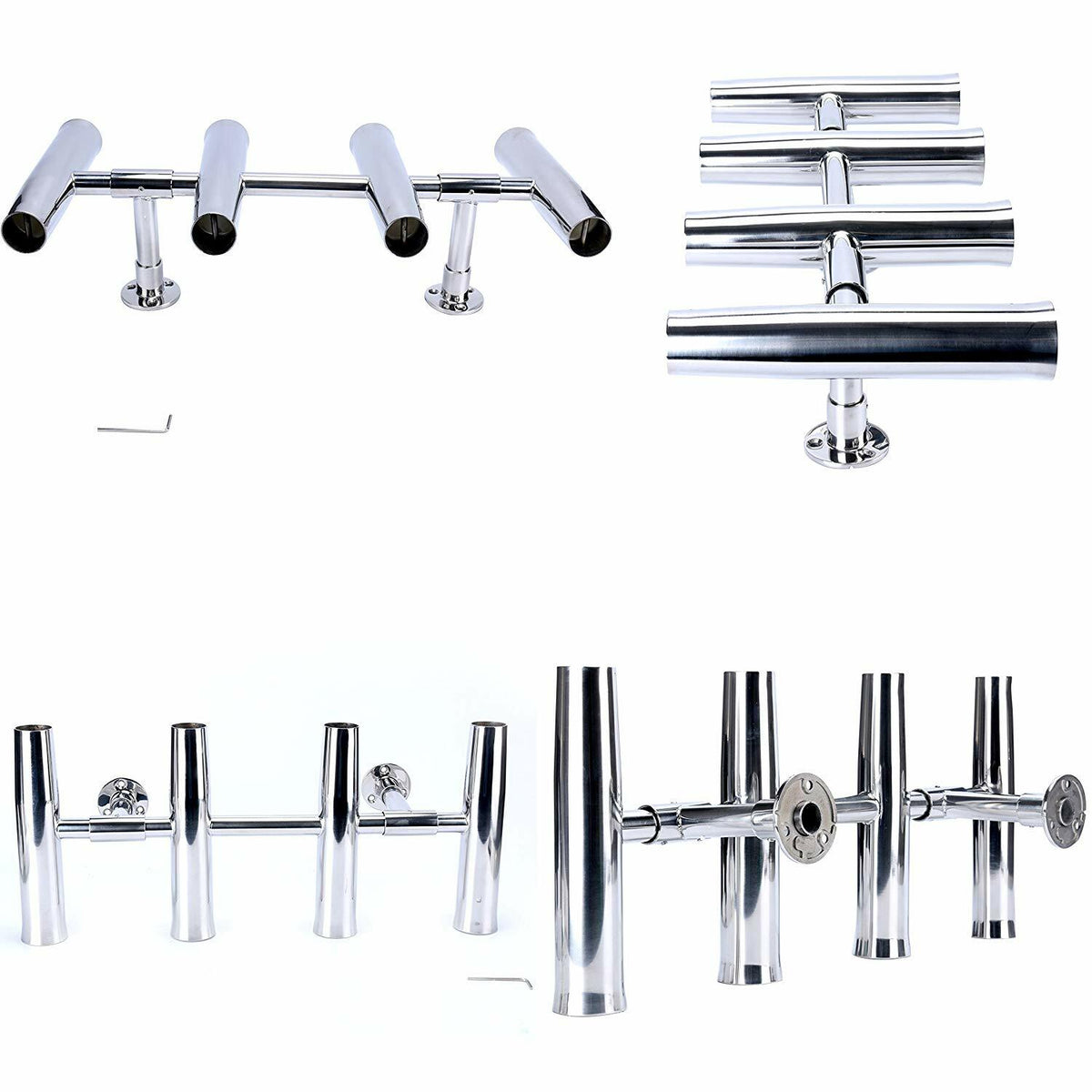

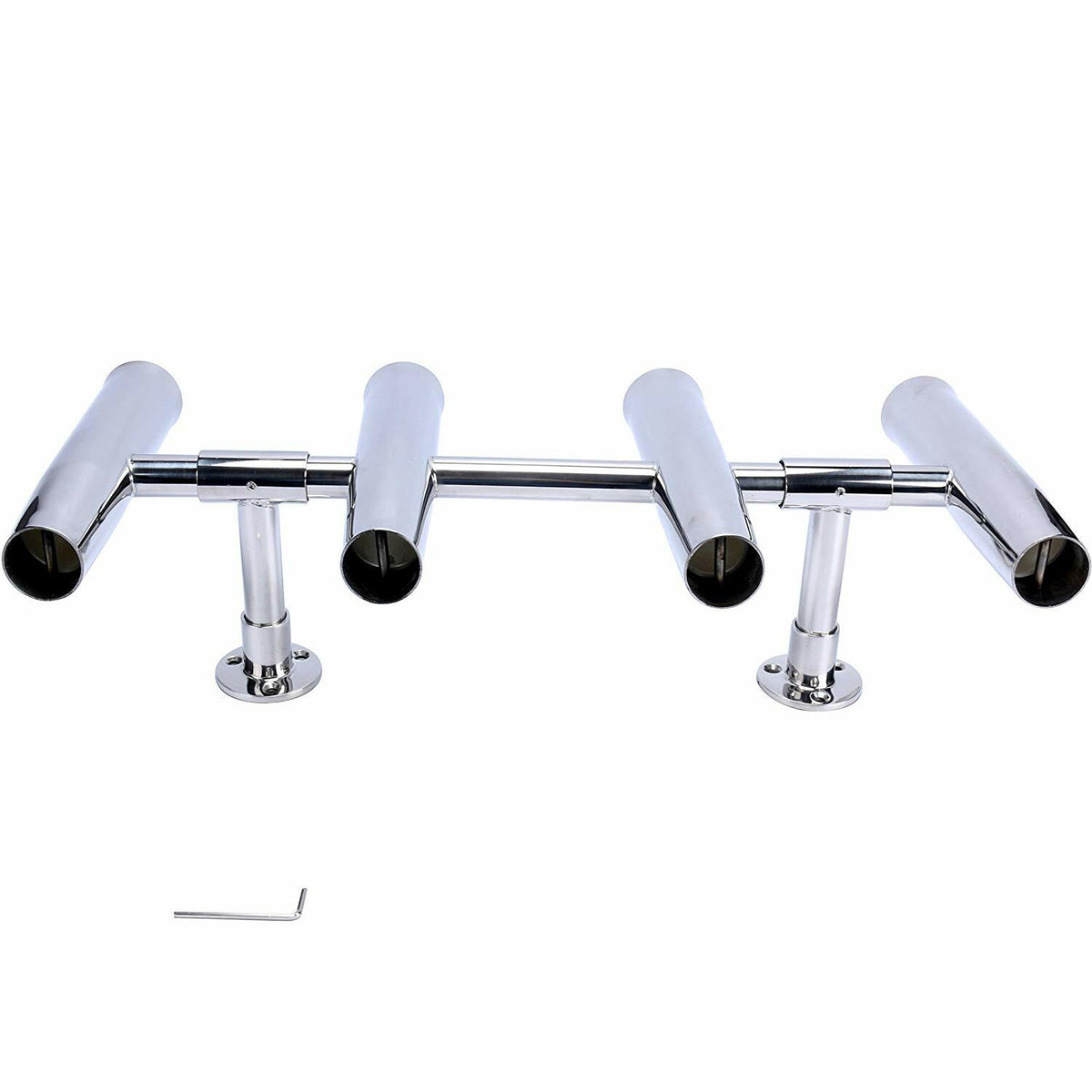

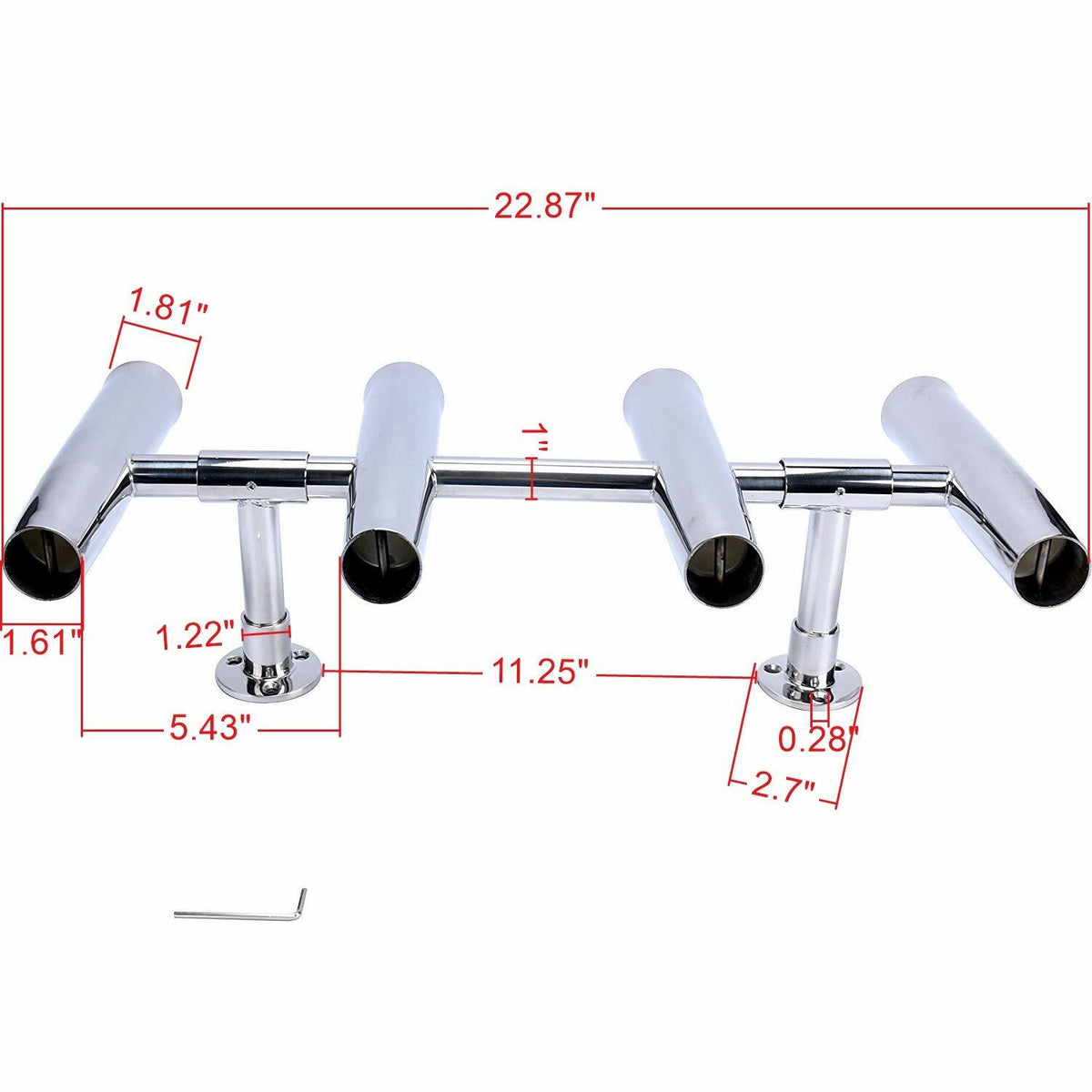

#1:4 TUBE 2 Leg , Adjustable Arched 304 Stainless Steel

This rack may be adjusted "as one " to the angle you need

Fishing rod holders 23" 1/2  overall length over height 13 inches ..

All 4 Rod tubes adjust as one to a angle of choice  , rod tubes do not adjust independently .

All 304 Stainless Steel with # 7 polish .#10 being flawless and #8 being a mirror , silver in color.

Rod Tubes are 10 inches long 2" inch diameter on 7 inch centers leaving a 5 inch space between tubes. .065 or 1/16th inch wall thickness and have a full length PVC liner. Cross tubes are 5 inches in length 1 inch diameter with a wall thickness of .065 or 1/16th of an inch.

4 Rod holder tubes are on 7” centers.    2” diameter and 10.25” in length with welded base pins.

2 Stand/off's or legs are 5 and 1/2 long 1 inch diameter with a wall thickness of .065 or 1/16th of an inch. Collar Stand/off and base plate and base tube are .120 or 1/8th thickness, base plats are cast forged.

base plate tube have two 1/4 inch by 20 allen type set screws.

3/4 Length #16 that requires a 9/16th socket on a short extension to tighten, it is concealed inside the stand/off leg.

Screws are not included

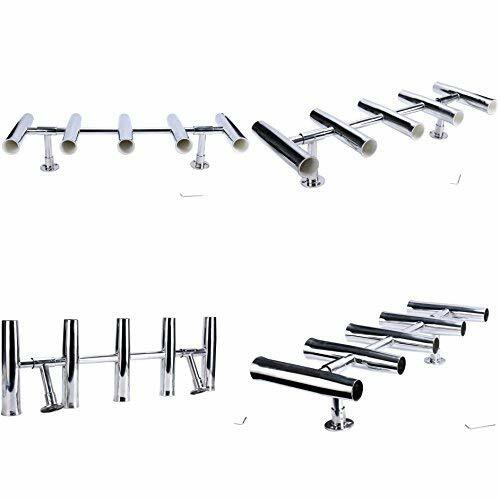

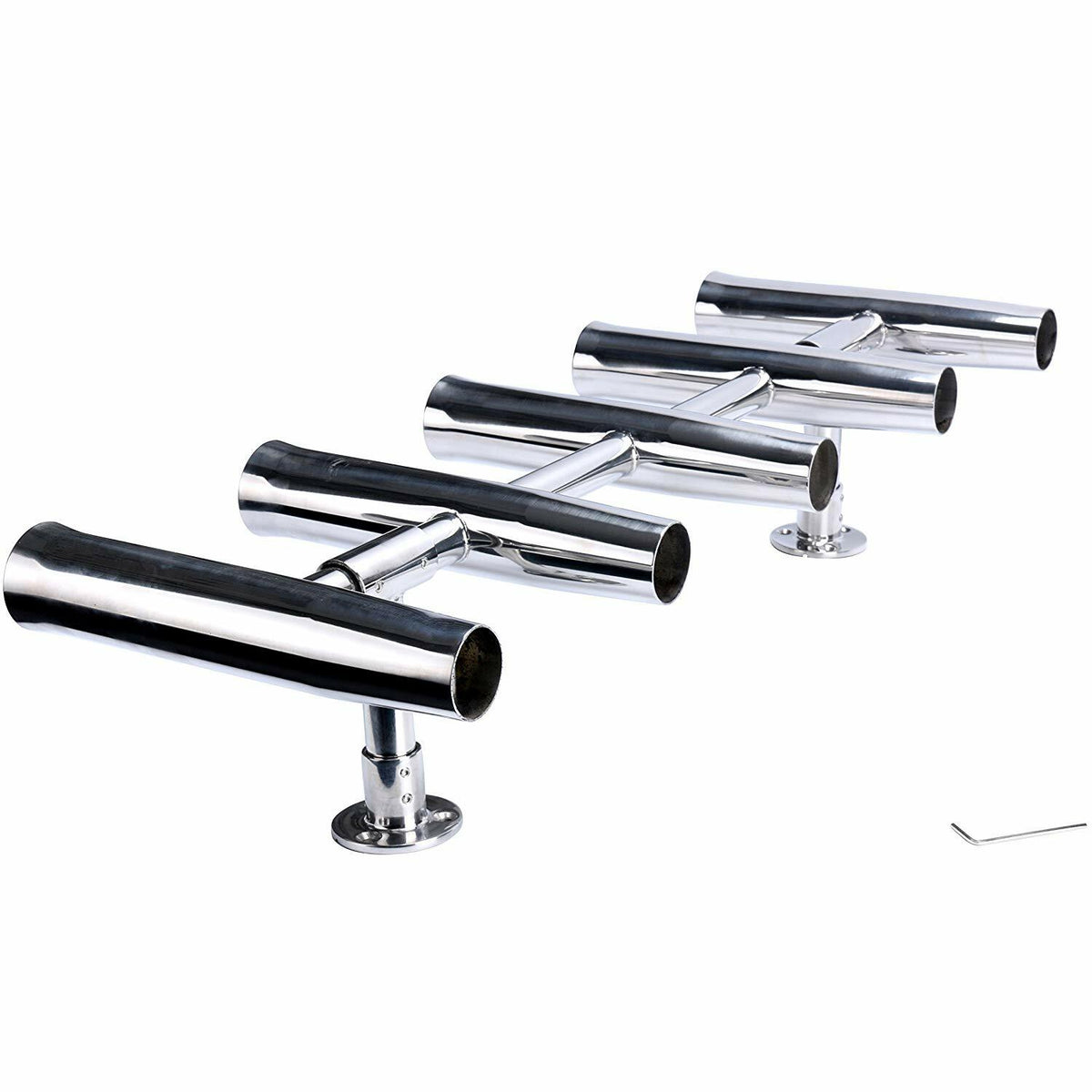

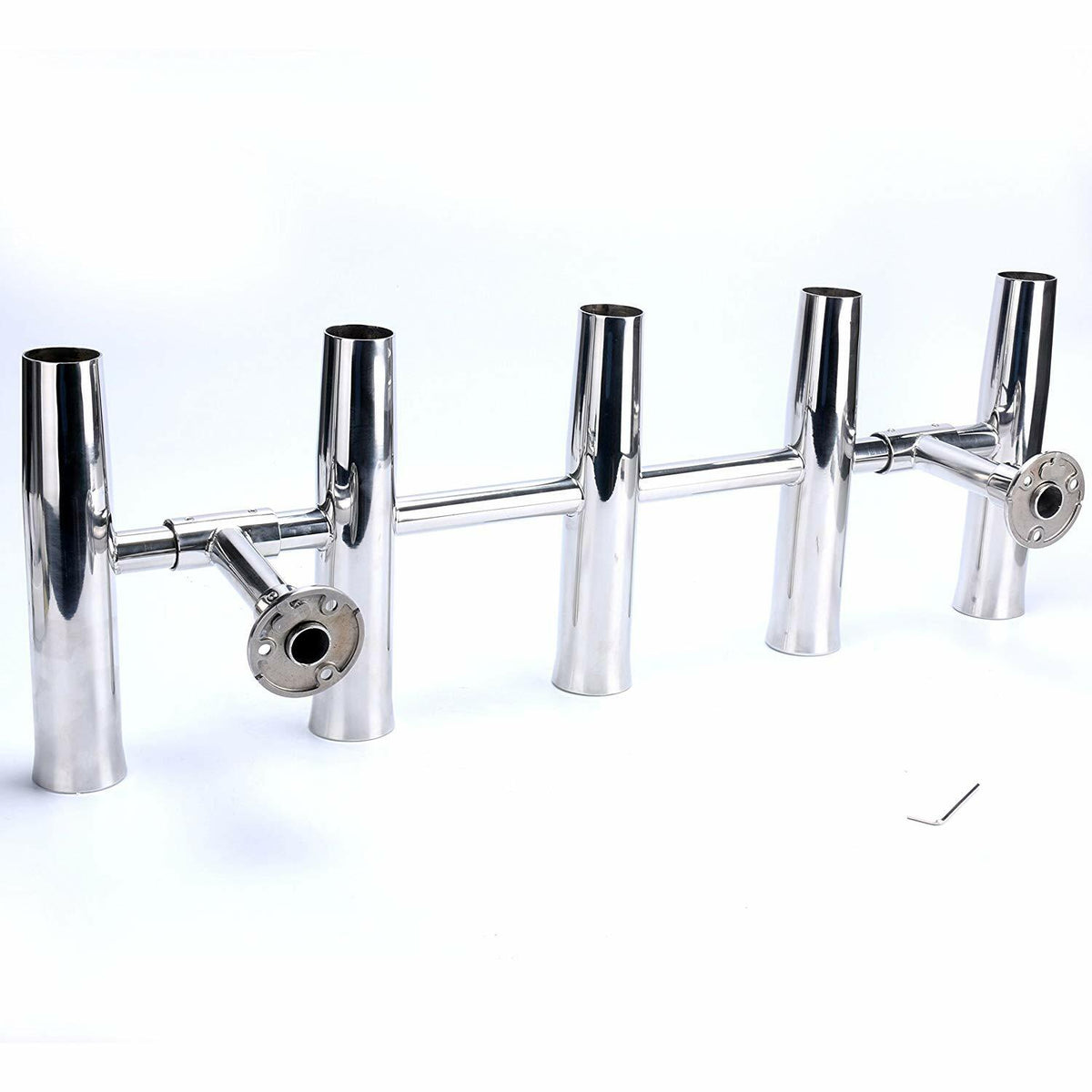

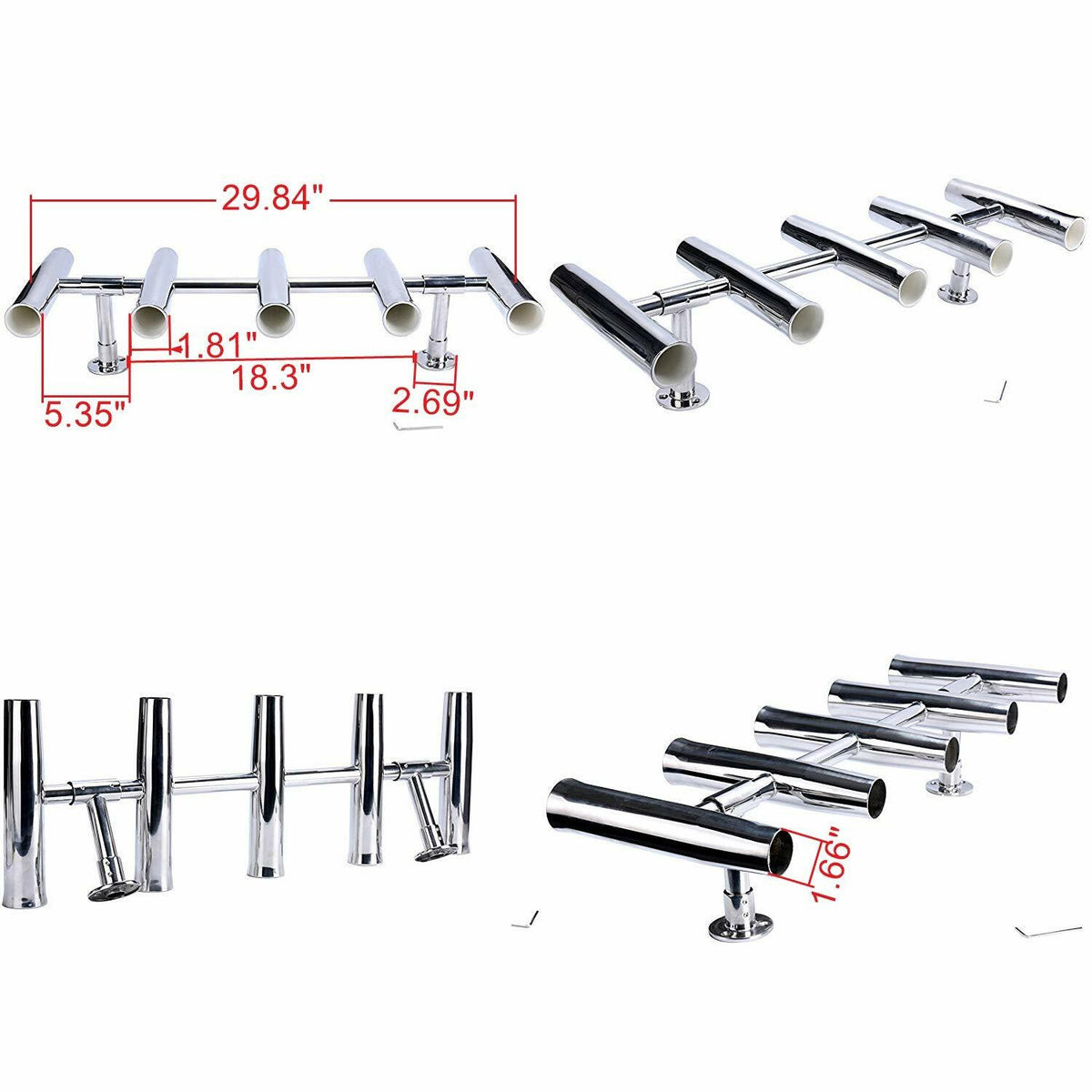

#2:5 Tube Adjustable Stainless Rocket Launcher Rod Holders , Can be Rotated 360 Deg

This rack may be adjusted "as one " to the angle you need ,

Fishing rod holders 30"  overall length over height 13 inches ..

5 Rod holder tubes are on 7” centers.    2” diameter and 10.25” in length with welded base pins.

All 304 Stainless Steel with # 7 polish .#10 being flawless and #8 being a mirror , silver in color.

Rod Tubes are 10 inches long 2" inch diameter on 7 inch centers leaving a 5 inch space between tubes. .065 or 1/16th inch wall thickness and have a full length PVC liner. Cross tubes are 5 inches in length 1 inch diameter with a wall thickness of .065 or 1/16th of an inch.

2 Stand/off's or legs are 5 and 1/2 long 1 inch diameter with a wall thickness of .065 or 1/16th of an inch. Collar Stand/off and base plate and base tube are .120 or 1/8th thickness, base plats are cast forged.

base plate tube have two 1/4 inch by 20 allen type set screws.

by 3/4 Length #16 that requires a 9/16th socket on a short extension to tighten, it is concealed inside the stand/off leg.

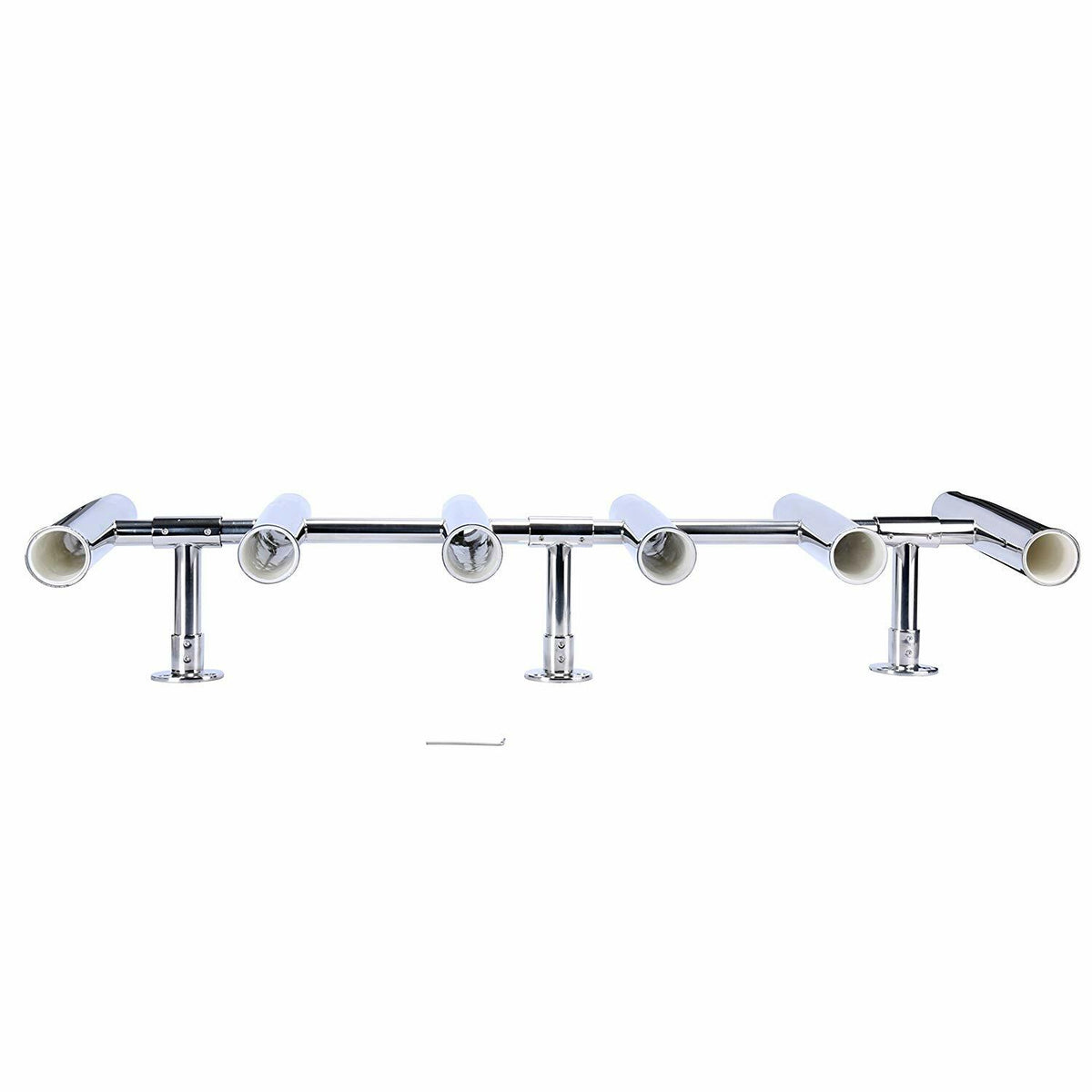

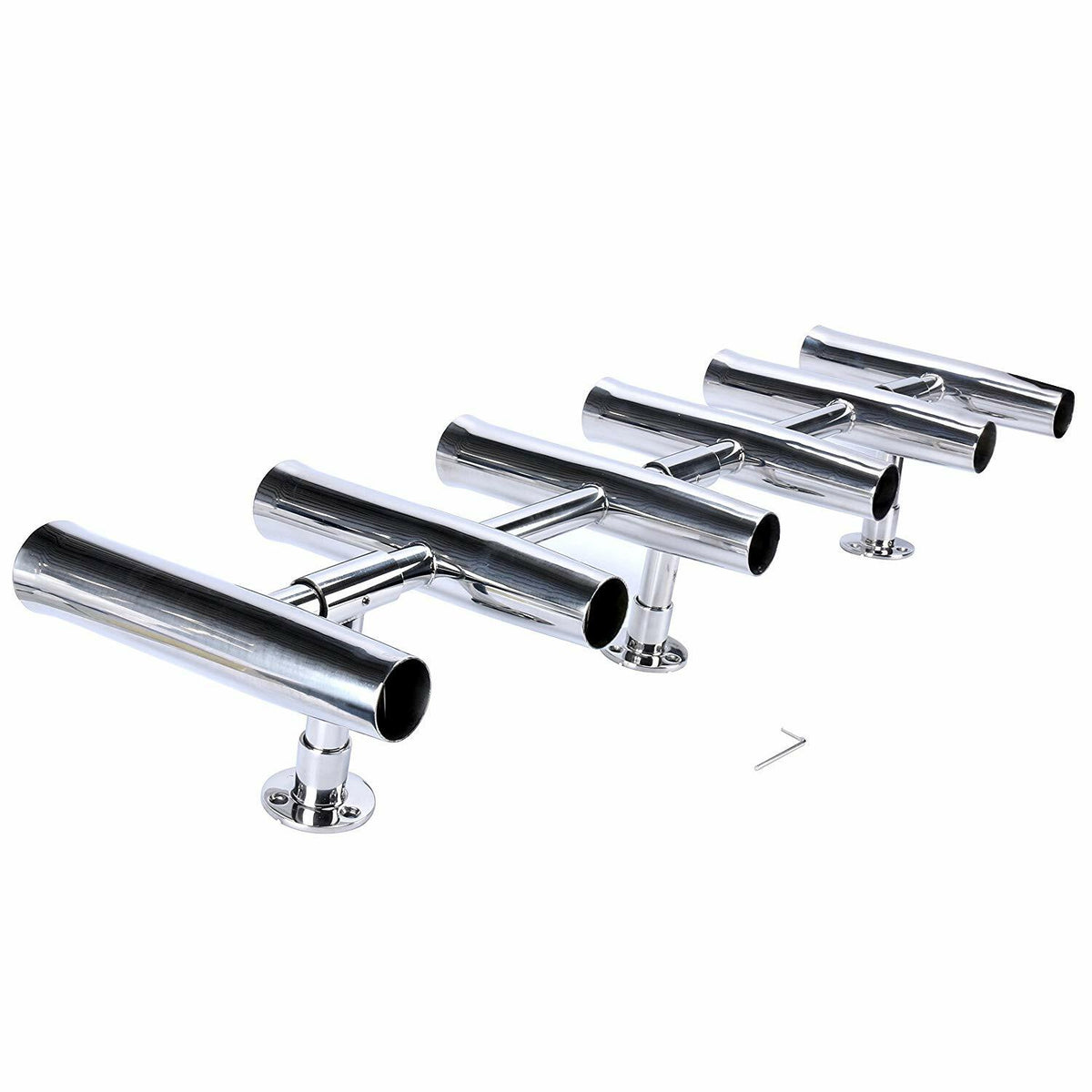

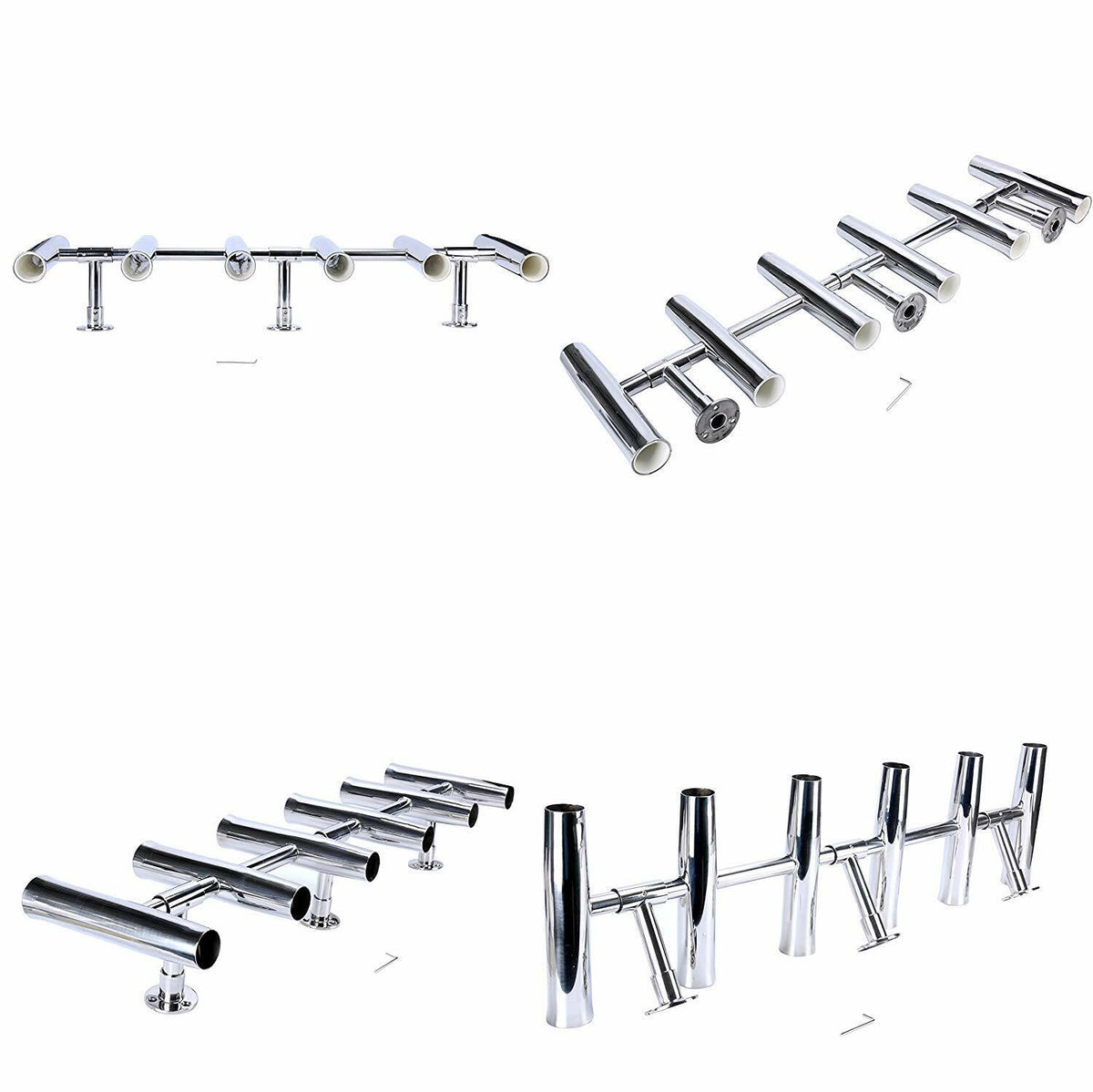

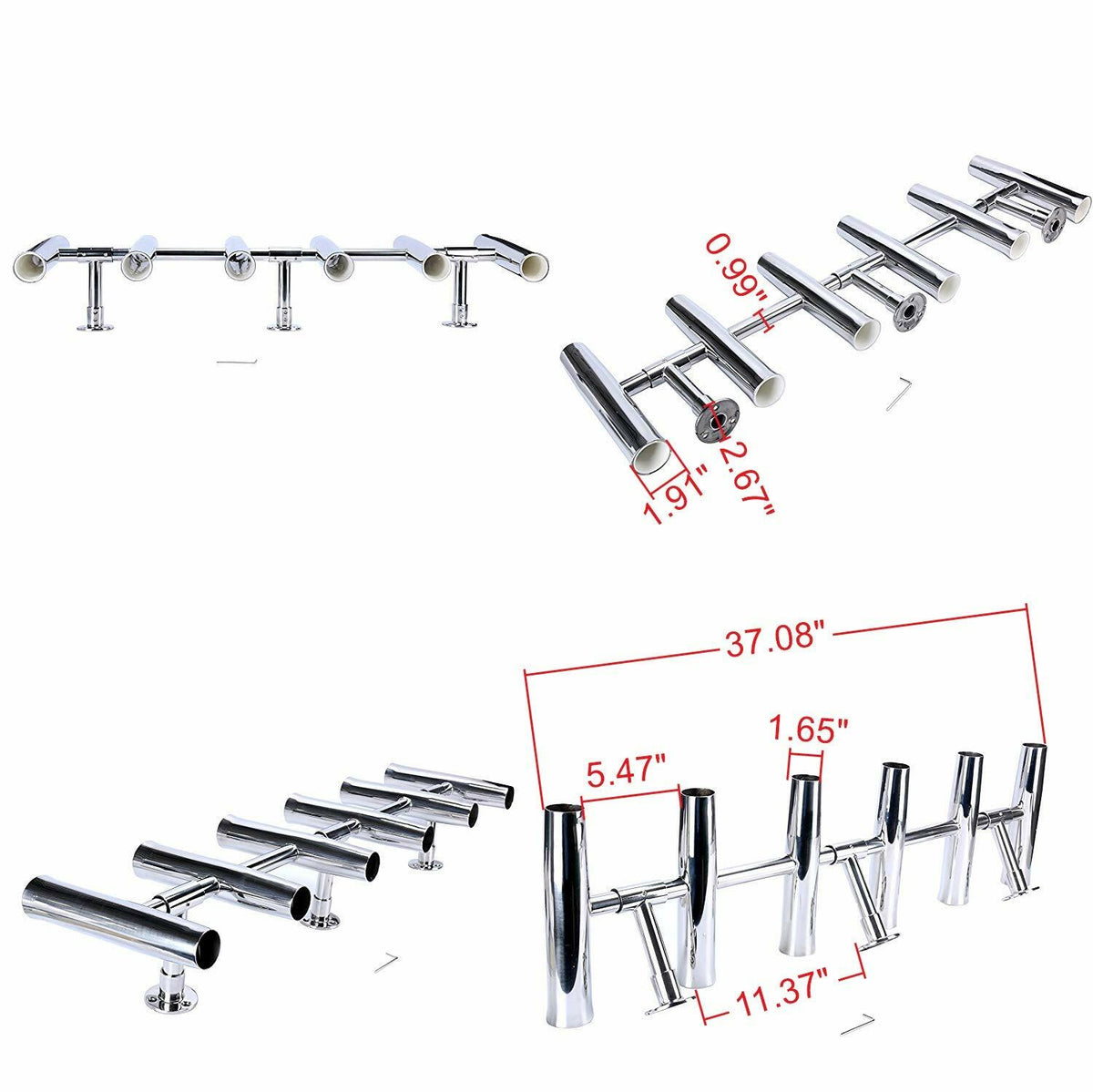

#:6 TUBE 3 Leg , Adjustable ,304 Stainless Steel .

This rack may be adjusted "as one " to the angle you need ,

Fishing rod holders 35-1/2"  overall length over height 13 inches ..

6 Rod holder tubes are on 7? centers.    2? diameter and 10.25? in length with welded base pins.

All 304 Stainless Steel with # 7 polish .#10 being flawless and #8 being a mirror , silver in color.

Rod Tubes are 10 inches long 2" inch diameter on 7 inch centers leaving a 5 inch space between tubes. .065 or 1/16th inch wall thickness  and have a full length PVC liner.

Cross tubes are 5 inches in length 1.1 inch diameter with a wall thickness of .065 or 1/16th of an inch.

3 Stand/off's or legs are 5 and 1/2 long 1 inch diameter with a wall thickness of .065 or 1/16th of an inch.

Collar Stand/off and base plate and base tube are .120 or 1/8th thickness, base plats are cast forged.base plate tube have two 1/4 inch by 20 allen type set screws.

by 3/4 Length #16 that requires a 9/16th socket on a short extension to tighten, it is concealed inside the stand/off leg.

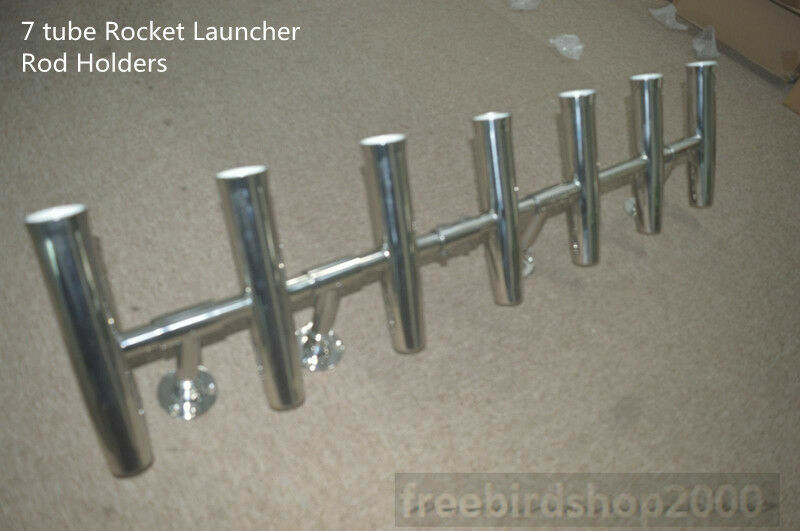

#4:7 Tube Adjustable Stainless Rocket Launcher Rod Holders , 4 Legs , Can be Rotated 360 Deg

Fishing rod holders 44" overall length

All 7 Rod tubes adjust as one to a angle of choice  , rod tubes do not adjust independently .

All 304 Stainless Steel with # 7 polish .#10 being flawless and #8 being a mirror , silver in color. All TIG welded

Rod Tubes are 10 inches long 2" inch diameter on 7 inch centers leaving a 5 inch space between tubes. .065 or 1/16th inch wall thickness and have a full length PVC liner.

Cross tubes are 5 inches in length 1 inch diameter with a wall thickness of .065 or 1/16th of an inch.

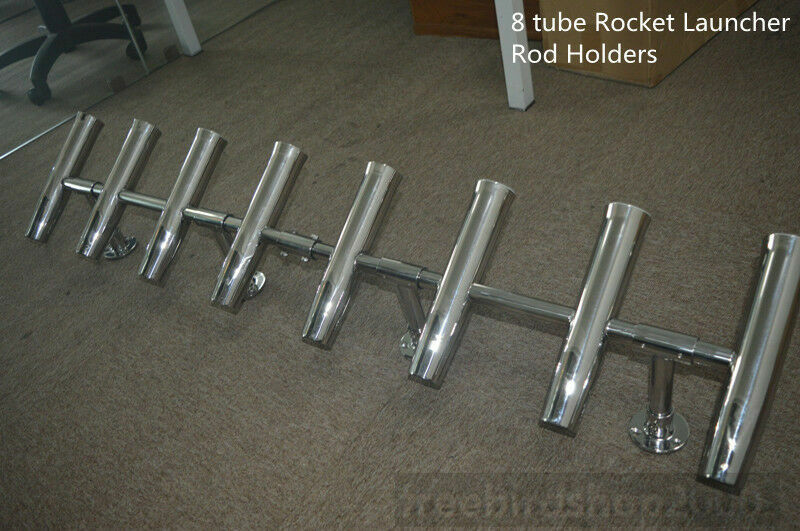

#5:8 Tube Adjustable Stainless Rocket Launcher Rod Holders , 4 Legs , Can be Rotated 360 Deg

Fishing rod holders 51.18"  overall length

All 8 Rod tubes adjust as one to a angle of choice  , rod tubes do not adjust independently .

All 304 Stainless Steel with # 7 polish .#10 being flawless and #8 being a mirror , silver in color. All TIG welded

Rod Tubes are 10 inches long 2" inch diameter on 7 inch centers leaving a 5 inch space between tubes. .065 or 1/16th inch wall thickness

and have a full length PVC liner. Cross tubes are 5 inches in length 1 inch diameter with a wall thickness of .065 or 1/16th of an inch.
