Akozon Battery Switch, DC 12‑48V Isolator Switch Single Circuit Cut‑Off 6006 M‑Series Hard‑Wearing for Marine Boat Battery Isolator

Brand: Akozon

Color: popular

Features:

• ❥❥❥ Widely Application: The battery switch widely used for car, marine, boat, RV, , travel trailer, truck, ATV, UTV, battery banks and other devices. The 300A battery switch can be installed on the circuit on the gasoline powered boat.

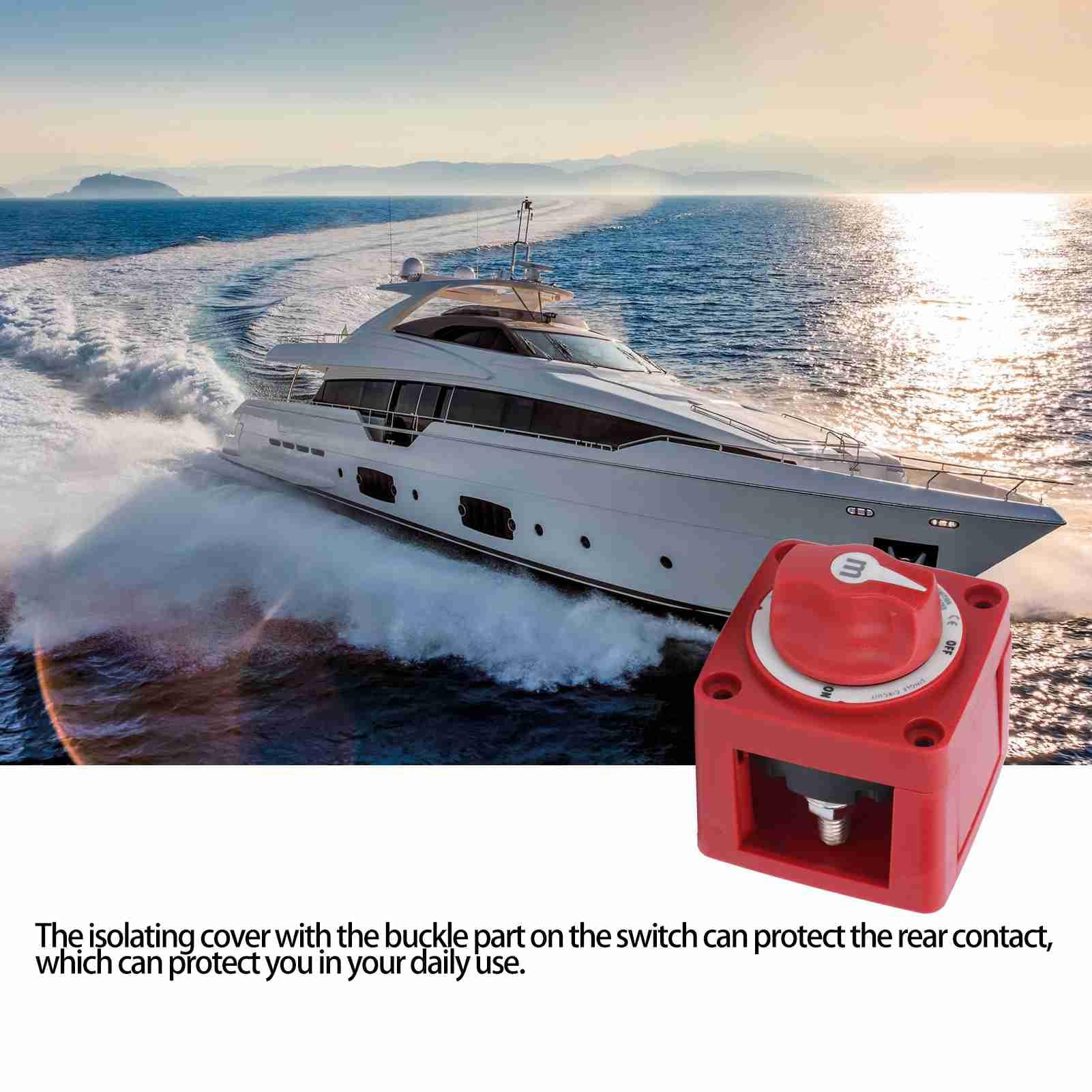

• ❥❥❥ Professional Design: The isolating cover with the buckle part on the switch can the rear , which can you in your daily use. Connect first and then break design, allowing to switch between battery packs without interrupting the power supply.
• ❥❥❥ High Performance: 300A battery switch is used to isolate and secure the electrical system, eliminate any power draw from the battery when vehicle or boat is not in use, disconnects the battery safely. Ideal for marine or RV applications.
• ❥❥❥ Premium Quality: The battery disconnect switch molded in ABS and copper material, great for long time use. Battery switch m series ON/OFF with knob, part number: 6006, which is a single circuit ON‑OFF switch.
• ❥❥❥ Simple Installation: Installed in the circuit, directly installed for use. Case design allows surface, front panel, or rear panel mounting. It provides a and way to disconnect the battery, making it ideal for marine or RV applications.
• ❥❥❥ Widely Application: The battery switch widely used for car, marine, boat, RV, , travel trailer, truck, ATV, UTV, battery banks and other devices. The 300A battery switch can be installed on the circuit on the gasoline powered boat.
• ❥❥❥ Professional Design: The isolating cover with the buckle part on the switch can the rear , which can you in your daily use. Connect first and then break design, allowing to switch between battery packs without interrupting the power supply.
• ❥❥❥ High Performance: 300A battery switch is used to isolate and secure the electrical system, eliminate any power draw from the battery when vehicle or boat is not in use, disconnects the battery safely. Ideal for marine or RV applications.
• ❥❥❥ Premium Quality: The battery disconnect switch molded in ABS and copper material, great for long time use. Battery switch m series ON/OFF with knob, part number: 6006, which is a single circuit ON‑OFF switch.
• ❥❥❥ Simple Installation: Installed in the circuit, directly installed for use. Case design allows surface, front panel, or rear panel mounting. It provides a and way to disconnect the battery, making it ideal for marine or RV applications.

Details: Characteristic:

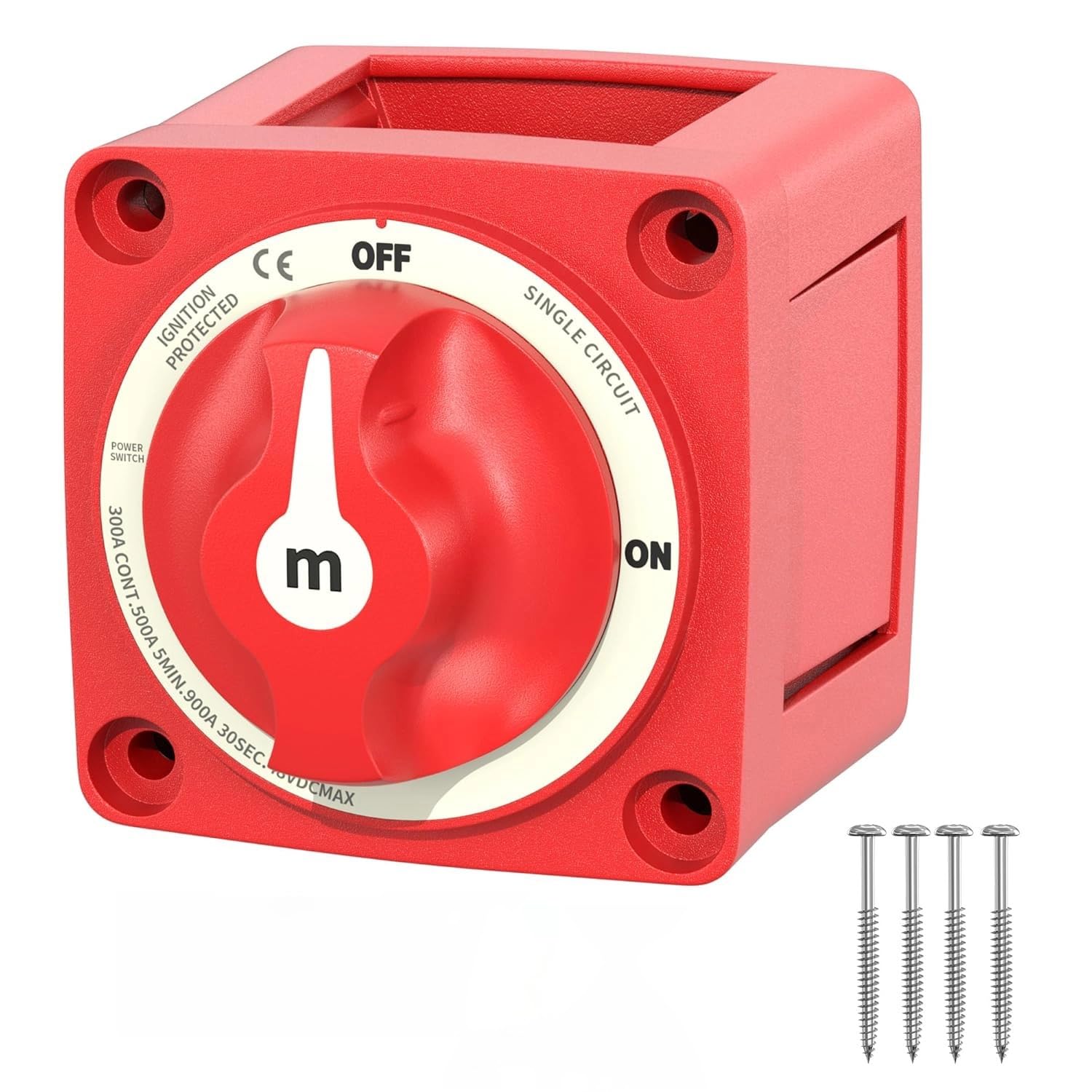

1. Battery switch m series ON/OFF with knob, part number: 6006, which is a single circuit ON‑OFF switch.

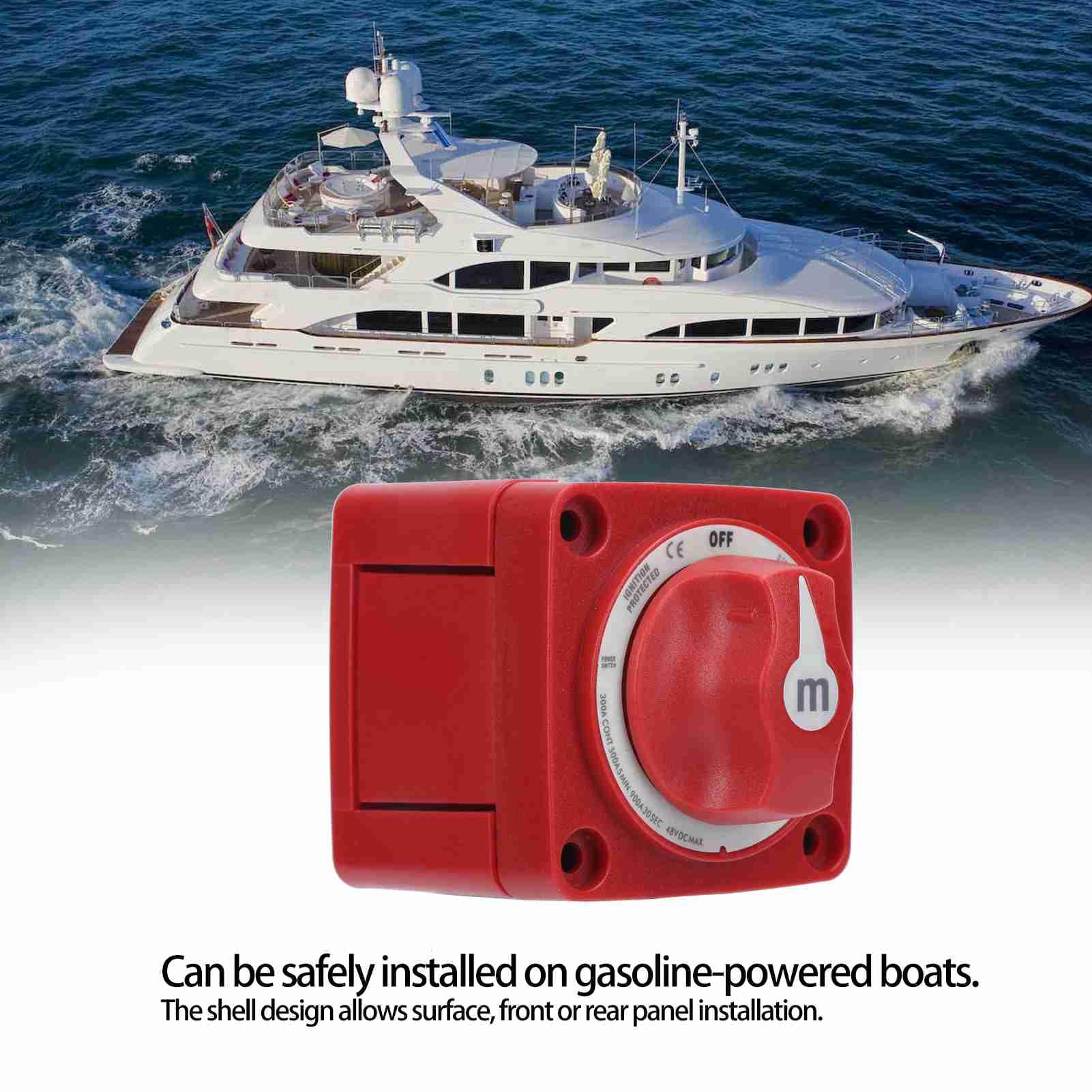

2. Can be safely installed on gasoline‑powered boats. The shell design allows surface, front or rear panel installation.
3. The isolating cover with the buckle part on the switch can the rear , which can you in your daily use.
4. The make‑before‑break design allows switching between battery packs without interrupting the power supply.
5. After exquisite craftsmanship and professional processing, this yacht battery switch has good performance and can well meet your needs.

Specification:
Item Type: Yacht Battery Switch
Material: ABS+Copper
Color: Red
Number of Switch Positions: 2 x Switch Position
Battery Combination: No
Alternator Excitation Disconnected: No
Maximum Voltage: 48V DC
Terminal Stud : 120 Inch Pounds (13.56 Nm)
Continuous Rating: 300A
Intermittent Rating: 500A (5 Minutes)
Start Rating 10 Seconds: 1500A
Starting Rating 1 Minute: 775A
Battery Input: 1
Cable Clearance for 4/0 Awg Cable: Approx. 28.45mm / 1.12in
Compliant Cable Size: 4/0 AWG (120 Millimeters)
Mounting Hole: Accept #10 Screw
Terminal Stud Size: 3/8"" – 16 (M10)

Package List:
1 x Yacht Battery Switch

Package Dimensions: 3.6 x 3.3 x 3.2 inches
