Product Description
The Wheels Manufacturing Thin Flange Bottom Bracket Socket Pro Kit is a purpose-built tool set designed to create a tight grip on thin flange bottom brackets to help prevent slipping while installing or removing cups. This kit is made for servicing 48.5mm 16-notch, 52mm 16-notch, and 50mm 12-notch bottom bracket cups.

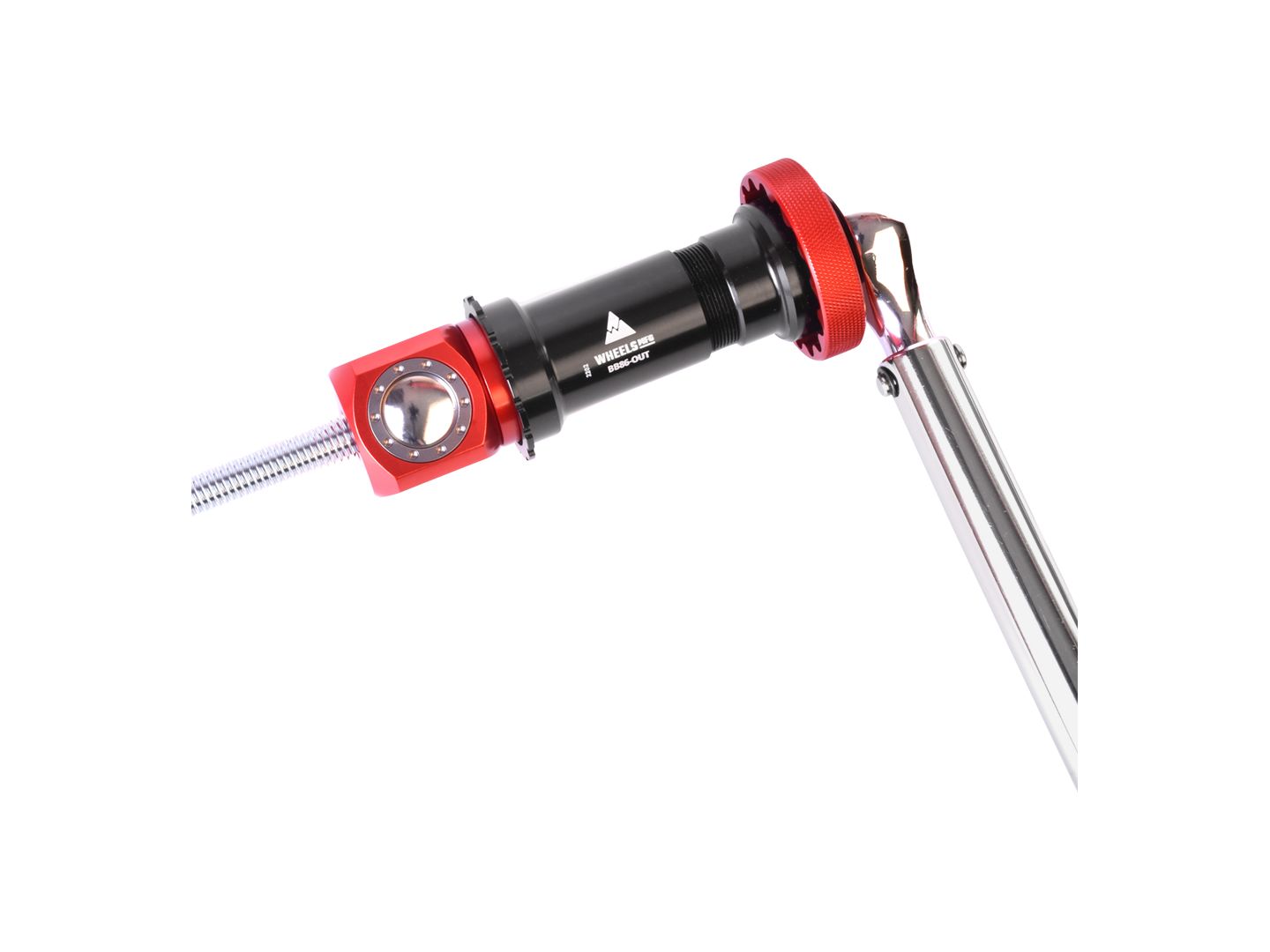

Each socket features a machined 3/8" drive, allowing use with compatible 3/8" drive torque wrenches while also threading onto a 1/2" UNC press rod for more secure and controlled installation.

Key Features

• Genuine Wheels Manufacturing Thin Flange Bottom Bracket Socket Pro Kit
• Designed for thin flange bottom brackets
• Helps reduce slipping while torquing bottom bracket cups
• Single-sided sockets for installation and removal
• Supports 48.5mm 16-notch, 52mm 16-notch, and 50mm 12-notch cup patterns
• Machined 3/8" drive for torque wrench use
• Threads onto 1/2" UNC press rod
• Machined from 6061 aluminum
• Anodized red finish

Specifications

• Brand: Wheels Manufacturing
• Product Type: Bottom Bracket Tool Kit
• Tool Type: Thin Flange Bottom Bracket Socket Pro Kit
• Drive Size: 3/8"
• Press Rod Compatibility: 1/2" UNC threaded press rod
• Material: 6061 aluminum
• Color: Red

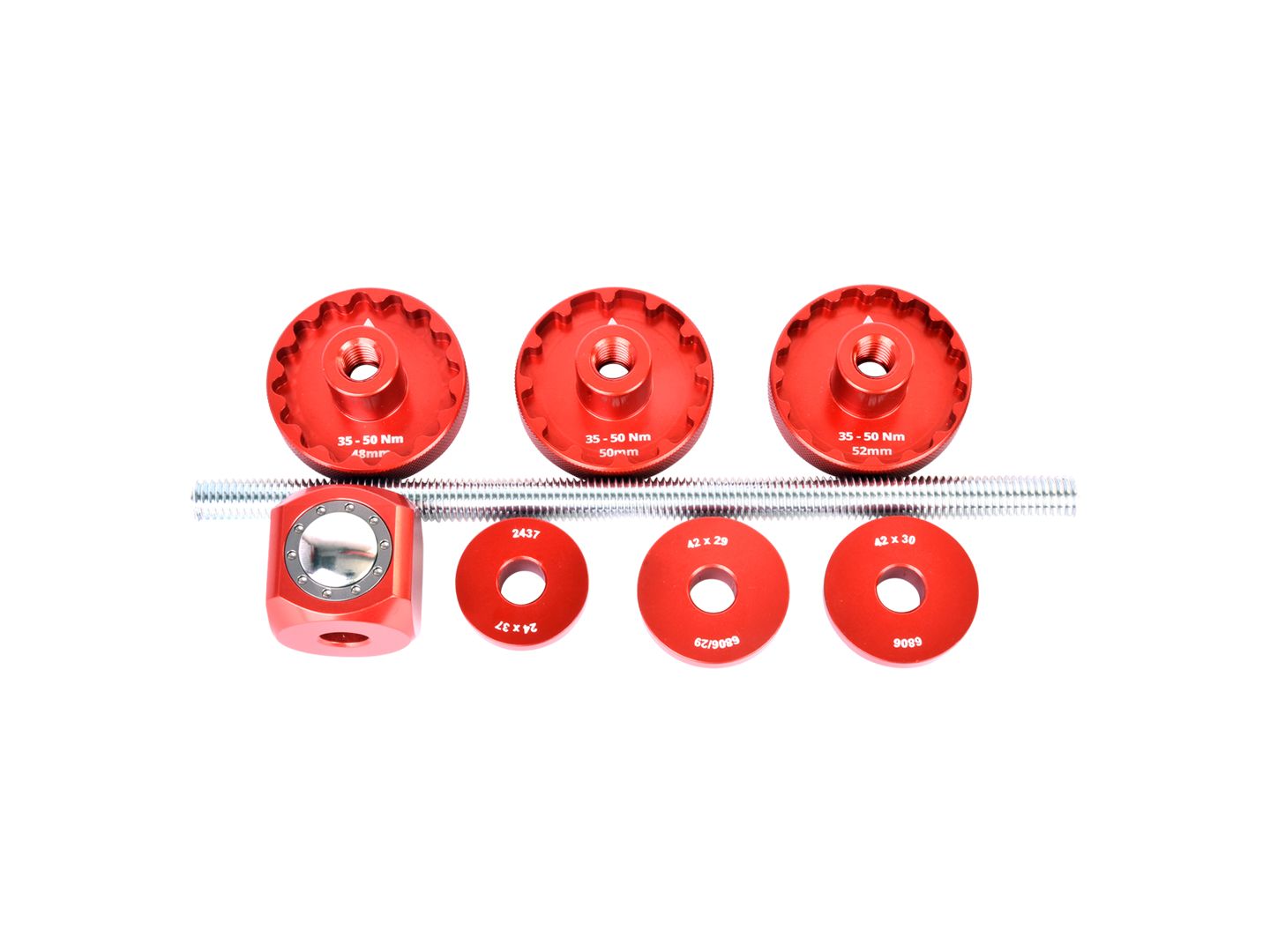

Kit Includes

• (1) 1/2" UNC threaded rod
• (1) 1/2" adjustable press stop
• (1) 6806/29 bearing drift
• (1) 6806 bearing drift
• (1) 24x37 bearing drift

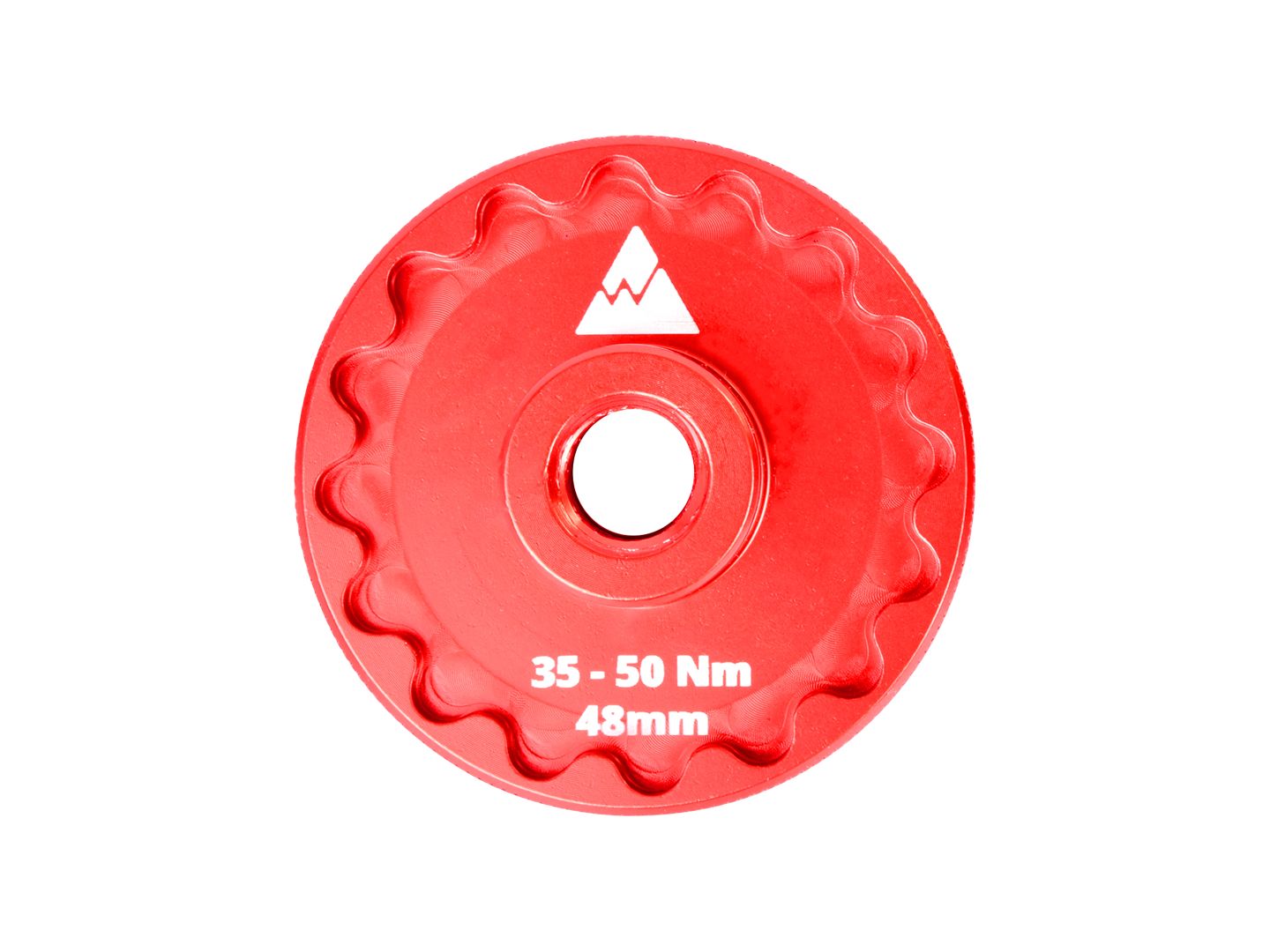

• (1) Wheels MFG thin flange bottom bracket socket for 48.5mm 16-notch pattern

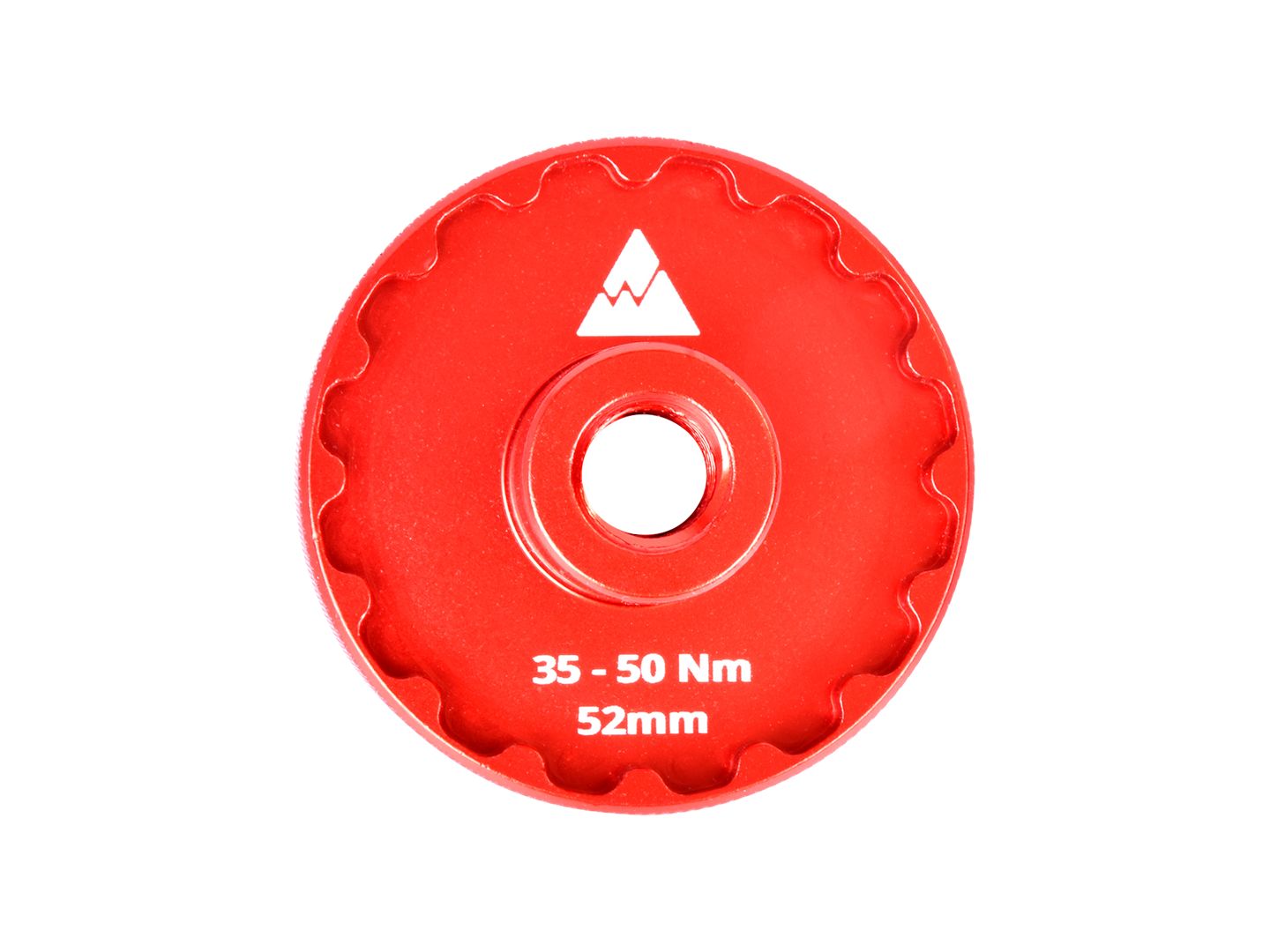

• (1) SRAM thin flange T47 bottom bracket socket for 52mm 16-notch pattern

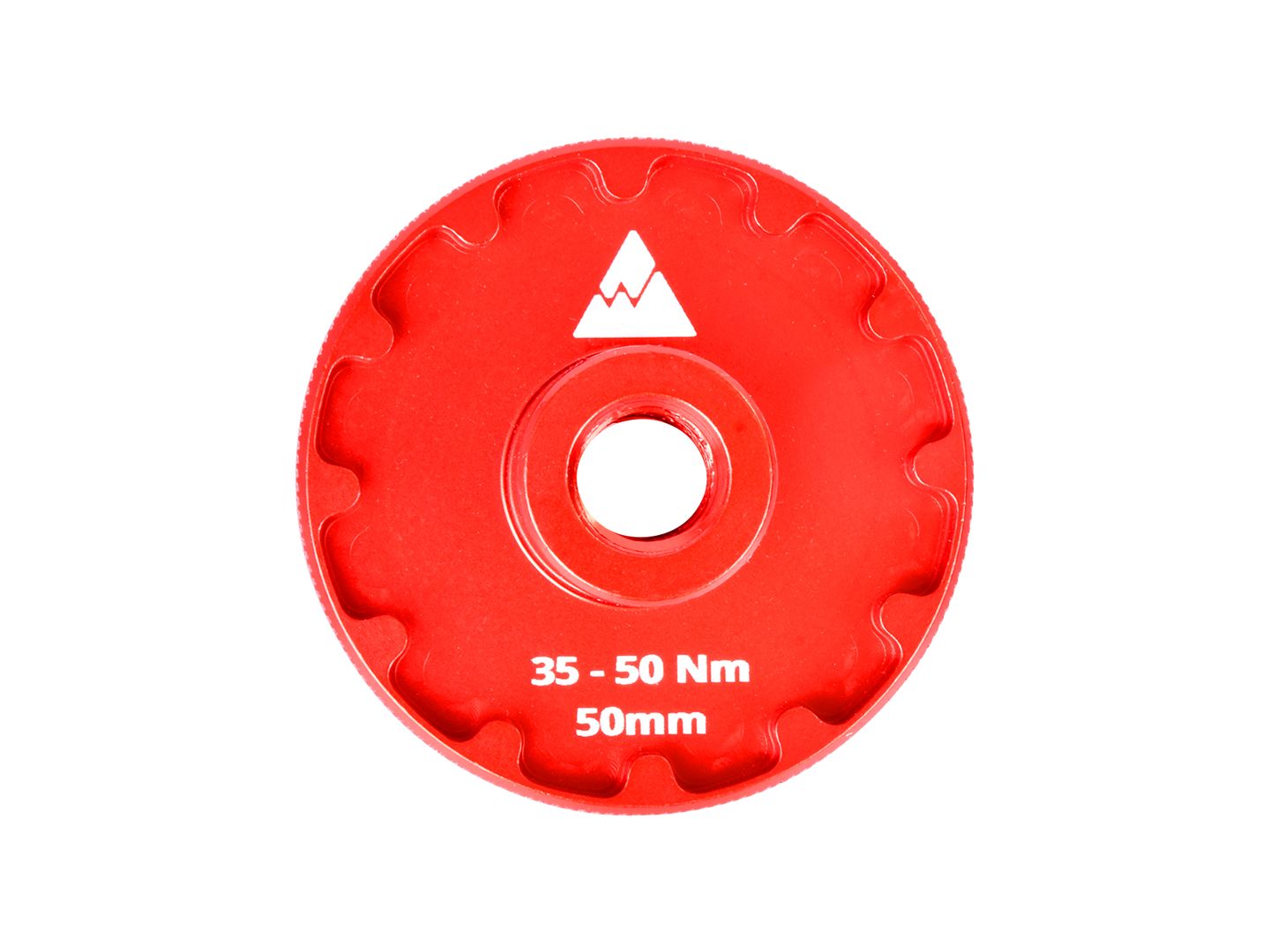

• (1) Praxis thin flange T47 bottom bracket socket for 50mm 12-notch pattern

Compatibility
Compatible with:

• 1/2" UNC threaded press rods
• 3/8" drive torque wrenches
• Wheels Manufacturing bottom brackets using:
  • 48.5mm 16-notch thin flange pattern
  • 52mm 16-notch SRAM thin flange T47 pattern
  • 50mm 12-notch Praxis thin flange T47 pattern

Please confirm your bottom bracket cup pattern before purchase.

Included

• Complete Wheels Manufacturing Thin Flange Bottom Bracket Socket Pro Kit as listed above

Warranty and Notes

• Designed to create a secure grip on thin flange bottom bracket cups during installation and removal
• Useful for controlled torquing with compatible torque wrenches and press rod setups
• Includes only what is shown or described

Condition

• New
• Genuine OEM product
• Includes only what is shown or described
