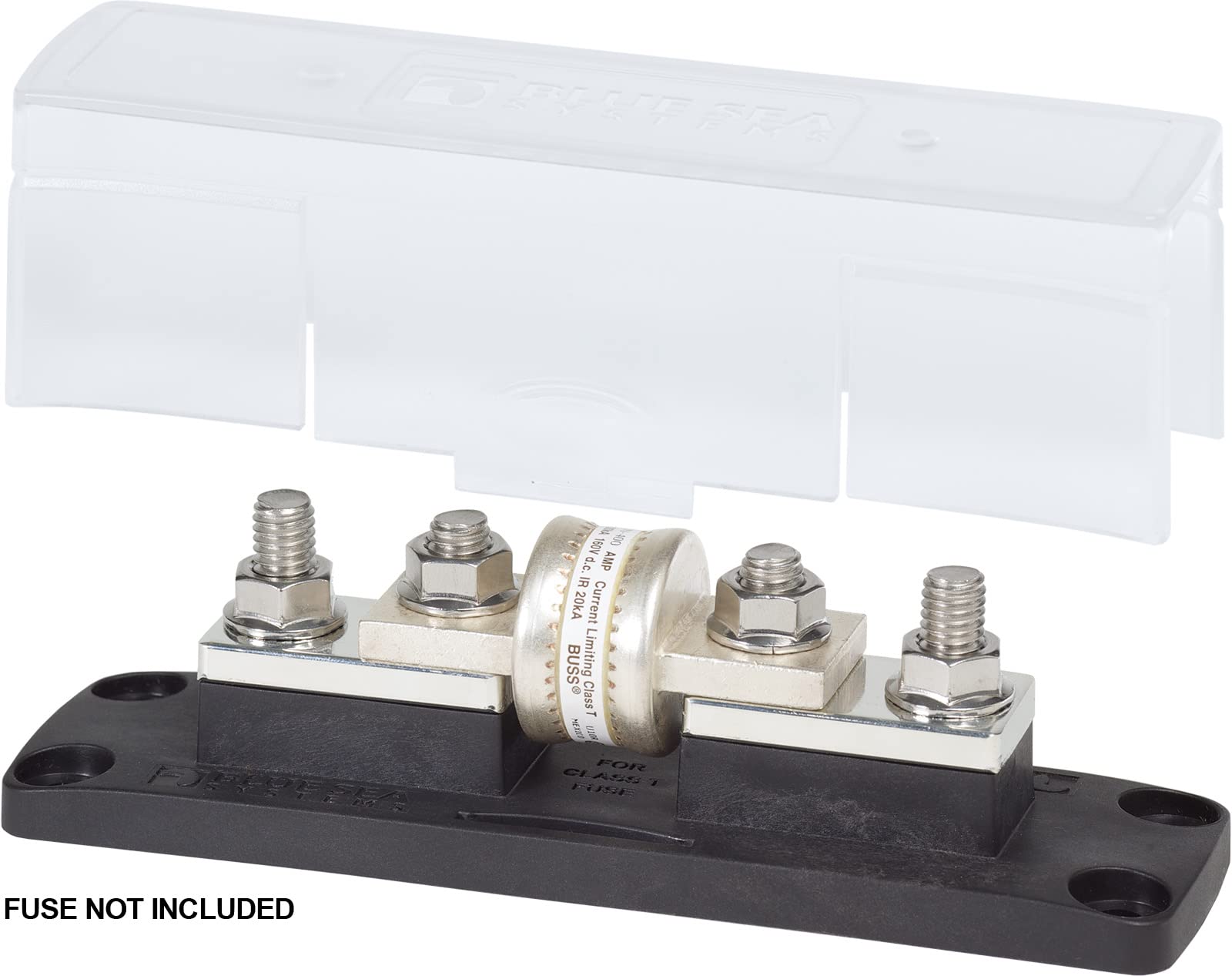

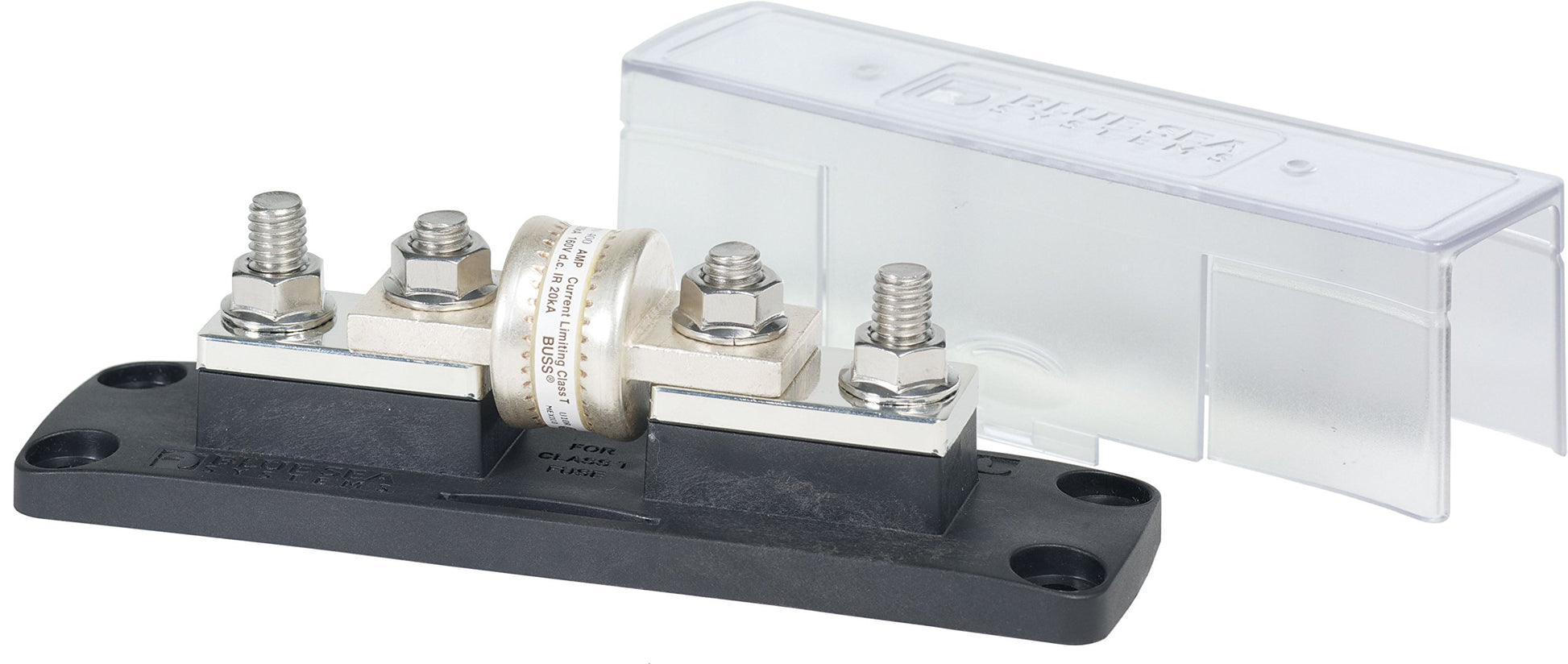

Blue Sea Systems 5502 Class T Fuse Blocks, 320A

Brand: Blue Sea Systems

Color: blue/sea

Features:

• The fuse system recommended by most inverter manufacturers for high speed response to short circuits
• Clear insulating cover, satisfies ABYC/USCG requirements
• For use on systems up to 160 Volts DC
• Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
• Large heat dissipating tin-plated copper mounting blocks. Fuses sold separately

Details: Recommended for Class T Fuses from 225 to 400A The fuse system recommended by most inverter manufacturers for high speed response to short circuits Clear insulating cover, satisfies ABYC/USCG requirements.

Package Dimensions: 8.9 x 7.4 x 3.0 inches
