Bontrager Rapid Drive HG Freehub Body 8/9/10-Speed MTB Rear Hub Replacement

Product Description

The Bontrager Rapid Drive Shimano HG freehub body is a genuine replacement part for compatible Bontrager wheels using Rapid Drive 54 or Rapid Drive 108 rear hubs with 142mm or 148mm rear spacing.

This is the shorter Shimano/SRAM HG 8/9/10-speed-length freehub body. The kit includes the pawls and springs required to configure a compatible Rapid Drive hub for 108-tooth engagement.

While commonly listed as a 10-speed freehub, it can also accept many 11-speed MTB and gravel HG cassettes, as well as select wide-range 11-speed road cassettes specifically designed to fit the shorter HG freehub standard.

Key Features

• Genuine Bontrager replacement freehub body
• Compatible with Rapid Drive 54 and Rapid Drive 108 hubs
• Shimano/SRAM HG 8/9/10-speed-length cassette interface
• Compatible with applicable 11-speed MTB and gravel HG cassettes
• Fits compatible 142mm and 148mm OLD rear hubs
• Includes pawls and springs for 108T engagement
• Ideal for replacing a worn freehub or upgrading a compatible 54T hub to 108T engagement

Specifications

• Brand: Bontrager
• Product Type: Freehub Body
• Hub Family: Rapid Drive 54 / 108
• Cassette Interface: Shimano/SRAM HG
• Freehub Length: 8/9/10-Speed HG
• Hub Spacing: 142 / 148mm OLD
• Engagement Setup: 108T
• Pawl Configuration: 6 Pawls
• Application: Rear Wheel

Cassette Compatibility

8 / 9 / 10-Speed

Designed for standard compatible Shimano/SRAM HG cassettes using the traditional 8/9/10-speed HG freehub body.

11-Speed MTB / Gravel

This freehub can also be used with 11-speed MTB and gravel cassettes that are specifically designed to fit an 8/9/10-speed-length HG body.

Many wide-range 11-speed MTB cassettes use this shorter HG standard rather than requiring the longer road 11-speed freehub.

Select 11-Speed Road

Certain wide-range Shimano 11-speed road cassettes are also designed for the shorter HG body, including examples such as:

• Shimano CS-HG700-11 11-34T
• Shimano CS-HG800-11 11-34T
• Shimano CS-RS400 11-34T

Important: Not every 11-speed cassette will fit. Standard narrower-range 11-speed road cassettes generally require the longer Shimano HG 11-speed road freehub body. Compatibility should be confirmed by the specific cassette model rather than largest cog size alone.

Rapid Drive Engagement

Bontrager Rapid Drive hubs can use different pawl configurations:

• 3 pawls / springs: 54T engagement
• 6 pawls / springs: 108T engagement

This kit includes the pawls and springs needed for the 108T configuration on a compatible hub.

Included

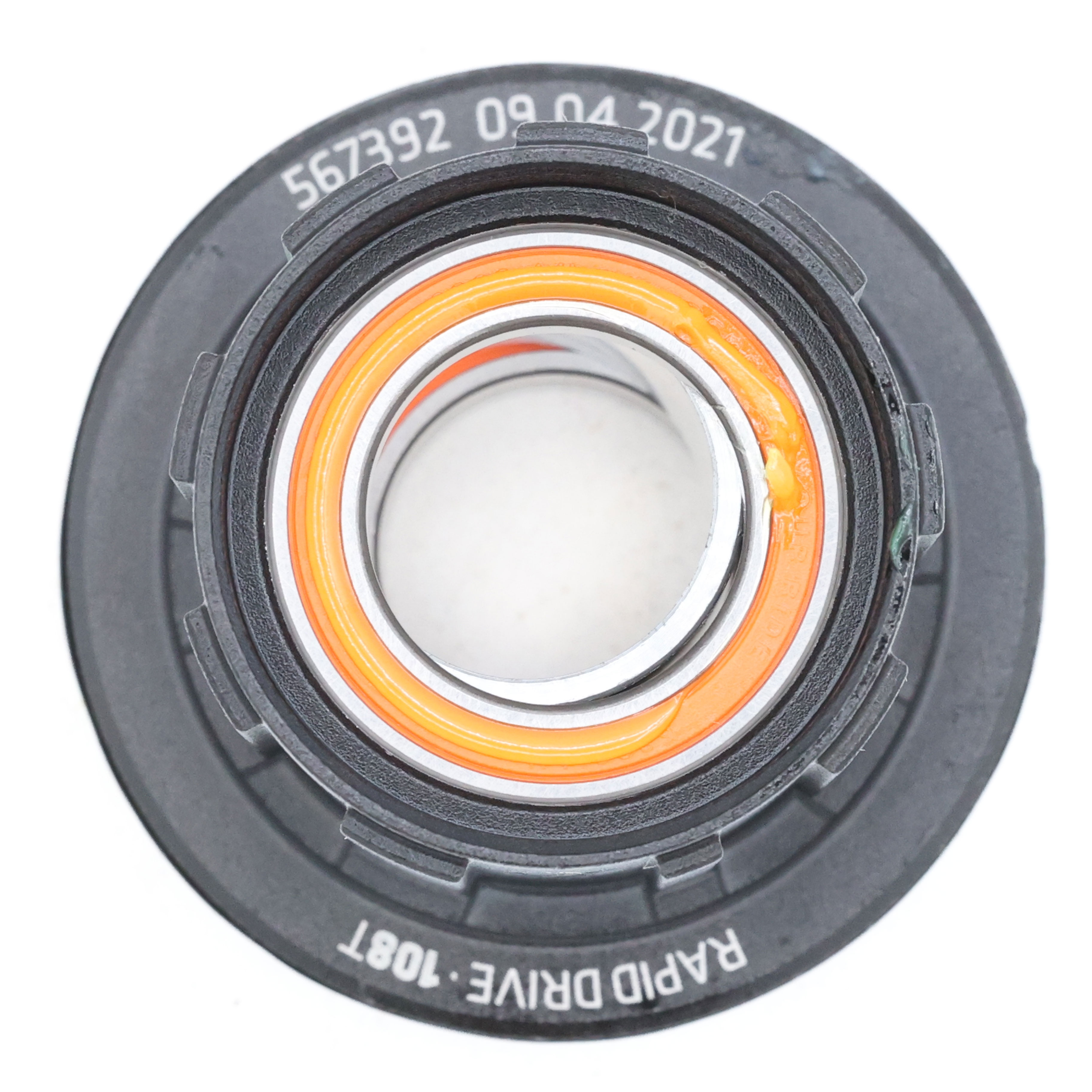

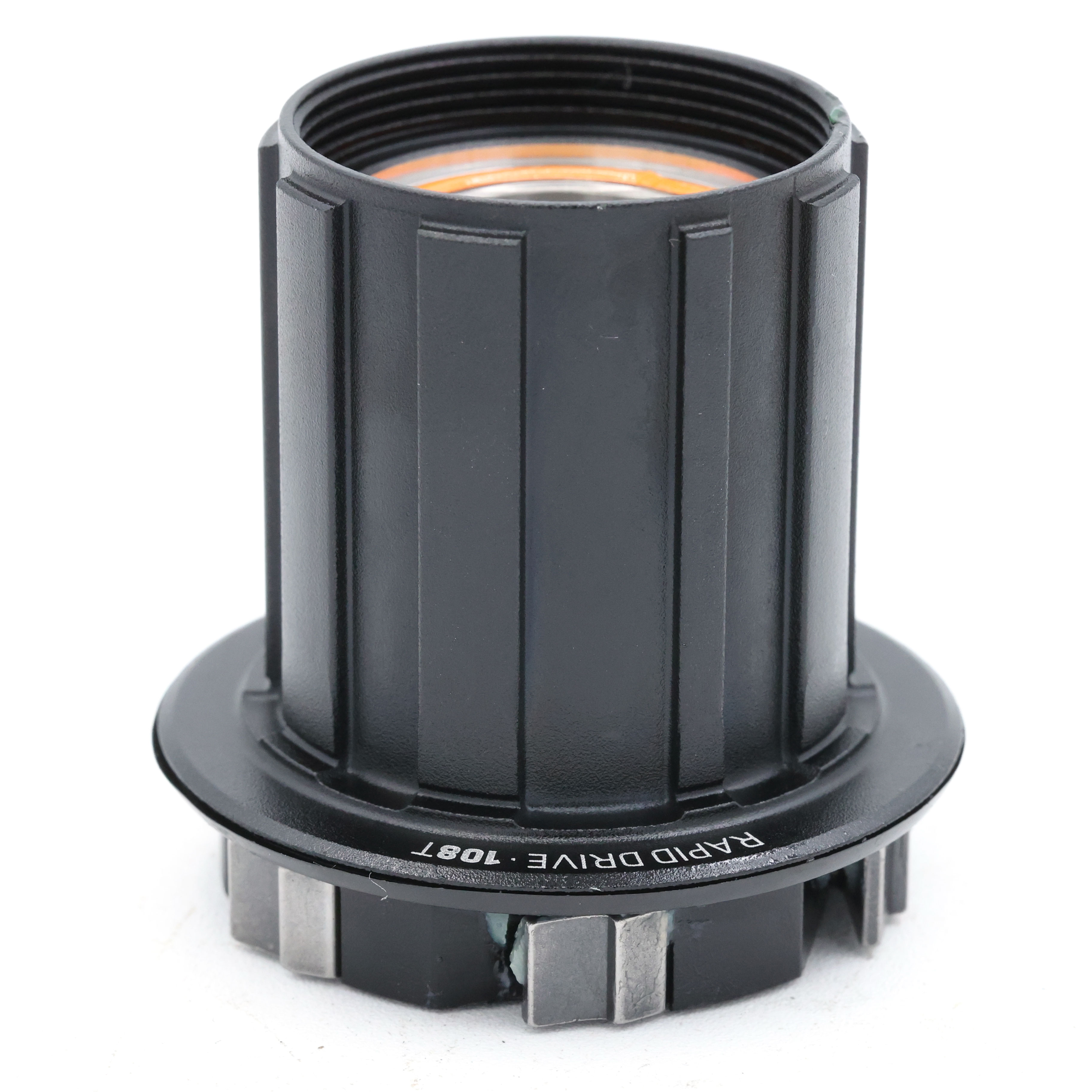

• Bontrager Rapid Drive Shimano HG freehub body

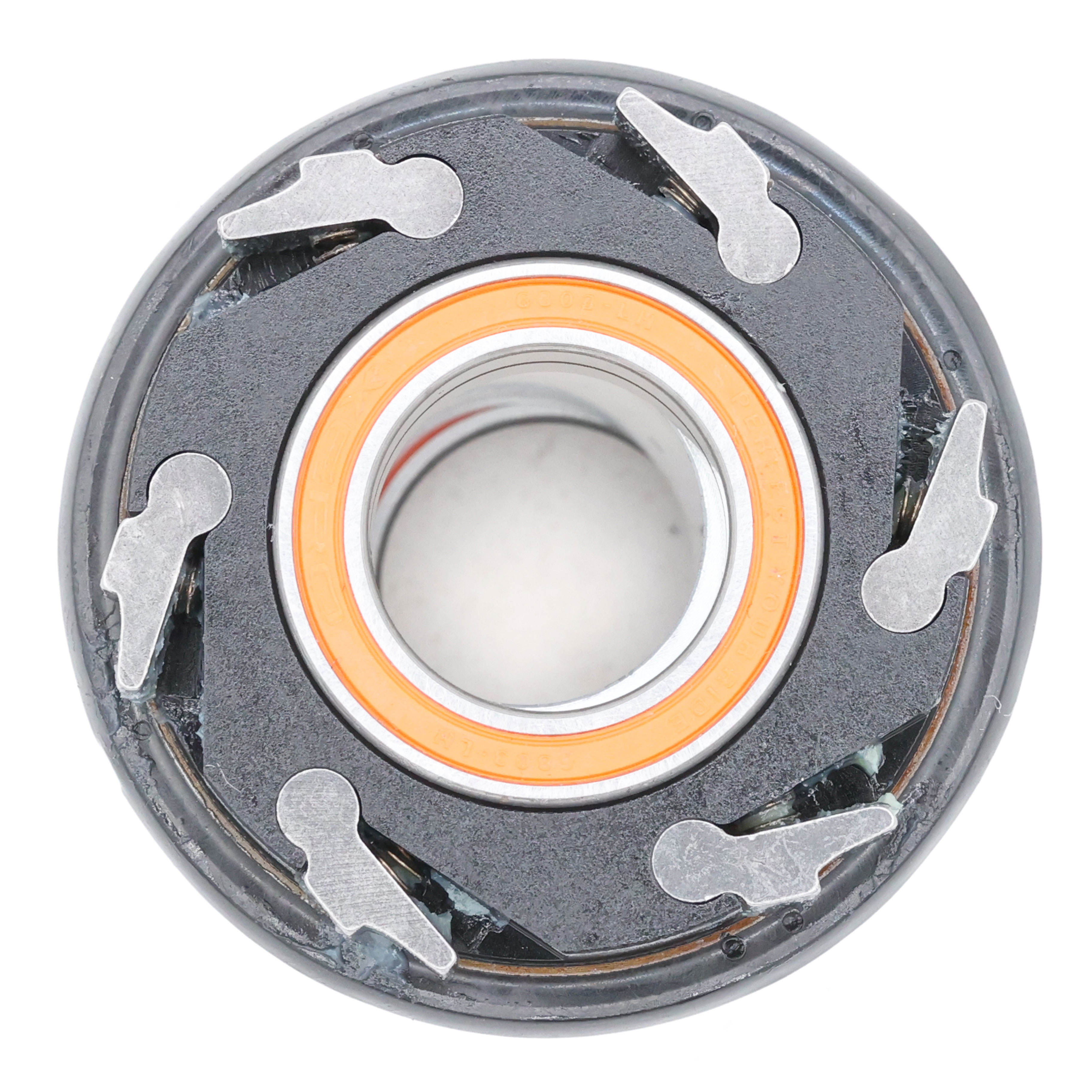

• 6 pawls
• Pawl springs

Not Included

• End cap
• Additional hub hardware

Condition

• New
• Non-retail packaged
