⚠️ CRITICAL OPERATIONAL WARNING: Working with liquefied petroleum gas (LPG) and compressed butane is inherently dangerous. Always perform this operation exclusively in wide-open outdoor spaces with heavy ventilation. Keep the area entirely clear of open flames, sparks, embers, pilot lights, or electronic heat elements. Operate with extreme care.
For the Heavy-Duty Control Inflation Valve Variations:
1. Initial Tank Mounting: Push the empty receiver cassette gas bottle firmly into the mount of the inflation valve. Double-check and confirm that the inflation valve's integrated control switch is closed completely tight.
2. Supply Tank Inversion: Take a full, certified liquefied gas supply cylinder and place it completely upside down on a step, stool, or secure workbench with a minimum height clearance difference of 20 cm (7.87 inches) above the receiver tank. Ensure the supply tank switch is tightly closed.

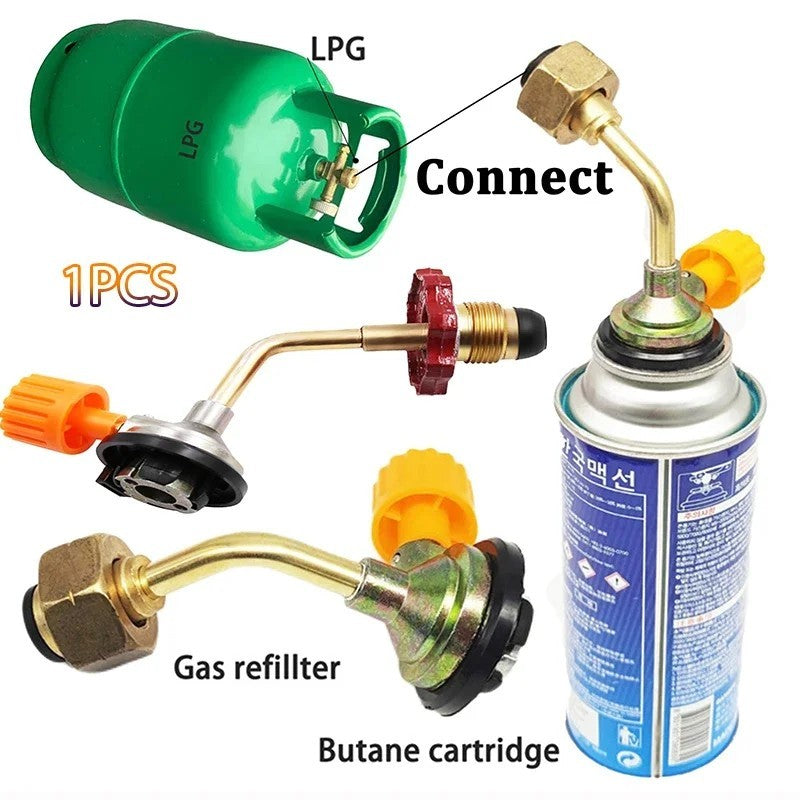

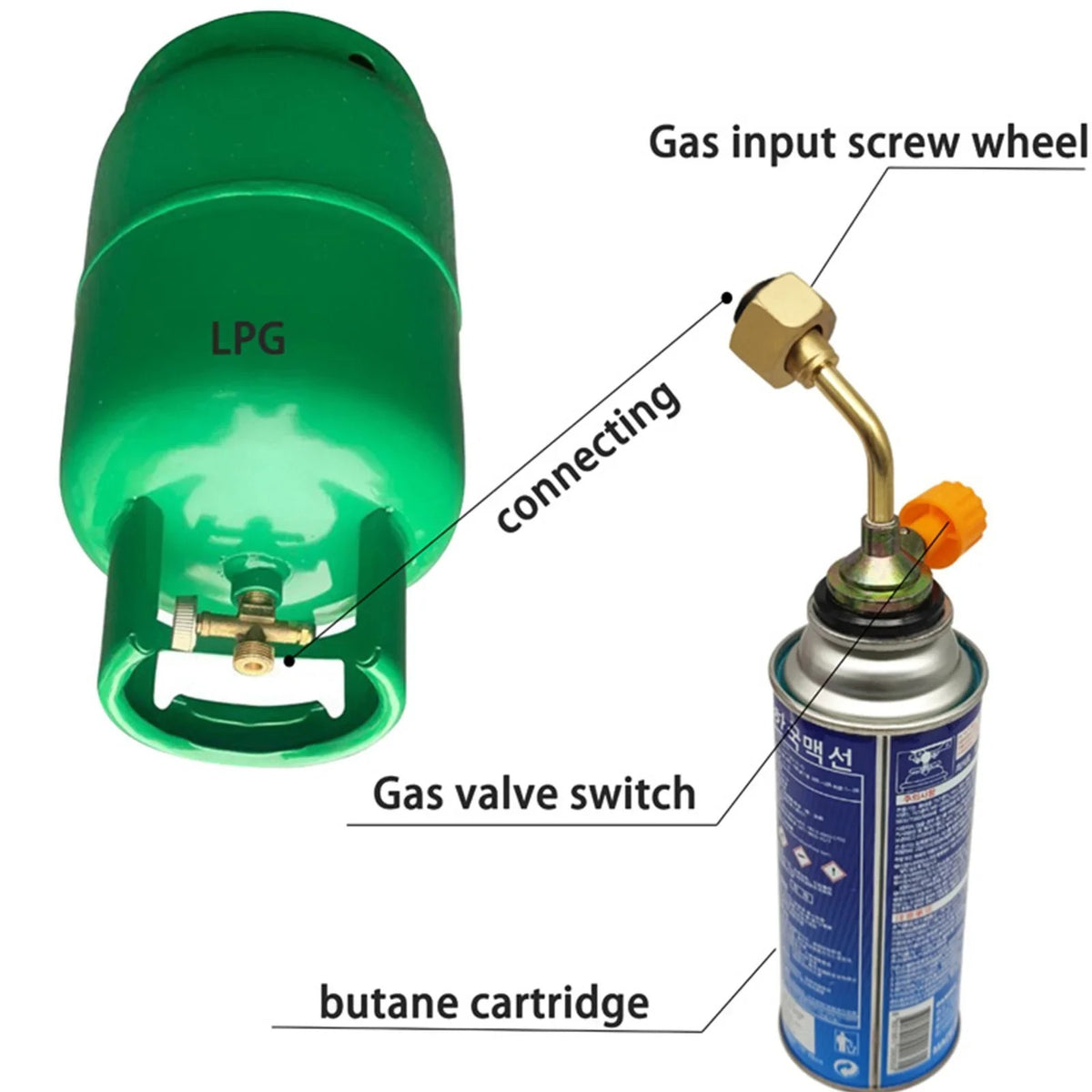

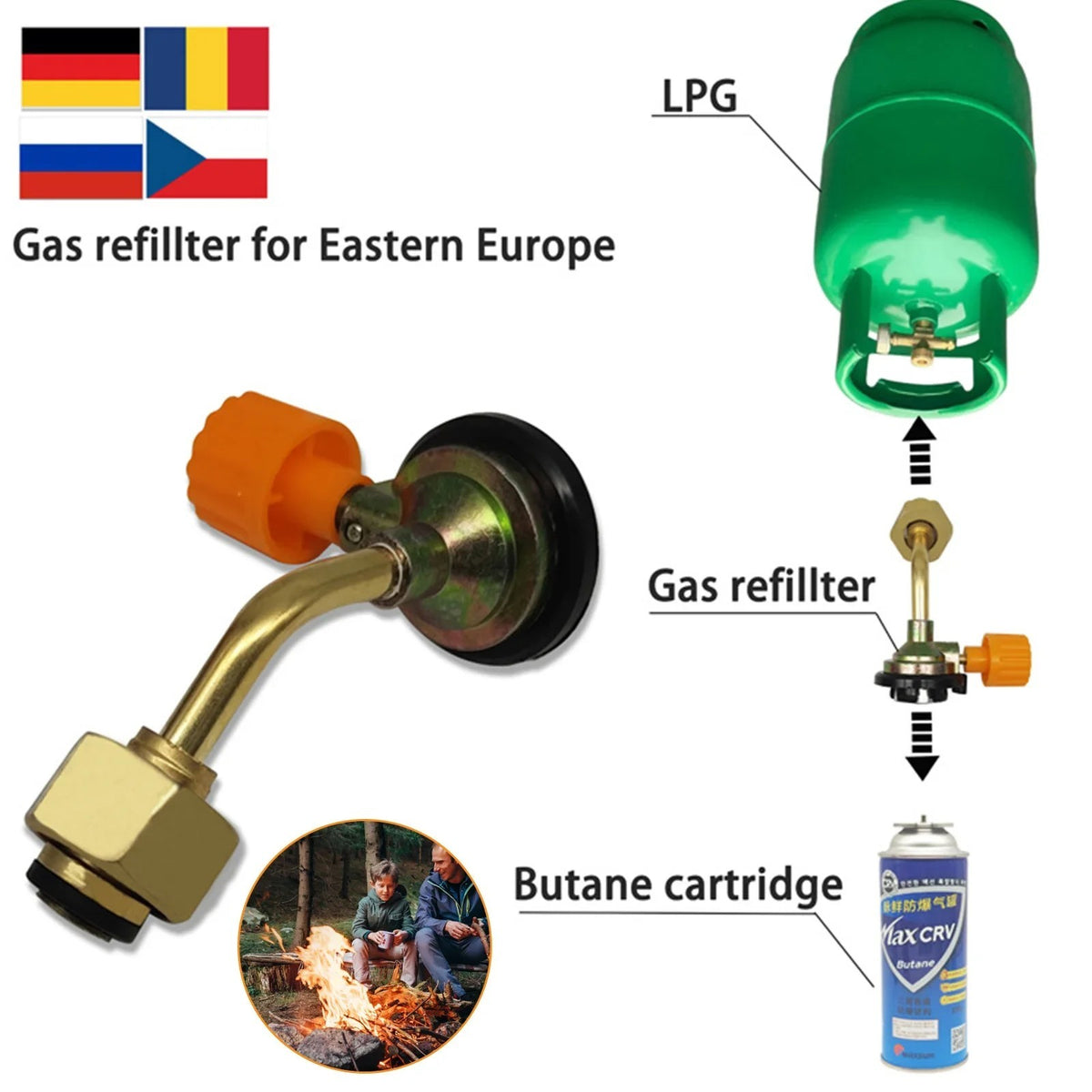

3. Coupler Attachment: Screw and install the inflation valve assembly (with the empty cassette tank attached) directly onto the inverted liquefied supply gas cylinder threads.
4. Regulated Filling Loop: Once fully stabilized, turn on the main valve switch of the supply gas cylinder, then slowly turn on the mechanical switch of the inflation valve to begin fuel transfer.
5. Capacity Monitoring: Closely monitor the fill time. NEVER OVERCHARGE A CANISTER. It is highly recommended to limit cassette gas cylinder filling capacities to within 180 grams (approx. 6.35 oz), which typically takes roughly 1 minute. Remove and weigh the receiving canister frequently on a digital scale to verify the weight is not excessive.
6. System Shutdown: When filling is complete, turn off the supply cylinder valve switch first, then close the inflation valve switch tightly. Carefully unscrew and disconnect the components in reverse order.
For the Pocket Brass Adapter Sleeve Variation:
Weigh your empty receiving tank, chill it inside a freezer for 30 minutes to reduce internal pressure, slip the brass sleeve insert onto its intake nozzle, push your full butane supply can down firmly for 10-15 seconds at a time, and weigh frequently to prevent overfilling.
🔍 Leak Detection Protocol: Always inspect your tank seals after refilling by checking with a drop of soapy water; if any bubbling appears, stop use immediately.
