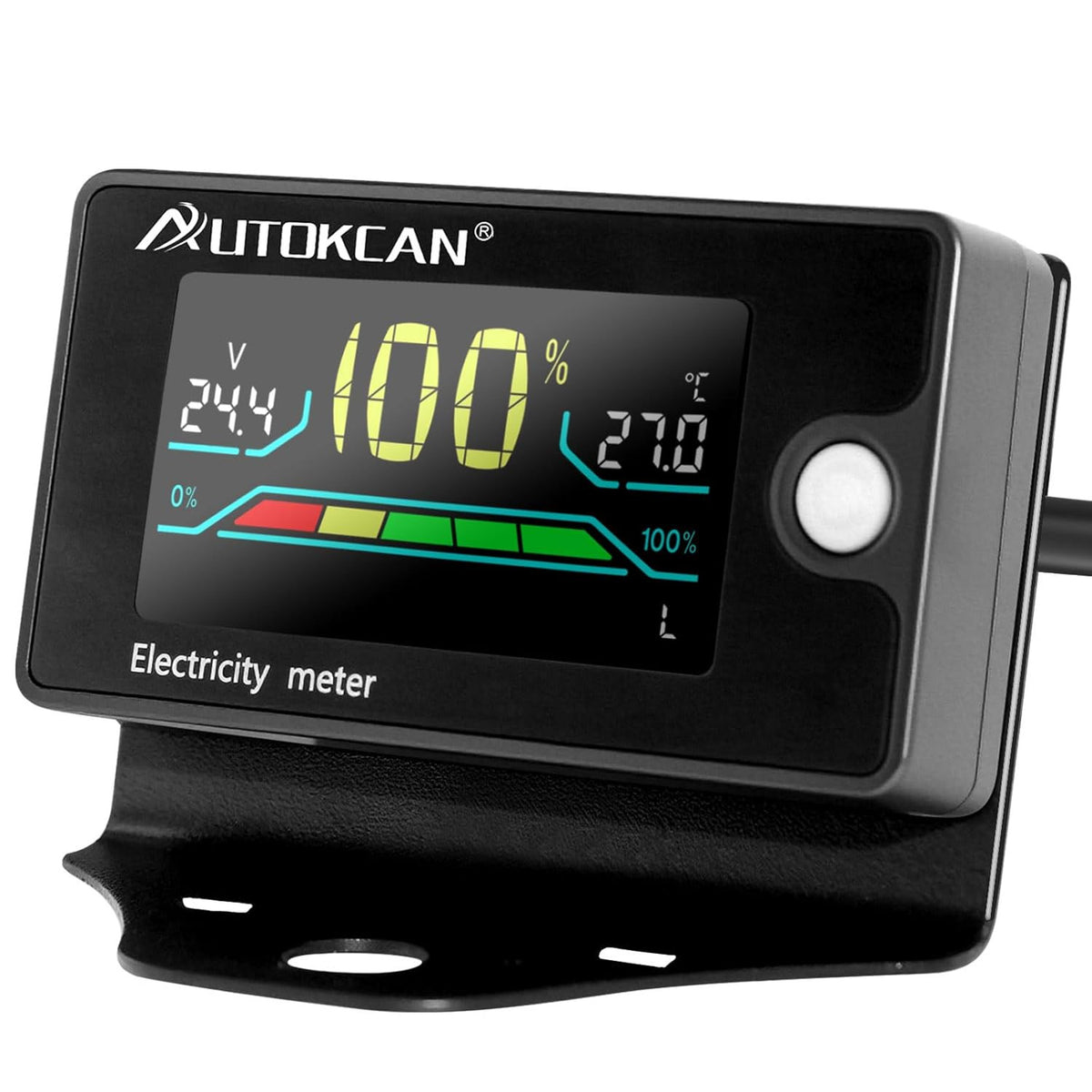

Large Display Screen: This battery monitor has multiple display functions, including temperature, voltage, and capacity. Large widescreen 4.5 cm(1.7 inch) * 2.5 cm(1 inch), more clear

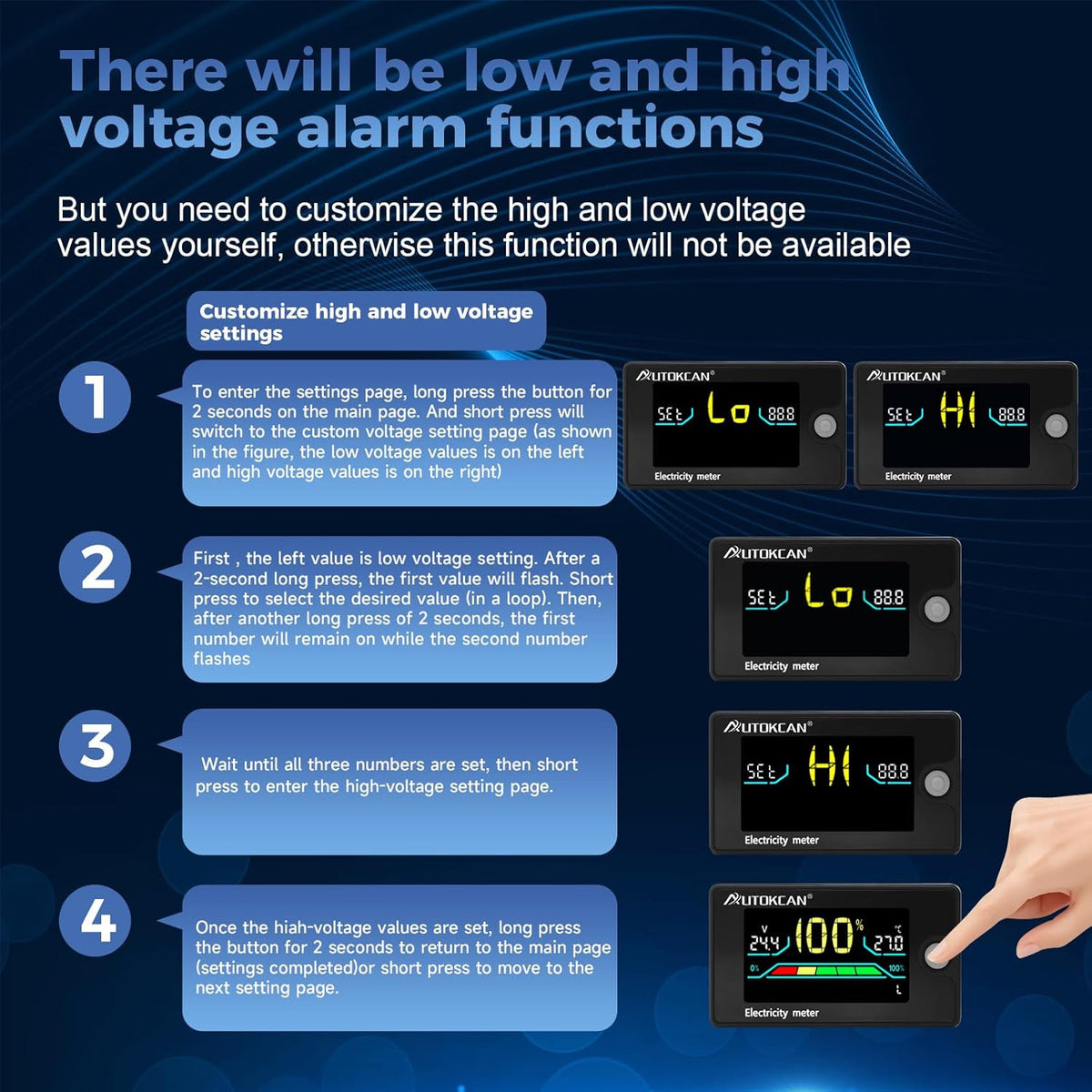

Voltage Warning Function: Can set overcharge voltage and over-discharge voltage. You need to set the high and low voltage values by yourself first, and there will be an alarm if the range is exceeded. (Enter the custom voltage setting page, Model D: The left side is the high voltage value, and the right side is the low voltage value. Model A: The left side shows low voltage value, the right side shows high voltage value, Model C: Shows high voltage value on the top and low voltage value on the bottom)
Surface Waterproof: This battery meter is suitable for use indoors or in golf carts, RVs, and other areas with shelter. Because it is only surface waterproof and cannot be put in water for use. The voltage meter with low energy consumption, backlight is always on by default

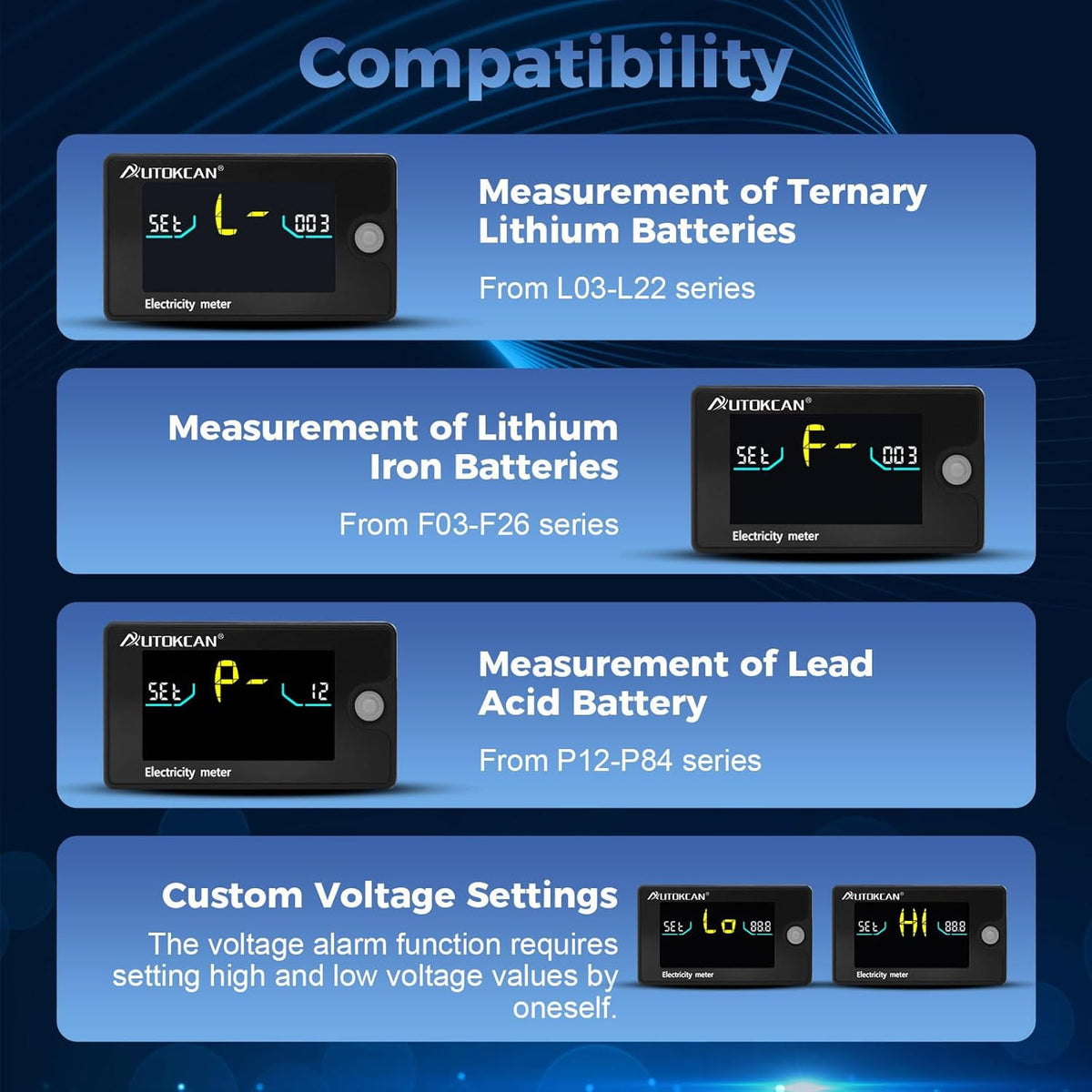

Compatibility: This battery meter is compatible with DC batteries ranging from 8-100V (12v 24v 36v 48v 60v 72v 84v). Ternary lithium, lithium iron, and lead-acid batteries can be tested. According to the manual, different battery types have different settings interfaces
Storage Data When Power off: This battery meter will not lose data when powered off and has the function of storing data. Can be used on various vehicles of transportation such as golf carts, RVs, cars

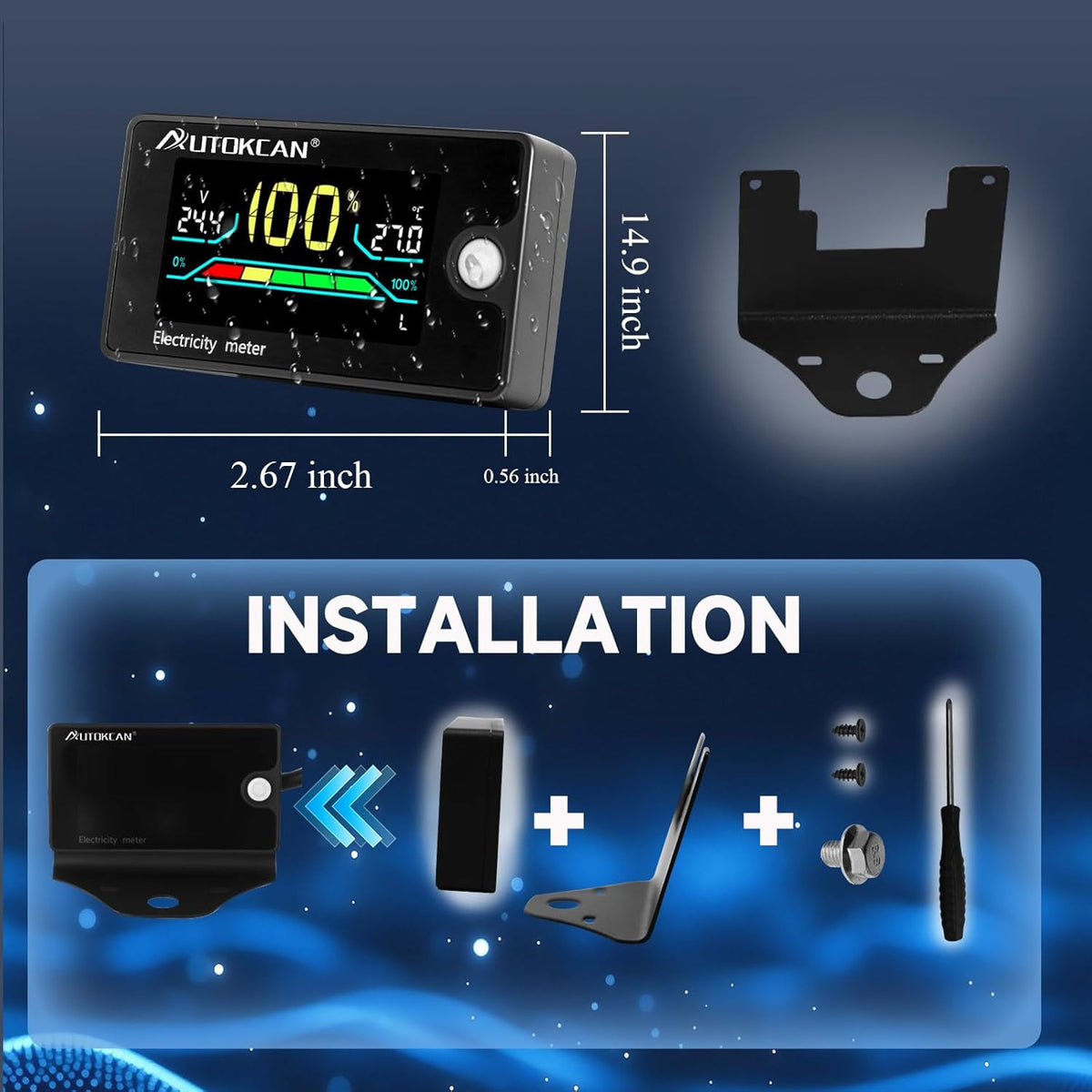

Easy to Install: The red wire for the positive pole, and the black wire for the negative pole. We are equipped with a bracket and small screws, as well as a screwdriver (A bracket is already stable enough, but installing screws will be more stable)
Product description
Setting of Ternary Lithium Battery

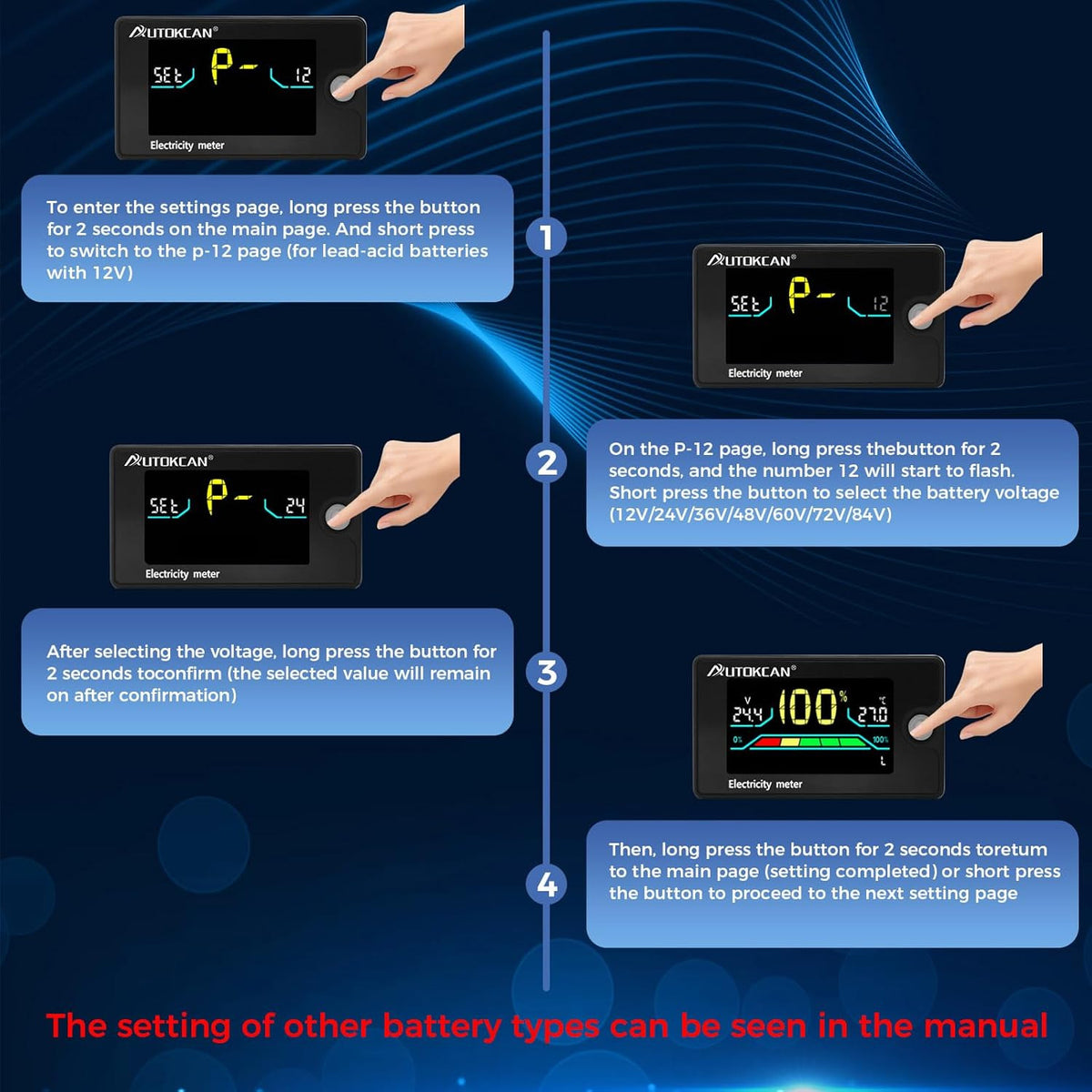

Setting of Lead-Acid Battery
Setting of Lithium lron Battery
We do not accept returns or cancel for change of mind. We only offer returns for items that are faulty or damaged.
