Dual Air Shock Mountain Bike Rear Suspension Shock 165/190/200mm MTB

Product Details:

NEW Model DNM AO-39RC

Upgrade version from AO-36RC, with 3-Setp Lockout
Four Adjustment Functions: Damping Adjustment / Compression Lock / Throttle Pressure Adjustment / Stroke Adjustment
Spindle inner tube: AL7050 inner shaft material (hard film processing / smooth operation / stable)
PRODUCT SPECIFICATION: Adjustments Rebound / 3-Step Lockout / Air Pressure Adjustable
EXTRA BUSHING INCLUDES: Top Busing Size 8mm x 24mm Bottom Bushing Size 12mm x 16mm
FUNCTIONAL; Rebound Adjustment Knob +direction Rotation Increase Damper (Slow),- Direction Rotation, Decrease Damper (Fast). Compression Adjuster + Direction Rotation Lock-out,- Direction Rotation Open Up.main Air Chamber Supply Air Pressure According To Pressure Meter

Description：
Brand: DNM
Model: AOY39RC
Weight: 300g / 0.66lb → 165mm (in)
Air nozzle angle: 30
Main body: 7075 hard film processing
Spindle centre(Main axle):hard chrome treatment
Compatible Bike Type:XC/Trail/MTB/CITY /Wheel Chair/MTB
Colour: black
Length (eye to eye) × travel:

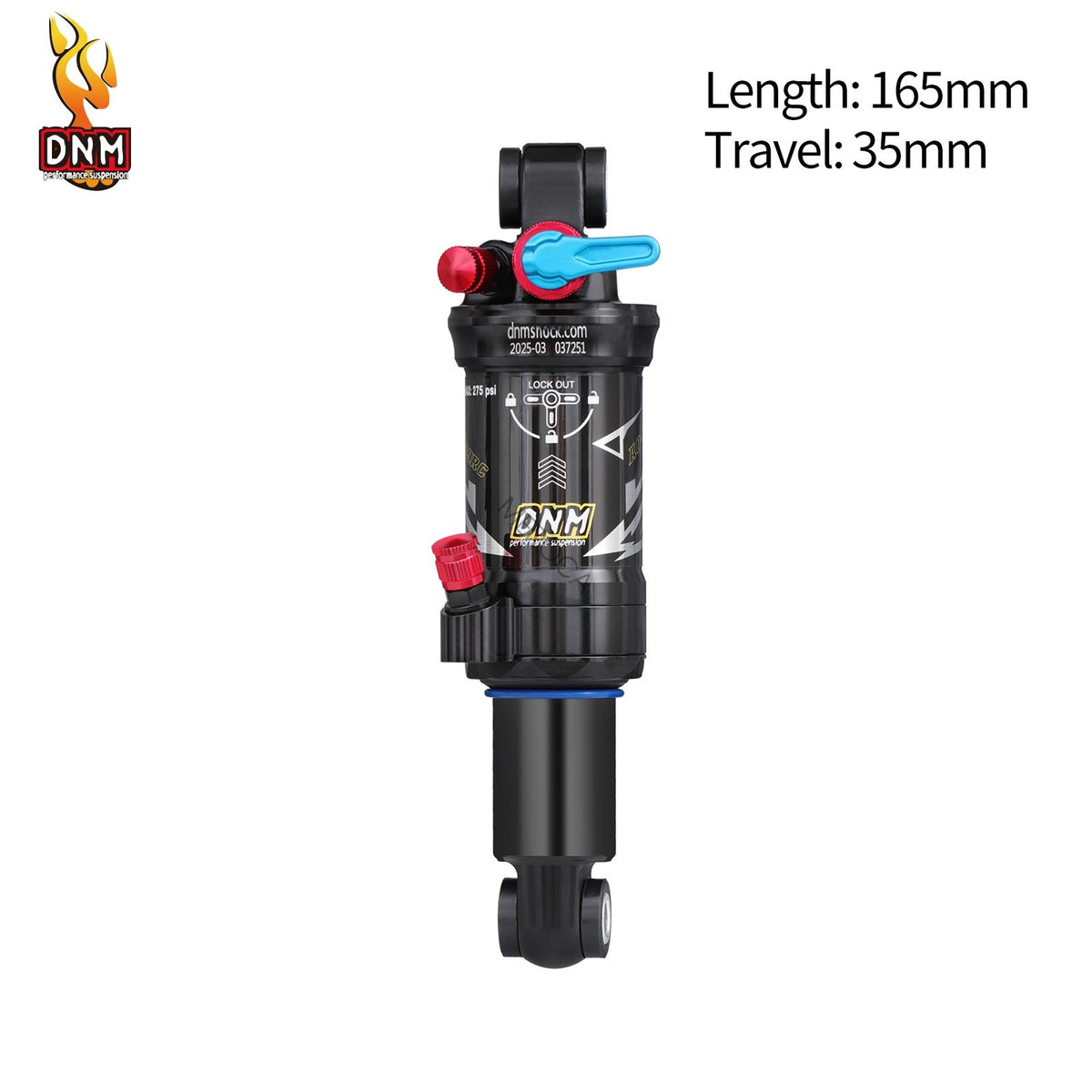

165 × 35 mm (6.50 × 1.38 in.)

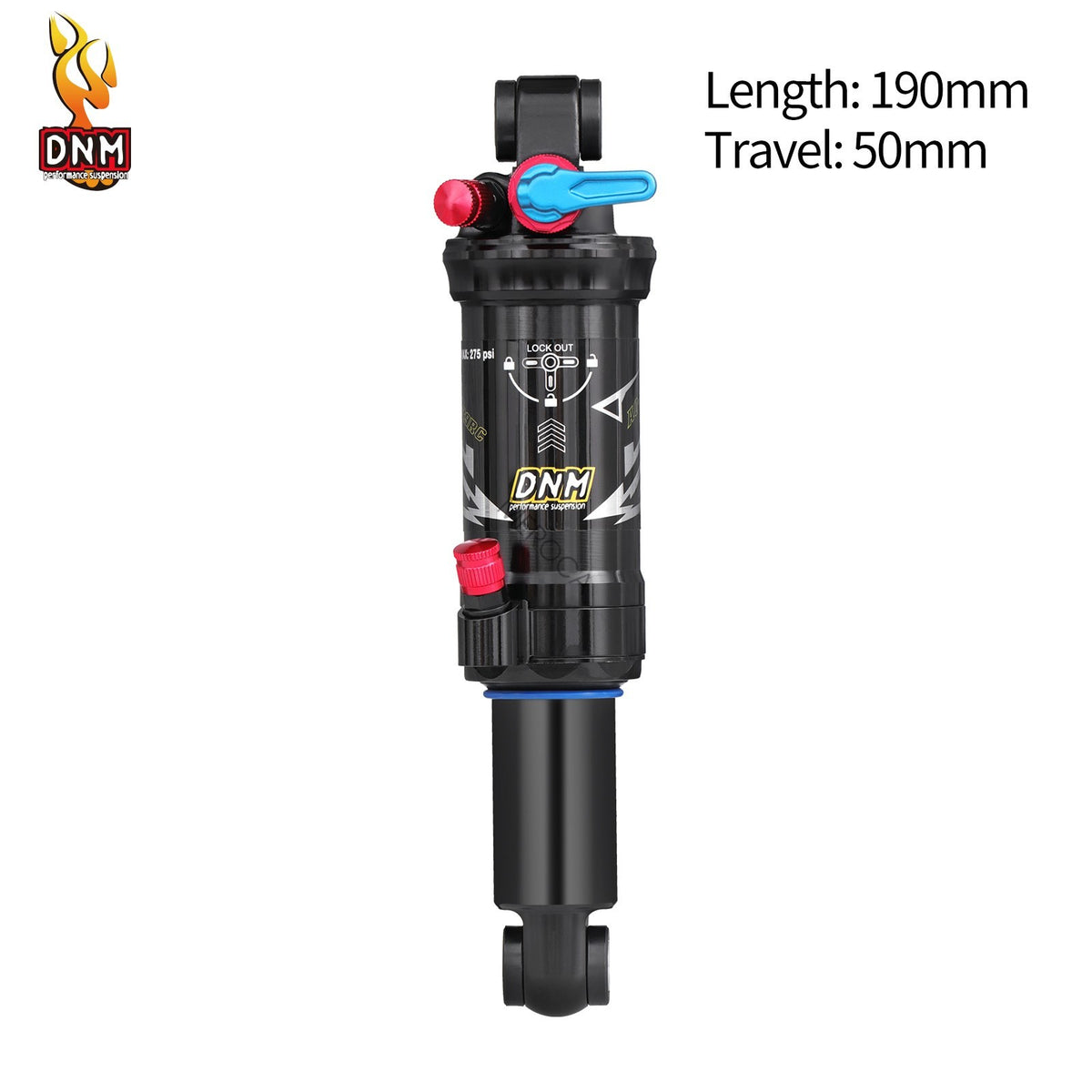

190 × 50 mm (7.83 × 1.97 inch)

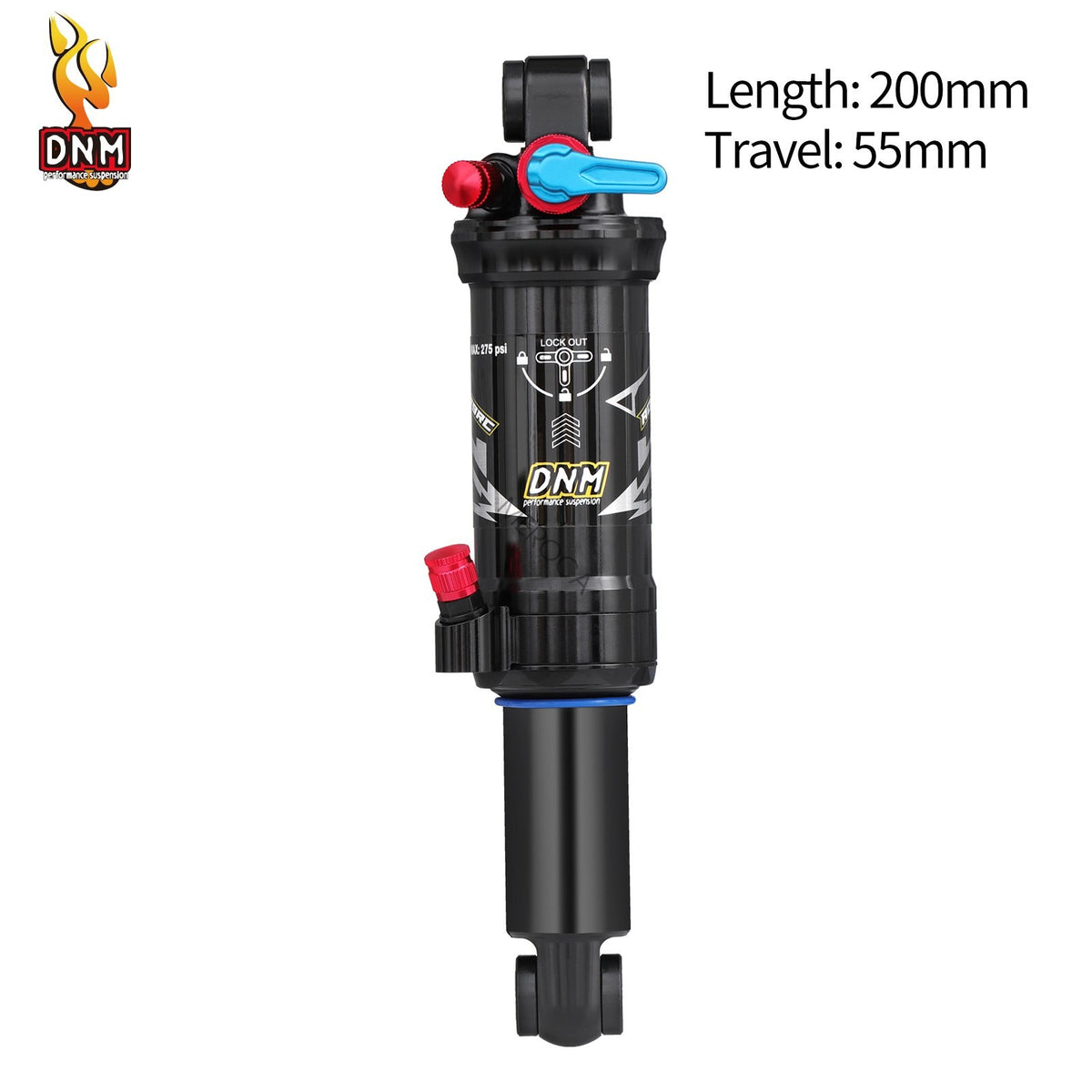

200 × 55 mm (7.87 × 2.0 in)
Weight:
165mm 279g, 190mm 302g, 200mm 307g
Bushshings installed: Top & Bottom 24*8mm
