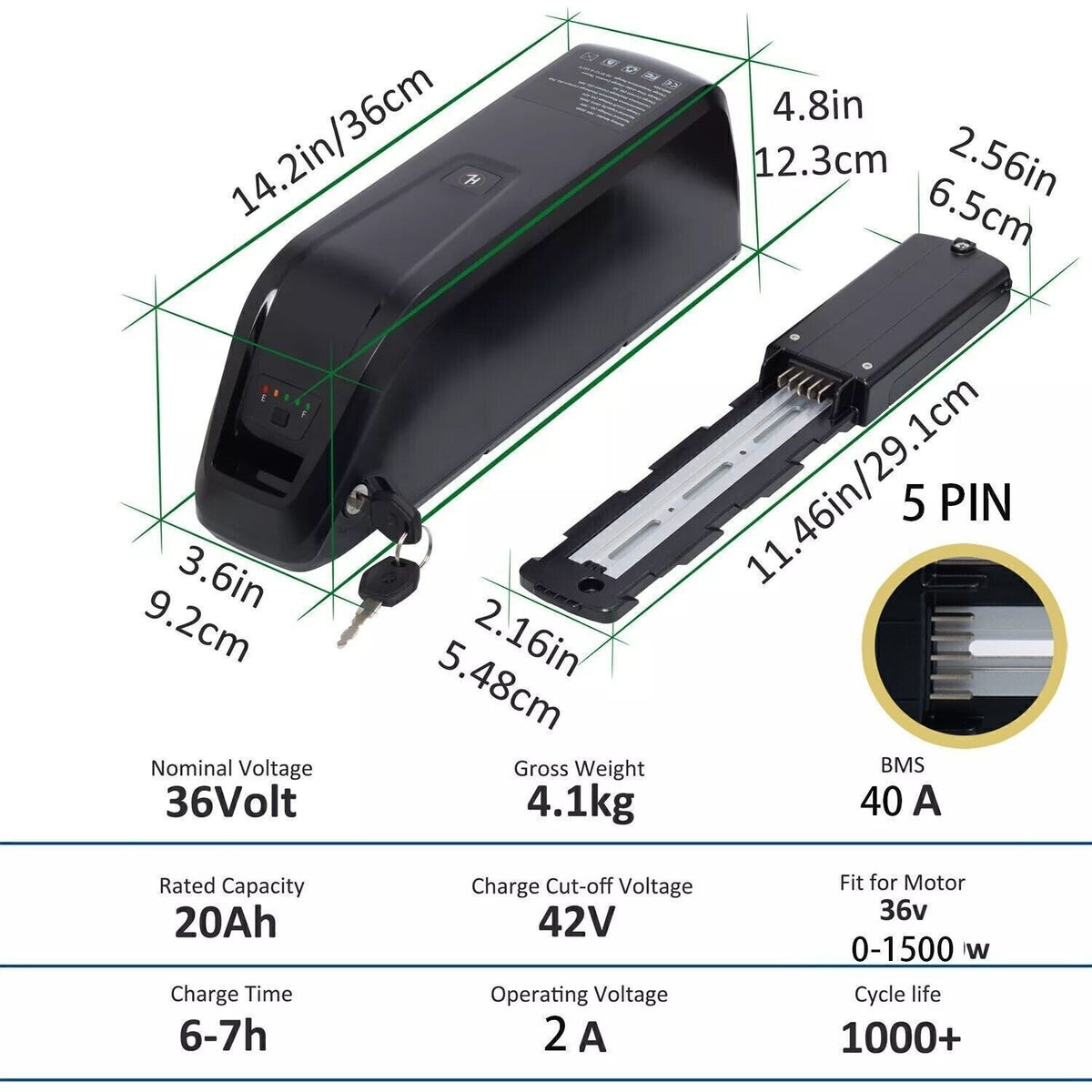

Electric Bicycle Battery 36V/48V/52V 20Ah 40A 5-Pin for eBike & Electric Bike

Electric Bicycle Battery 36V/48V/52V 20Ah 40A 5-Pin for eBike & Electric Bike

$269.99 USD
$269.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Item Capacity




Please note before purchase:


1. What is the voltage of your bicycle? If it's 36V, buy a 36V battery. If it's 48V, buy a 48V battery. You can also tell the voltage of the battery you need from your original battery or the control
center. 10Ah,15Ah,20Ah, and 30Ah represent the battery capacity and indicate the range


2. Is the size of the battery suitable for fit into your bicycle frame


3. The interface between the battery and the base needs to be determined. We have two types of interfaces: 4-pin and 5-pin. If your original battery base is 4-pin and you don't want to
replace the base, you can purchase a 4-pin battery set. If it's a 5-pin battery base, buy a 5-pin battery because our battery set includes the base.


Of course, if you don't mind replacing the original battery base, you don't need to worry about whether the battery base is 4-pin or 5-pin, because our batteries come with battery bases


4. When charging, please connect the power supply first and then the battery


5. Do not use up all the battery power completely. It is better for the battery to charge it each time with some remaining power


6. When you receive a new battery, make sure to charge it before using it.

Select the corresponding option, and clicking on the option will display the picture of that option. The picture will show the battery parameters such as size and pin count.

Nolminal Voltage
 36V 15Ah 36V 20Ah 48V 10Ah 48V 15Ah
Base In Plug 5-PIN 5-PIN 5-PIN 5-PIN
Power 0~1500w 0~1500w 0~1500w 0~1800w
Watt Hours 540Wh(Power:45-60KM) 720Wh(Power:50-80KM) 480Wh(Power:45-50KM) 720Wh(Power:45-60KM)
Weight 4.9 kg(10.8lbs) 5.5 kg(12.13lbs) 4.4 kg(9.7lbs) 5.8 kg(12.79lbs)
Discharge Connector XT60 XT60 XT60 XT60
BMS 40A(BMS) 40A(BMS) 30A(BMS) 40A(BMS)
Size

370*95*122mm

(14.57*3.74*4.8in)

370*95*138mm

(14.57*3.74*5.43in)
370*95*89mm
(14.57*3.74*3.5inch)

370*95*122mm

(14.57*3.74*4.8in)


Nolminal Voltage
 48V 20Ah 52V 20Ah 36V 10Ah
Base In Plug 5-PIN 5-PIN 5-PIN
Power 0~1800w 0~2000w

0~1000w
Watt Hours 960Wh(Power:60-80KM) 1040Wh(Power:60-90KM) 360Wh(Power:30-40KM)
Weight 6.8 kg(14.99lbs) 6.3kg(13.89lbs) 3.75 kg(8.27lbs)
Discharge Connector XT60 XT60 XT60
BMS 40A(BMS) 40A(BMS) 30A(BMS)
Size

370 x 95 x 138mm

(14.57 x 3.74 x 5.43in)

370 x 95 x 138mm

(14.57 x 3.74 x 5.43in)

370*95*89mm

(14.57*3.74*3.5in)



Specification:

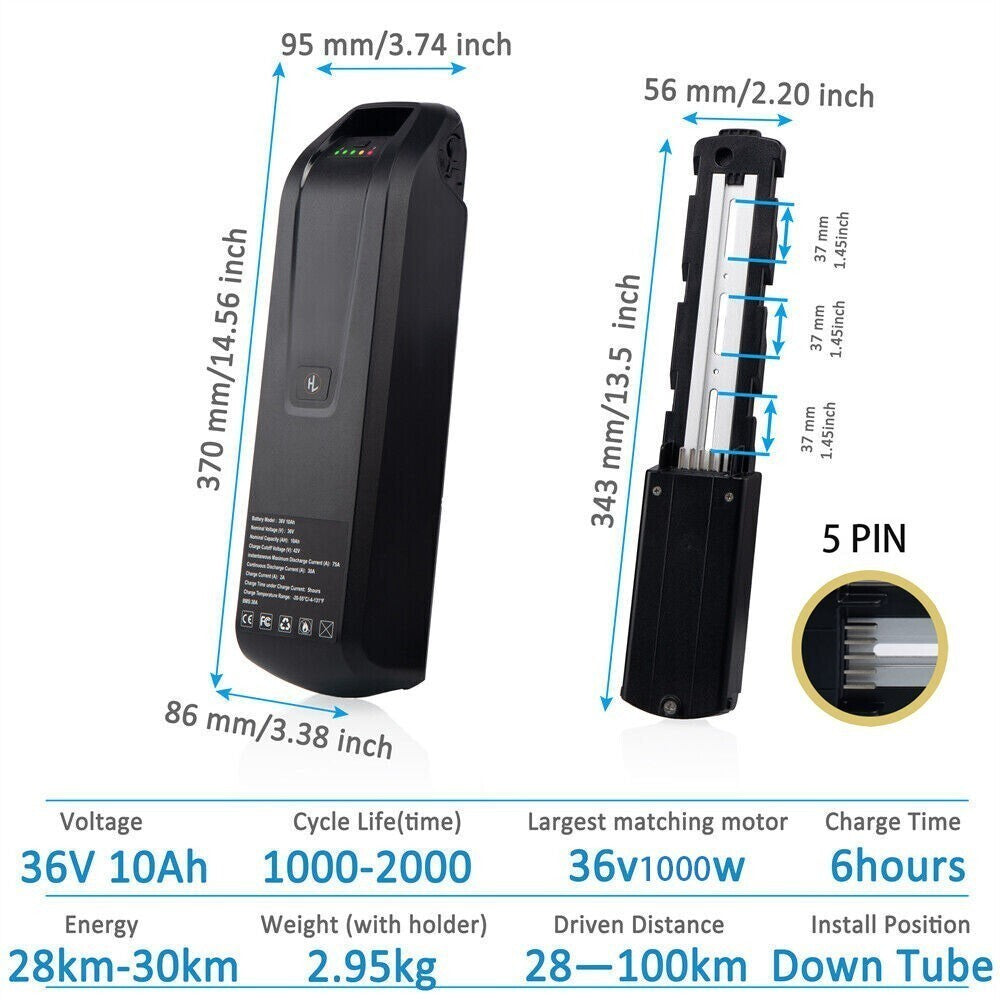

36V 10AH

Power: 36V 0~1000W
Capacity:10Ah
Watt Hours: 360Wh
Max Constant Discharge Current: 30A( BMS)
Battery Dimensions: 370*95*89mm
Battery Weight: 3.75kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：30--45km

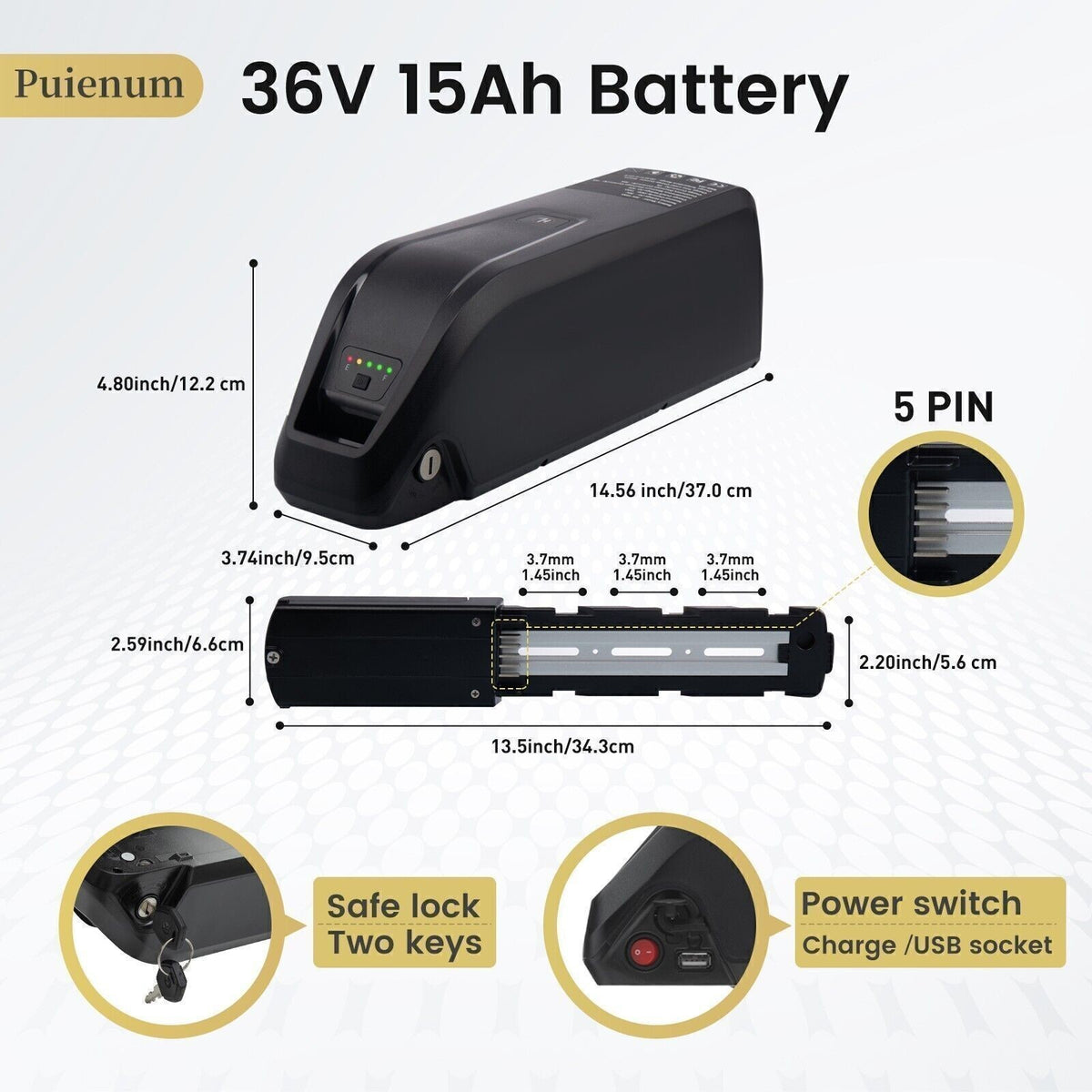

36V 15AH

Power: 36V 0~1500W
Capacity:15Ah
Watt Hours: 540Wh
Max Constant Discharge Current: 40A( BMS)
Battery Dimensions: 370*95*122mm
Battery Weight: 4.9kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：45--60km

36V 20AH

Power: 36V 0-1500W
Capacity:20Ah
Watt Hours:720Wh
Max Constant Discharge Current:40A( BMS)
Battery Dimensions : 370*95*138mm
Battery Weight: 5.5kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：50--70km

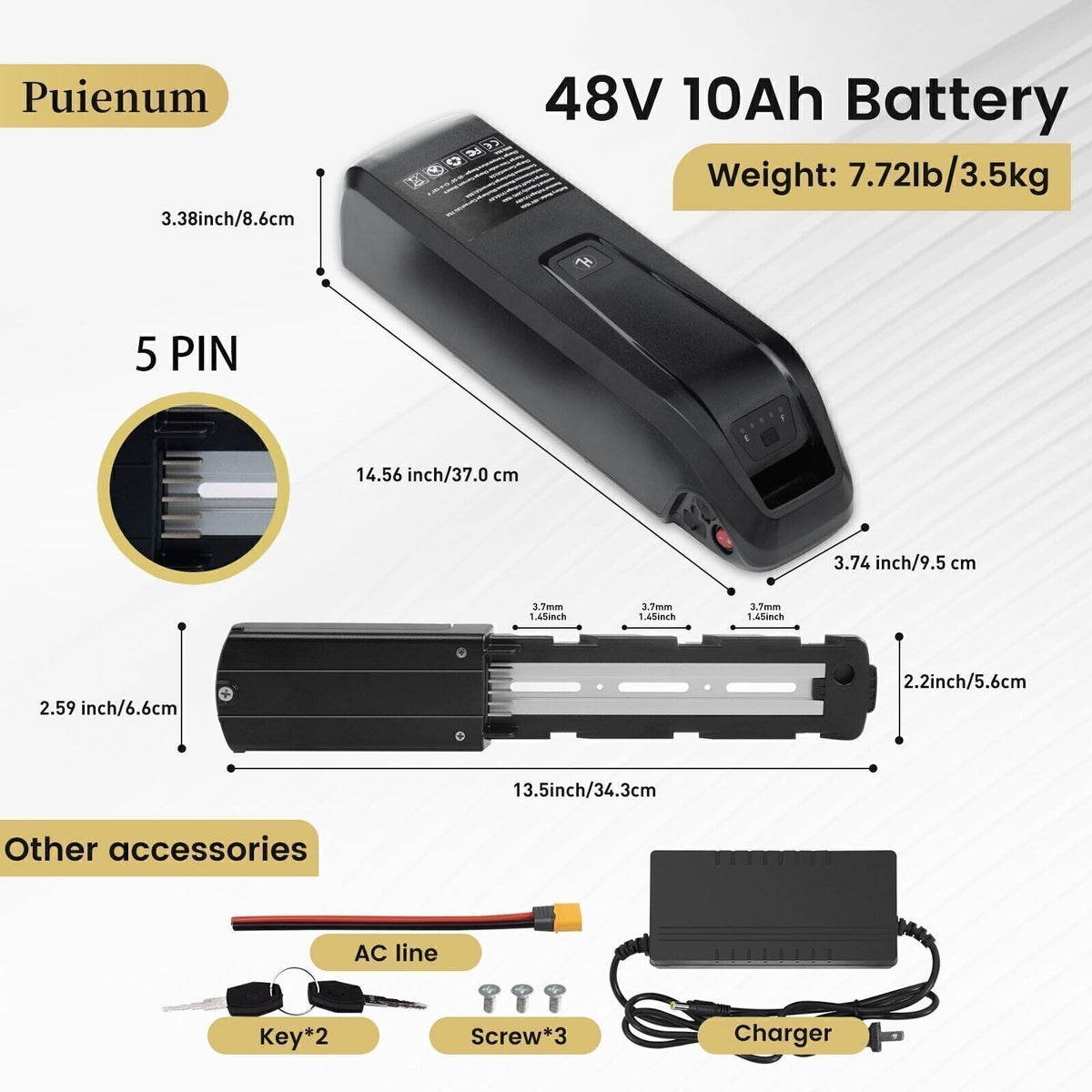

48V 10AH

Power: 48V 0-1500W
Capacity:10Ah
Watt Hours: 480Wh
Max Constant Discharge Current: 30A( BMS)
Battery Dimensions: 370*95*89mm
Battery Weight: 4.4kg

Discharge:  XT60 (Male&Female)

Battery Base: 5 Pin

Mile：30--40km

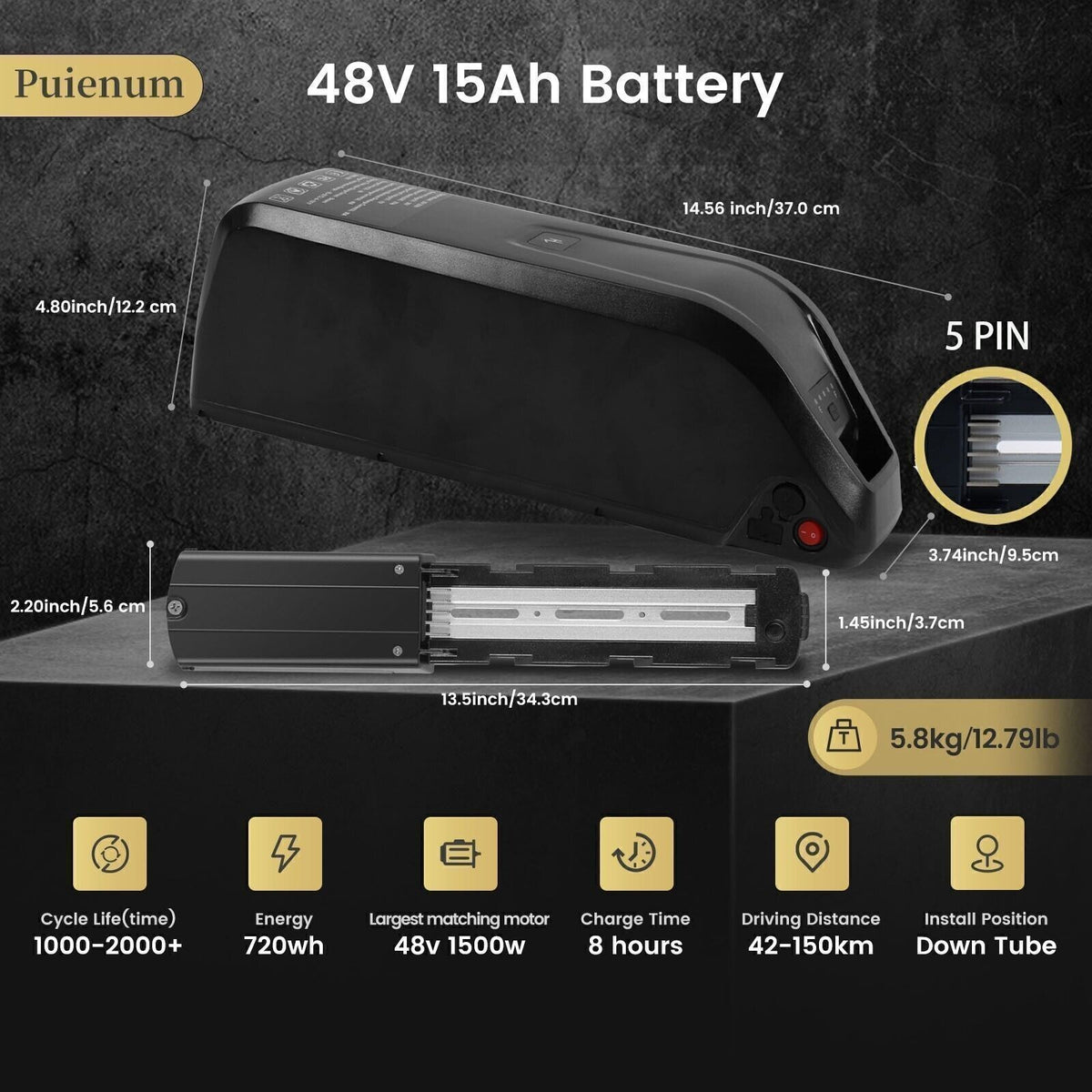

48V 15AH

Power: 48V 0-1800W
Capacity:15Ah
Watt Hours: 720Wh
Max Constant Discharge Current: 40A( BMS)
Battery Dimensions: 370*95*122mm
Battery Weight: 4.4kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：45--60km

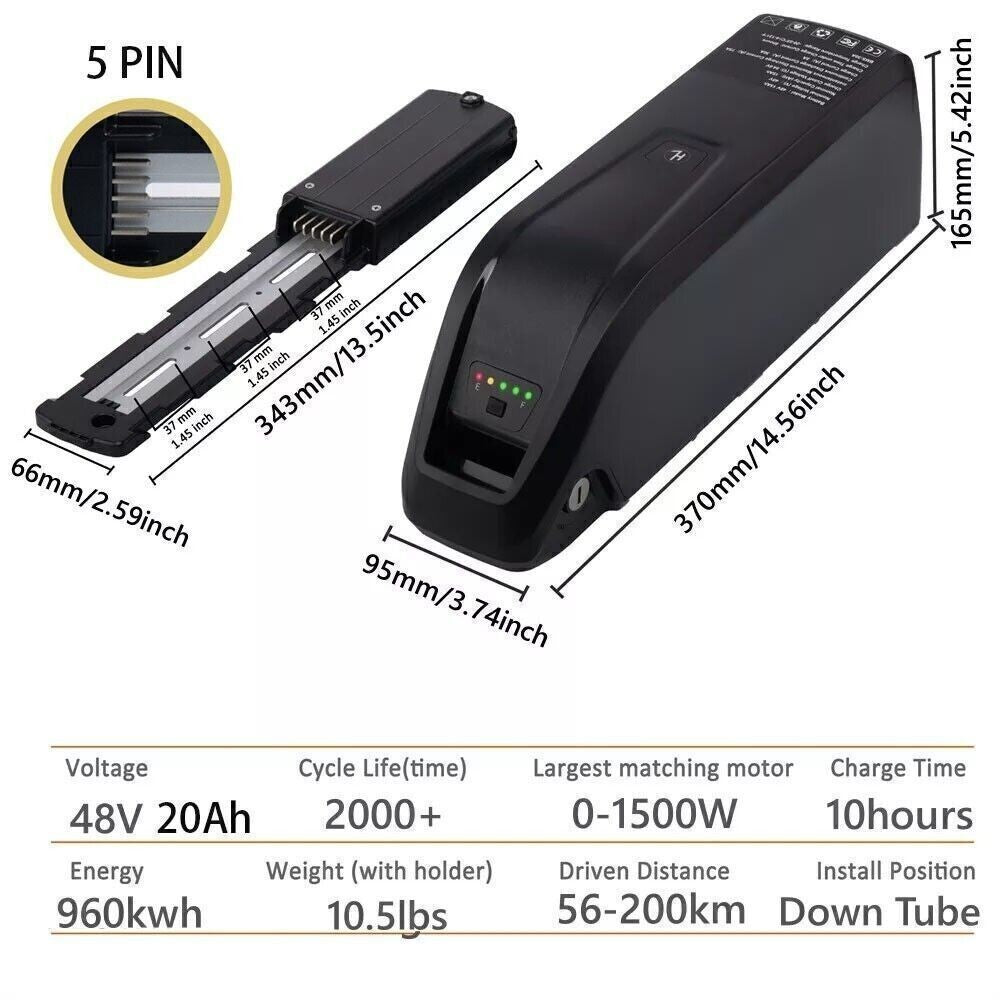

48V 20AH

Power: 48V 0-1800W
Capacity:20Ah
Watt Hours: 960Wh
Max Constant Discharge Current: 40A( BMS)
Battery Dimensions: 370*95*138mm
Battery Weight: 6.8kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：60--80km

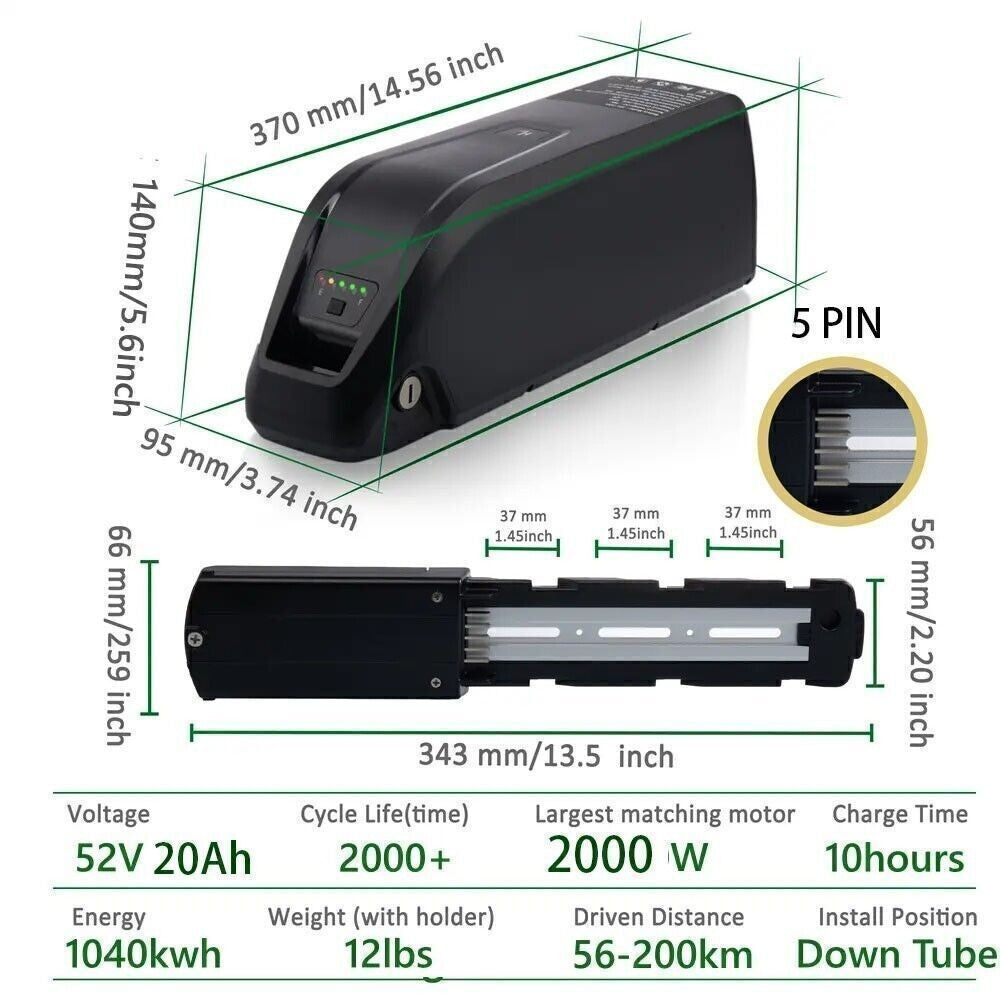

52V 20AH

Power: 52V 0-2000W
Capacity:20Ah
Watt Hours:1040Wh
Max Constant Discharge Current:40A( BMS)
Charge Cut-off Voltage : 58.8V
Battery Dimensions : 370*95*138mm
Battery Weight: 6.3kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：70--90km

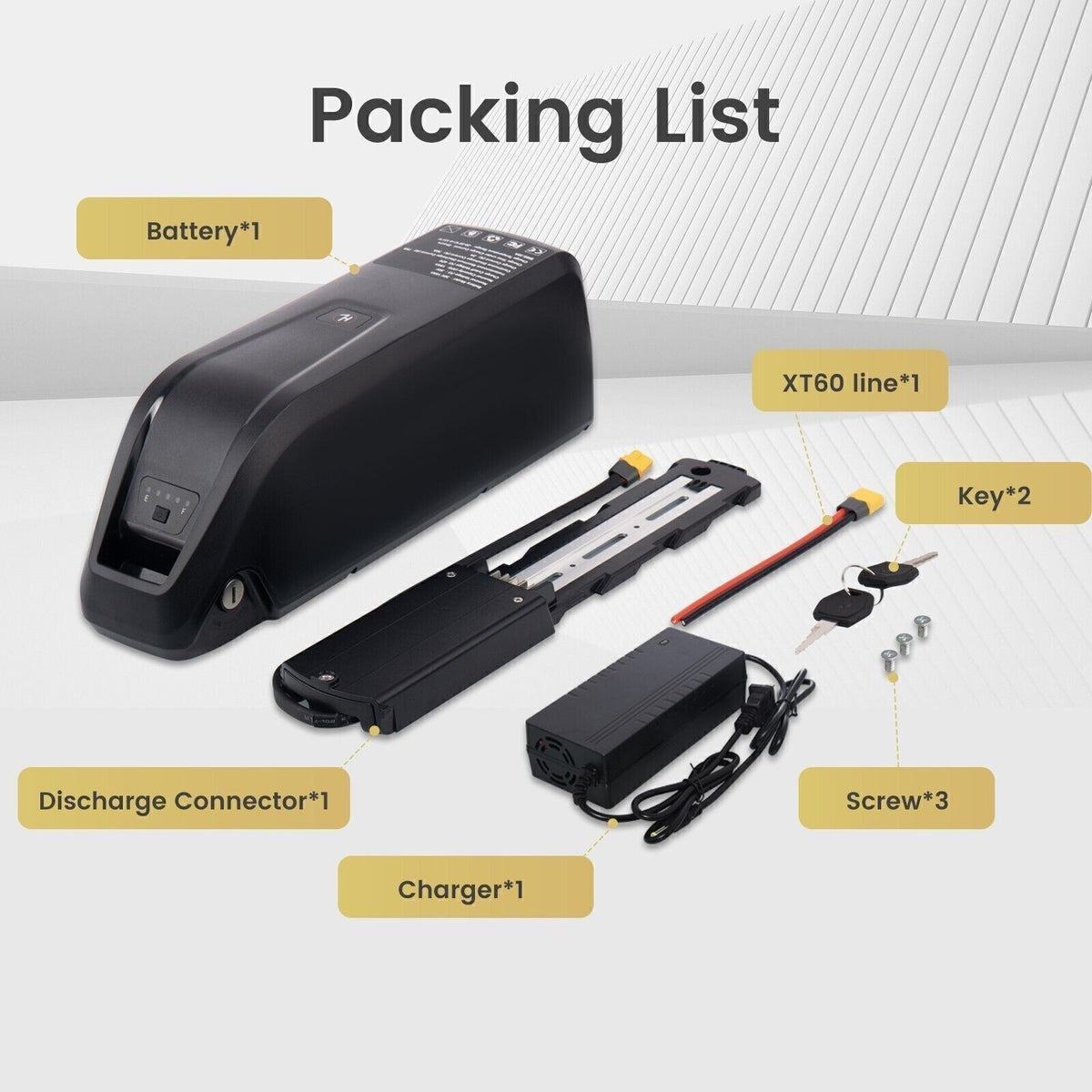

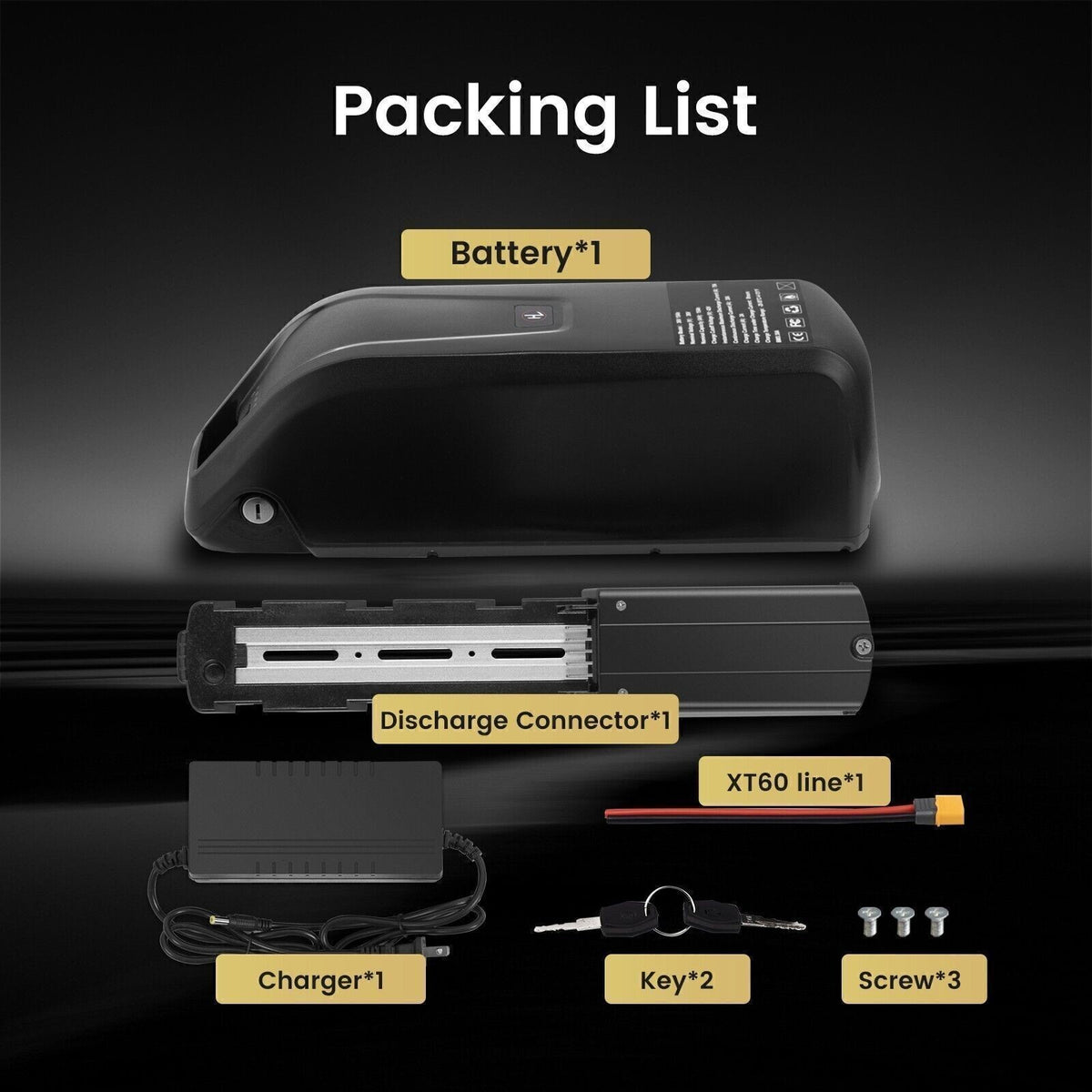

Parts included:

1 x Lithium Battery with ABS case(Base discharge)
1 x Mounting Fixed Plate

2 x Keys


The Charger is UL 62368-1 certified and can provide documentation showing certification on request.


The Battery is UL 2849, UL 2272, UL 2271 certified and complies with UL standards (1012, 1310, 60950-1 or 62368-1) and can provide documentation showing certification on request.


The creepage distance and electrical gap distance in the charger are sufficient, the product does not pose a fire risk,  will not cause components to overheat or explosion,
and the output has a fuse to protect the battery pack from overcurrent conditions. Battery charging input and output  cables are also adequately protected against stress.


The plug meets the size requirements of the relevant standards,  and there is no risk of electric shock to the user. The fuse complies with relevant standards and does
not pose a risk  of fire or explosion in the event of failure. The product has been marked and labeled in accordance with the standards


Use only the charger provided with your micromobility device. If you do not have the charger that was provided with your  device,  you can contact the manufacturer
of your device for information about compatible replacement chargers. Before buying or  using a replacement charger,  make sure it has been tested and
approved to work safely with your device. Do not use a charger that came with another  micromobility device without confirming compatibility.



To further lower the risk of fire,  take the following steps when charging your micromobility product with the correct charger:


Unplug the charger from the micromobility device when the charge cycle is complete. Do not leave the charger plugged  into the device for long periods of time.


Always be present when charging micromobility products, and never charge them while you are sleeping.


Follow the manufacturer’s guidance on how often you should charge your battery if you are not regularly using your  micromobility device.

Certified to Meet UL 2271 Safety Standards and can provide documentation showing certification on request.
