Electric Bicycle Battery 36V/48V 8Ah-20Ah for E-Bikes and Electric Bikes

Please note before buying:

1, your bicycle voltage is how much, if it is 48V to buy 48V battery, if it is 36V to buy 36V battery, you can also see from your original battery or control center can see how much voltage you need battery.

10Ah,15Ah,20Ah, 30Ah represent the battery capacity, representing the mileage

2. Whether the battery is the right size to fit into your bike frame

3. When charging, connect the power supply first and then the battery

4. Do not completely use up the battery's power, and it is better for the battery to charge every time you retain some power

Certified to Meet UL 2271 Safety Standards and can provide documentation showing certification on request.

The creepage distance and electrical gap distance in the charger are sufficient, the product does not pose a fire risk, will not cause components to overheat or explosion, and the output has a fuse to protect

the battery pack from overcurrent conditions.  Battery charging input and output cables are also adequately protected against stress.

The plug meets the size requirements of the relevant standards, and there is no risk of electric shock to the user.  The fuse complies with relevant standards and does not pose a risk of fire or explosion in the

event of failure.  The product has been marked and labeled in accordance with the standards

Parameter	36V 10Ah	36V 14Ah	36V 20Ah	48V 8Ah	48V 10Ah
Nominal Voltage	36V	36V	36V	48V	48V
Nominal Capacity	10Ah	14Ah	20Ah	8Ah	10Ah
Nominal Watt Hour	360WH	504WH	720WH	384WH	480WH
Composed Type	10S4P	10S5P	10S7P	13S3P	13S4P
Built-in BMS	30A (30Amp)	30A  (30Amp)	30A (30Amp)	30A (30Amp)	30A (30Amp)
Fit Motor Power	0-1000W max	0-1000W max	0-1000W max	0-1500W max	0-1500W max
Charge Cut-off Voltage	42V	42V	42V	54.6V	54.6V
Discharge Plug	T-head (with XT60 adapter)
Battery Weight	3.15KG	3.5KG	4.5KG	2.8KG	3.2KG
Battery Charger	42V 2A	42V 2A	42V 2A	54.6V 2A	54.6V 2A
Battery Pack Cell	Domestic Grade A 18650 cells
Dimension	210*92*70mm	210*110*70mm	220*140*70mm	266*72*70mm	268*94*70mm
Max Discharge Current	30A(30Amp)	30A(30Amp)	30A(30Amp)	30A(30Amp)	30A(30Amp)



Parameter	48V 14Ah	36V 16Ah	48V 20Ah	/	/
Nominal Voltage	48V	36V	48	/	/
Nominal Capacity	14Ah	16Ah	20Ah	/	/
Nominal Watt Hour	672WH	576WH	960WH	/	/
Composed Type	13S5P	13S8P	13S7P	/	/
Built-in BMS	30A (30Amp)	30A (30Amp)	30A (30Amp)	/	/
Fit Motor Power	0-1500W max	0-1000W max	0-1500W max	/	/
Charge Cut-off Voltage	54.6V	42V	54.6	/	/
Discharge Plug	T-head(with XT60 adapter			/	/
Battery Weight	3.4KG	3.15KG	5.6KG	/	/
Battery Charger	54.6V 2A	42V 2A	54.6V 2A	/	/
Battery Pack Cell	Domestic Grade A 18650 cells
Dimension	270*107*70mm	210*120*70mm	270*140*70mm	/	/
Max Discharge Current	30A(30Amp)	30A(30Amp)	30A(30Amp)	/	/



The Charger is UL 62368-1 certified and can provide documentation showing certification on request.

The Battery is UL 2849 UL 2272 certified and can provide documentation showing certification on request.

Specification:

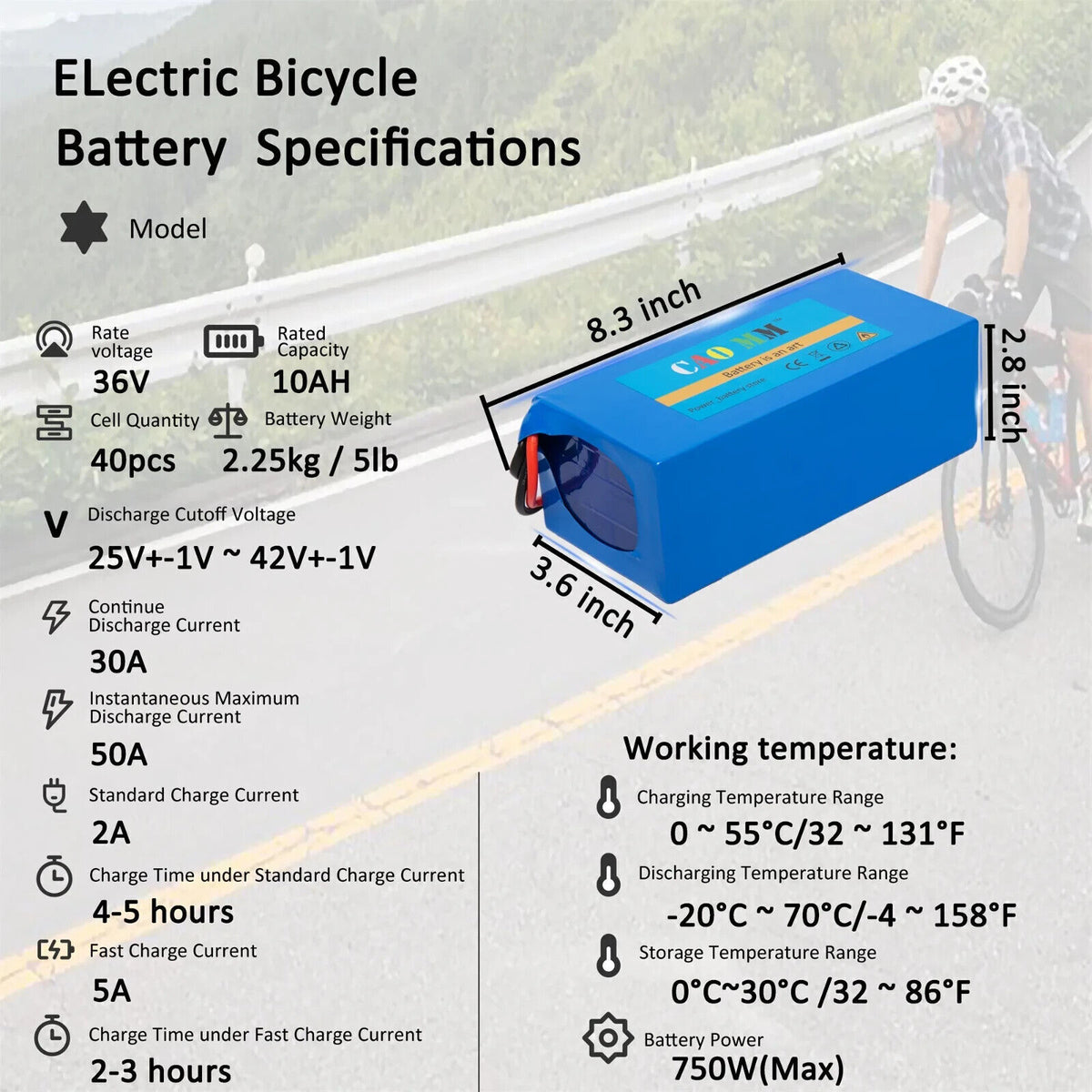

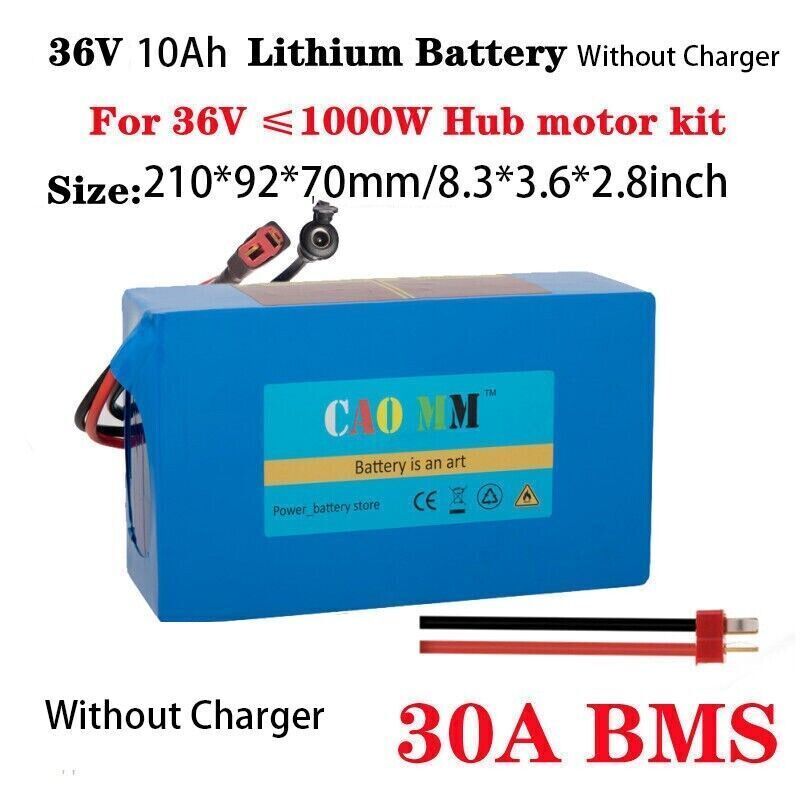

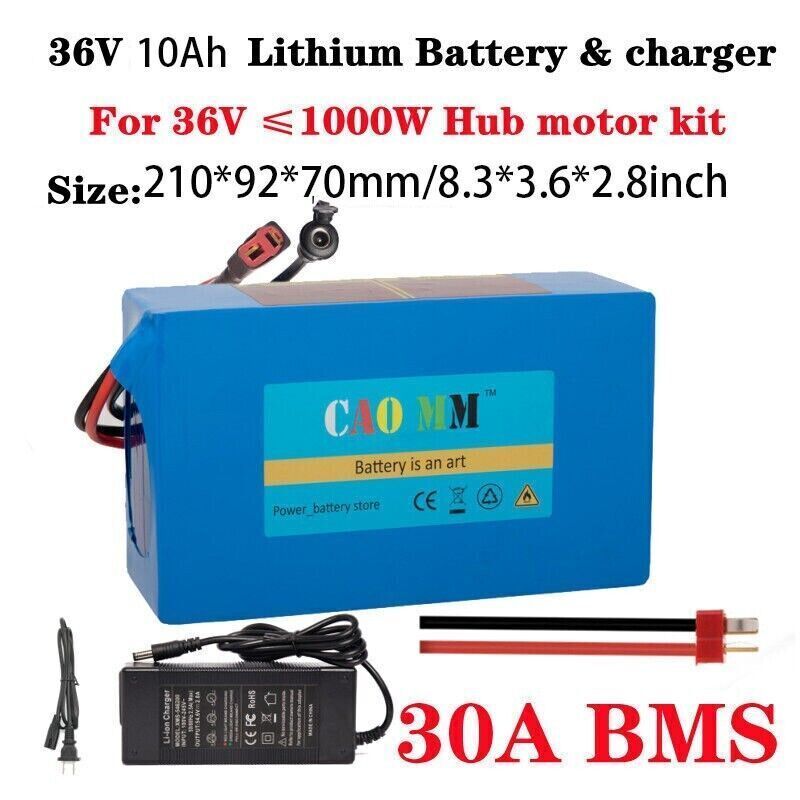

36V 10AH 100W-1000W



Nominal Voltage: 36V

Rated Capacity: 10Ah

Max Constant Discharge Current:30A( BMS)

Apply for: 100W-1000W Motor eBike Electric bicycle bike

Battery Type:Lithium Ion (Li-Ion)

Size/Weight: 210*92*70mm(3.15kg) (8.3*3.6*2.8inch)

Charger : 42V 2 A

Discharge: T head

Battery Cell: 18650 A Grade

Weight:2.90KG

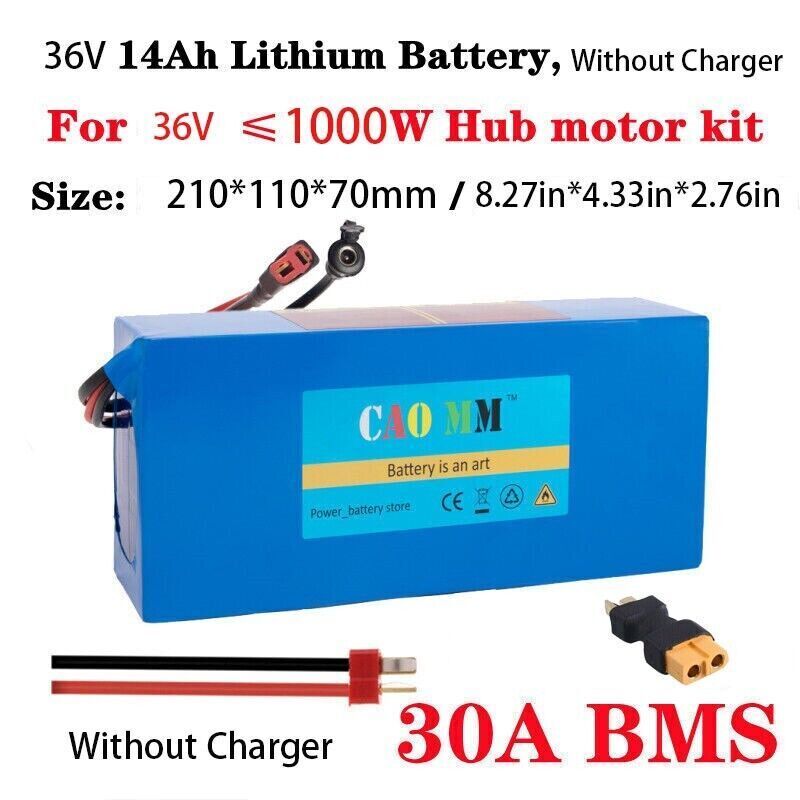

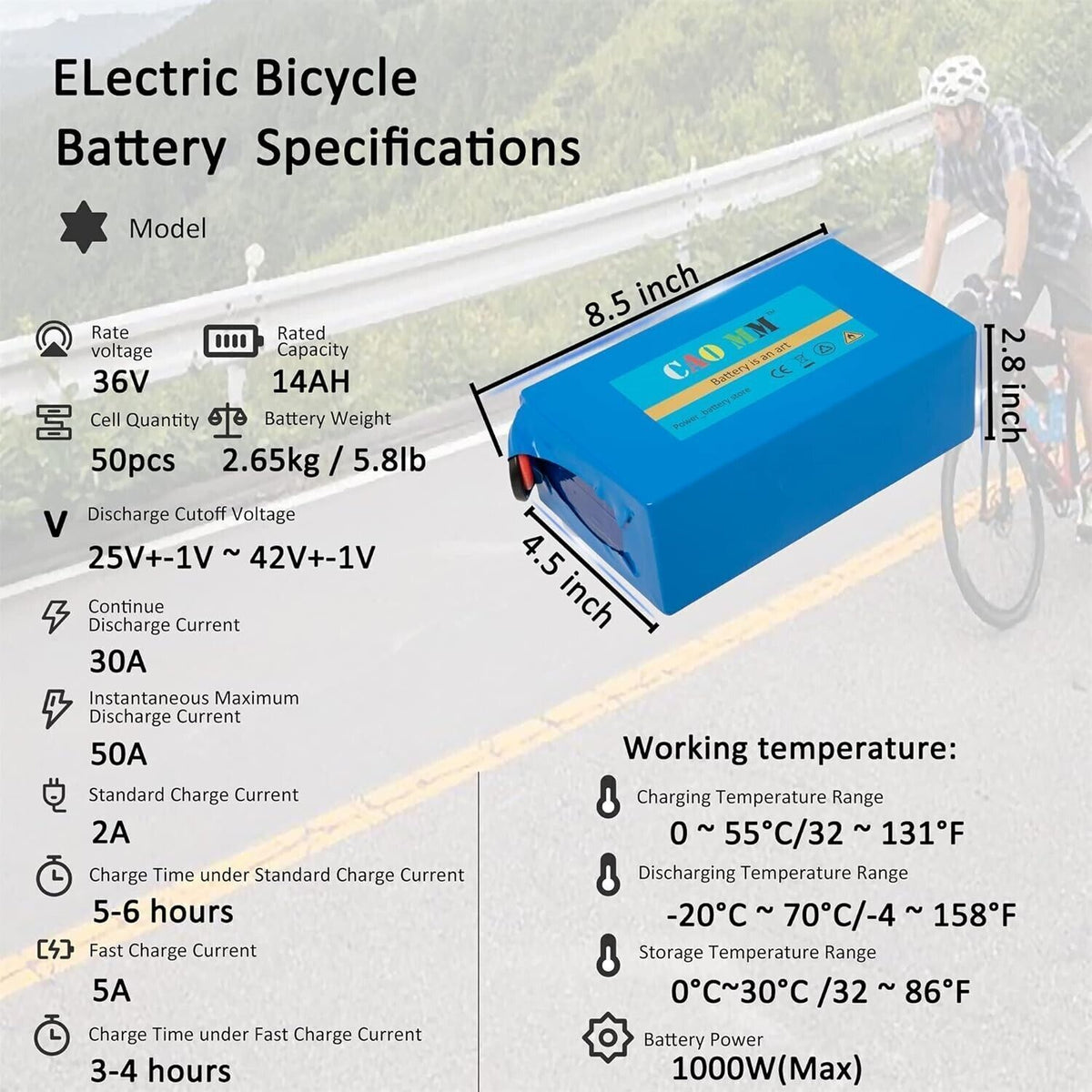

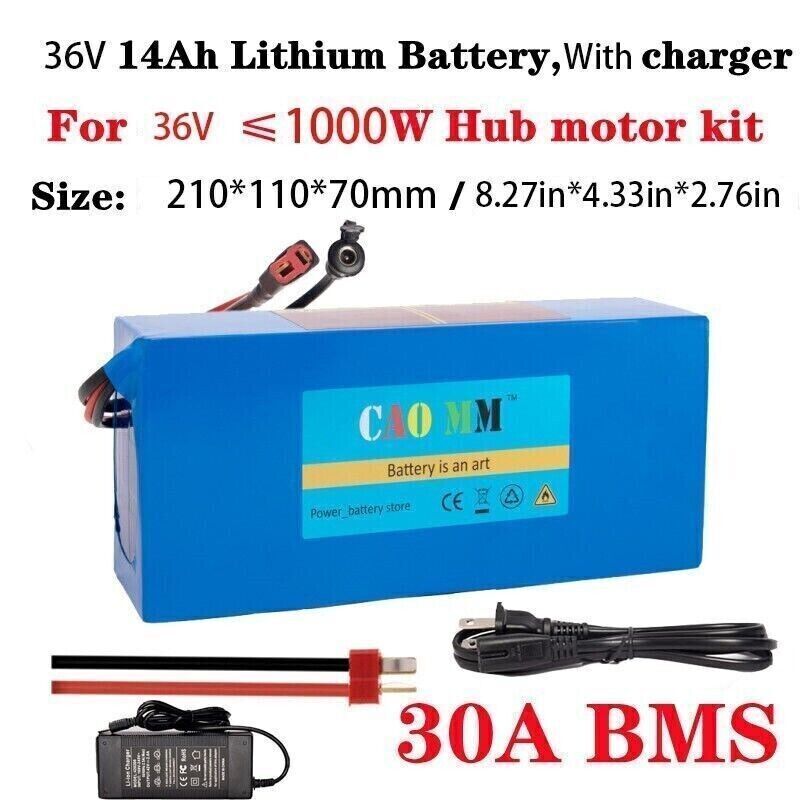

36V 14AH 100W-1000W



Nominal Voltage: 36V

Rated Capacity: 14Ah

Max Constant Discharge Current:30A( BMS)

Apply for: 100W-1000W Motor eBike Electric bicycle bike

Battery Type:Lithium Ion (Li-Ion)

Size/Weight: 210*110*70mm(3.5kg)(8.27*4.33*2.76in)

Charger : 42V 2 A

Discharge: T head

Battery Cell: 18650 A Grade

Weight:3.50KG

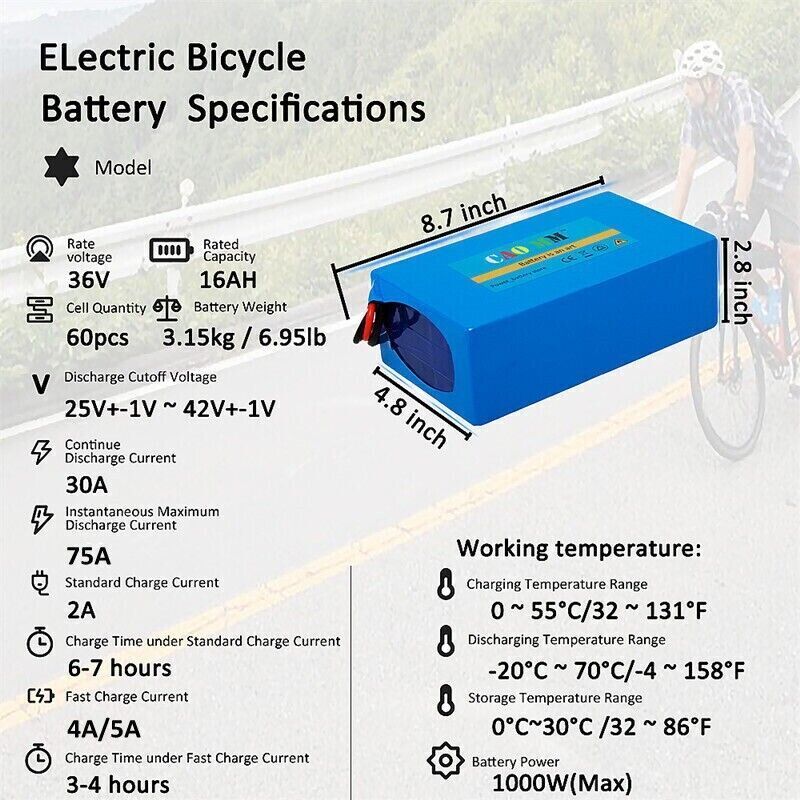

36V 16AH 100W-1000W



Nominal Voltage: 36V

Rated Capacity: 16Ah

Max Constant Discharge Current:30A( BMS)

Apply for: 100W-1000W Motor eBike Electric bicycle bike

Battery Type:Lithium Ion (Li-Ion)

Size/Weight: 210*120*70mm(3.15kg)(8.3*4.72*2.8inch)

Charger : 42V 2 A

Discharge: T head

Battery Cell: 18650 A Grade

Weight:3.15KG

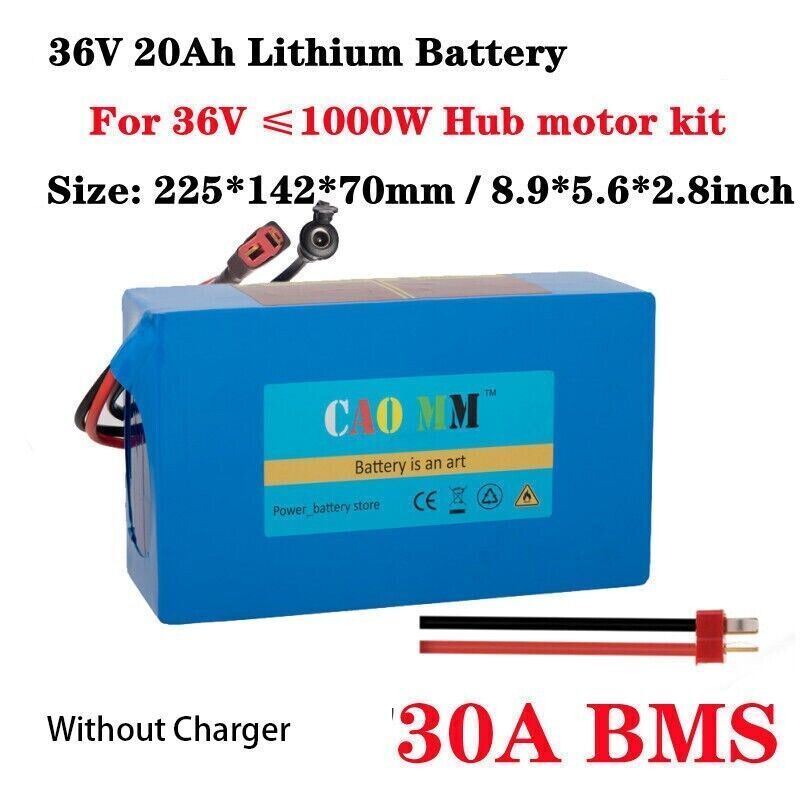

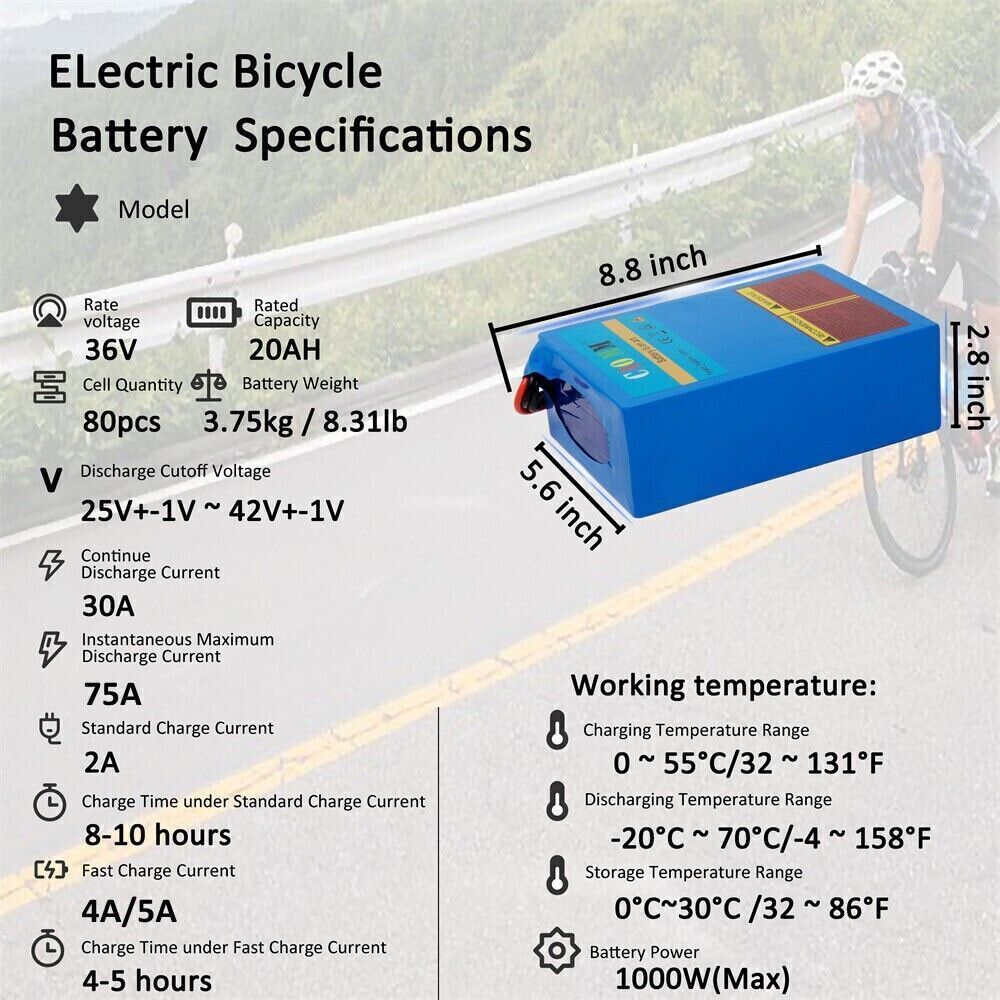

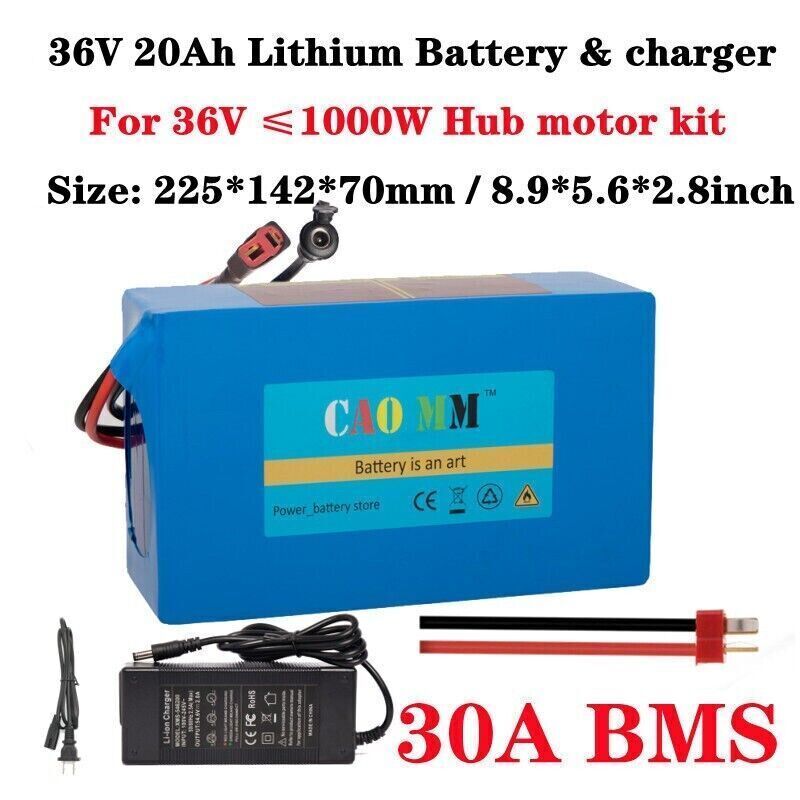

36V 20AH 100W-1000W



Nominal Voltage: 36V

Rated Capacity: 20Ah

Max Constant Discharge Current:30A( BMS)

Apply for: 100W-1000W Motor eBike Electric bicycle bike

Battery Type:Lithium Ion (Li-Ion)

Size/Weight: 220*140*70mm(4.5kg) (8.66*5.51*2.76in)

Charger : 42V 2 A

Discharge: T head

Battery Cell: 18650 A Grade

Weight:4.50KG

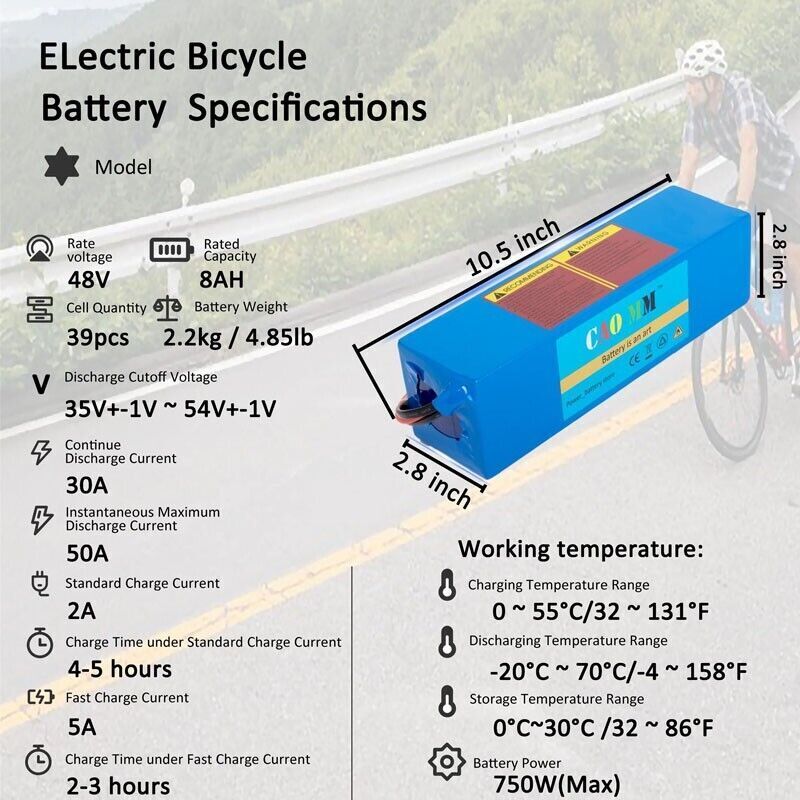

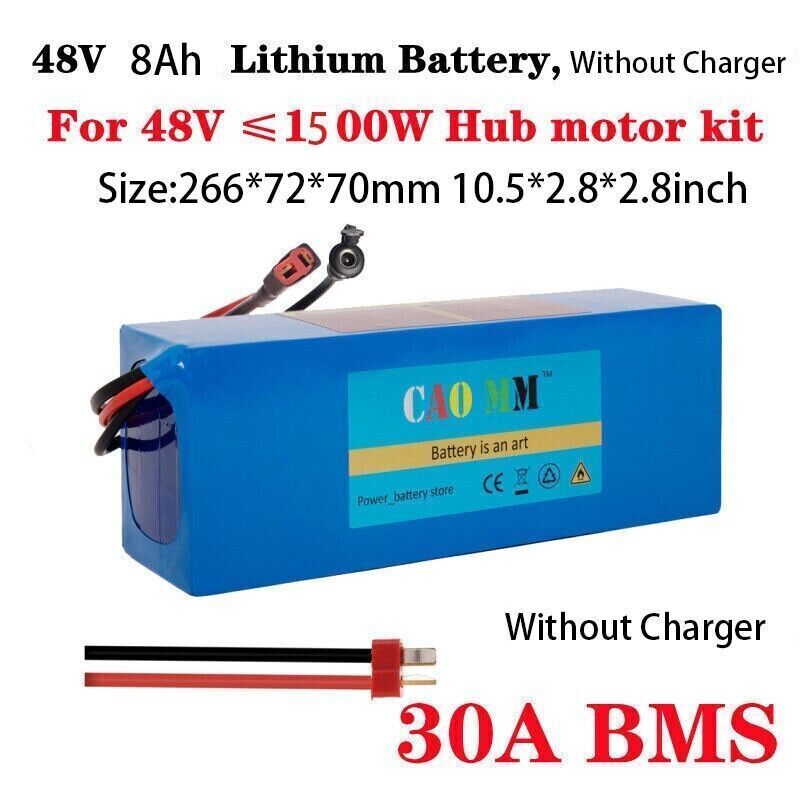

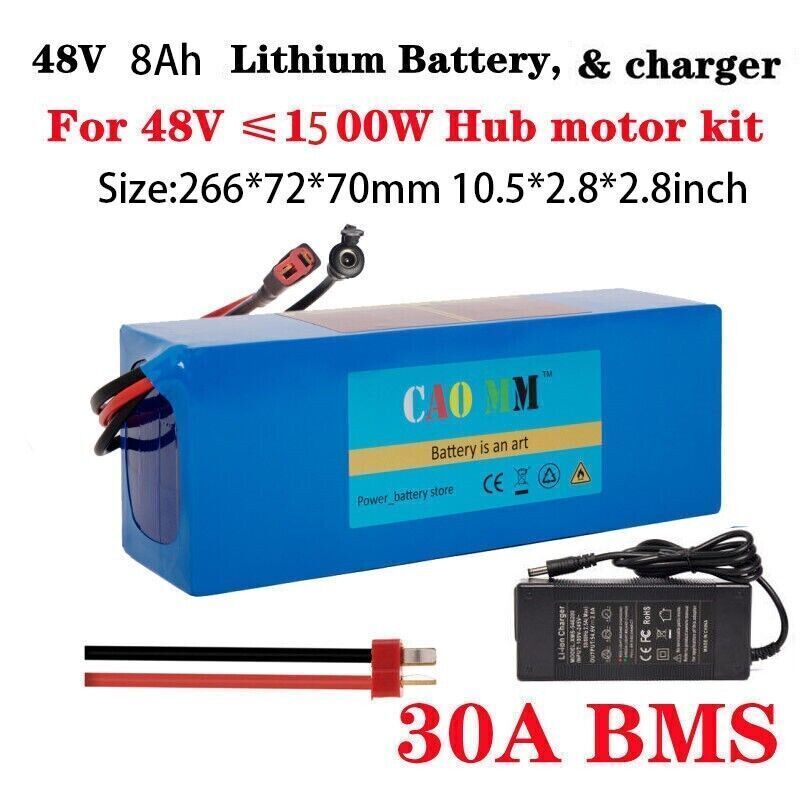

48V 8AH 100W-1500W



Nominal Voltage: 48V

Rated Capacity: 8Ah

Max Constant Discharge Current:30A( BMS)

Apply for: 100W-1500W Motor eBike Electric bicycle bike

Battery Type:Lithium Ion (Li-Ion)

Size/Weight: 266*72*70mm(2.8kg) (10.5*2.8*2.8inch)

Charger : 54.6V 2 A

Discharge: T head

Battery Cell: 18650 A Grade

Weight:2.8KG

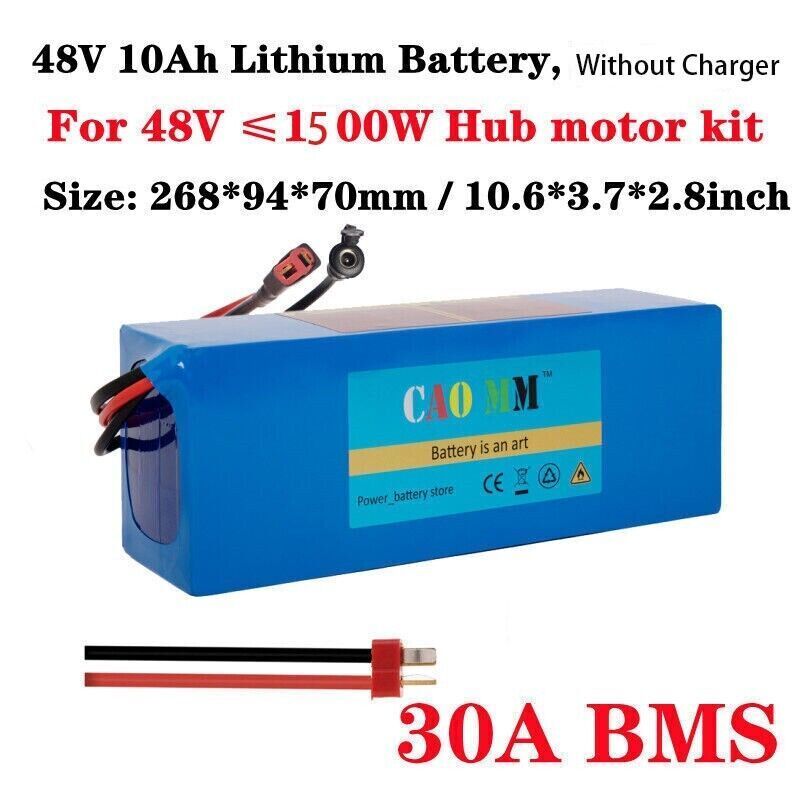

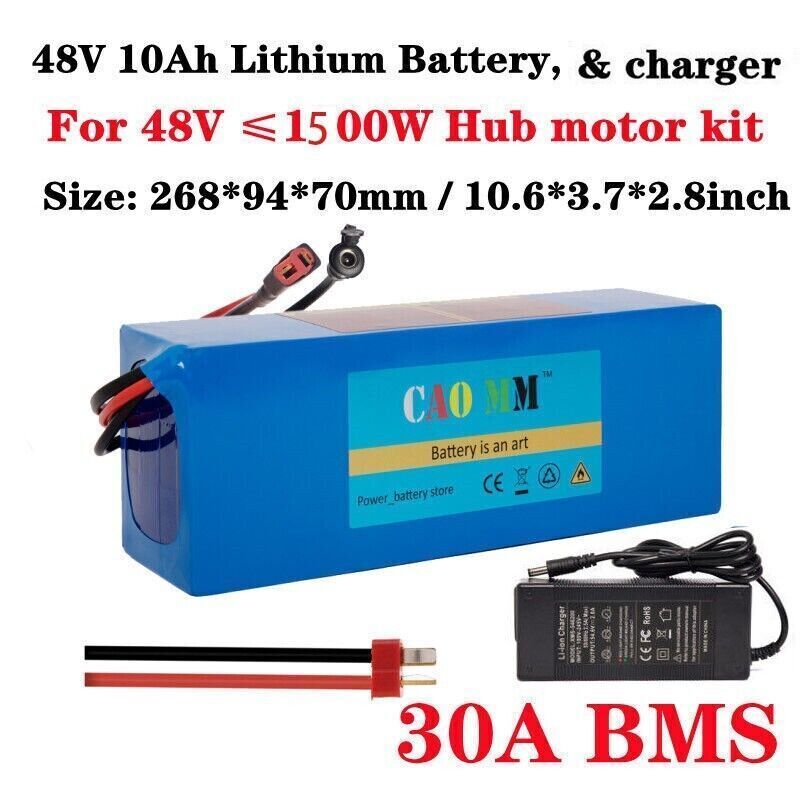

48V 10AH 100W-1500W



Nominal Voltage: 48V

Rated Capacity: 10Ah

Max Constant Discharge Current:30A( BMS)

Apply for: 100W-1500W Motor eBike Electric bicycle bike

Battery Type:Lithium Ion (Li-Ion)

Size/Weight:  268*94*70mm(3.2kg) (10.6*3.7*2.8inch)

Charger : 54.6V 2 A

Discharge: T head

Battery Cell: 18650 A Grade

Weight:3.2KG

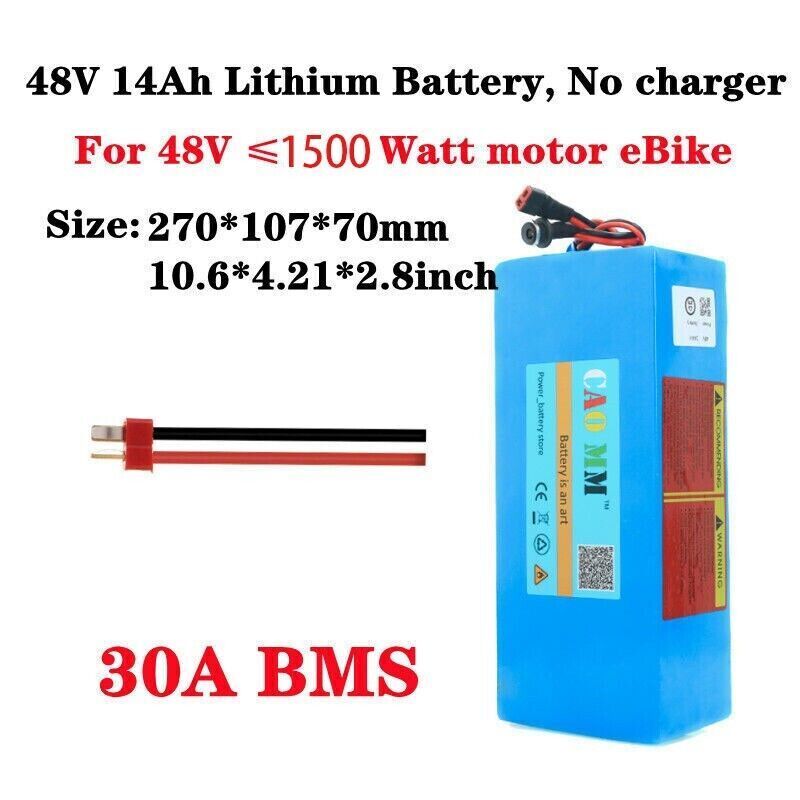

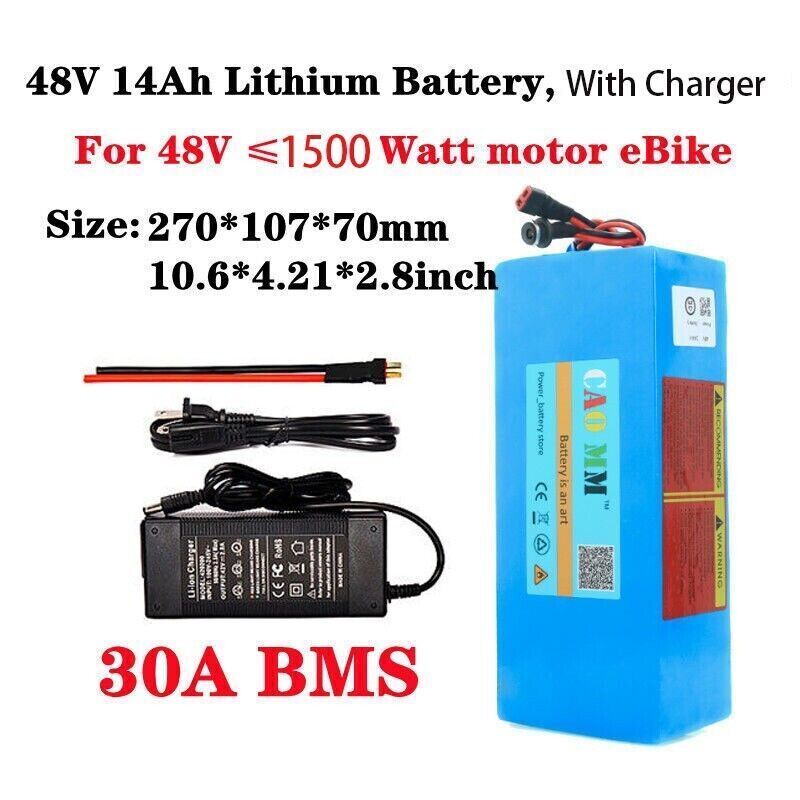

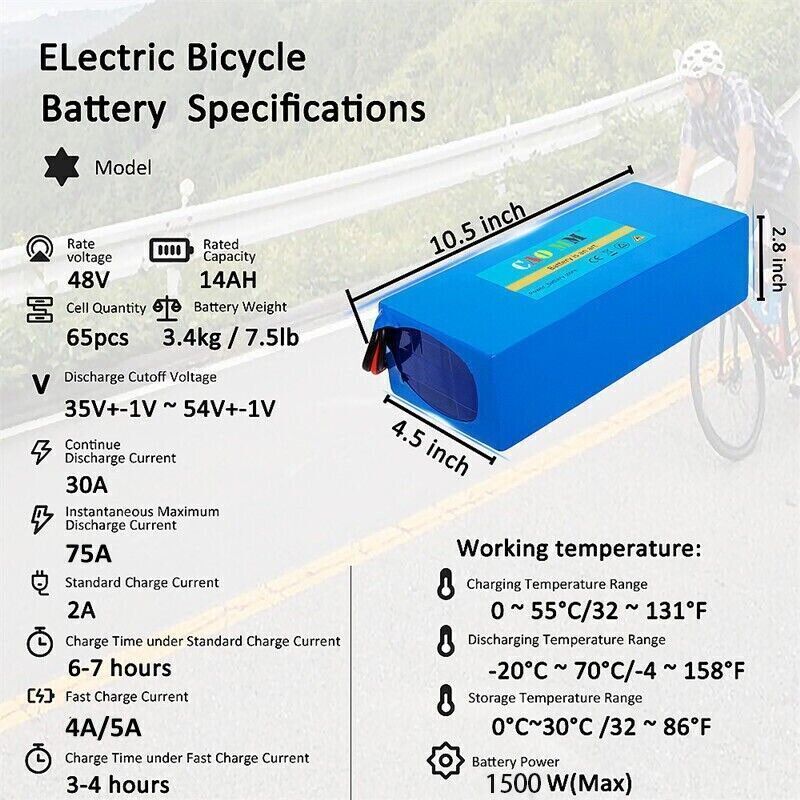

48V 14AH 100W-1500W



Nominal Voltage: 48V

Rated Capacity: 14Ah

Max Constant Discharge Current:30A( BMS)

Apply for: 100W-1500W Motor eBike Electric bicycle bike

Battery Type:Lithium Ion (Li-Ion)

Size/Weight: 270*107*70mm(3.4kg) (10.6*4.21*2.8inch)

Charger : 54.6V 2 A

Discharge: T head

Battery Cell: 18650 A Grade

Weight:4.20KG

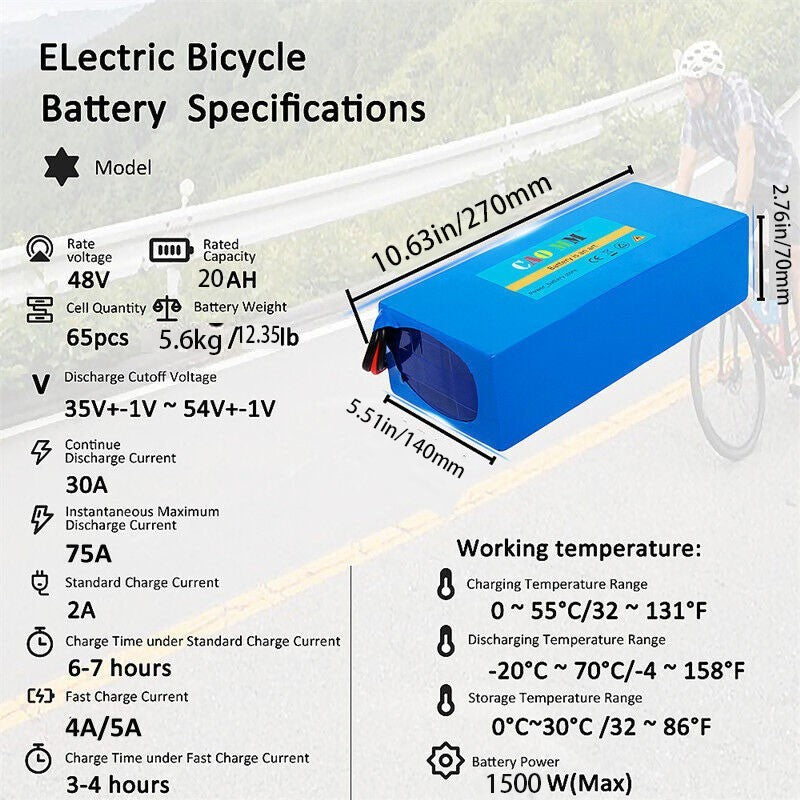

48V 20AH 100W-1500W



Nominal Voltage: 48V

Rated Capacity: 20Ah

Max Constant Discharge Current:30A( BMS)

Apply for: 100W-1500W Motor eBike Electric bicycle bike

Battery Type:Lithium Ion (Li-Ion)

Size/Weight: 270*140*70mm(5.6kg) (10.63*5.51*2.76in)

Charger : 54.6V 2 A

Discharge: T head

Battery Cell: 18650 A Grade

Weight:5.60KG

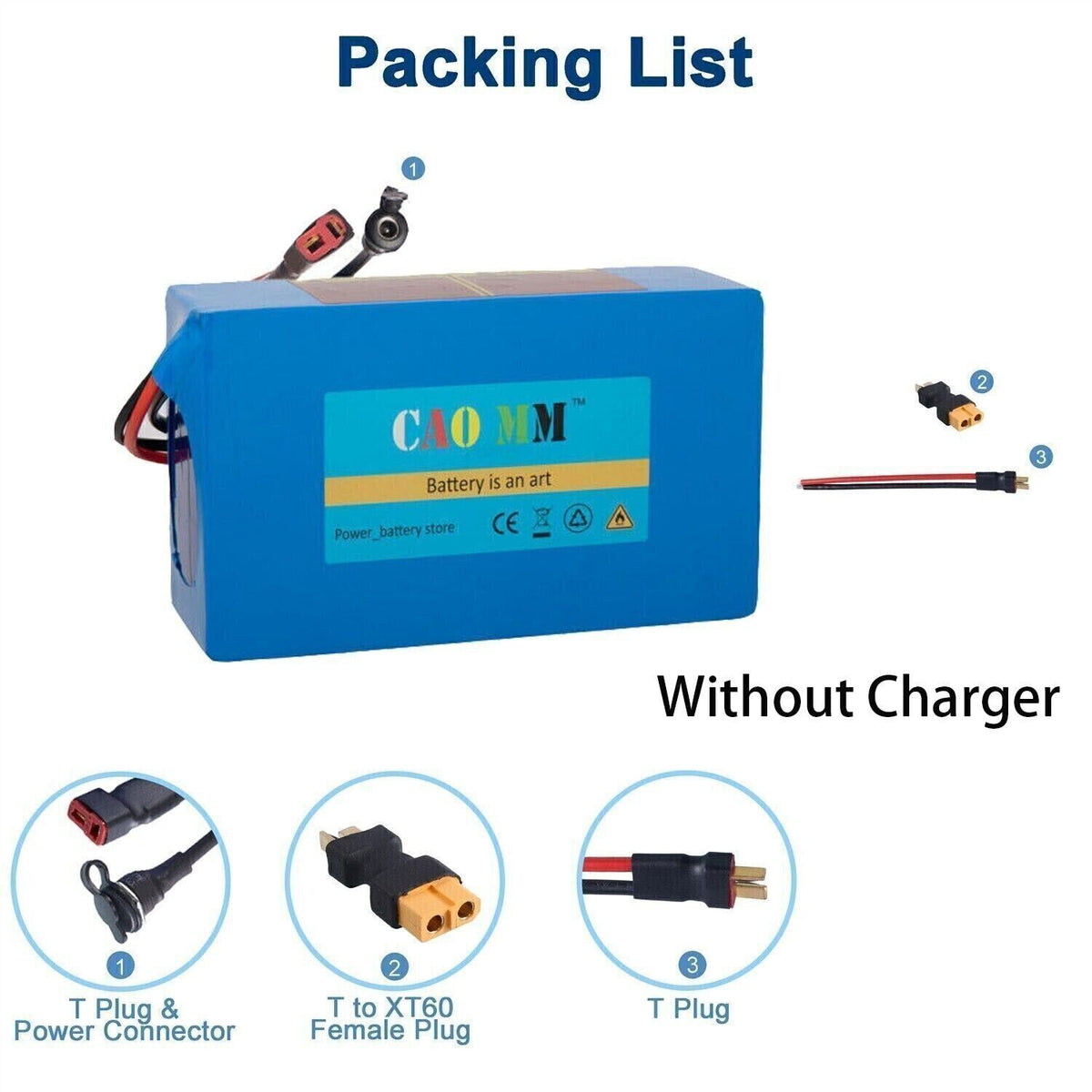

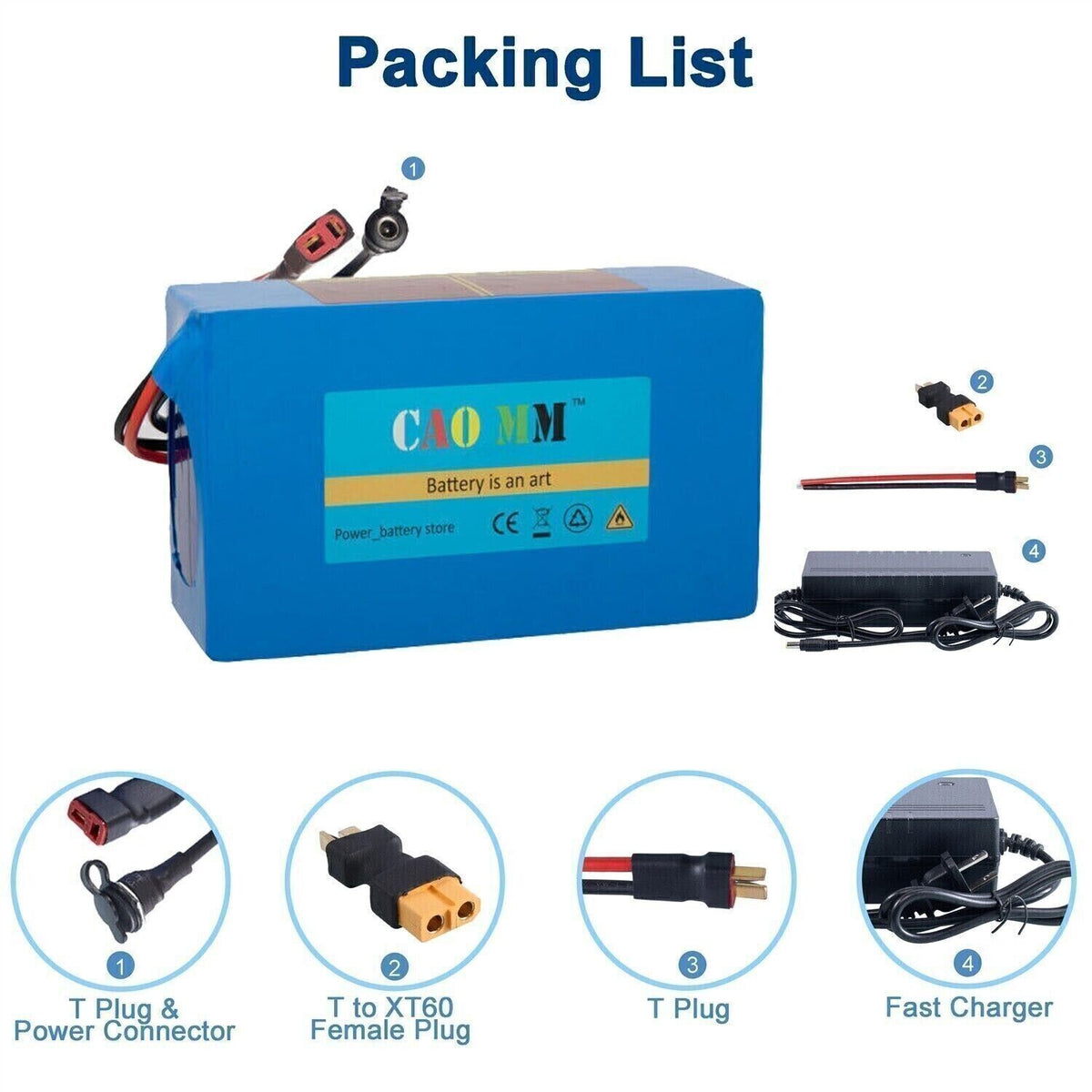

Package List :



1 x 36V / 48V Lithium ion Battery

1 x 2A / 5A Fast Charger or Without Charger (optional

1 x T Plug / Anderson Plug

1 x T to XT60 Female Plug / Anderson Female Plug
