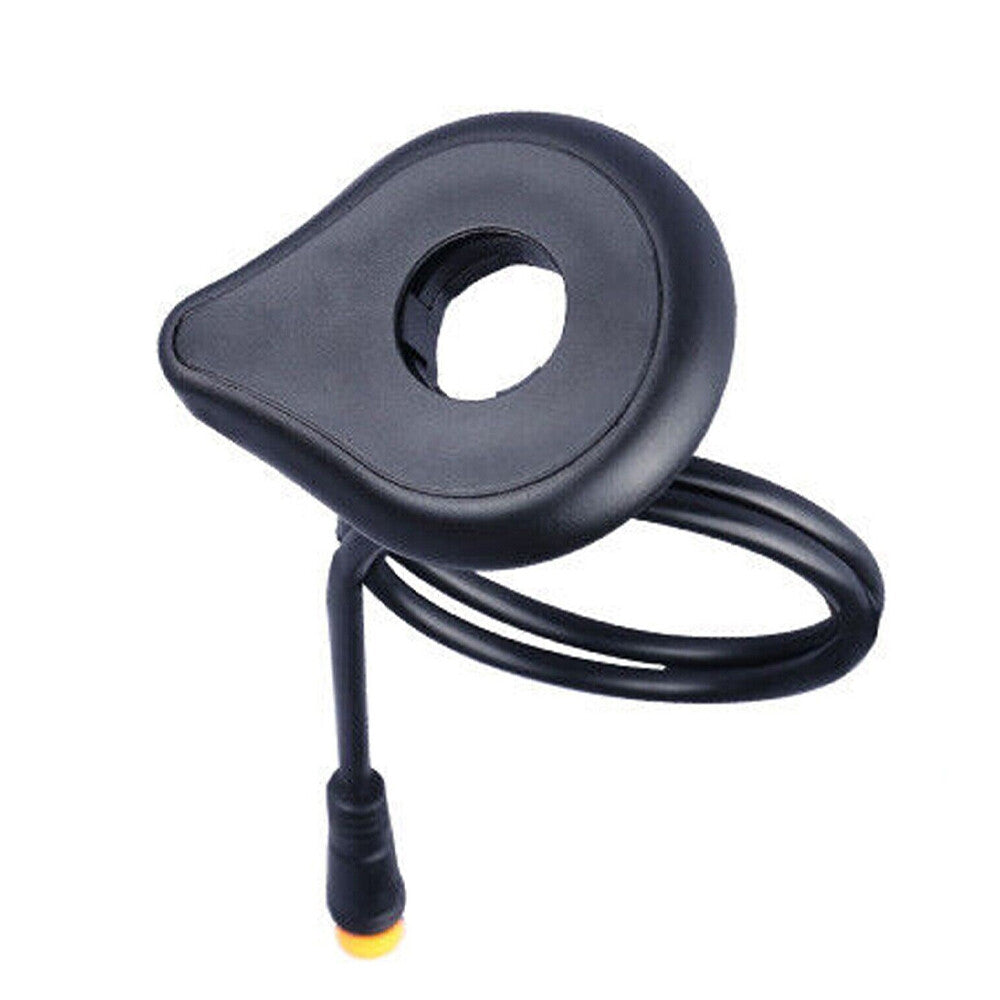

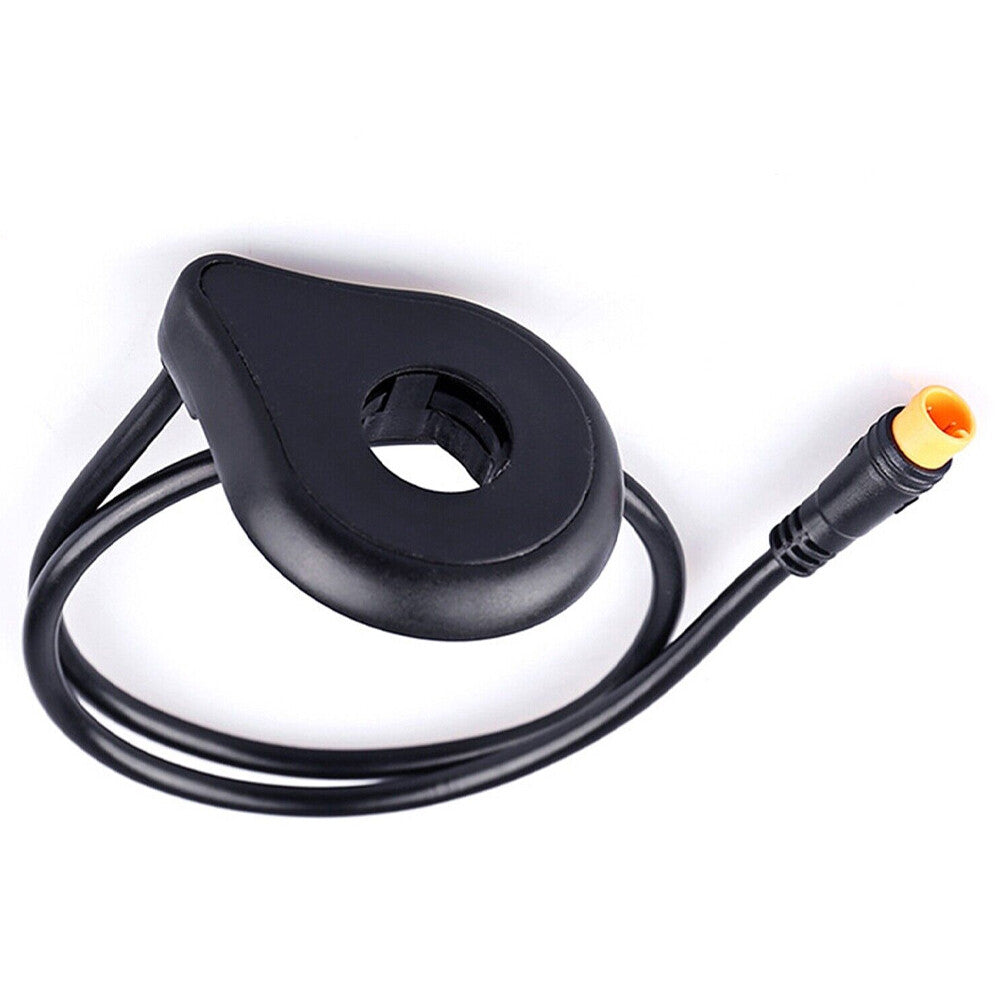

Electric Bicycle PAS Pedal Assist Sensor with 12 Magnets for E-Bike Compatibility

Specification

100% good condition and Brand new

Type: PAS Sensor

Rated Voltage: 4.5-6V(DC)

Current without Brake: <5mA

Current with Brake: <6mA

Lead Tension: >20N

Corresponding time when brake: <0.001S

Corresponding distance:2-3mm(just for right side double hall sensor)

Hall electrical life: >20M times

Insulation dry condition: >20M ohm

Insulation wet condition: >2M ohm

Conformity with RoHS, CE Report

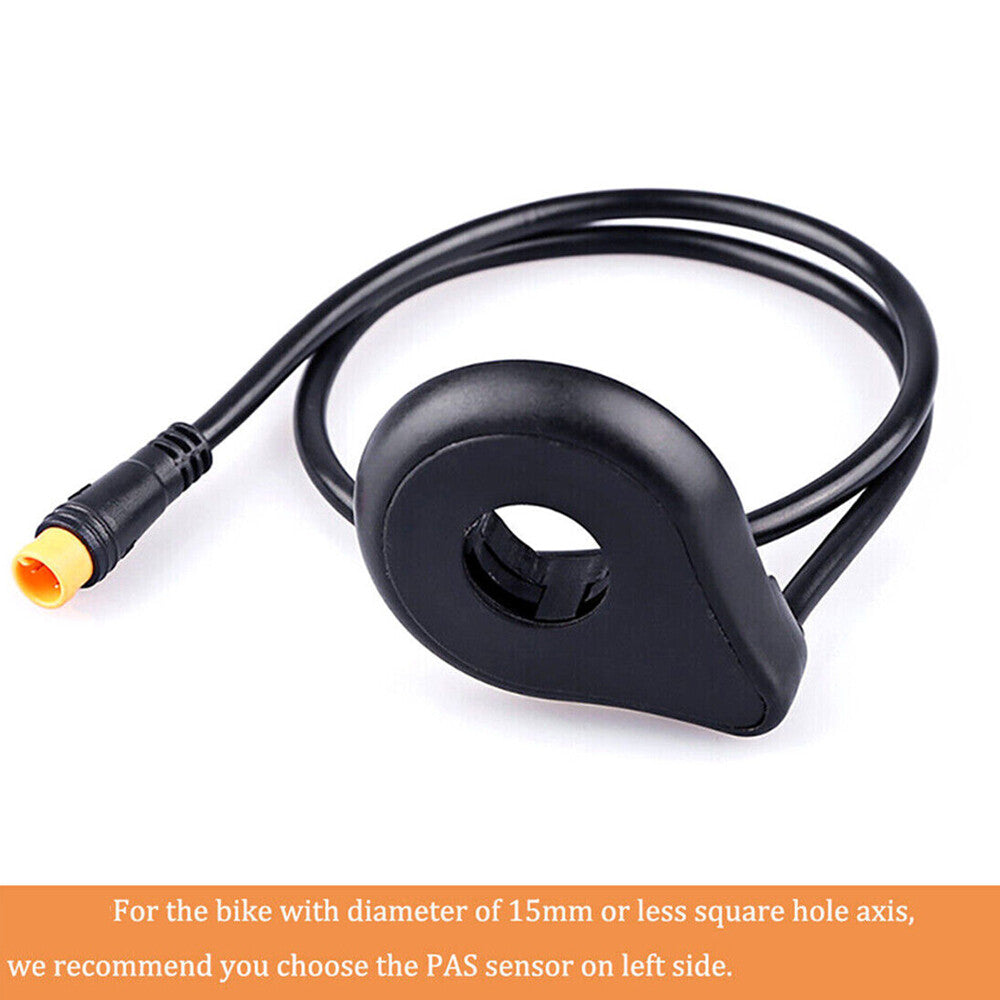

Applicable: the bike with hollow integrated or splined sprocket wheel.

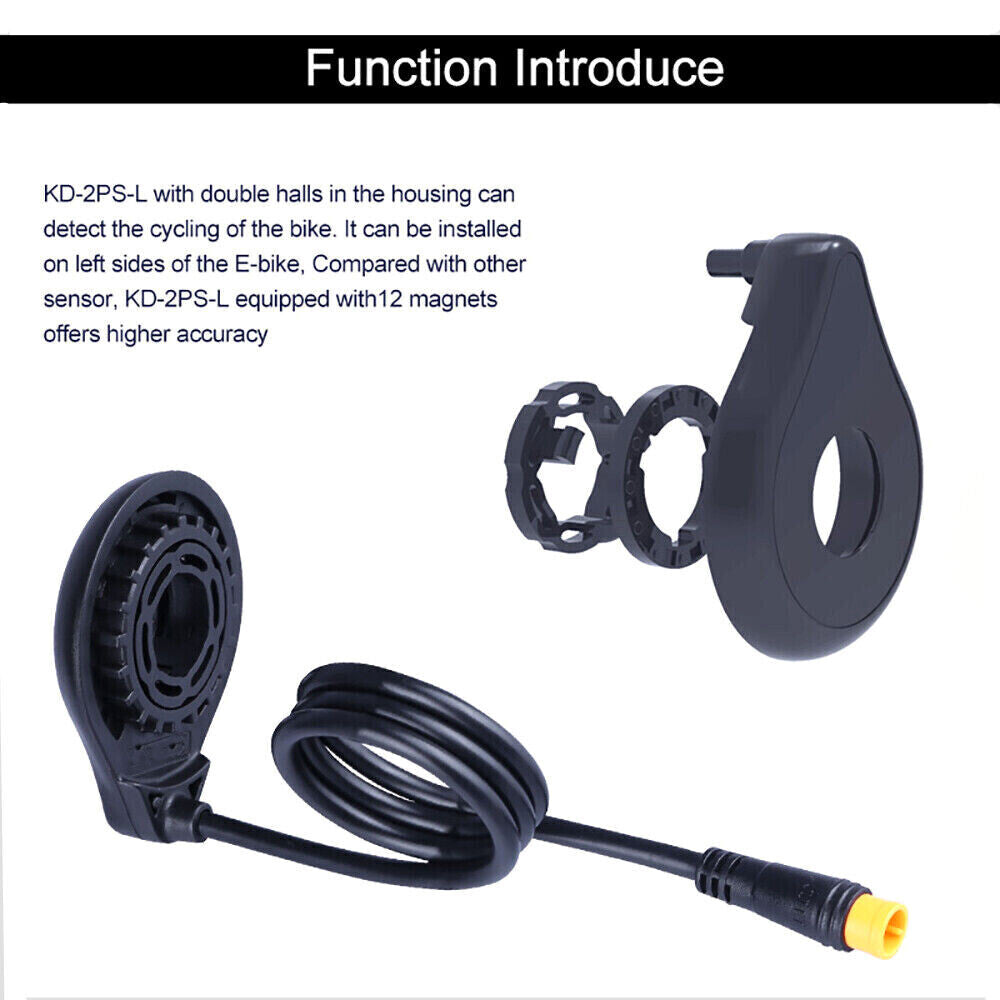

Function: KD-2PS-L with double halls in the housing can detect the cycling of the bike. It can be installed on left sides of the E-bike,

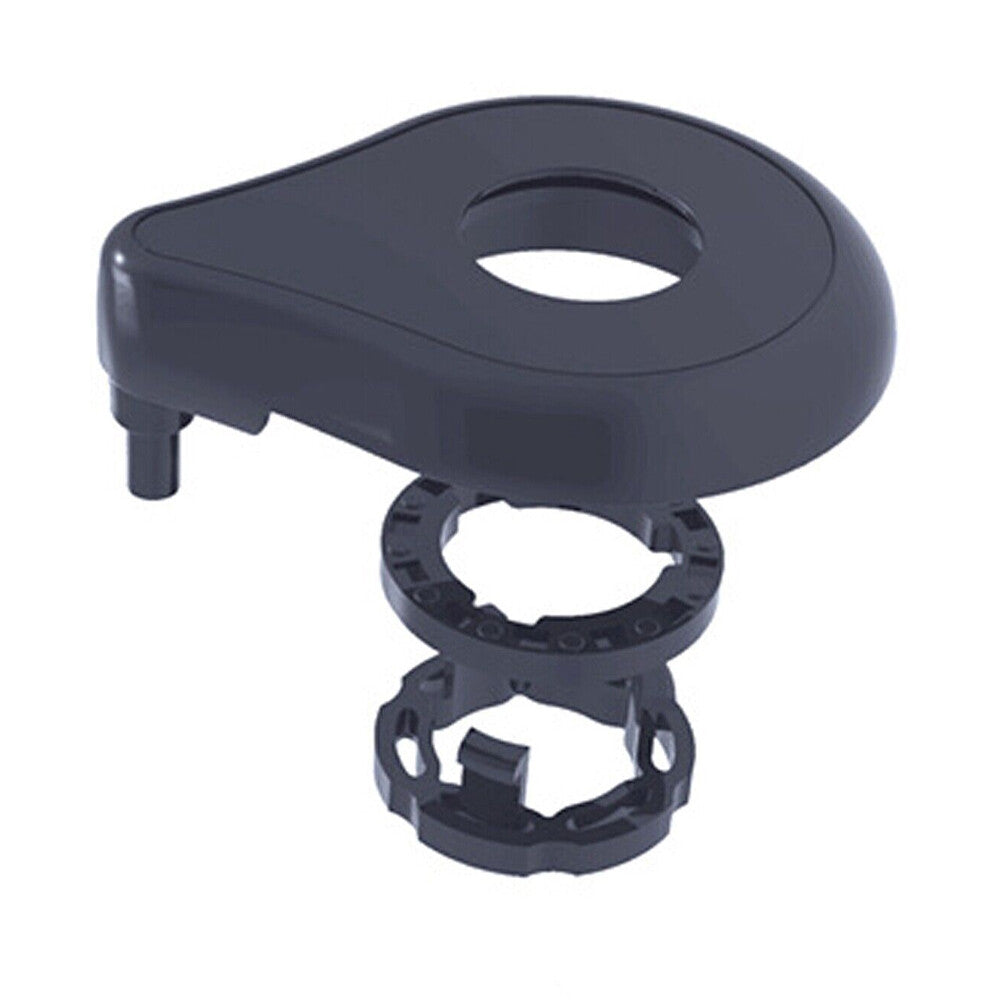

Compared with other sensor, KD-2PS-L equipped with 12 magnets offers higher accuracy

Package Included：

1x PAS Sensor
