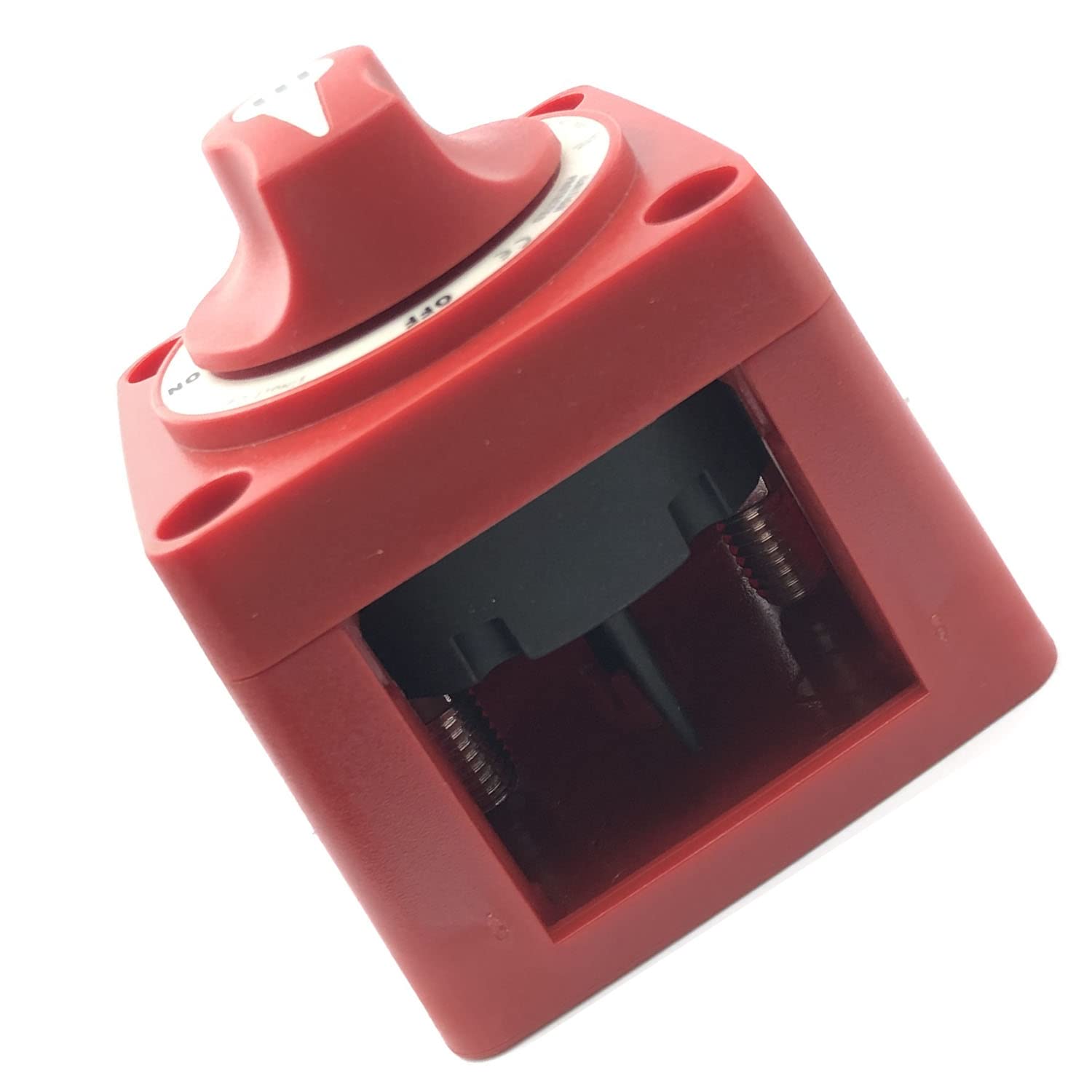

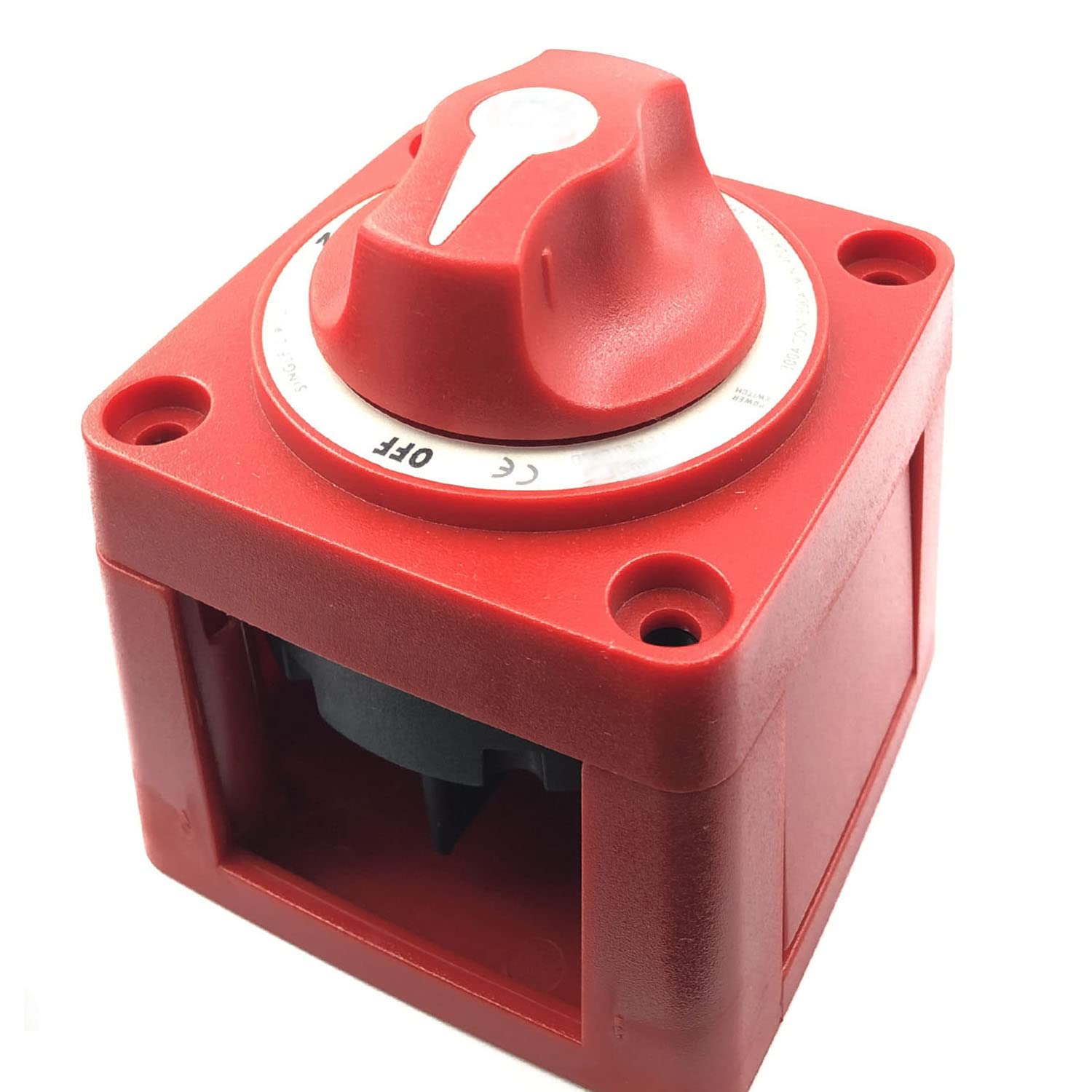

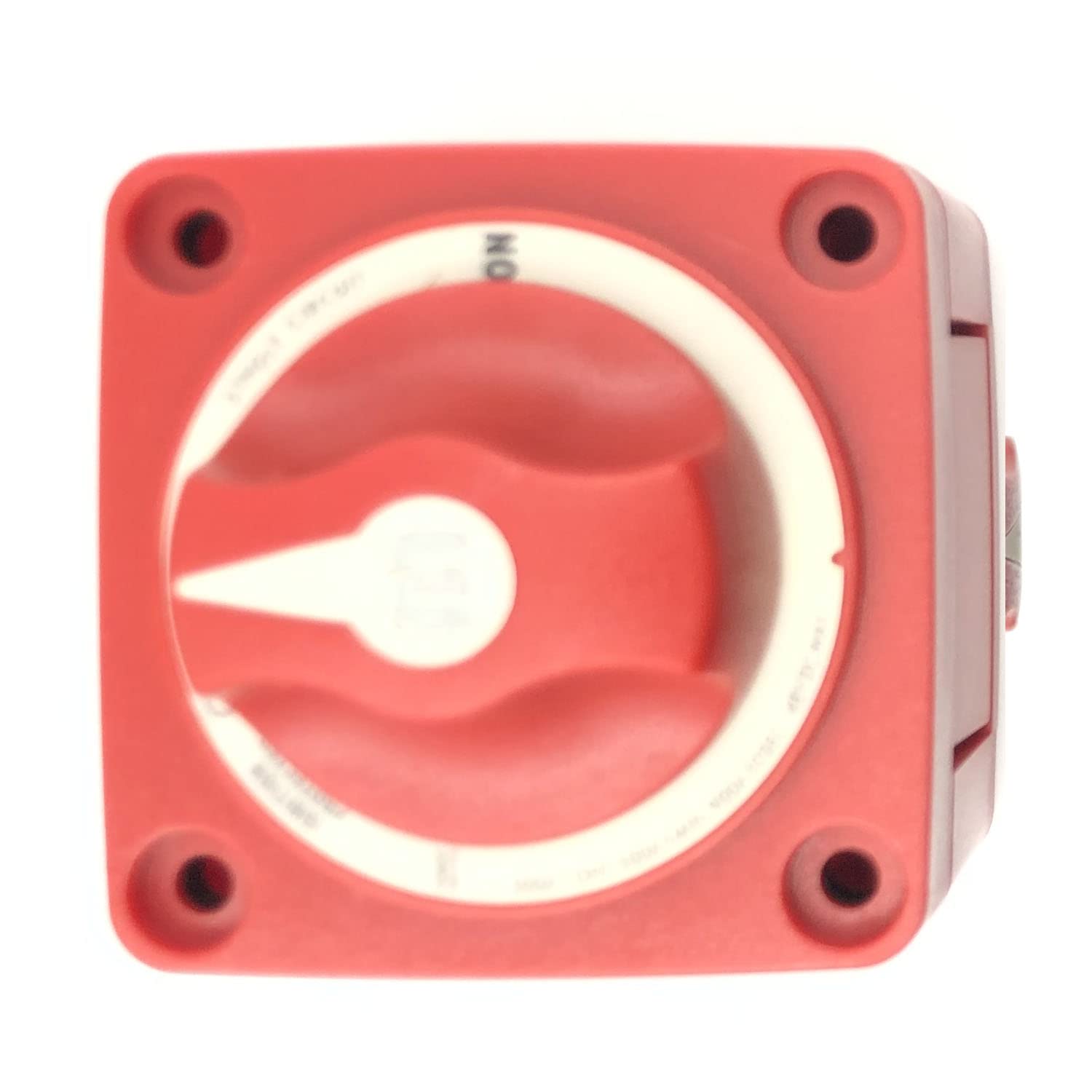

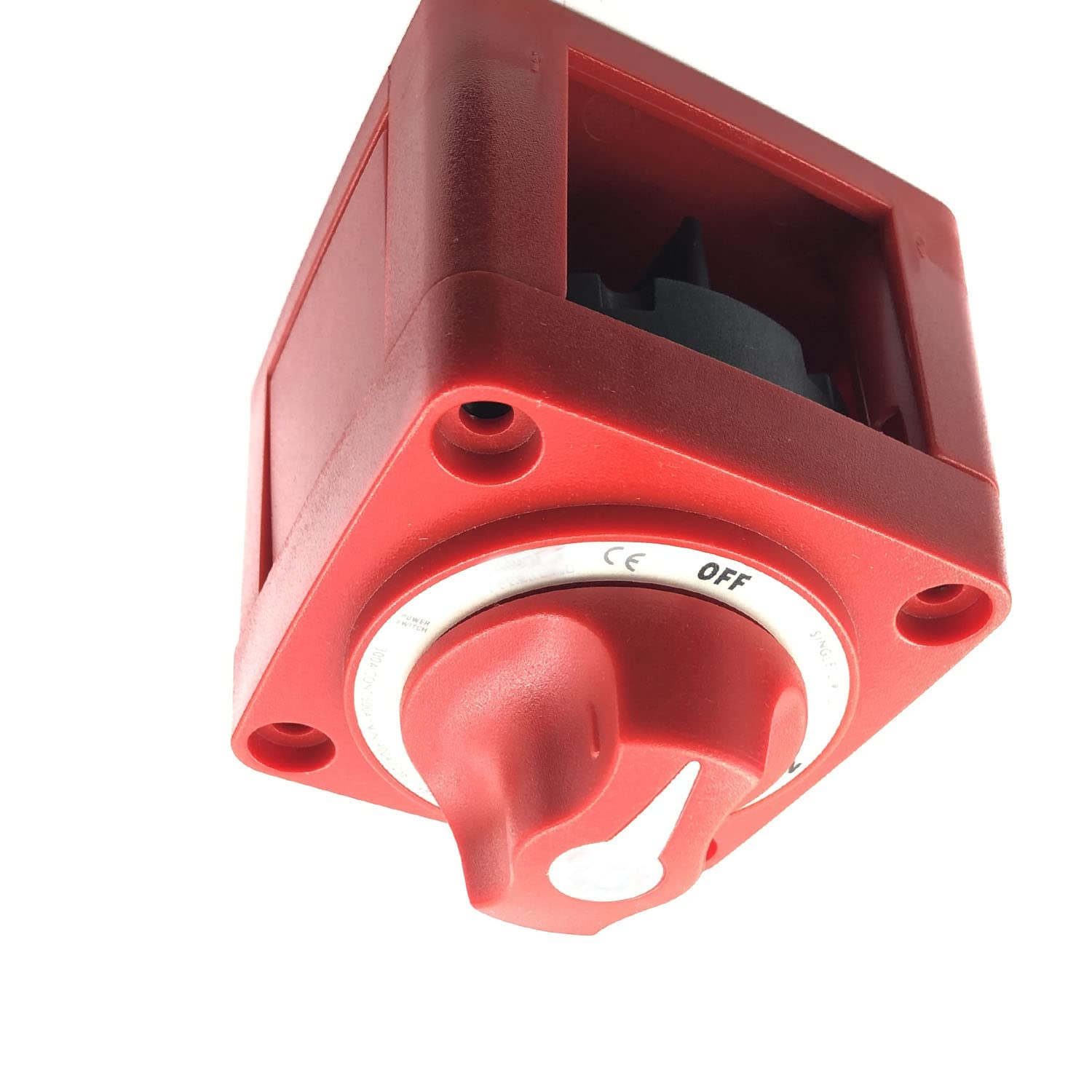

FainWan 6006 M-Series Battery Switch Single Circuit On/Off Marine Boat 48V 300A Power

Brand: FainWan

Color: Red

Features:

• Systems M-Series mini on/off battery switch with knob. Red in color. Part number 6006.
• The contact design before the break point can switch between battery packs without interrupting the power supply.
• Made of ABS plastic housing and tinned copper studs to help prevent battery switch leakage, protect the power supply, and disconnect the battery safely.
• Alternator Field Disconnect: Battery shut off switch Maximum Voltage: 48V DC Terminal Stud Torque: 120 in-lb (13.56 Nm) Continuous Rating: 300A Intermittent Rating: 500A (5 min) Cranking Rating 10 sec: 1500A Cranking Rating 1 min: 775A
• Battery switch on/off Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm) Cable Size to Meet Ratings: 4/0 AWG (120mm sq) Mounting Holes: Accept #10 Screw Terminal Stud Size: 3/8″ – 16 (M10) Weight: 0.65lb (0.29 kg)

Details: Manufacturer Part Number: 6006

Part Number: 6006

Color: Red

Types: Battery Switch

Fitment Type: Direct Replacement

Switch Type: Single Circuit ON-OFF

Switch Positions: 2

Maximum Voltage: 48V DC

Continuous Rating: 300A

Intermittent Rating: 500A (5 min)

Cranking Rating 10 sec: 1500A

Cranking Rating 1 min: 775A

Mounting Holes: Accept #10 Screw

Terminal Stud Size: 3/8"-16 (M10)

Features:

Tin-plated copper studs for maximum conductivity and corrosion resistance

Studs accept 3/8" (M10) ring terminals

7/8" (22mm) stud length accepts multiple cable terminals

Blue Sea Systems one-piece terminal stud design never loosens over time

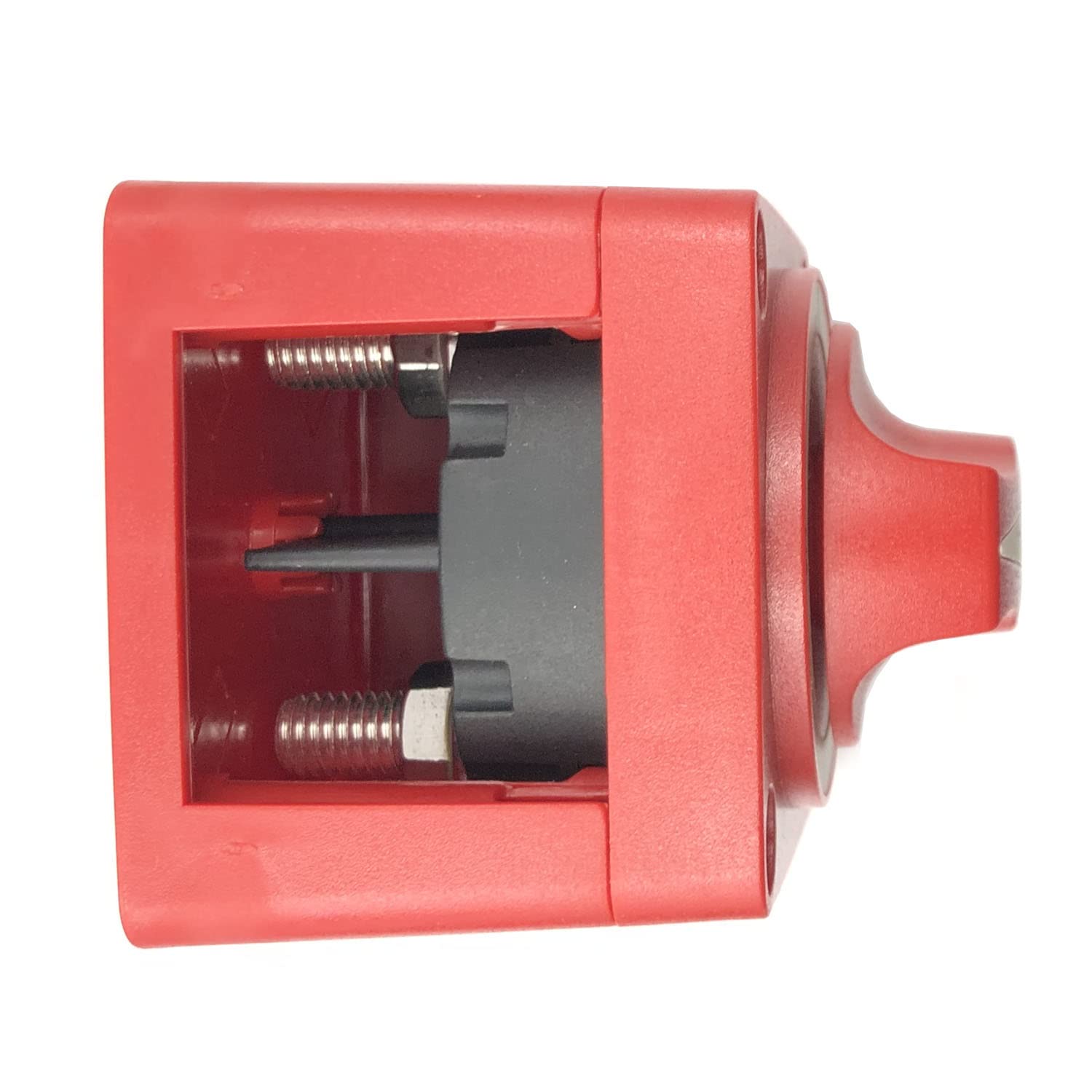

Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction

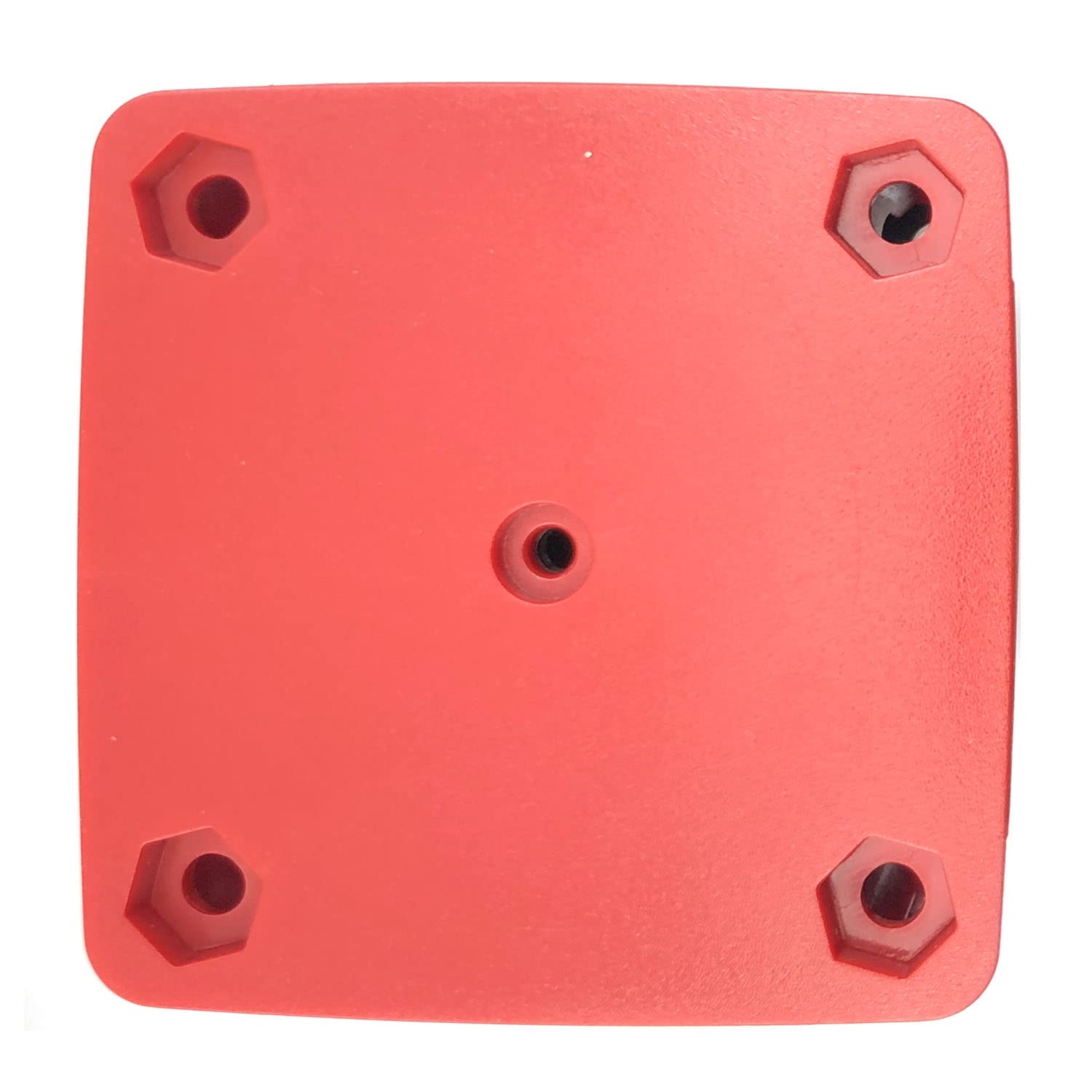

Case design allows surface, rear, or front panel mounting options

Waterproof IP66 from water projected in powerful jets

Package included:

1pcs Single Circuit ON-OFF

Package Dimensions: 4.7 x 4.7 x 0.5 inches
