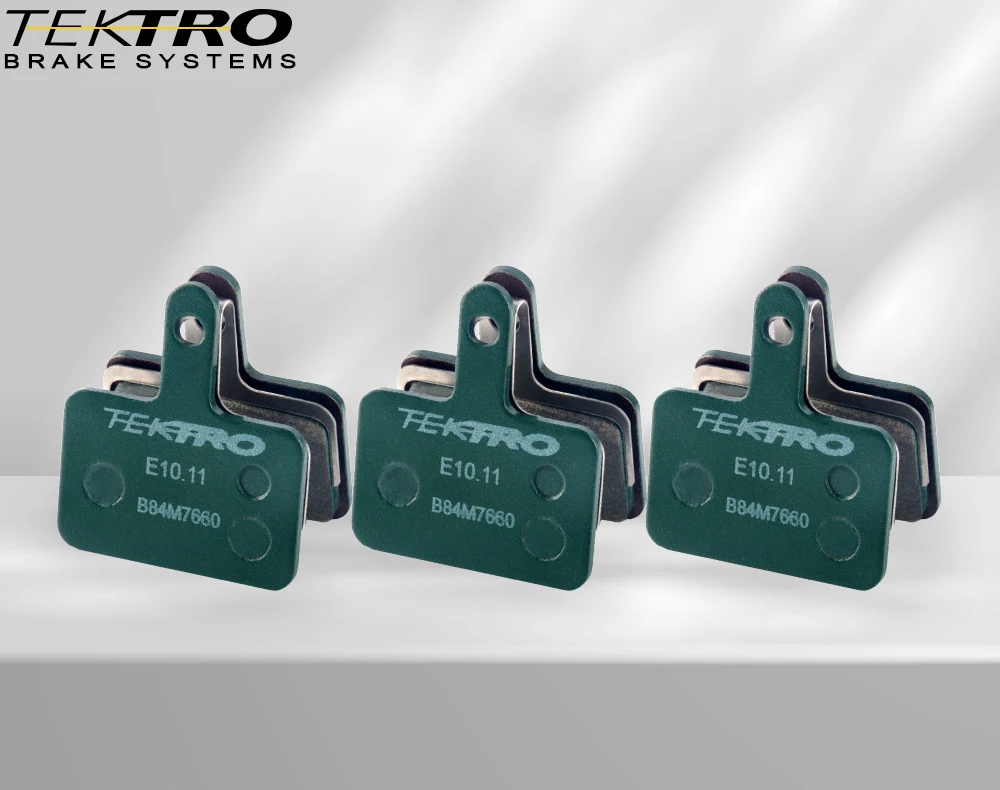

High Performance Metal Disc Brake Pads for Bicycle & Motor Vehicle

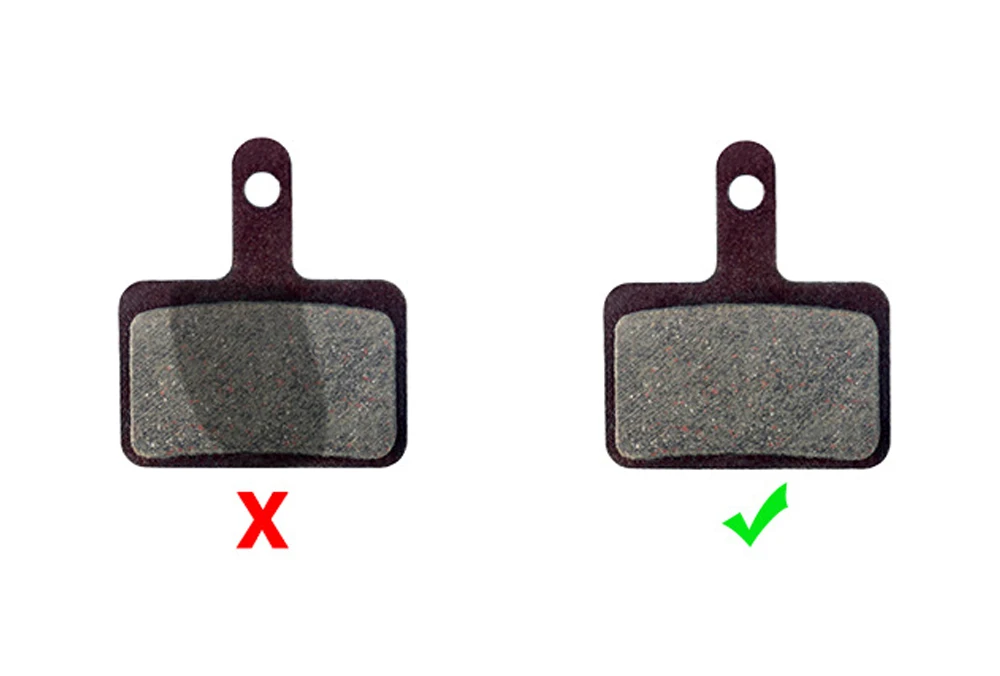

⚠️If the brake pads are contaminated with oil, braking will cause unusual noises. We recommend replacing them with new pads

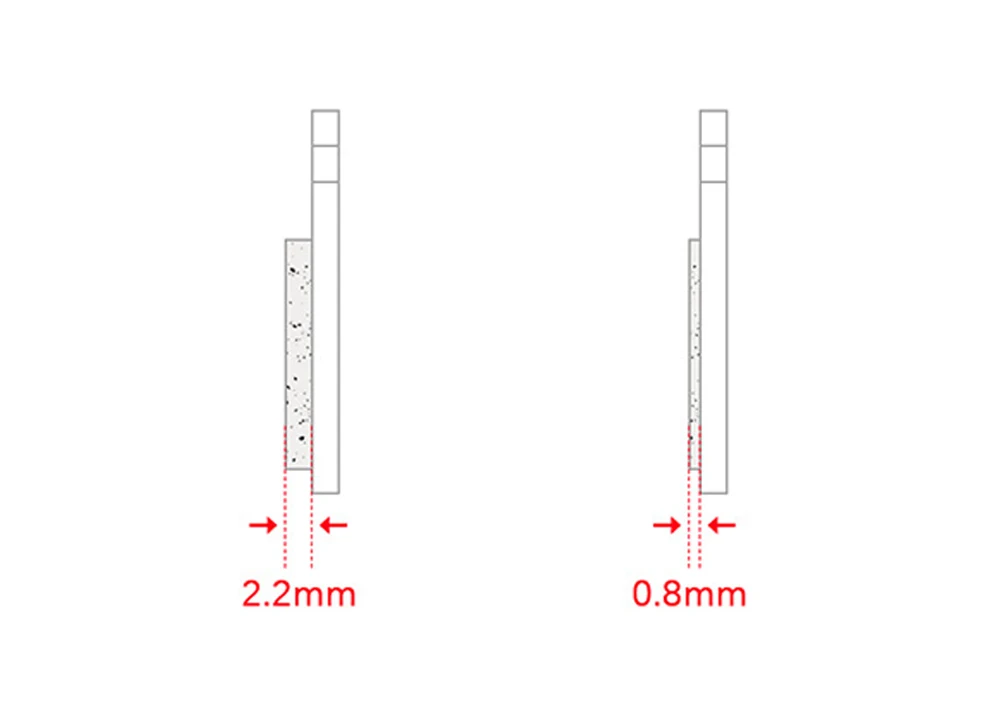

⚠️ NEW BRAKE PAD SPECIFICATIONS
▸ Initial friction layer thickness: 2.2 mm
▸ Minimum operational thickness: 0.8 mm
▸ REQUIRED ACTION: Replace pads immediately upon reaching minimum thickness

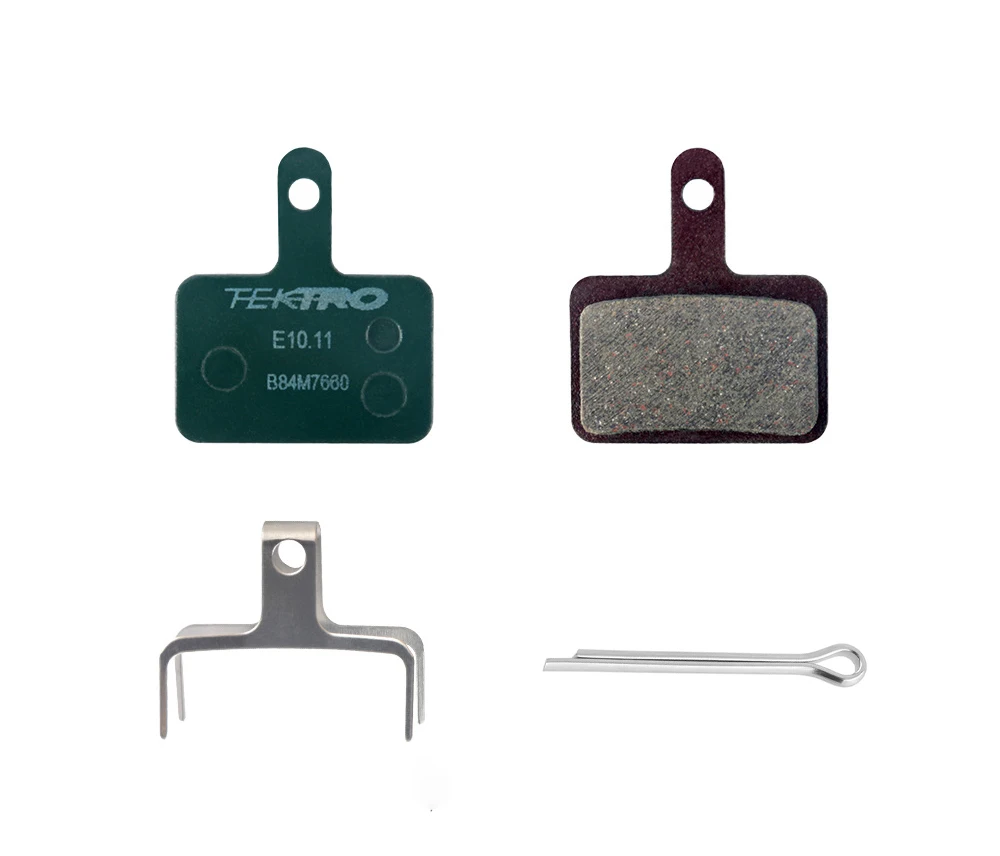

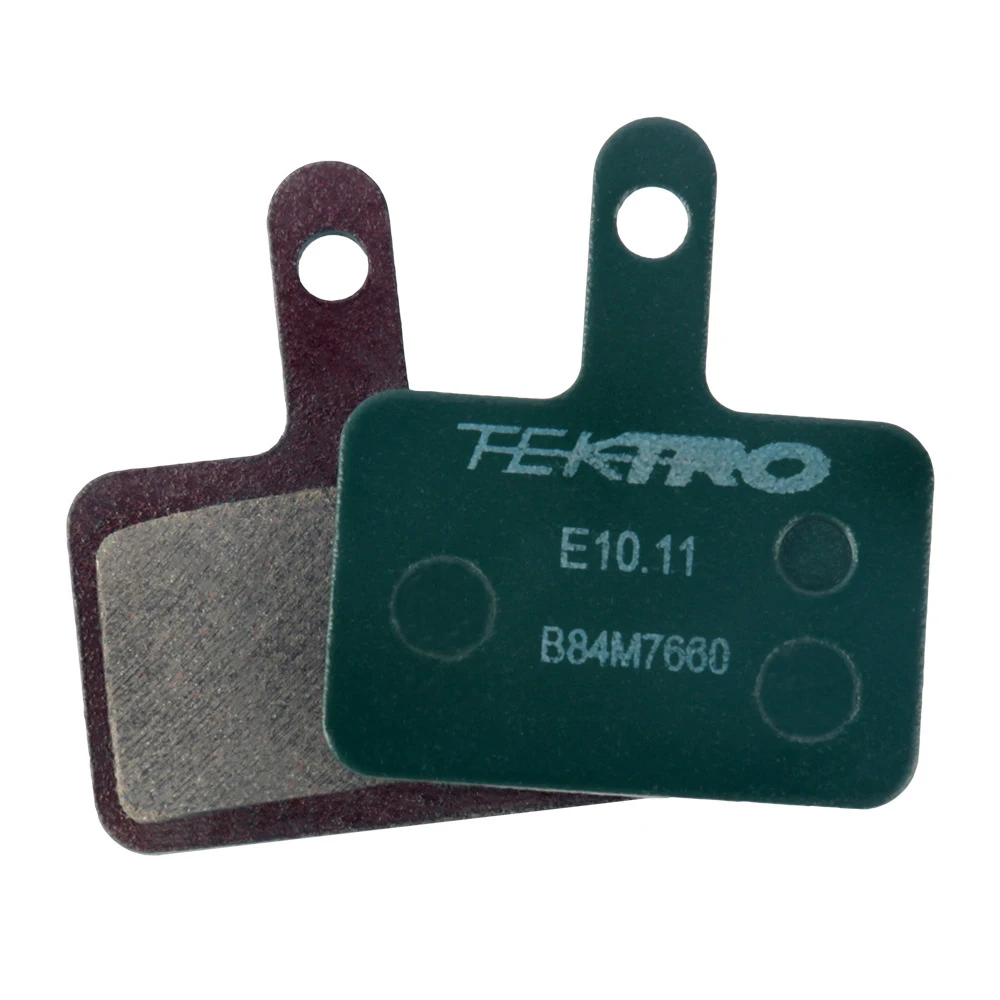

BRAKE PAD MATERIALS

1. High-Strength Metal Backing Plate


• T6-treated for ultra-high strength
• Impact-resistant & corrosion-proof
• Rapid heat dissipation design

2. Friction Compound
Advanced Composite Formula
• Reinforced with resin fibers + copper wires + ballistic fiber
• New upgrade: 50% oversized copper granules + ballistic fiber reinforcement

3. Stainless Steel Retaining Clip
• High-tension spring action
• Guaranteed positioning safety

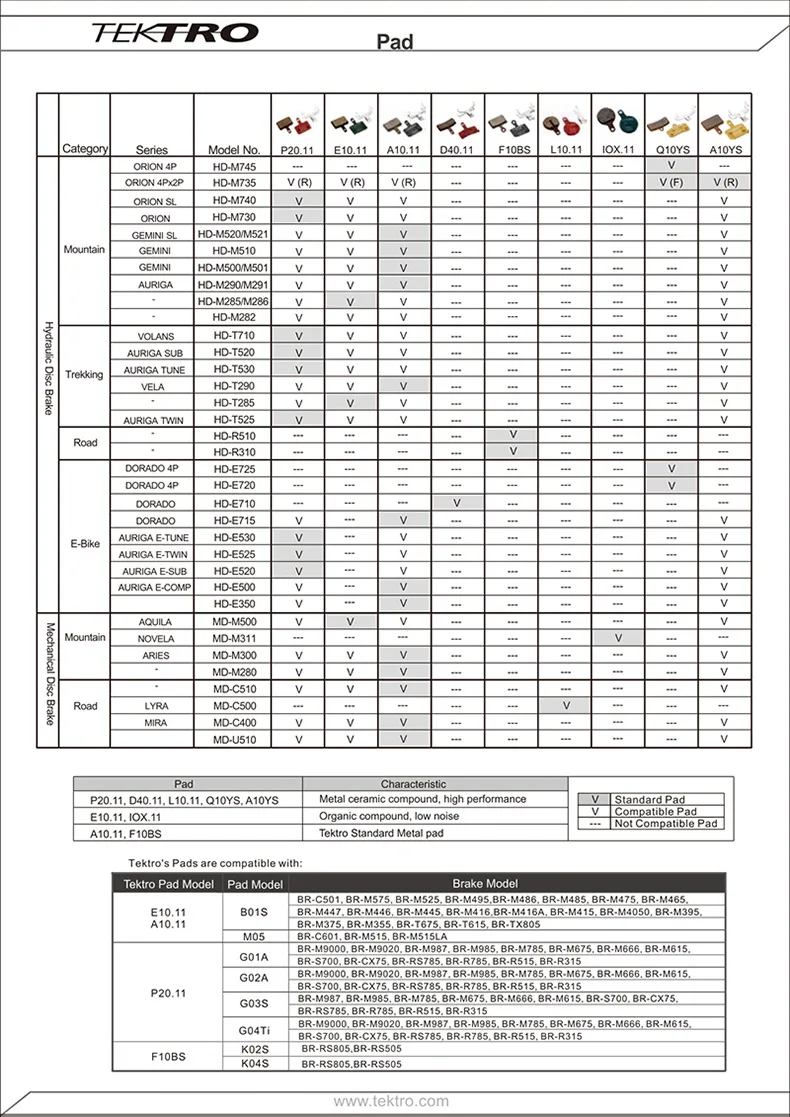

Compatible TEKTRO Disc Brake Models
HD Series:
▸ HD-M520 / M521
▸ HD-T520 / T290
▸ HD-M510 / M500 / M501
▸ HD-M352 / M350 / M351
▸ HD-M330 / M300 / M302
▸ HD-M290 / M291

MD Series:
▸ MD-M500
▸ MD-M300
▸ MD-M285
▸ MD-C400

Compatible SHIMANO Models
Hydraulic & Mechanical Disc Brakes:
M355 / M375 / M395 / M415 / M416 / M445 / M446 / M465 / M475 /
M485 / M495 / M515 / M525 / M535 / M575 / C501

Critical Compatibility Note:

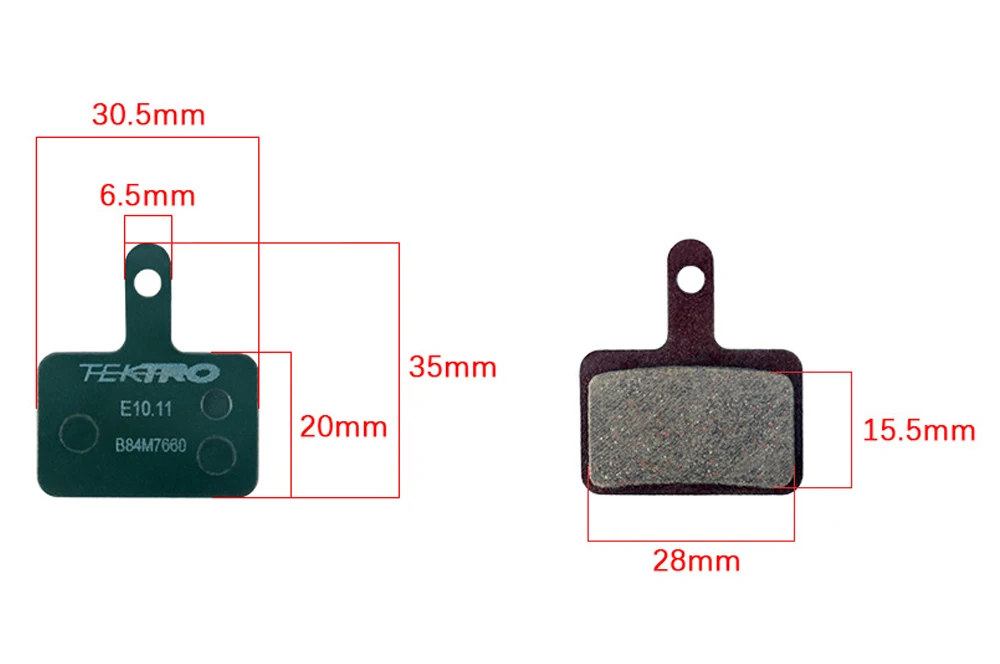

🔄 "Compatible with all brake systems sharing identical physical dimensions."
