High-Voltage E-Bike Battery 36V/48V 10Ah Lithium Power Pack for Electric Bikes

High-Voltage E-Bike Battery 36V/48V 10Ah Lithium Power Pack for Electric Bikes

$219.99 USD
$219.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Battery Model
This high-quality lithium ion battery is perfect for powering your e-bike motor. With a battery capacity of 10Ah , it provides energy ranging from 360W to 480W, making it compatible with various bike types including e-mountain, e-cargo, e-cross, and e-city bikes. The battery is enclosed in an IP65 waterproof case, ensuring protection from dust and water. The battery comes with a bottom bracket and is made of durable plastic material. It has a length of 370mm, a width of 95mm, and a weight of 3.75KG to 4.4KG . The battery type is Lithium Ion (Li-Ion) and it has a voltage of 36V to 48V. This unit is sold as a single item and comes with a manufacturer warranty of 2 year.


Product Features:

【High energy density】Our Ebike lithium batteries have high energy density, which means they are capable of storing large amounts of electrical energy in a relatively small size and weight. Therefore, it can travel longer distances on a single charge, improving driving efficiency and convenience.

【Design Features】The LED power indicator on the body can remind you to charge on time. And equipped with a safety lock to prevent theft. ▶ 30A BMS:can effectively protect the battery and make it safer▶ Waterproof case:Reduces the possibility of damaging the internal battery.▶With battery base, easy to install.The discharge connector is XT60 style and there is also extra XT60 adapter inside the parcel.

【Long cycle life】Lithium batteries generally have a long service life and cycle life, and can withstand thousands of charge and discharge cycles without losing much capacity. This makes them a solid choice for long-term investment, reducing the frequency of battery replacement and maintenance costs.

【Warranty Service】If the electric bicycle battery is damaged within 2 year or other problems. Please do not hesitate to contact us, we will give you satisfactory results.



Please note before purchase:


1. What is the voltage of your bicycle? If it's 36V, buy a 36V battery. If it's 48V, buy a 48V battery. You can also tell the voltage of the battery
you need from your original battery or the control center. 10Ah,15Ah,20Ah, and 30Ah represent the battery capacity and indicate the range


2. Is the size of the battery suitable for fit into your bicycle frame


3. The interface between the battery and the base needs to be determined. We have two types of interfaces: 4-pin and 5-pin. If your original
battery base is 4-pin and you don't want to replace the base, you can purchase a 4-pin battery set. If it's a 5-pin battery base, buy a 5-pin
battery because our battery set includes the base.


Of course, if you don't mind replacing the original battery base, you don't need to worry about whether the battery base is 4-pin or 5-pin,
because our batteries come with battery bases


4. When charging, please connect the power supply first and then the battery


5. Do not use up all the battery power completely. It is better for the battery to charge it each time with some remaining power


6. When you receive a new battery, make sure to charge it before using it.


Product Specifications:


36V 10Ah 30A

Battery Type: Lithium-ion

Rated Voltage / Capacity：36V / 10Ah

Case Material：ABS

Battery Color: Black

Battery N.W/G.W: 2.9KG/3.75KG

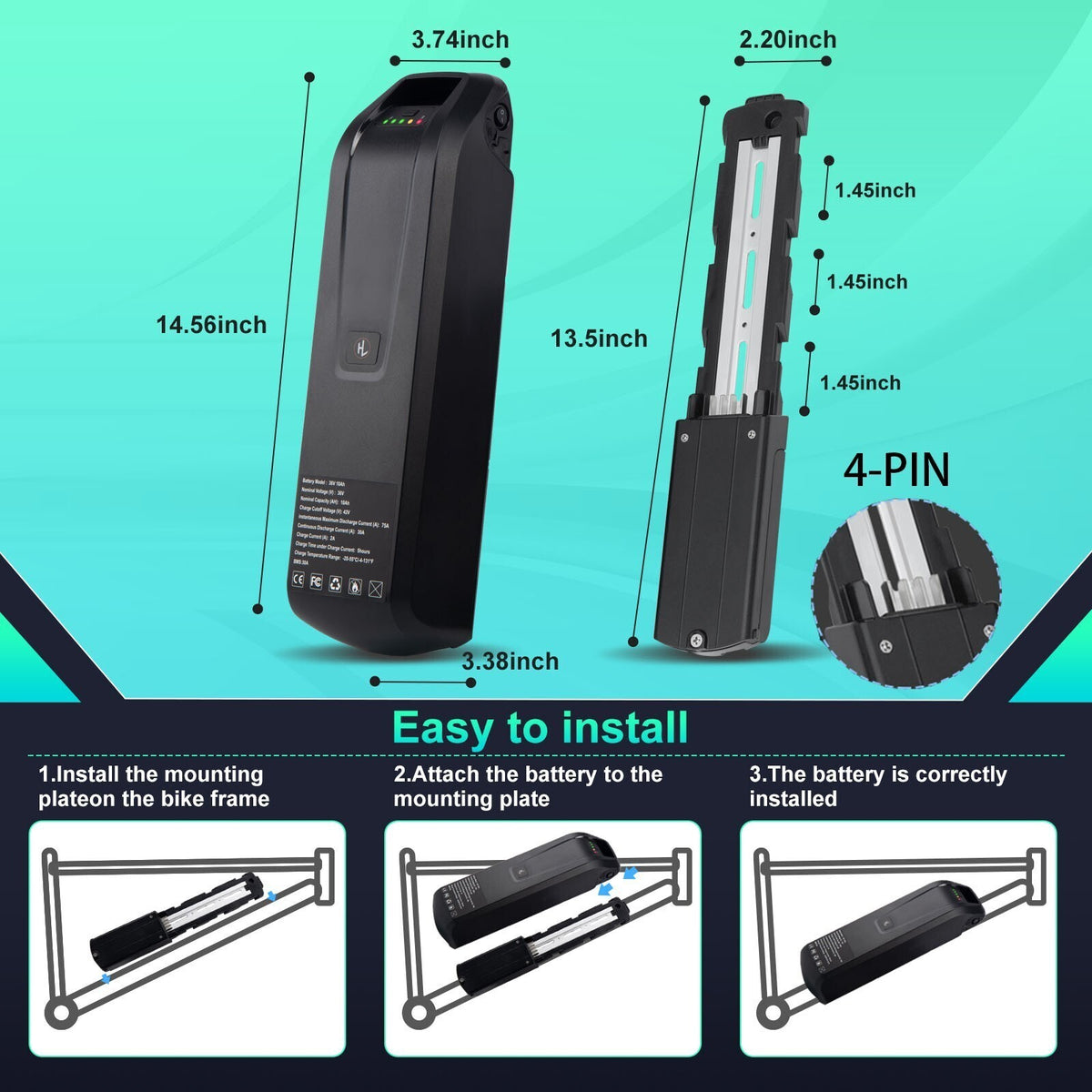

Battery Size（mm) : 370mm x 95mm x 89mm(14.57inch x 3.74inch x 3.5inch)

Recommend to use：50W-1000W

Discharge Max current:30A(BMS)

Base:4Pin

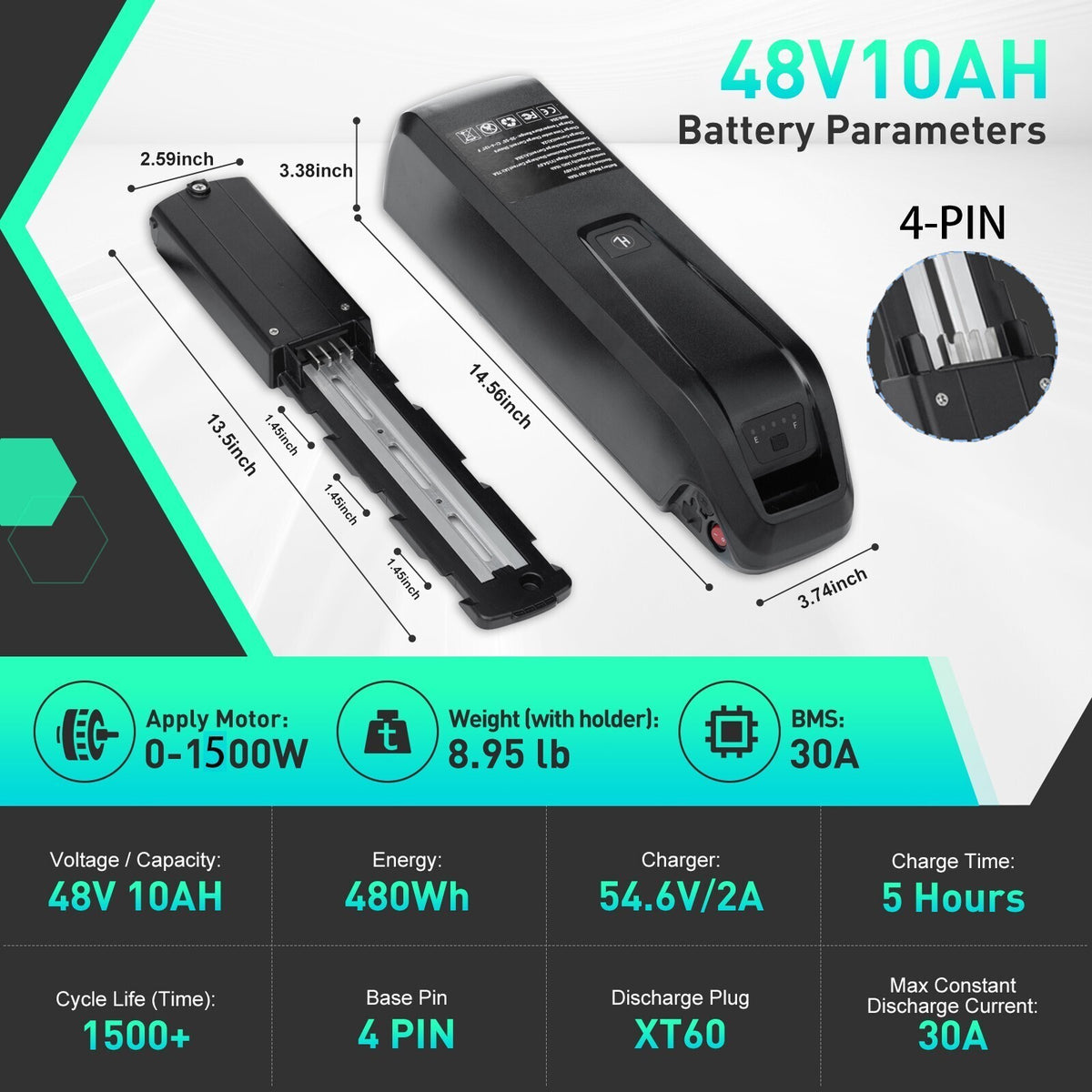

48V 10Ah 30A

Battery Type: Lithium-ion

Rated Voltage / Capacity：48V / 10Ah

Case Material：ABS

Battery Color: Black

Battery N.W/G.W: 3.5KG/4.40KG

Battery Size（mm) : 370mm x 95mm x 89mm(14.57inch x 3.74inch x 3.5inch)

Recommend to use：50W-1500W

Discharge Max current:30A(BMS)

Base:4Pin


Working temperature:

Charging:0°C~45°C

Discharging:-20°C~60°C

Storage:0°C~30°C

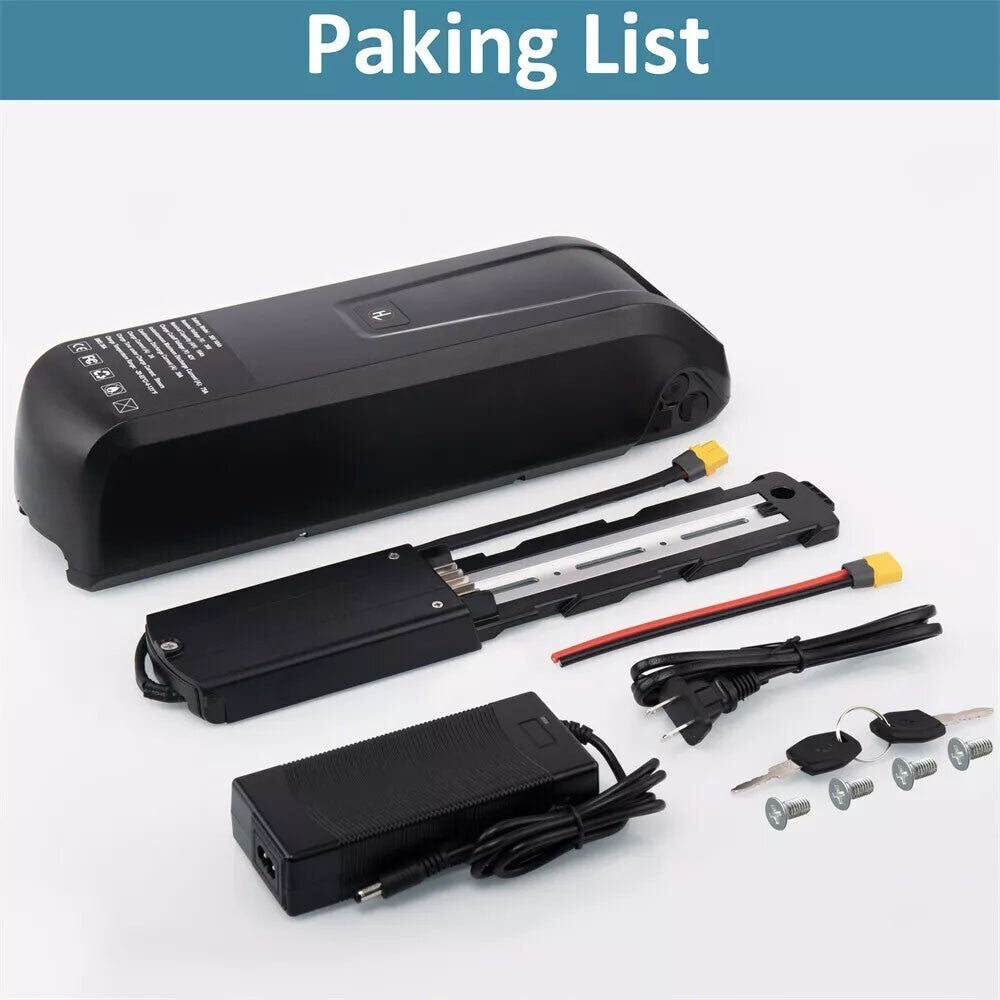

Parts included:

1 x Lithium Battery with ABS case(Base discharge)

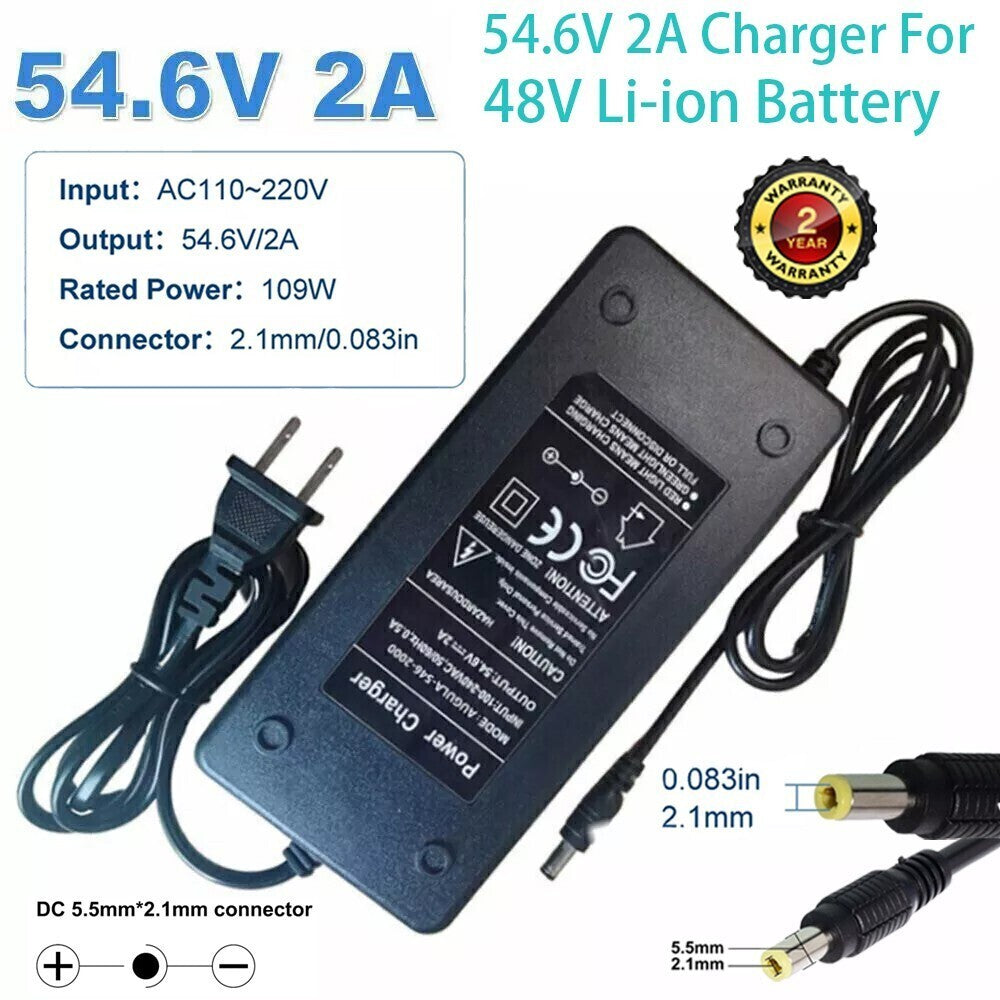

1 x 2A Charger

1 x Mounting Fixed Plate

2 x Keys

Please Note :Our batteries are suitable for most electric bicycles, for example: Bafang Voilamart AW Tongsheng, but except Bosch, SHIMANO, Yamaha and Panasonic. If you cannot confirm the battery, please contact us,we provide 2 year warranty !

The Charger is UL 62368-1 certified and can provide documentation showing certification on request.


The Battery is UL 2849 UL 2272 certified and can provide documentation showing certification on request.


The creepage distance and electrical gap distance in the charger are sufficient, the product does not pose a fire risk, will not cause components to overheat or explosion, and the output has a fuse to protect the battery pack from overcurrent
conditions. Battery charging input and output cables are also adequately protected against stress.


The plug meets the size requirements of the relevant standards, and there is no risk of electric shock to the user. The fuse complies with relevant standards and does not pose a risk of fire or explosion in the event of failure. The product has
been marked and labeled in accordance with the standards

Certified to Meet UL 2271 Safety Standards and can provide documentation showing certification on request.

We do not accept returns or cancel for change of mind. We only offer returns for items that are faulty or damaged.
