Shimano
Hydraulic Disc Brake Set with 160mm Rear and 180mm Front Rotors for Mountain Bikes
Hydraulic Disc Brake Set with 160mm Rear and 180mm Front Rotors for Mountain Bikes
Regular price
$111.99 USD
Regular price
Sale price
$111.99 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Shimano BR-MT200 Hydraulic Disc Brake Set, SM-RT56 160mm+180mm 6-Bolt Rotors MTB
Shimano MT200 Hydraulic Disc Brake Set 160mm + 180mm SM-RT56 6-Bolt Rotors Front Rear MTB Commuter Bike
Factory Pre-Bled Mineral Oil Brakes | Mixed Size Rotors Kit | Post Mount Dual Piston Calipers Complete Mount Hardware
This is a one-of-a-kind Shimano matched brake bundle you rarely see on eBay. Instead of two identical 160mm or 180mm rotors, we pair genuine BR-MT200 hydraulic brakes with one SM-RT56 160mm rotor for the rear wheel and one SM-RT56 180mm rotor for the front wheel — the ideal factory-standard sizing for mountain bikes, delivering balanced stopping power front and rear.
Most generic listings only offer matched equal-size rotors, which sacrifices front braking performance or creates unnecessary rear braking weight. This mixed-size RT56 rotor set follows OEM bike factory specifications for balanced, safe riding on trails, city roads and gentle downhill sections.
Most generic listings only offer matched equal-size rotors, which sacrifices front braking performance or creates unnecessary rear braking weight. This mixed-size RT56 rotor set follows OEM bike factory specifications for balanced, safe riding on trails, city roads and gentle downhill sections.

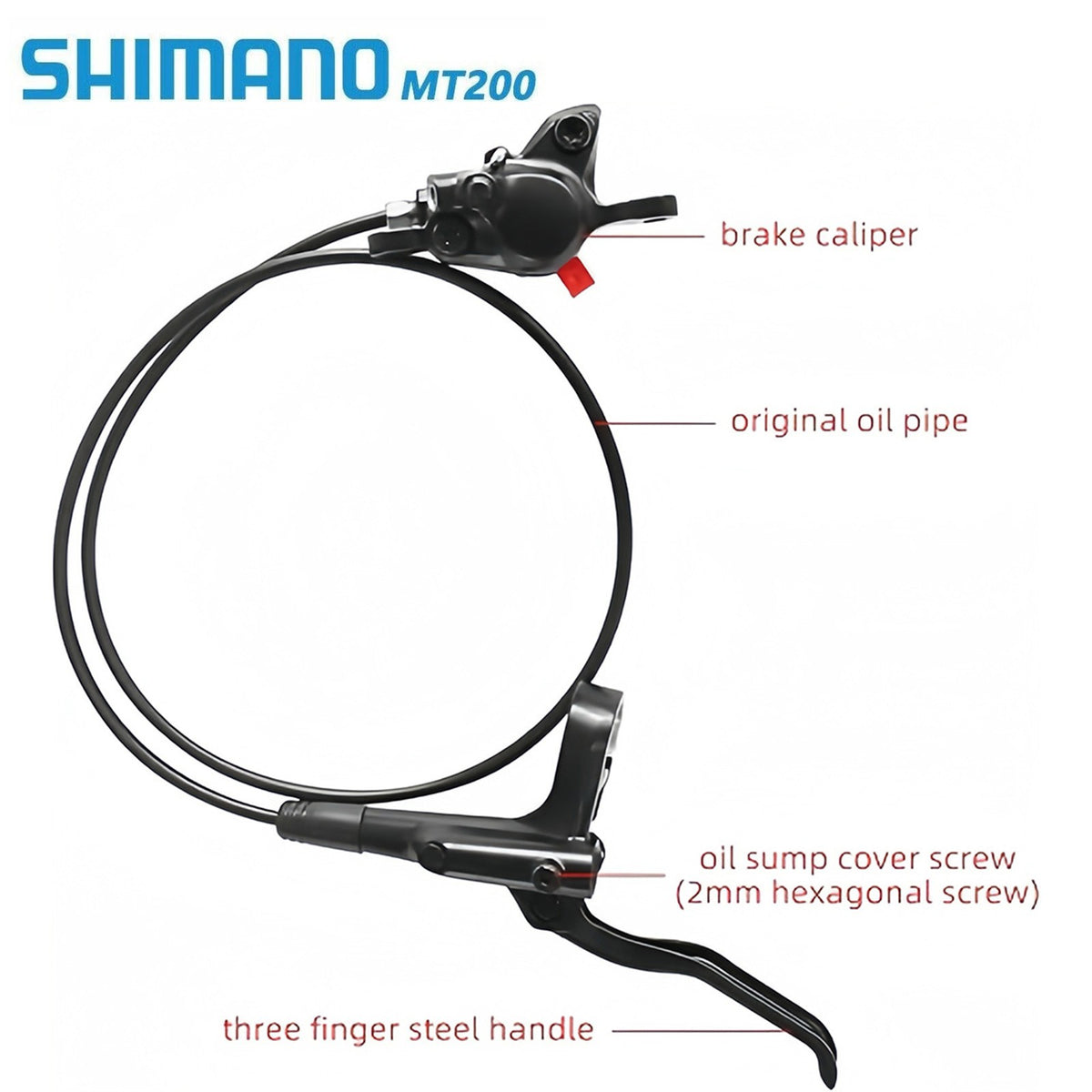

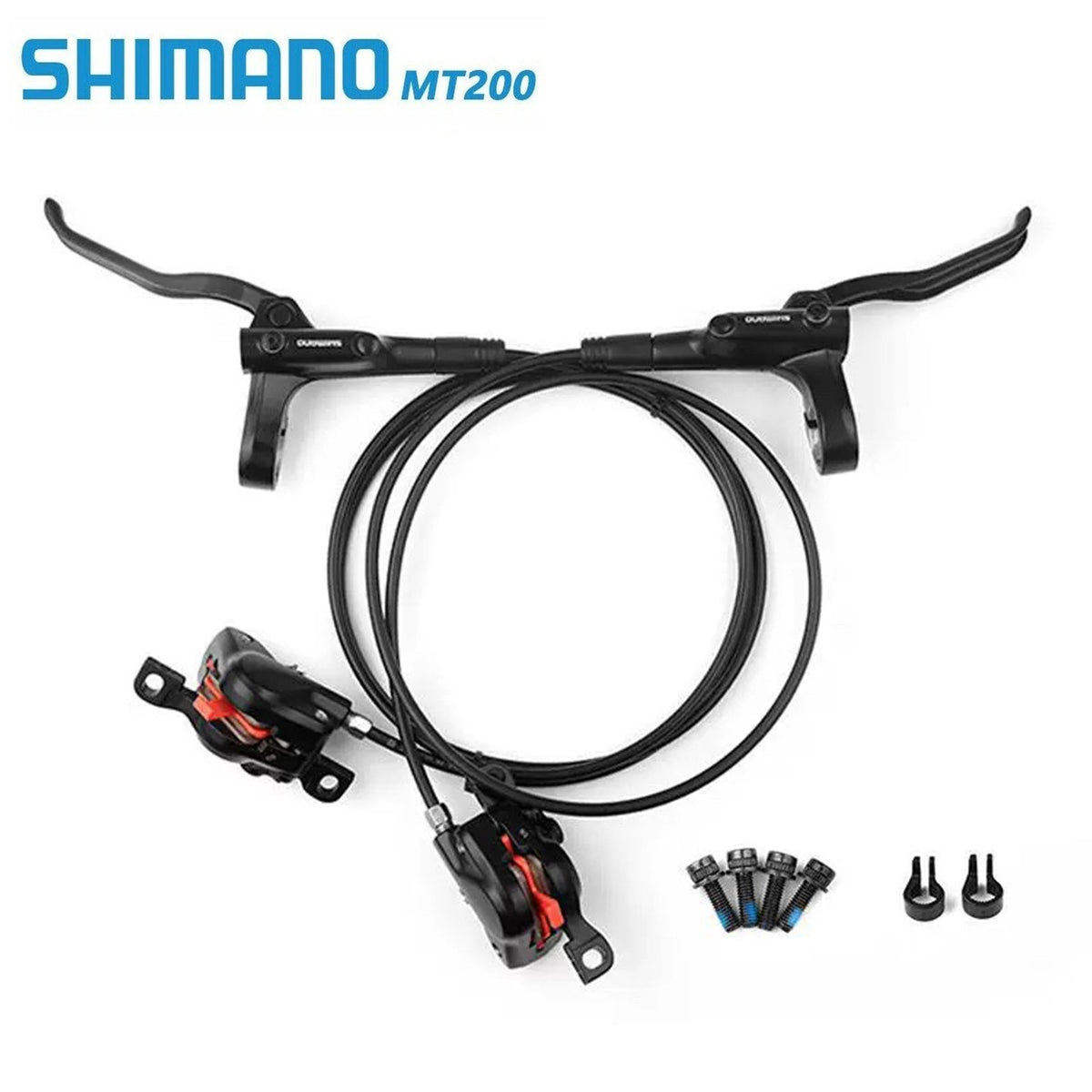

Shimano BR-MT200 Hydraulic Brake Features

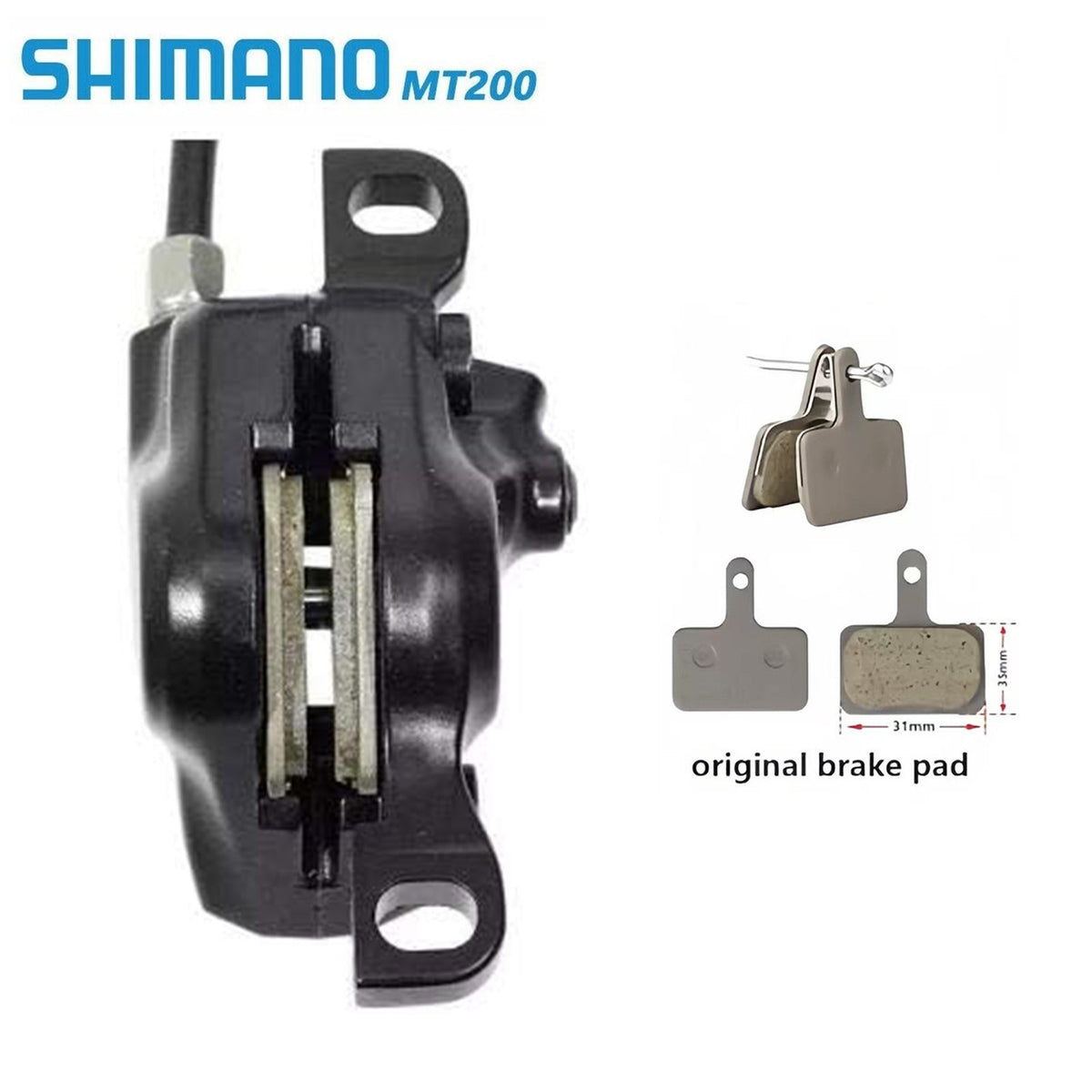

- Dual 2-piston aluminum post-mount calipers pre-installed with quiet B05S-RX resin brake pads
- Shimano exclusive mineral oil hydraulic system, non-corrosive to bike frames and internal brake components
- One-Way Bleeding system simplifies future maintenance, effectively eliminating trapped air bubbles inside brake lines
- Widened pad clearance cuts down persistent rotor rub and high-pitched squeaking on bumpy terrain
- Adjustable-reach two-finger brake levers, compatible with riders of all hand sizes
- Standard SM-BH59 black brake hoses, supporting both internal and external frame cable routing
- Soft, linear bite feel, friendly for new cyclists without abrupt wheel lock-up

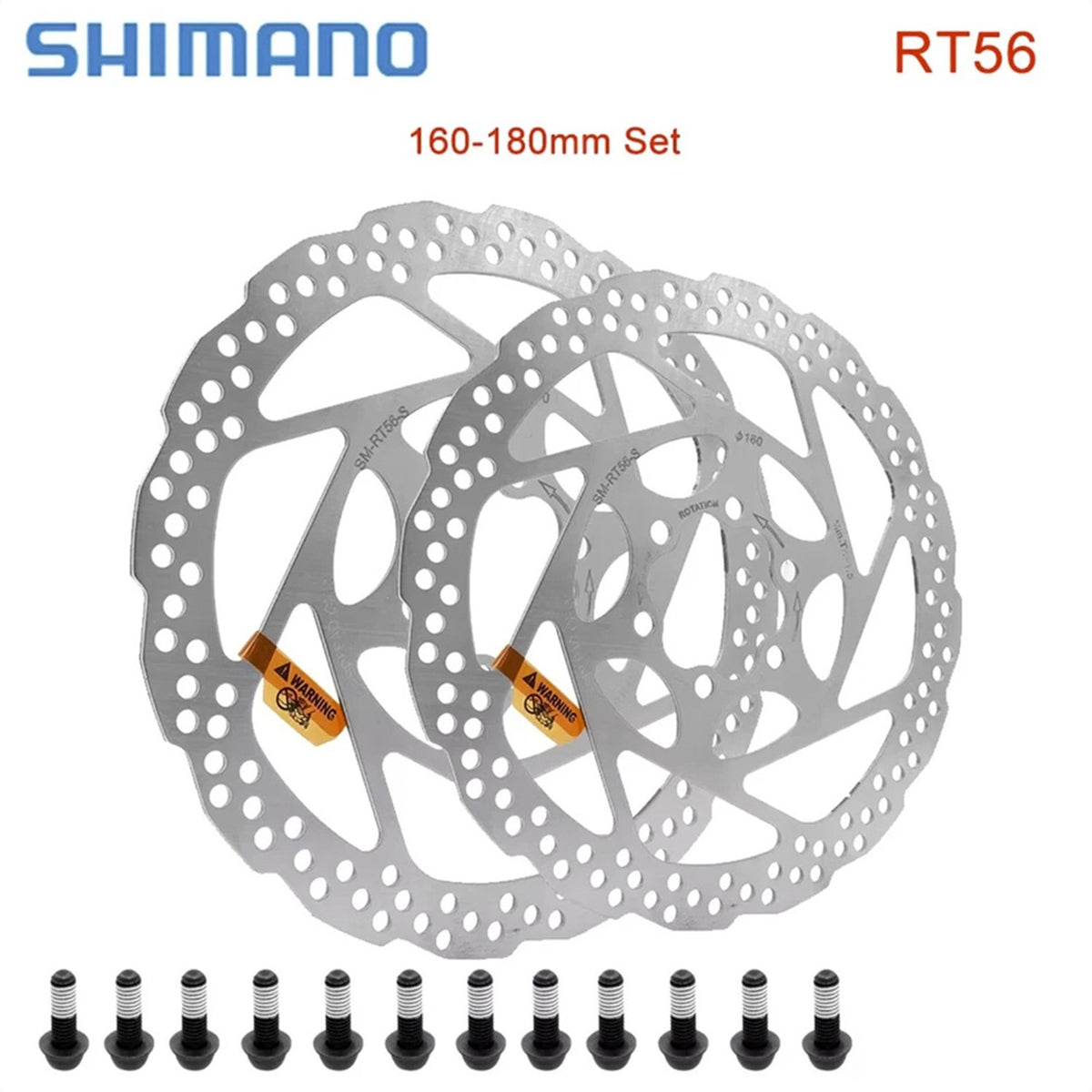

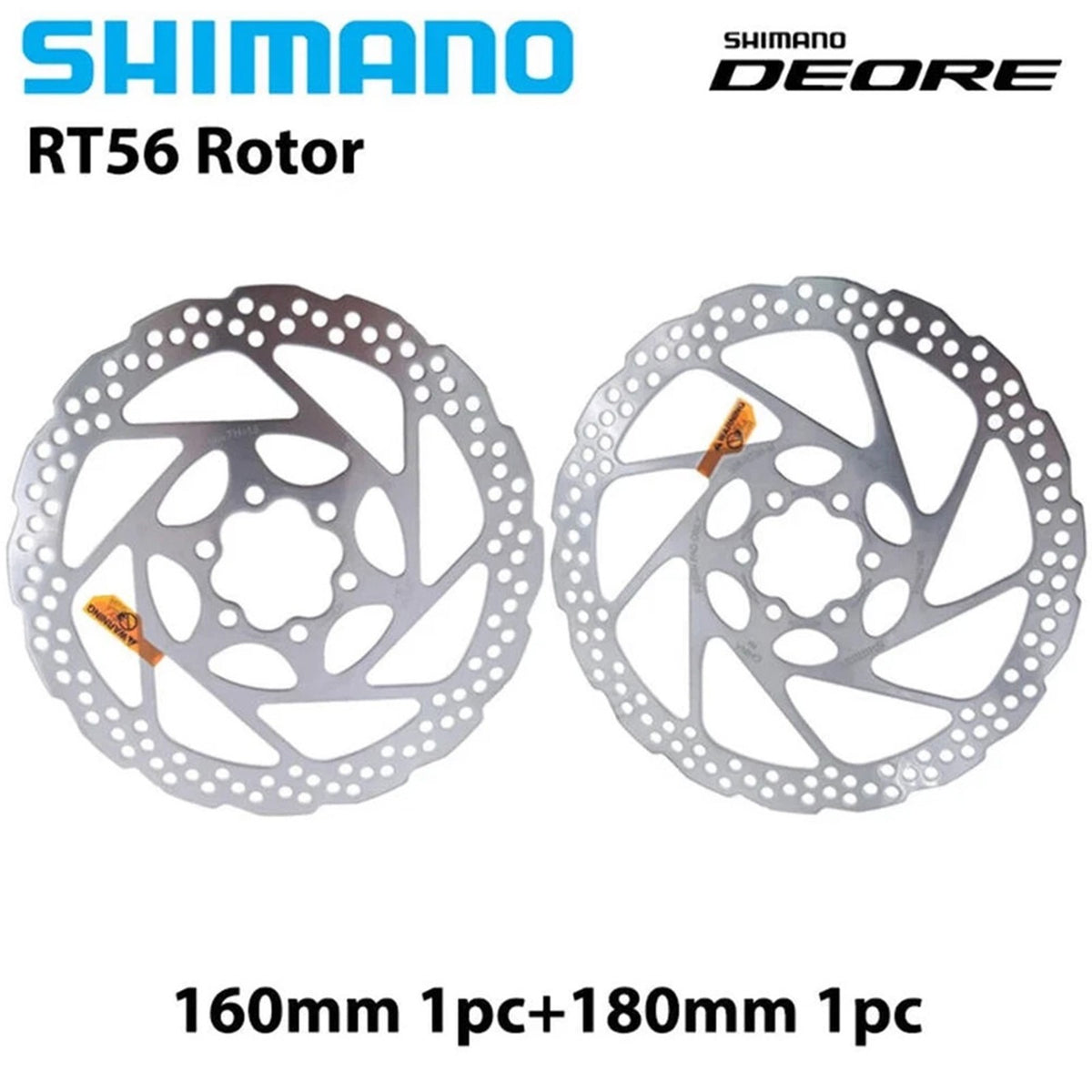

SM-RT56 Rotor Pack: 1×160mm Rear + 1×180mm Front
- Authentic Shimano SM-RT56 six-bolt rotors, mixed size combo for front & rear wheel matching
- Front 180mm large rotor: Maximize heat dissipation, stronger stopping force for steep descents
- Rear 160mm compact rotor: Reduce unsprung weight, maintain stable rear wheel control
- Precision machined stainless steel disc surface with anti-loosening lock plate to prevent wobble and warping
- Strategically placed vent cutouts rapidly release heat to resist brake fade under heavy braking loads
- Flat ±0.1mm tolerance disc minimizes vibration, rubbing noise and uneven pad wear
- Optimized friction surface engineered to pair perfectly with MT200 resin brake pads, extending pad service life
- Separate mounting bolts included for each rotor

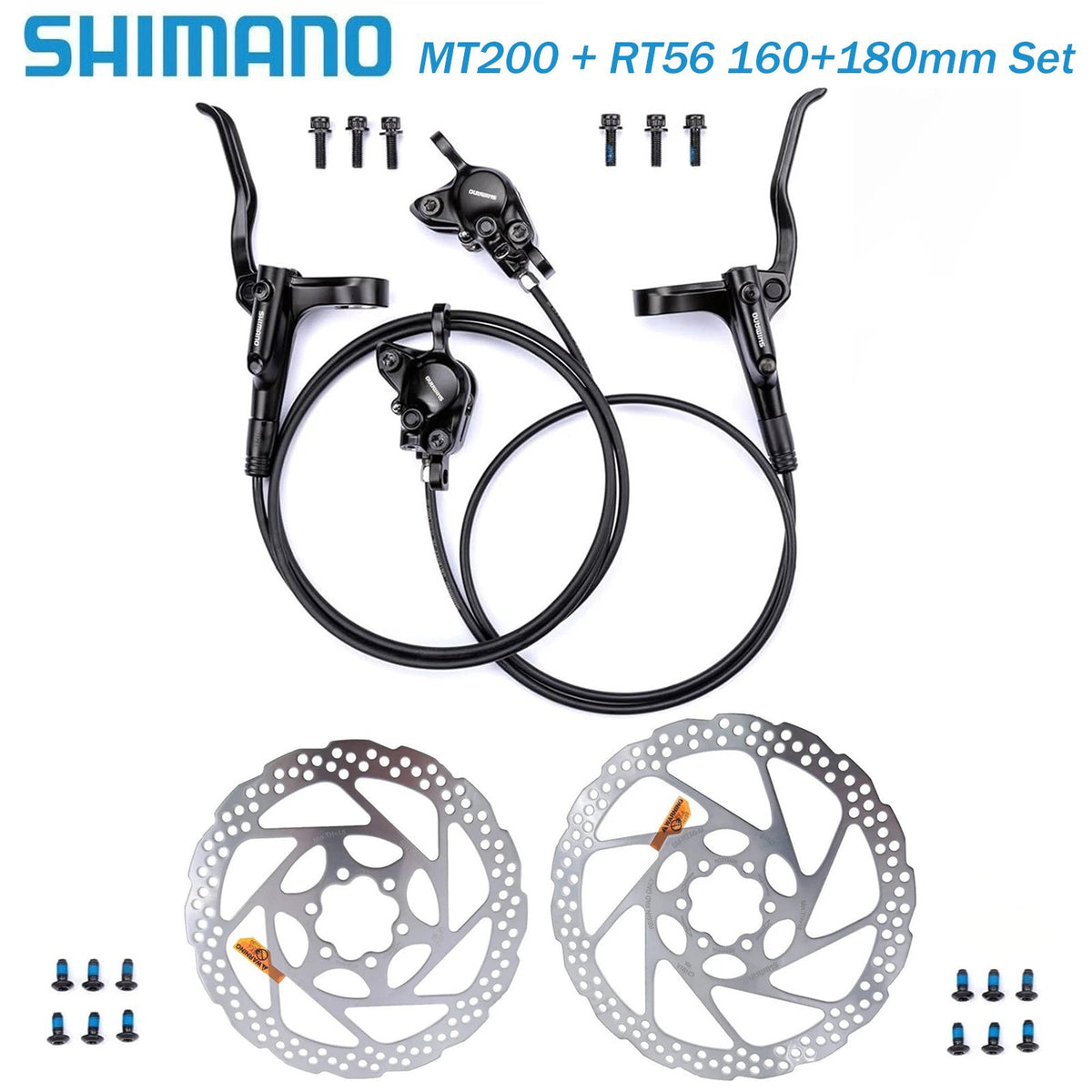

Complete Package Contents (Exclusive Mixed-Size Advantage)
- Left front MT200 brake lever + pre-bled caliper assembly
- Right rear MT200 brake lever + pre-bled caliper assembly
- 1 x Shimano SM-RT56 180mm 6-bolt rotor (Front Wheel)
- 1 x Shimano SM-RT56 160mm 6-bolt rotor (Rear Wheel)
- Full rotor fixing bolts
- Caliper mounting hex bolts
- Pre-fitted original B05S-RX resin brake pads inside calipers
Compatibility
- Fits post-mount forks and frames for 26/27.5/29 inch mountain bikes, hybrid commuter bikes and low-power e-bikes
- Works with all standard 6-bolt wheel hubs
- Rotor sizing matches official MTB factory setup: Large 180mm front for primary stopping power, compact 160mm rear for balance
We do not accept returns or cancel for change of mind. We only offer returns for items that are faulty or damaged.
