IAZBYCXO OBC Bypass Wire,to Bypass The Club Car OBC (Onboard Computer) for Charging,8 AWG 50 Amps, 5ft,Terminal Hole Diameter 8.5mm

Brand: IAZBYCXO

Color: Black

Features:

• 𝗛𝗶𝗴𝗵-𝗾𝘂𝗮𝗹𝗶𝘁𝘆 𝗯𝗮𝘁𝘁𝗲𝗿𝘆 𝗰𝗮𝗯𝗹𝗲: Made from 100% pure copper material, performs excellently in high-current applications, up to 50 Amps.

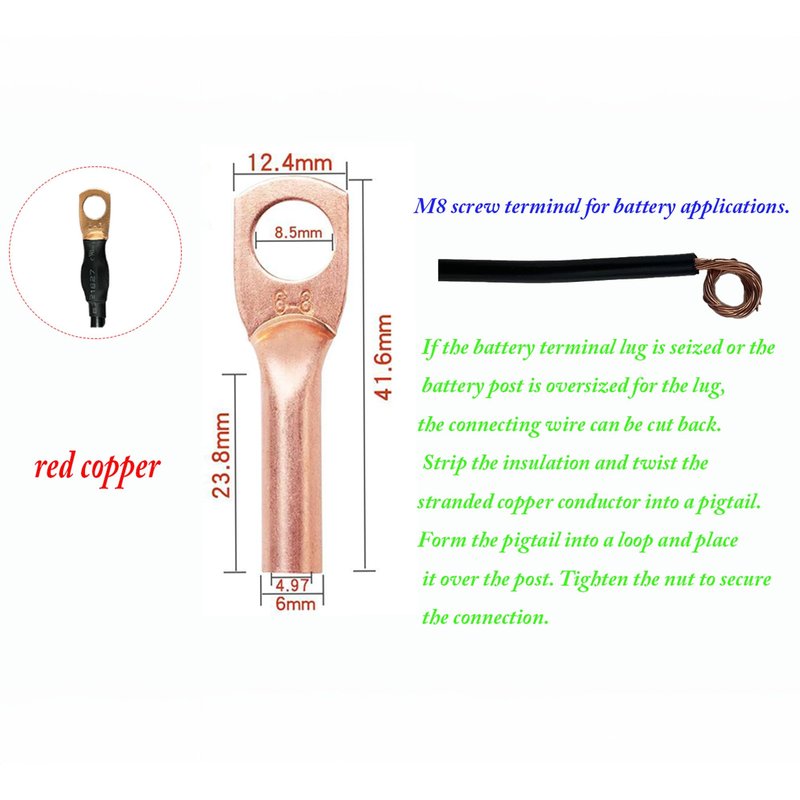

• 𝗢𝘂𝗿 𝗳𝗲𝗮𝘁𝘂𝗿𝗲𝘀: The fine copper material of the ring terminals can prevent the formation of sulfide crystals on the surface, The heat-shrink tubing can prevent corrosion and short-circuiting of the cable terminals,A hexagonal design and a larger contact surface area are better for heat dissipation.
• 𝗘𝗹𝗲𝗰𝘁𝗿𝗶𝗰𝗮𝗹 𝗽𝗿𝗼𝗽𝗲𝗿𝘁𝗶𝗲𝘀: 6 square pure copper wire (8AWG), withstands currents up to 50 Amps，Low heat generation, secure connection.

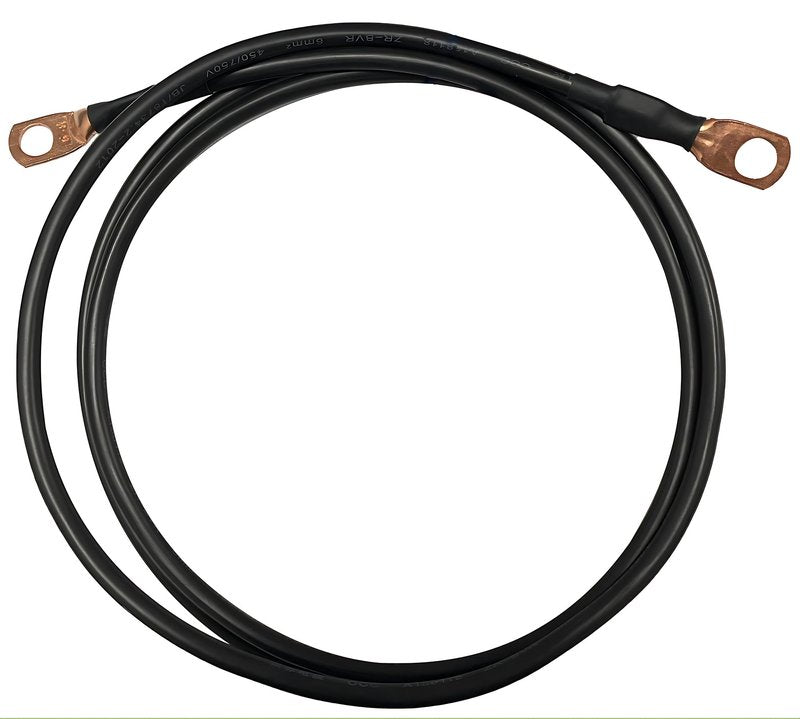

• 𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗶𝗻𝗰𝗹𝘂𝗱𝗲𝘀: 1 piece of 5ft black cable to choose from, please measure the cable length you need before ordering.
• 𝗬𝗼𝘂𝗿 𝗿𝗲𝗹𝗶𝗮𝗯𝗹𝗲 𝘀𝘂𝗽𝗽𝗹𝗶𝗲𝗿:Enjoy satisfactory service, if you have any questions, please feel free to contact us. We will do our best to resolve them.
• 𝗨𝘀𝗮𝗴𝗲：Power connected, battery connected, function for device, if connector is not applicable, use cut-off terminal for direct connection, as it is long enough.

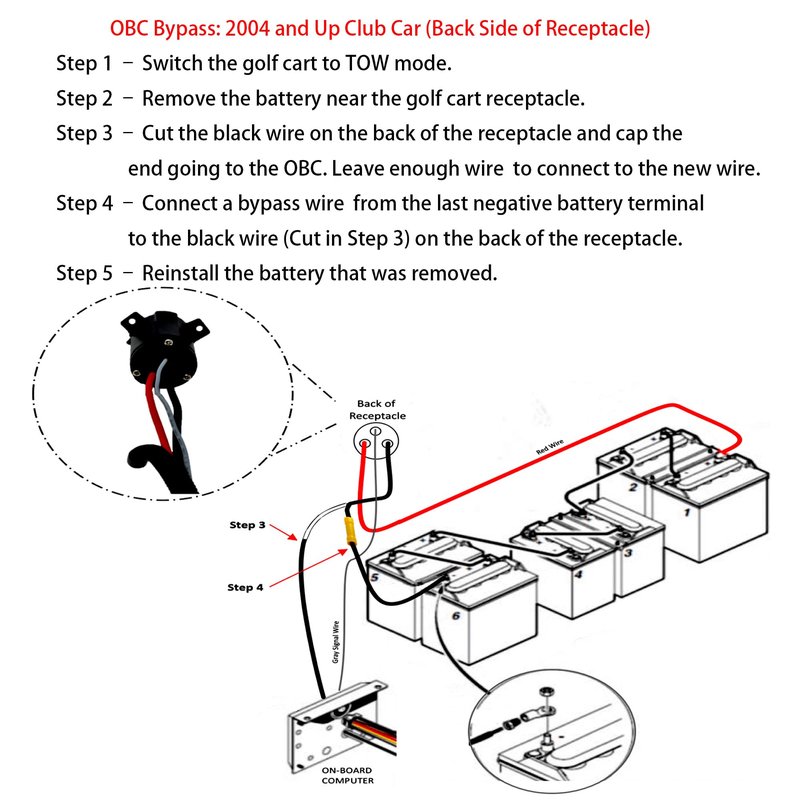

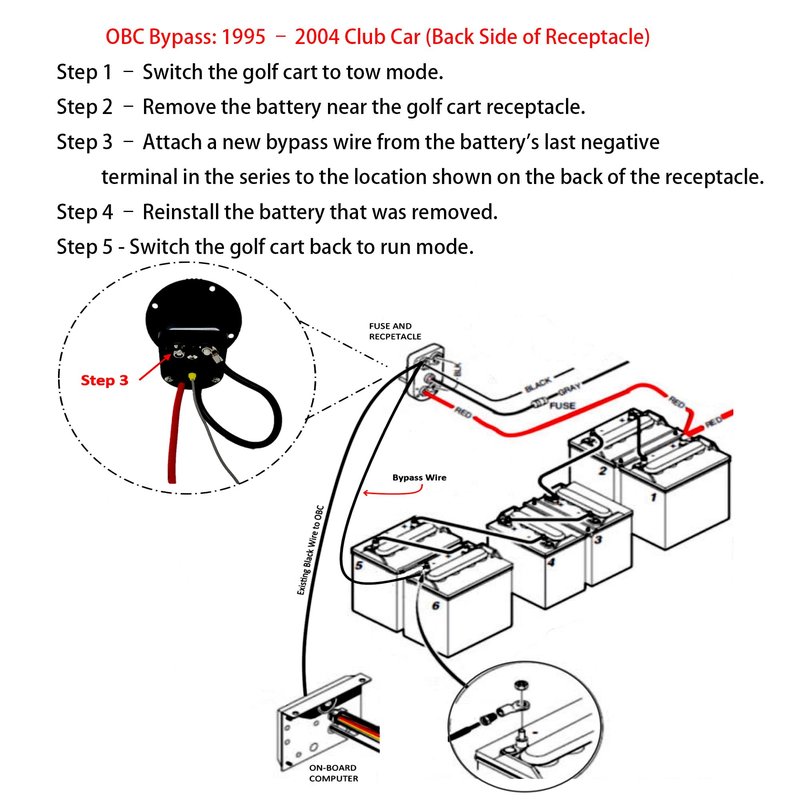

Details: To bypass the Club Car OBC (Onboard Computer) for charging, you need to connect a black wire from the negative terminal of battery number 6 to where the charger receptacle connects to the battery bank. This simple wiring change creates a direct circuit, allowing a new smart charger to sense voltage accurately and charge your batteries properly.

Package Dimensions: 8.3 x 5.2 x 1.1 inches
