Monstrum Ghost Red Dot Sight - G3 3X Micro Magnifier with Flip to Side Mount | Tactical Optics
Monstrum Ghost Red Dot Sight - G3 3X Micro Magnifier with Flip to Side Mount | Tactical Optics
Couldn't load pickup availability

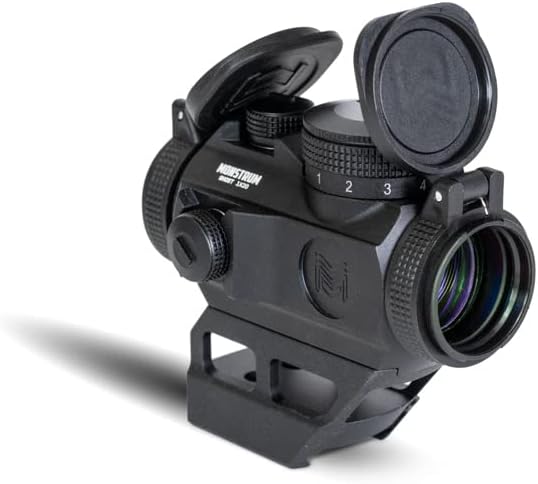

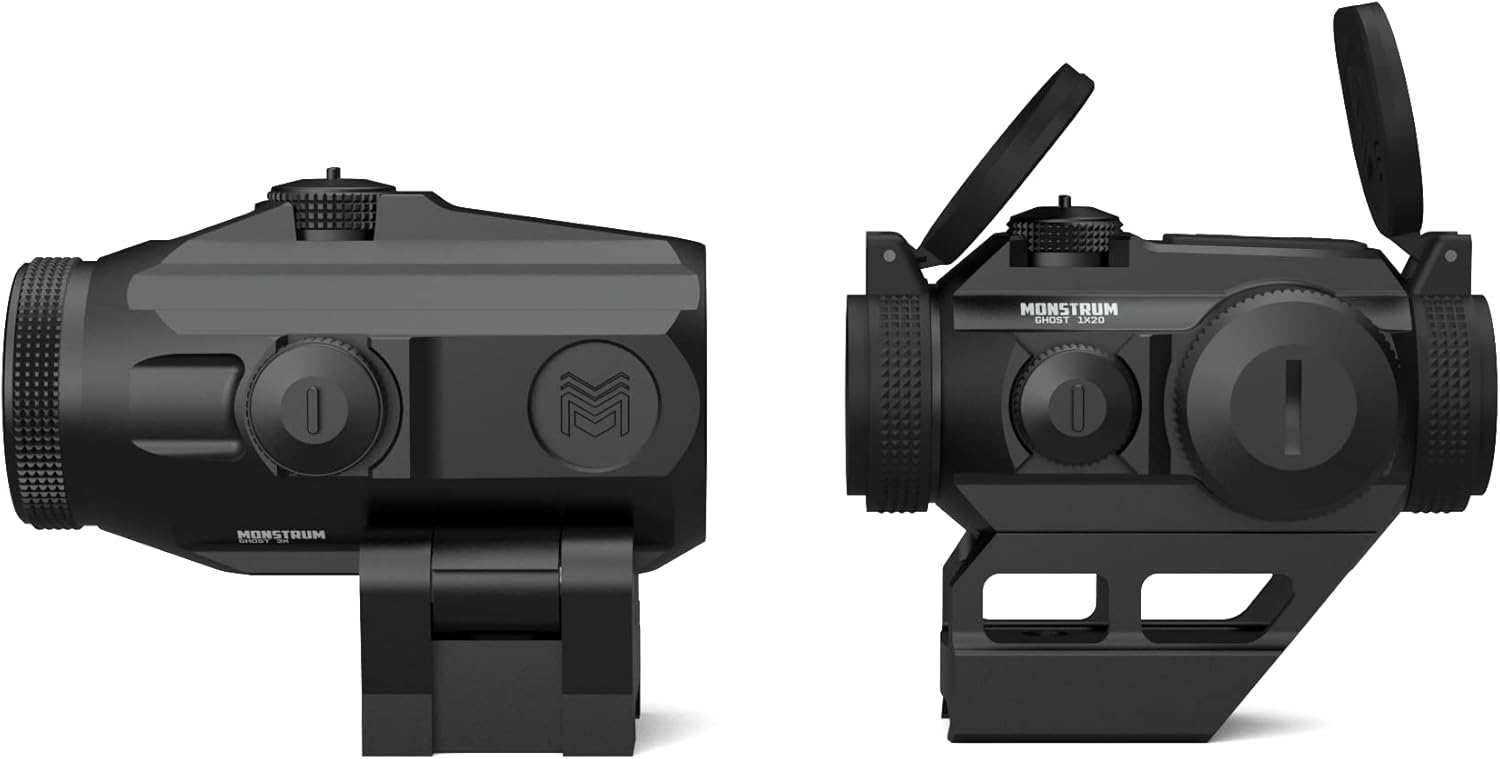

- This bundle includes both the Monstrum Ghost Red Dot Sight and the Monstrum Ghost G3 3x Magnifier with Flip to Side Mount
- Close range electronic sight for rapid target acquisition of close range targets with a flip-to-side magnifier with quick engage mechanism allowing for rapid transition between red dot usage with or without magnification

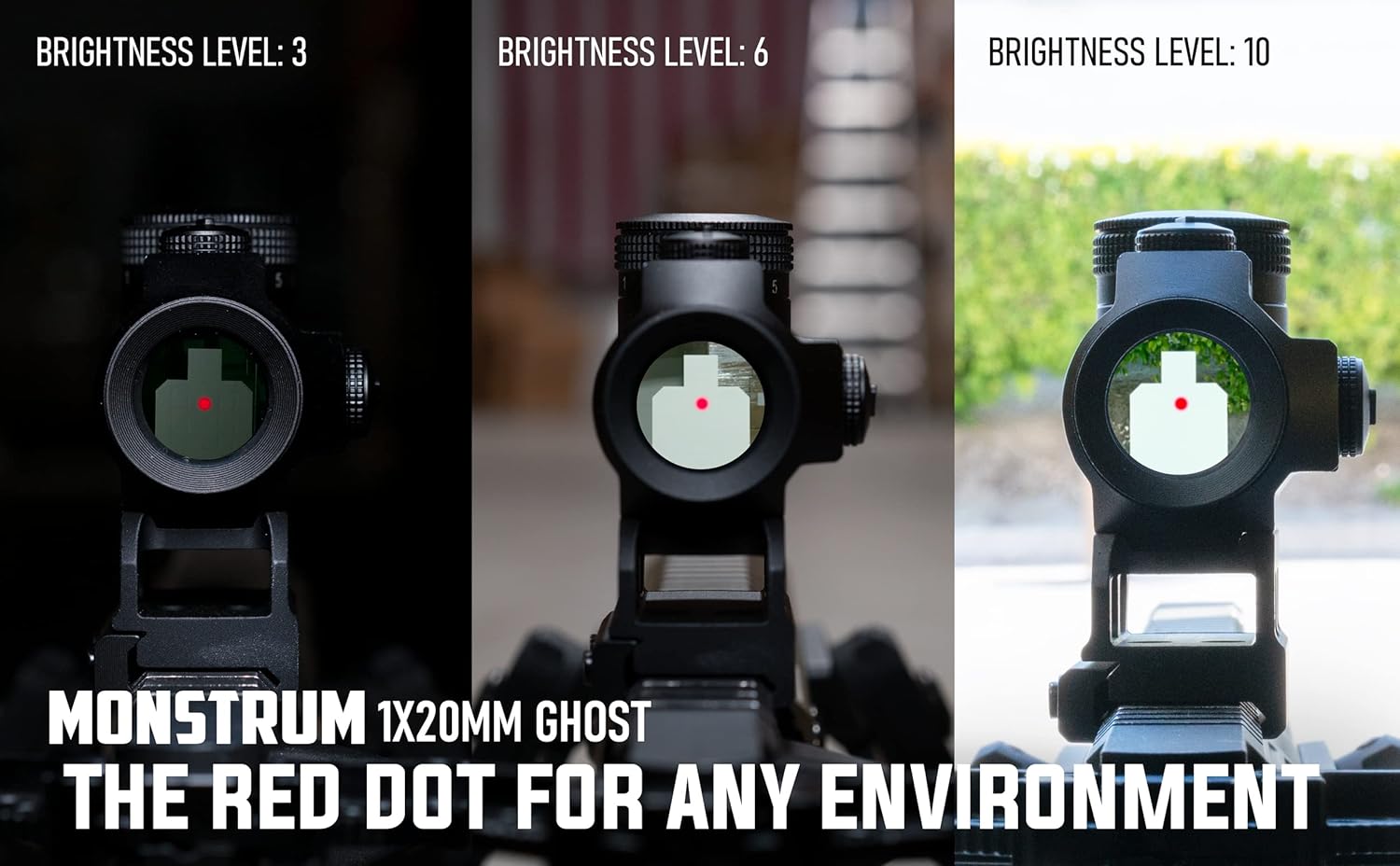

- State-of-the-art optical system provides up to 10 times the brightness intensity and 5 times the battery life of cheaper LED powered red dot sights; up to 50,000 hours of battery life

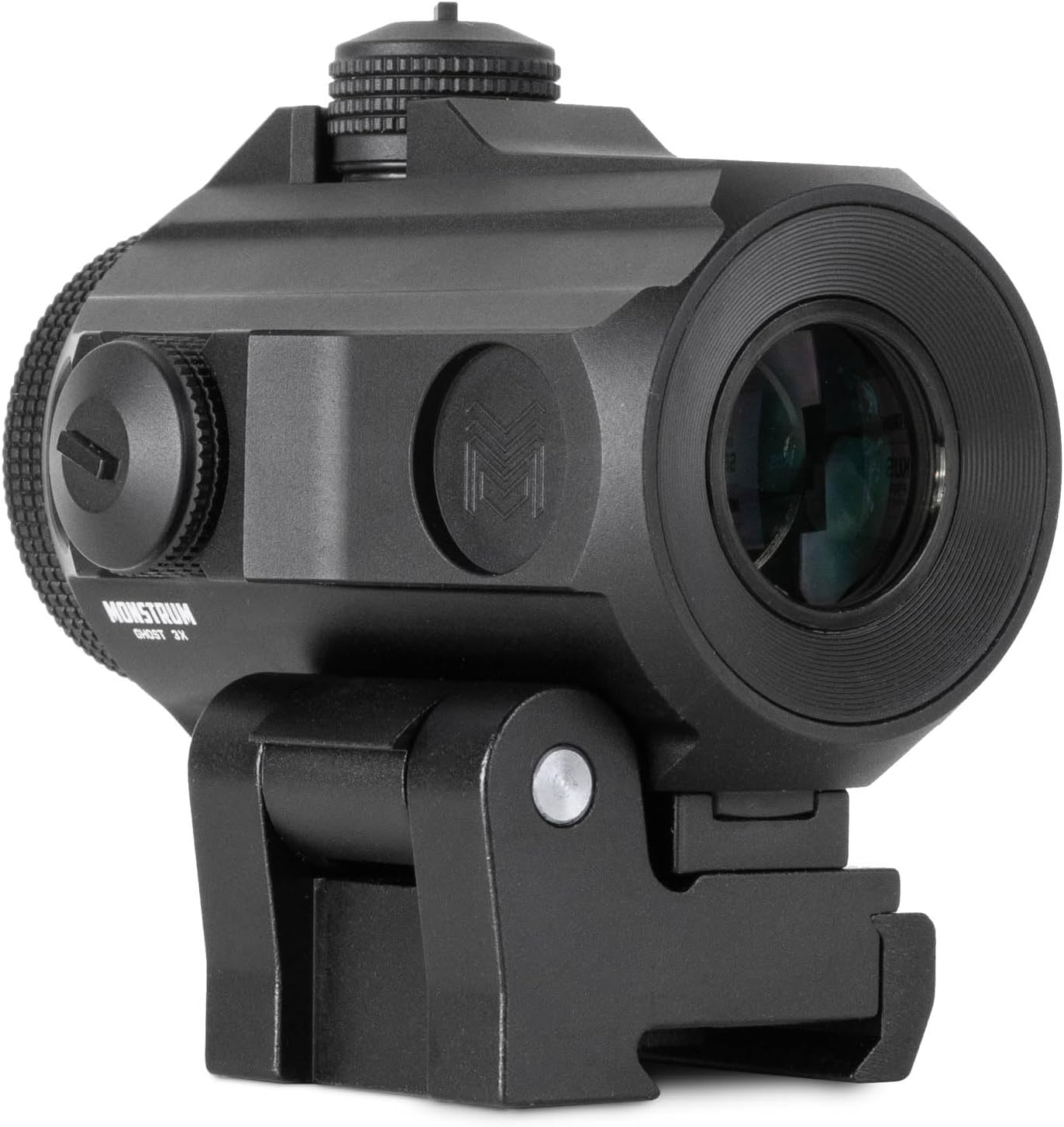

- Ghost G3 3x magnifier built for use with red dot sights It has between 2.5-3.0 inches of eye relief and comes with an adjustable diopter allowing you to focus the red dot to your eye.
- Please note that magnifier MUST be properly aligned and sighted in with your red dot before use - please view installation guide before use.
Red Dot & Magnifier Combo
This bundle includes both the Monstrum Ghost Red Dot Sight and the Monstrum Ghost G3 3x Magnifier with Flip to Side Mount. State-of-the-art optical system provides up to 10 times the brightness intensity and 5 times the battery life of cheaper LED powered red dot sights; up to 50,000 hours of battery life. Ghost G3 3x magnifier built for use with red dot sights. Offering better light transmission, longer eye relief and more compact design than our previous generation magnifiers
-

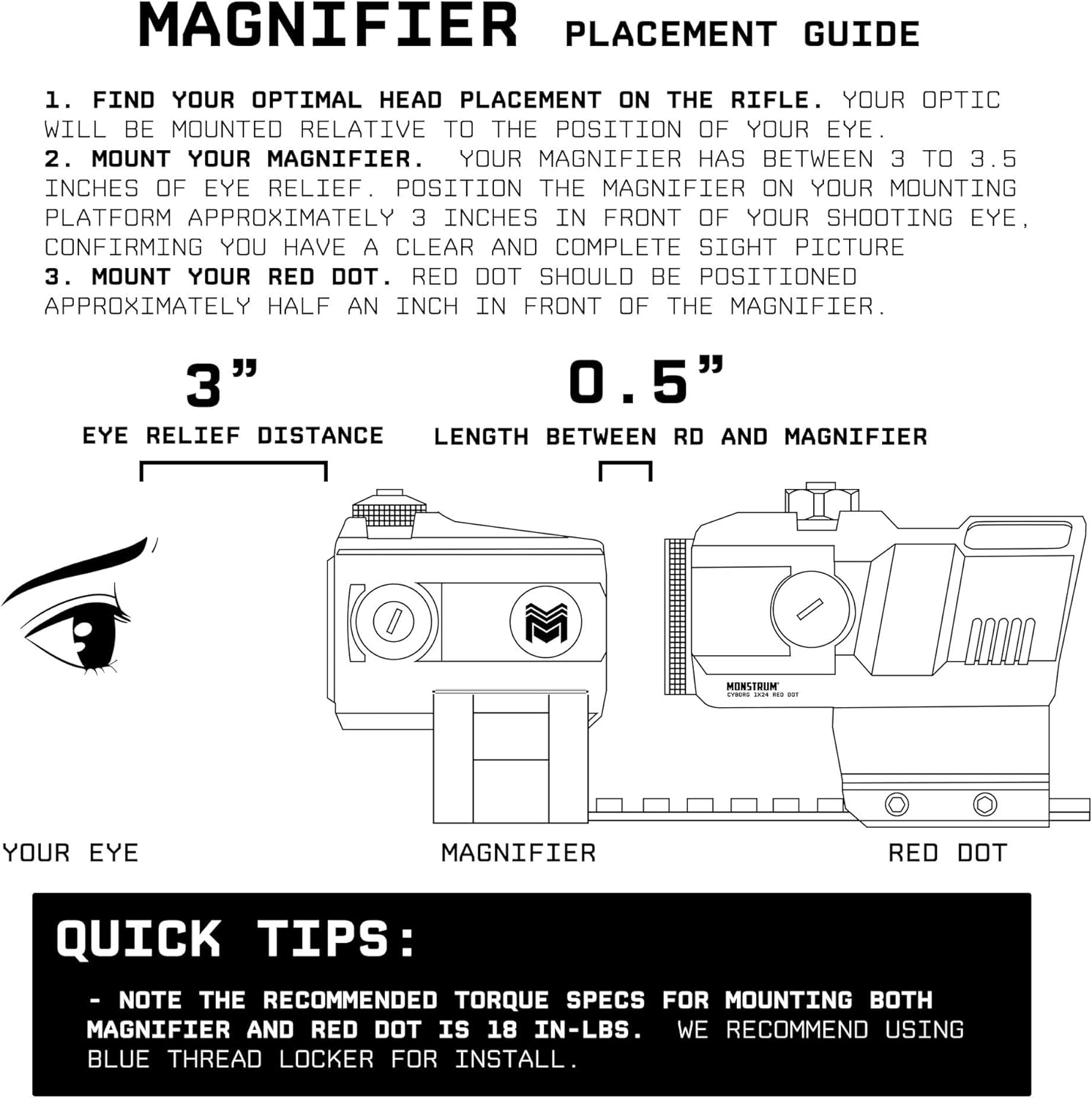

Step 1
Mount the Red Dot and Magnifier
Torque Specification for both the Red Dot and Magnifier to the mounting platform: ~18 in-lbs or hand tighten plus 1/4 turn. Blue thread locker is advised, but not required.
Note: Distance between the Red Dot and Magnifier should be around <2.0 inches.
-
Step 2

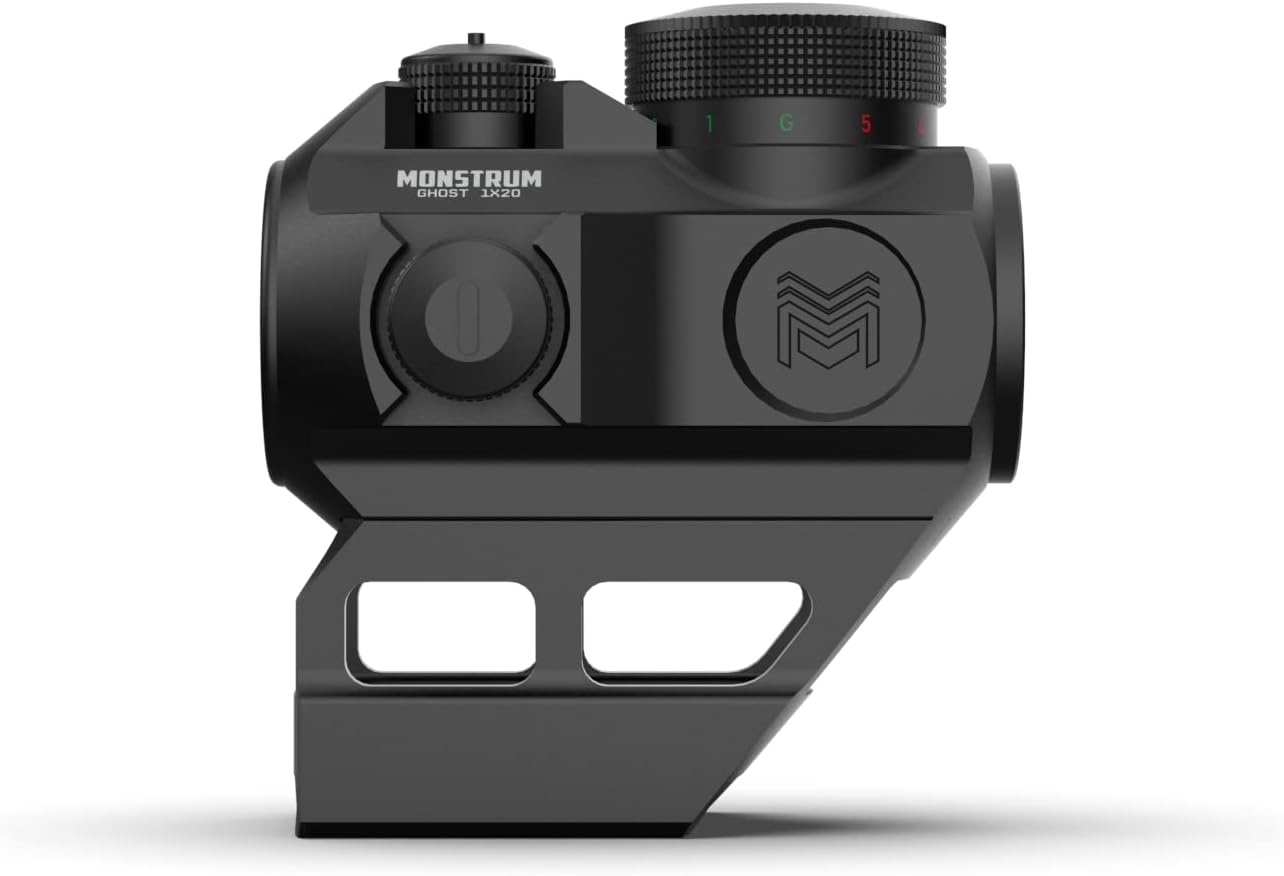

Sighting the Ghost Red Dot
Flip the magnifier into the disengaged position.

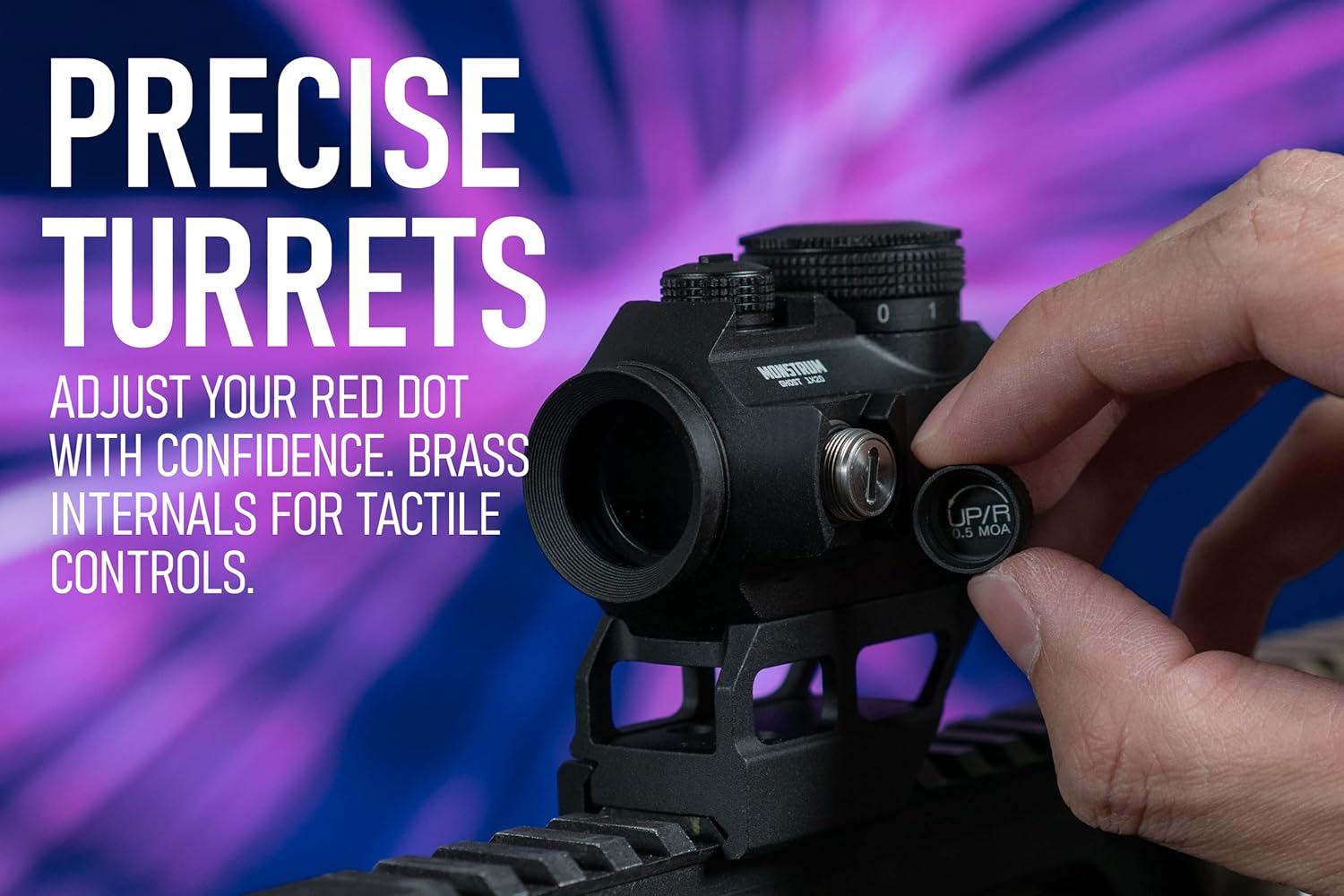

Using the windage and elevation controls, the built-in adjustment tool located on the caps, and your preferred method of sighting, zero the red dot.
Tip: Optimal distance to zero the Ghost 1x20mm red dot is 50 yards. Use a laser bore sight to get on paper.
-

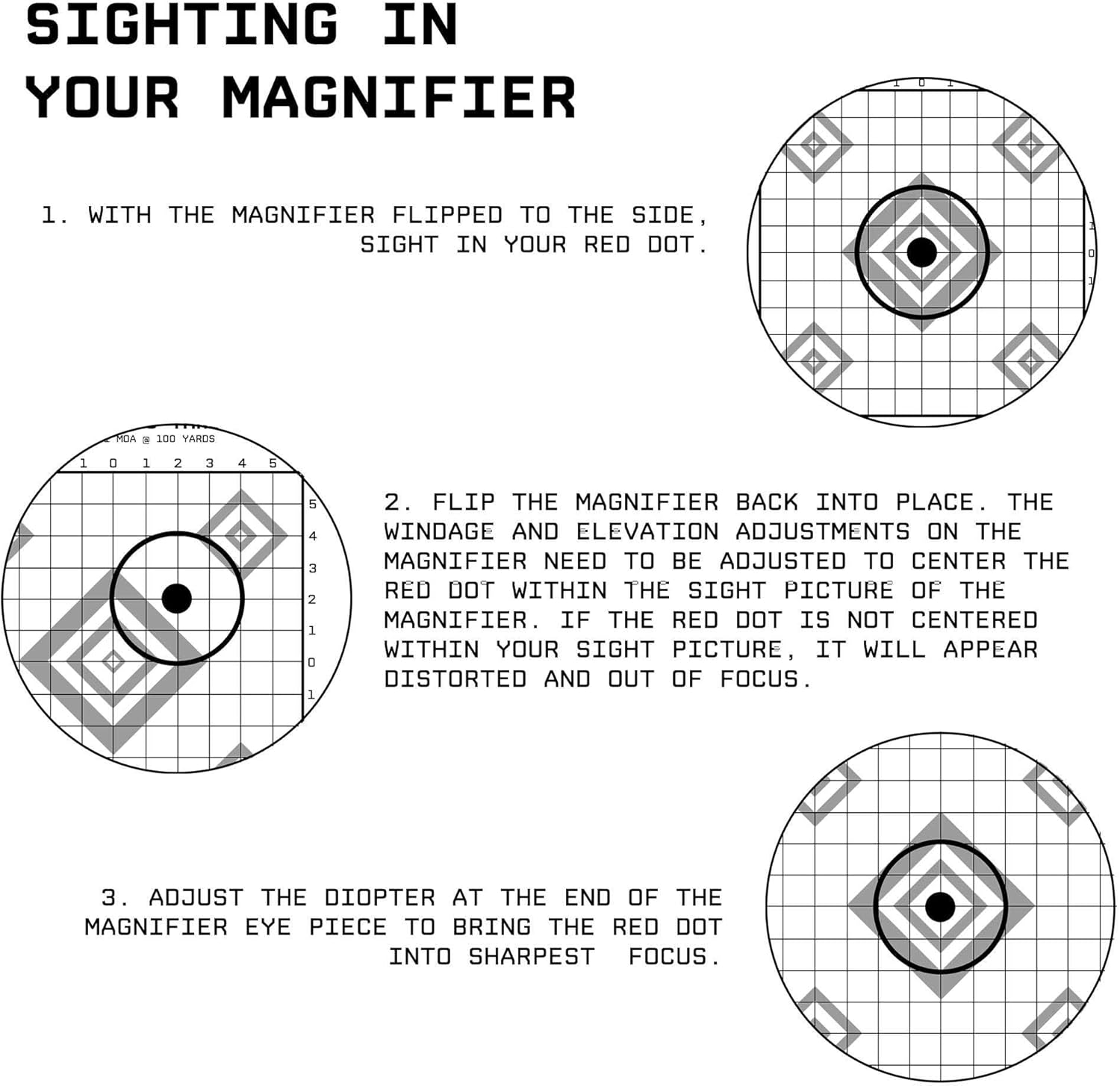

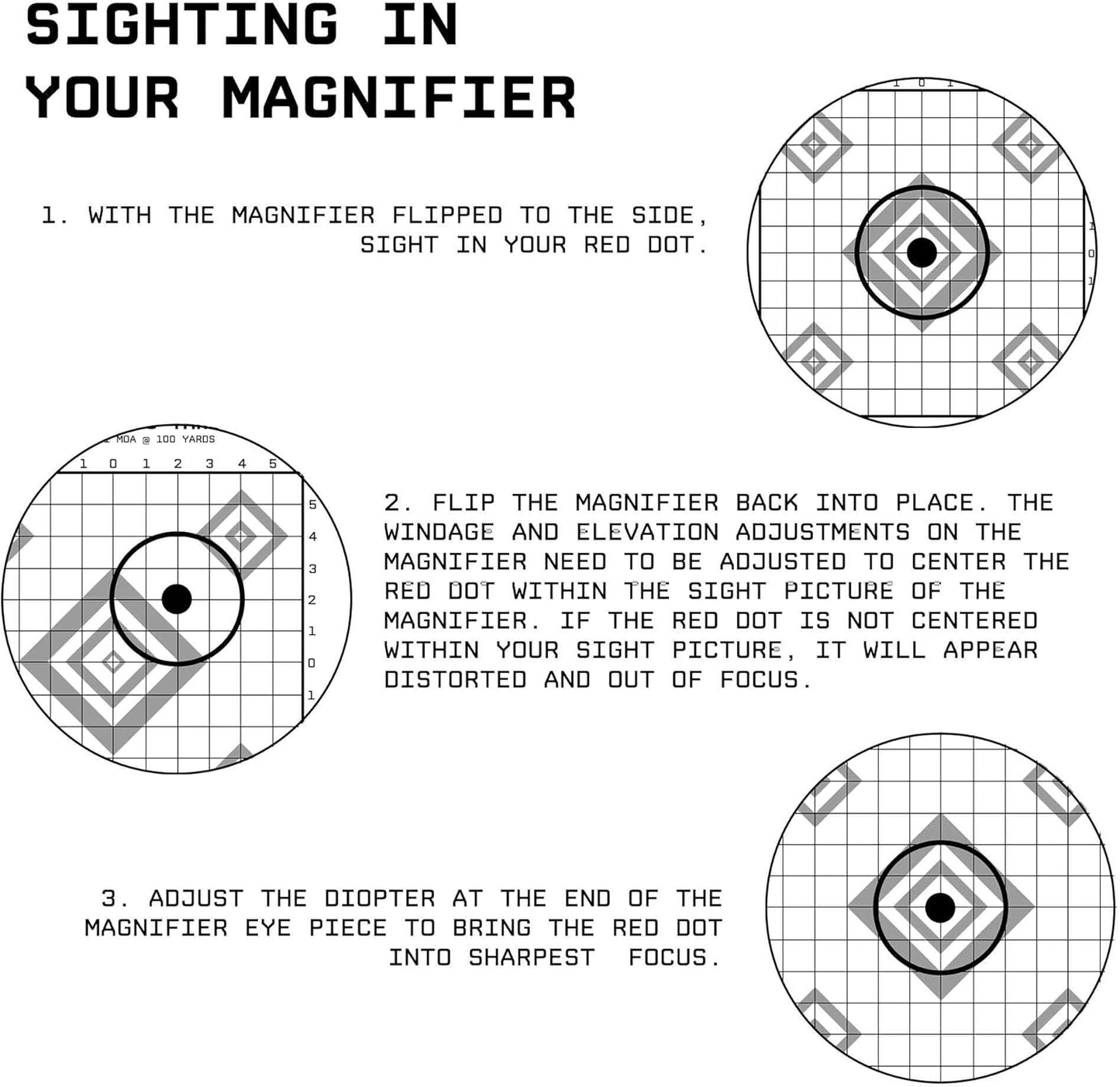

Step 3
Sighting the Ghost Magnifier
Flip the Ghost magnifier back into view.
The Magnifier may not be centered with your red dot which will cause it to look something like the example here. For an optimal view, you will want to zero your magnifier so that the picture is as centered as possible.
-
Final Tips and Notes
End Result
The end result should look something like the example here.
Note: It is important to zero your magnifier in at the same distance and same time as your red dot for the most optimal results.
Compare our Lineup
Red Dot | Reticle: | Red Dot |
1x | Power Level: | 1x |
| | Illumination: | |
Close Range, 100 Yds | Optimal Range: | Close Range, 100 Yds |
| | Multi-Spectrum Lens: | |
| | Shock & Water Proof: | |
Mechanical | Illu. Adjustment: | Electronic |
Red Dot | Reticle: | Not Applicable |
1x | Power Level: | 3x or 5x |
| | Illumination: | |
Close Range, 100 Yds | Optimal Range: | Up to 500 Yards |
| | Multi-Spectrum Lens: | |
| | Shock & Water Proof: | |
Mechanical | Illu. Adjustment: | Not Applicable |
Red Dot | Reticle: | Circle Dot |
1x | Power Level: | 1x |
| | Illumination: | |
Close Range, 100 Yds | Optimal Range: | Close Range, 100 Yds |
| | Multi-Spectrum Lens: | |
| | Shock & Water Proof: | |
Mechanical | Illu. Adjustment: | Mechanical |
- Ghost Red Dot V2
- Ghost G2 Magnifiers
- Blackbird 1x Prism Scope
