MUSELK Ebike 36V 48V 52V 60V Pas Pedal Assist Sensor Kt-D12L Kt D12 D12L 12 Magnet Easy to Install Electric Bicycle Accessories

Brand: MUSELK

Color: D12-Waterproof Plug

Features:

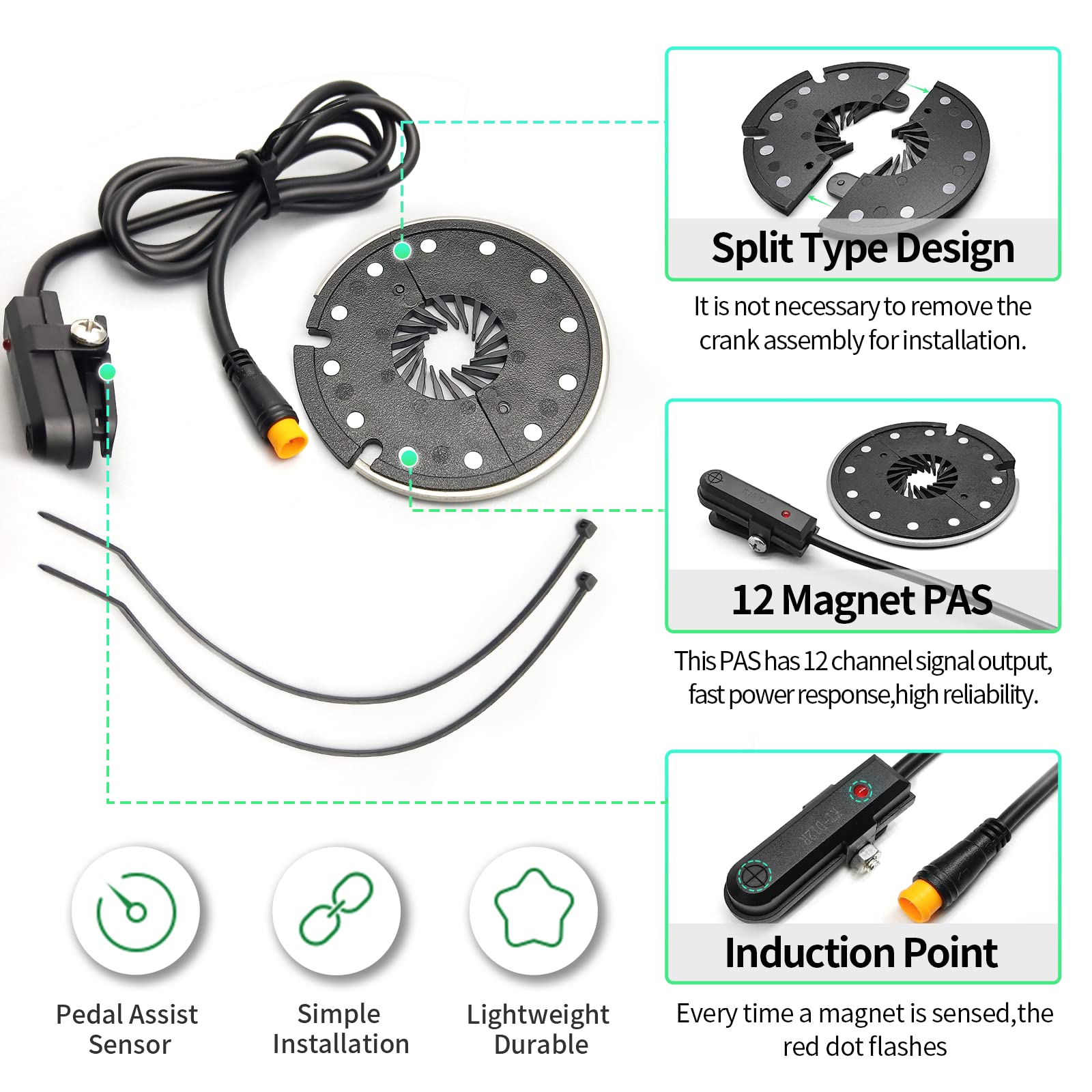

• Model: KT brand - D12L PAS, with 12 magnetic dots, which means that one rotation will send 12 pulse signals to the controller

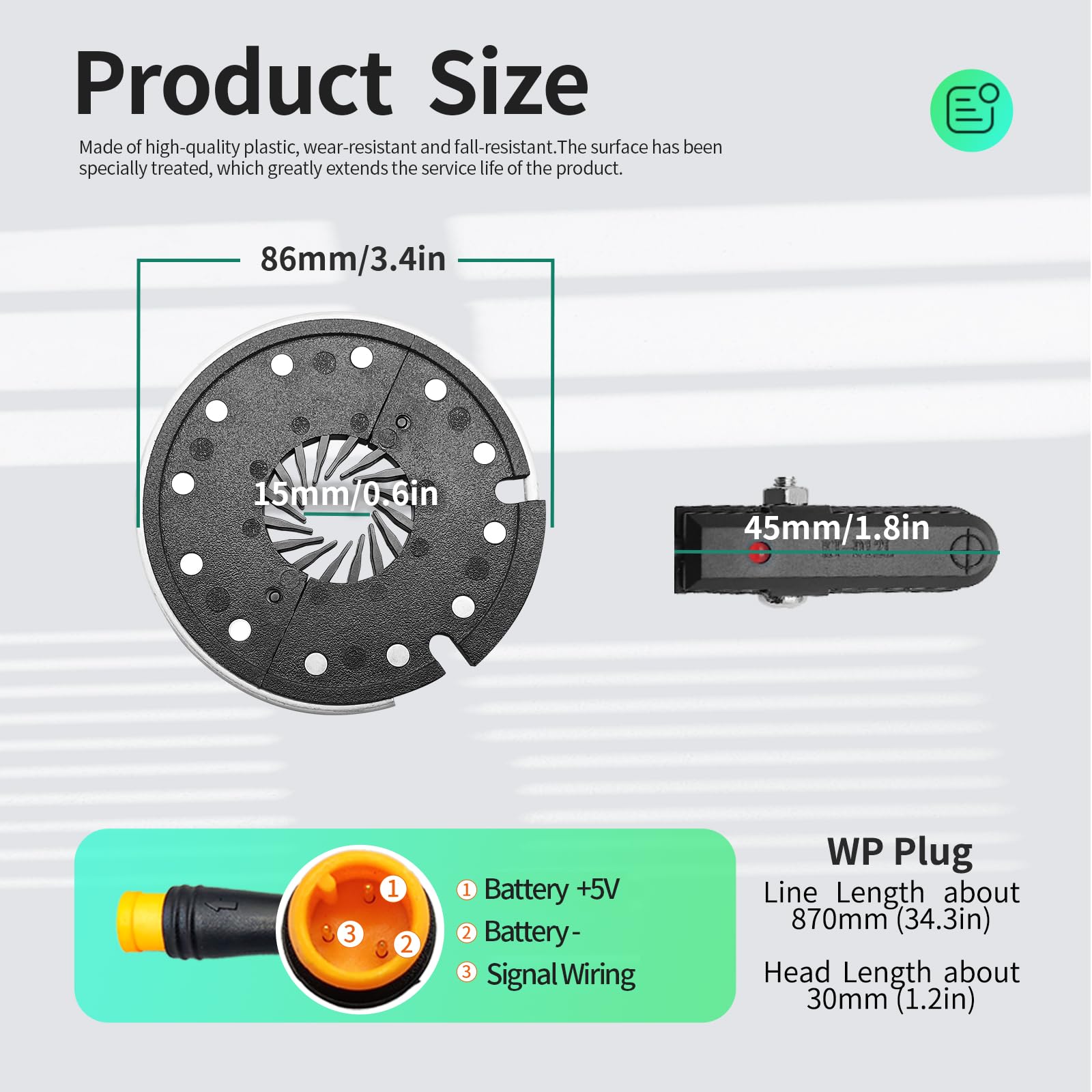

• Cable length: SM connector length 100cm/ Waterproof connector length 90cm

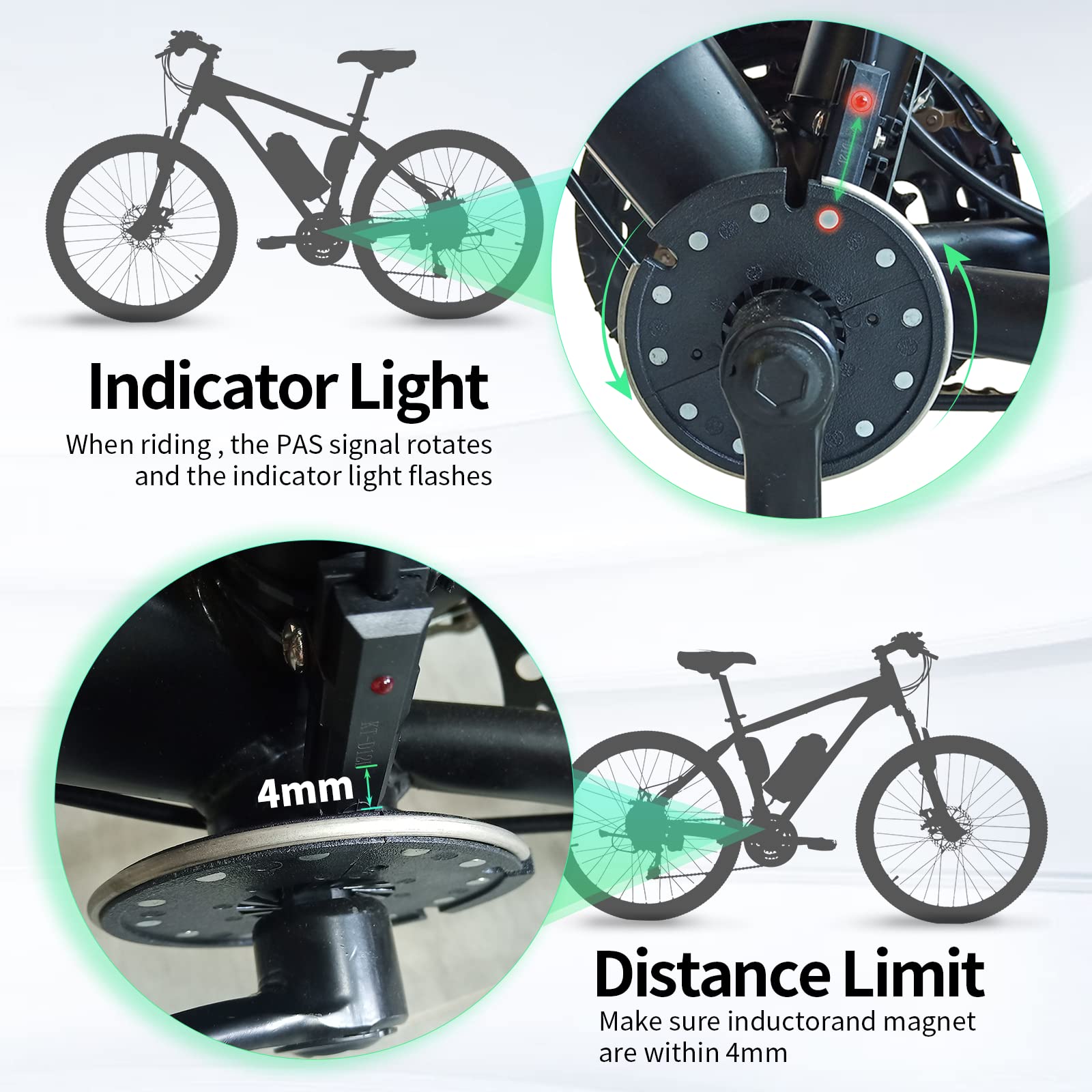

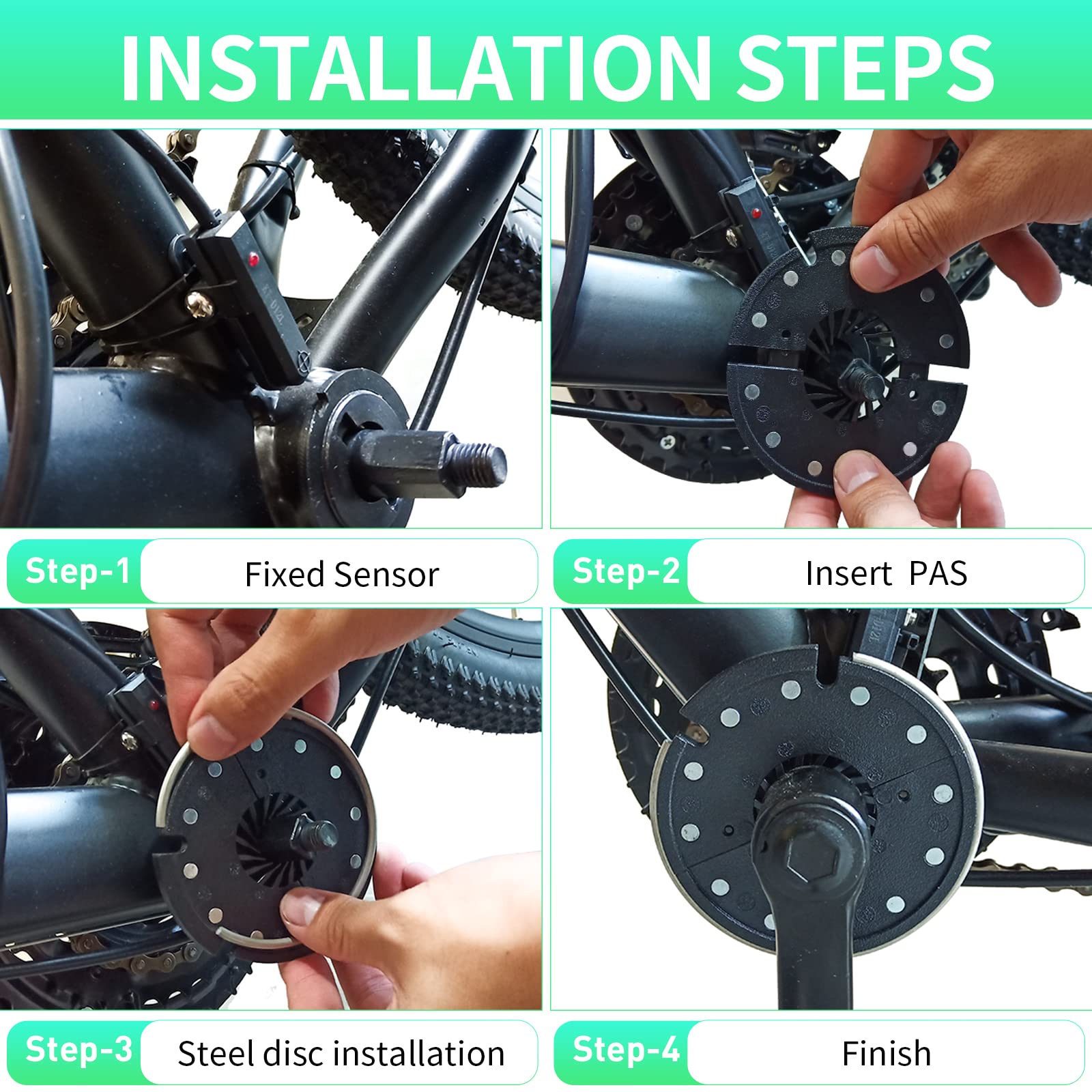

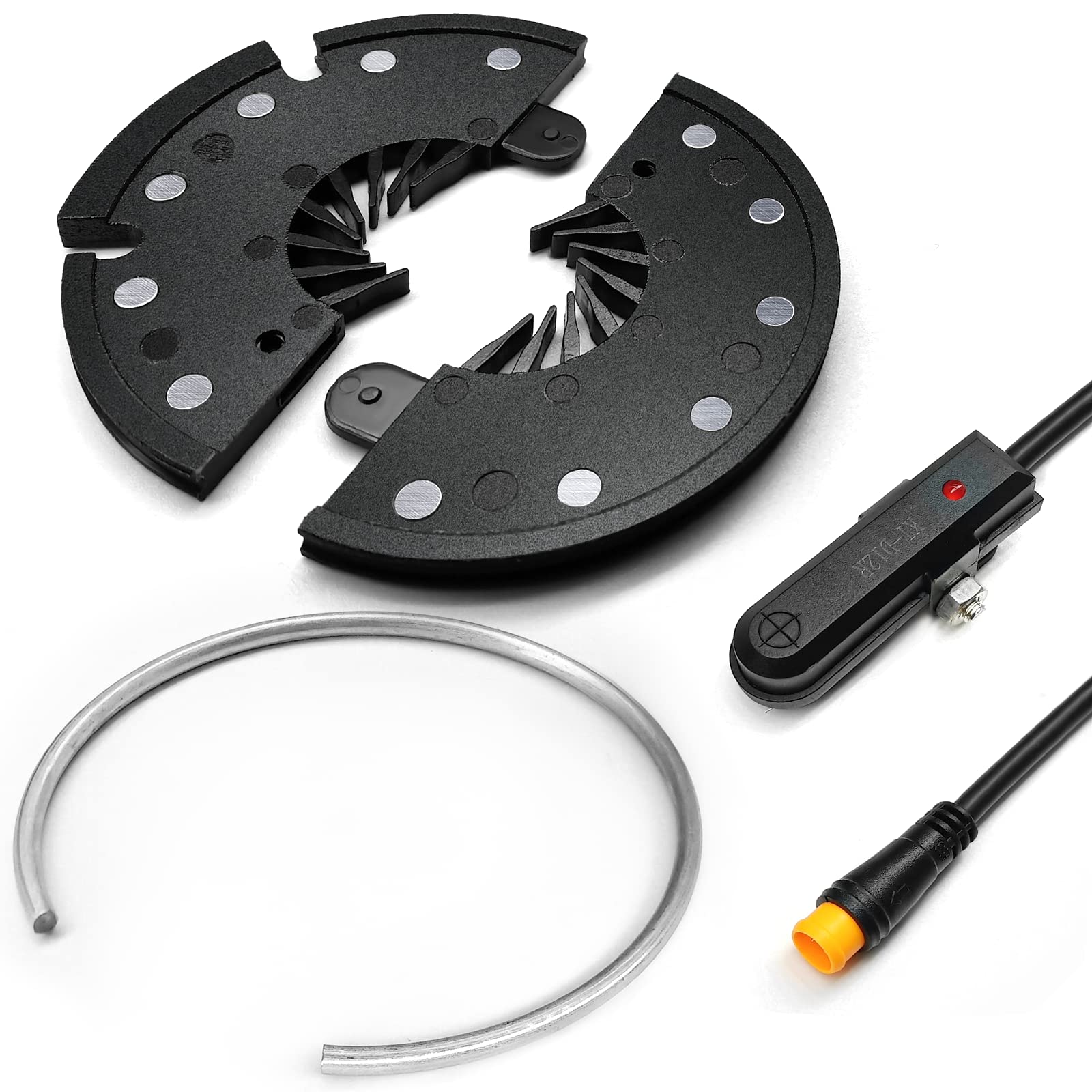

• Installation: D12L PAS can only be installed at the left crank, and the gap between the sensing head and the magnetic point is preferably between 3mm and 5mm. It uses two semi circular designs and is fixed by a "C" shaped steel ring, which can be installed without the need to remove the crank
• Parameter Adjustment: If you previously used other quantities of PAS, such as 5, 8, and 10, it is best to adjust the display parameters when you receive this 12 magnetic point PAS for better compatibility and perfect operation. If you are not sure how to adjust it, please leave us a message
• Excellent Quality: made of high-quality materials, fine processing and precise assembly. It is suitable for almost all electric bicycles on the market.
• We are committed to creating a good shopping experience. Your satisfaction is our ultimate goal. We can also accept DIY custom service, if you have related needs, you can leave me a message. Any other questions, free to contact us. We will reply you within 24 hours.

Details: D12L PAS 12 Magnets install on the left side match hall controller for Elecrtic Bicycle /EBike Kit

Package Dimensions: 5.0 x 4.0 x 0.4 inches
