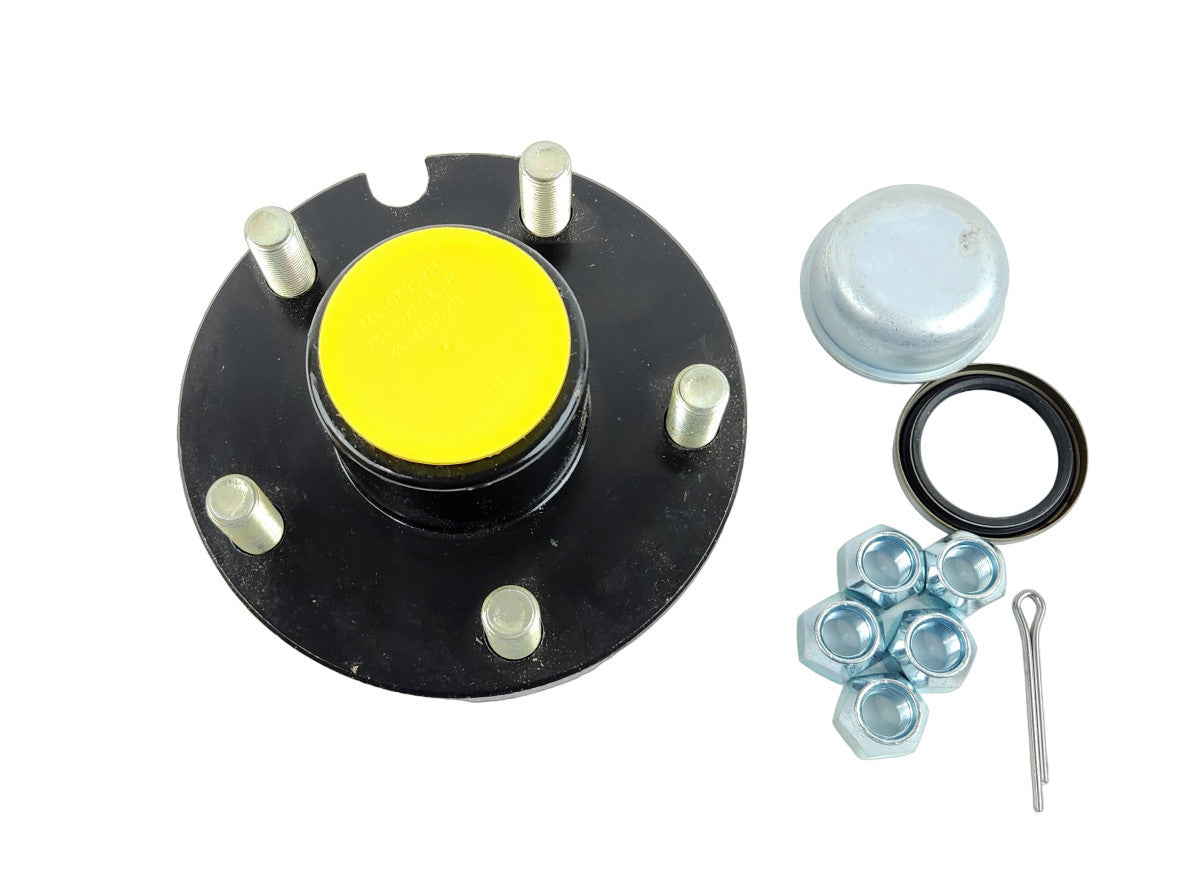

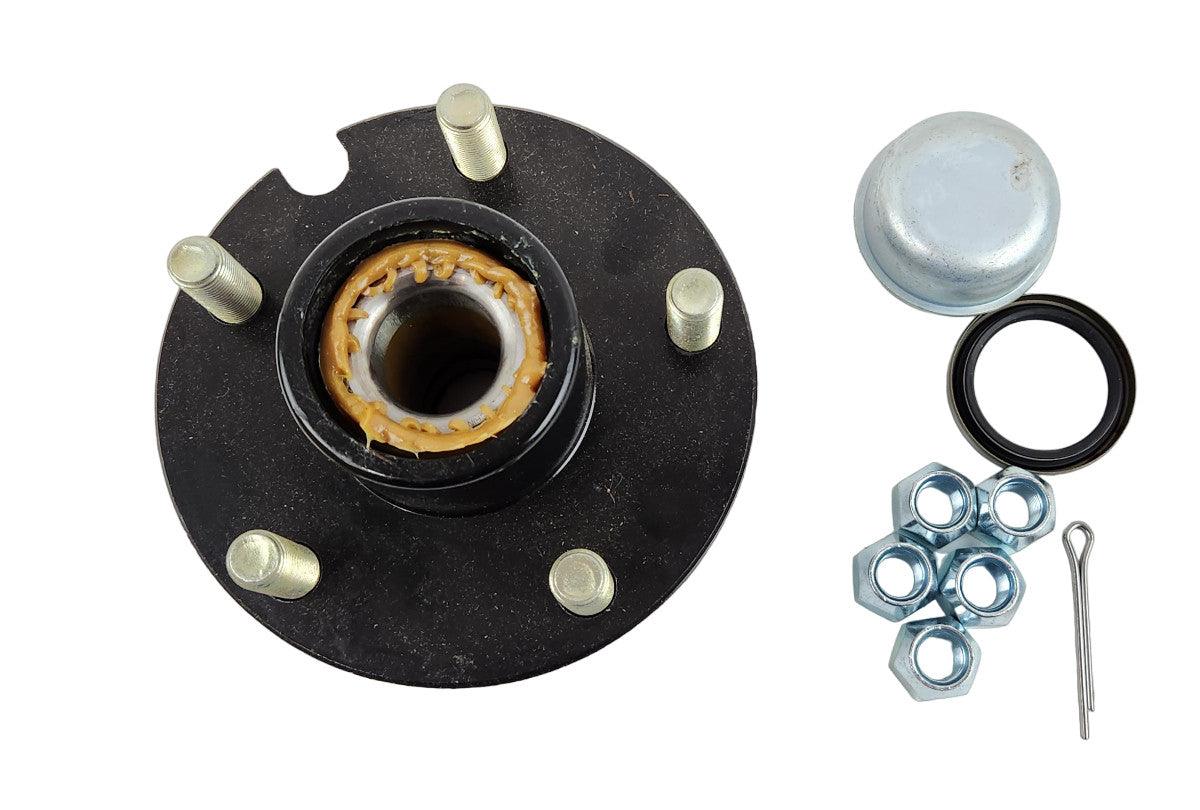

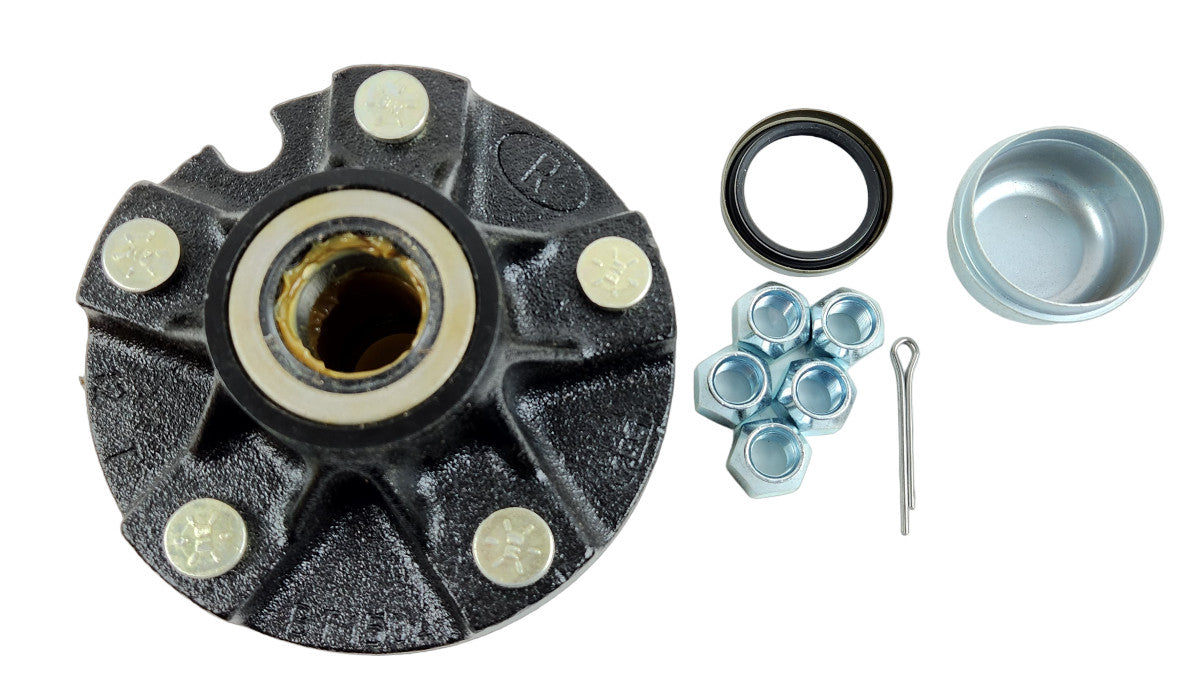

Pontoon Trailer Axle Short Hub 5 on 4.5 Inch for Triton Marine Trailers

This is the special "short" hub used on all Triton Pontoon trailers. This is not a normal trailer hub, it will only fit Triton Pontoon trailers. The hub comes with with wheel bearings and grease seal. This hub does NOT come pre-greased

Bolt Pattern: 5 on 4-1/2

Kit Includes:

    (1) Hub (1-150A-04-02) 5 Studs on 4-1/2″ Bolt Circle, 1,350 lbs. Capacity Each
    (2) Cups (L44610)
    (5) Grade 8, Zinc Plated, Studs 1/2″-20 (ST-502-04)
    (2) 1-1/16″ Bearing Cones (L44649)
    (1) 1-1/4″ I.D. Grease Seal (SL-122-1)

Loose in a bag:

    (5) Stud Nuts 1/2″-20 Thread Size (STN-506)
    (1) 1.98″ Dust Cap (1505)
    (1) 1-1/2″ I.D. Grease Seal (SL-150-1)
    (1) Cotter Pin (SCP-103)

Alternate Number: 0063
