Quick Detach Mount 1.5 Inch for Digital Optics - Secure, Lightweight, Auto-Lock

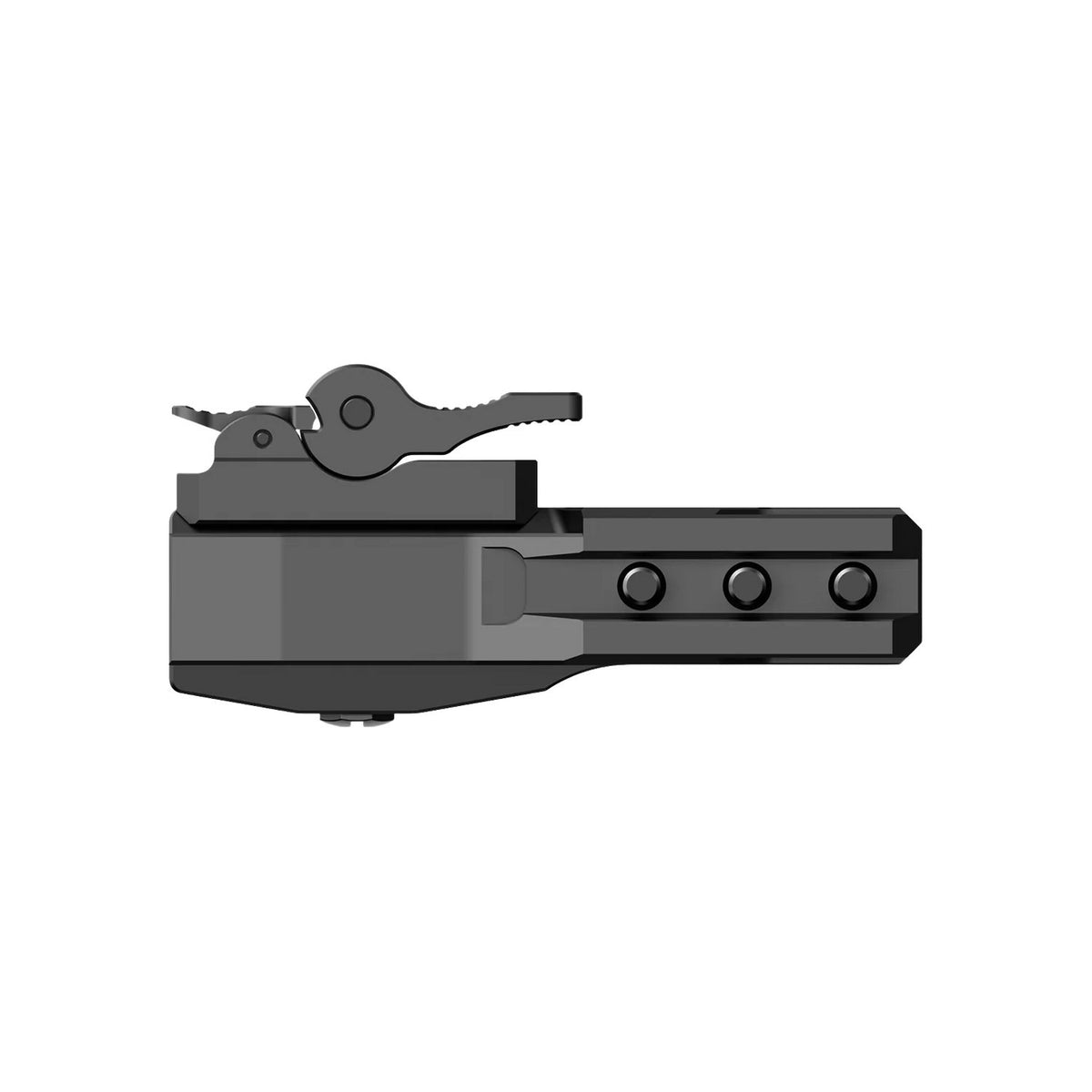

DNT QDS150 Standard Quick Detach Mount, 1.5" Height for ThermNight, HYDRA & ZULUS HD Optics

Description

The DNT QDS150 Standard Quick Detach Mount is engineered to provide a secure, repeatable mounting solution for DNT digital optics while allowing rapid removal and reinstallation without sacrificing zero retention. Designed with a 1.5-inch centerline height, the QDS150 promotes proper eye alignment and comfortable shooting ergonomics across a variety of optic configurations.

Its cantilever design provides flexible eye relief adjustment while maintaining a compact, lightweight profile. The precision quick-detach mechanism features an auto-locking latch and tool-free operation, allowing users to quickly remove or reinstall their optic with confidence. Simply release the latch and flip the lever for fast transitions between setups while maintaining dependable return-to-zero performance.

Machined from a single block of 6063 aircraft-grade aluminum and finished with a hard-anodized matte black coating, the QDS150 combines strength, durability, and corrosion resistance for reliable performance in demanding environments.

Features

• Quick detach mounting system
• 1.5" optic centerline height
• Tool-free installation and removal
• Auto-locking latch design
• Cantilever mount configuration
• Return-to-zero capability
• Hard-anodized finish
• Lightweight aluminum construction
• Picatinny rail compatible
• Designed for DNT digital optics

Specifications

• Brand: DNT
• Model: QDS150
• MPN: QDS150
• Mount Type: Quick Detach Cantilever Mount
• Color: Matte Black
• Material: 6063 Aircraft-Grade Aluminum

Dimensions & Weight

• Length: 3.94" (100.0 mm)
• Width: 1.89" (48.0 mm)
• Height: 0.87" (22.0 mm)
• Weight: 2.93 oz. (83 g)

Mount Specifications

• Optic Centerline Height: 1.5"
• Rail Interface: Picatinny
• Scope Interface: Scope Slot with Screw Holes
• Screw Hole Count: 3
• Screw Hole Spacing: 0.55" (14 mm)
• Recommended Torque: 35 in-lbs

Performance

• Return-to-Zero Accuracy: ≤ 0.3 mil
• Zero Maintenance Ability: ≤ 0.1 mil
• Recoil Rating: Up to 800 Gs
• Temperature Range: -4°F to 122°F (-20°C to 50°C)

Compatibility

Designed For:

• DNT Digital Scopes

Compatible With:

• DNT ZULUS Series
• DNT HYDRA Series
• DNT ThermNight Series
• ZULUS HD V1
• ZULUS HD V2

Applications:

• Standalone Digital Optics
• Clip-On Optic Systems

Construction

• One-Piece 6063 Aircraft-Grade Aluminum
• Precision Machined Design
• Hard-Anodized Matte Black Finish
• Auto-Locking Quick Detach Lever

What's Included

• DNT QDS150 Quick Detach Mount

Additional Notes

• Designed specifically for DNT digital optics and compatible clip-on systems
• 1.5-inch centerline height promotes comfortable eye alignment and shooting position
• Tool-free quick detach system allows rapid optic removal and installation
• Auto-locking latch helps ensure secure attachment during use
• Cantilever design provides additional flexibility for eye relief positioning
• Return-to-zero capability helps maintain optic alignment after reinstallation
• Precision-machined from a single block of aircraft-grade aluminum for strength and rigidity
• Hard-anodized finish resists scratches, wear, and corrosion
• Lightweight design adds minimal weight to the optic system
• Suitable for hunting, observation, thermal imaging, and digital optic applications
• Picatinny rail compatibility allows installation on a wide range of platforms
• Rated to withstand heavy recoil and demanding field conditions
• Compact footprint maintains a streamlined optic setup
• Designed to provide dependable performance in extreme temperatures
• Excellent solution for users who frequently swap optics between setups
• Precision locking mechanism delivers secure retention without tools
• Verify compatibility with your optic before installation
• Follow manufacturer torque specifications during installation
• Optics and accessories shown in promotional images are not included
• Built for users who require fast transitions, repeatable zero retention, and rugged durability
• Ideal for DNT digital optic owners seeking a premium quick-detach mounting solution
