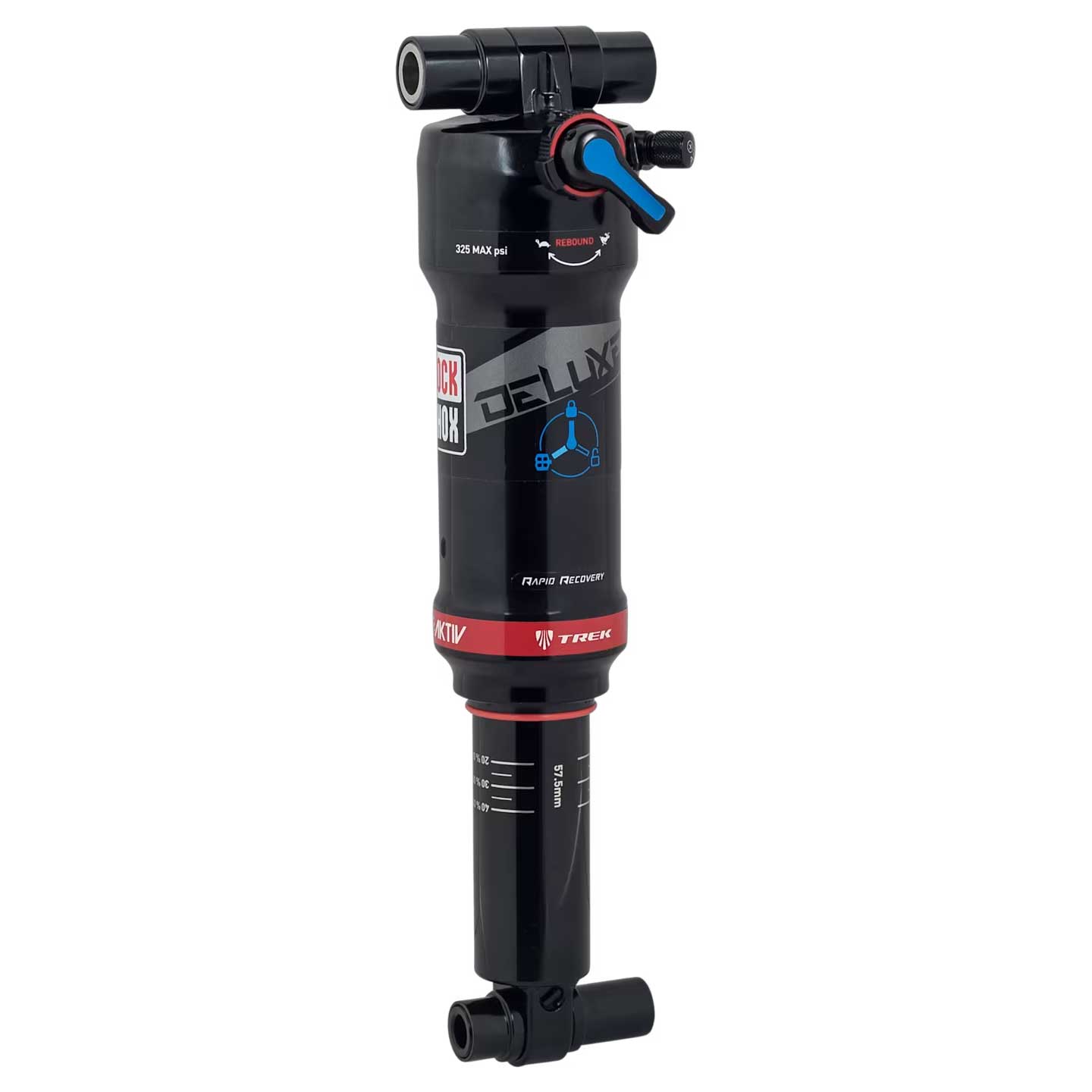

RockShox Deluxe Re:Aktiv RT3 230x57.5mm Rear Shock DebonAir for Mountain Bikes

Product Description
The RockShox Deluxe Re:Aktiv RT3 rear shock is a premium air shock built for efficient pedaling, trail control, and smooth small-bump performance. This 230x57.5mm version uses a DebonAir air spring and comes in a clean black-on-black A2 configuration.

This shock uses a 230mm eye-to-eye and 57.5mm stroke layout and includes hardware details that make fitment especially important. It is a strong replacement option for compatible frames requiring this exact size and mounting setup.

Key Features

• Genuine RockShox Deluxe Re:Aktiv RT3 rear shock
• 230 x 57.5mm size
• DebonAir air spring
• RockShox model code: RS-DLX-RKTV-A2
• Medium rebound and medium compression tune
• Black shock body with black decals
• Includes 2 volume tokens
• Built for smooth suspension performance and efficient trail use
• No remote lockout

Specifications

• Brand: RockShox
• Model: Deluxe Re:Aktiv RT3
• Model Generation: A2
• Product Type: Rear Shock
• Eye-to-Eye: 230mm
• Stroke: 57.5mm
• Size: 230x57.5mm
• Spring Type: Air
• Air Spring: DebonAir
• Remote: No
• Rebound Tune: M
• Compression Tune: M
• Volume Reducer: 2 Tokens
• Shock Body Color: Black
• Decal Color: Black
• Decal Orientation: A
• Shaft Eyelet: No Bushing
• Body Eyelet: Standard
• Width Upper: 60mm
• Width Lower: 50mm offset
• Hardware Diameter Upper: 10mm
• Hardware Diameter Lower: 8.2mm
• Mount Type Upper: Trunnion to pin adapter
• Mount Type Lower: Trunnion to pin adapter
• Serial Example: 16T90260614

Compatibility
Compatible with frames requiring:

• 230 x 57.5mm rear shock size
• 60mm upper width 10mm
• 50mm lower width with offset 8.2mm
• Trunnion to pin adapter style upper and lower mounting arrangement

Please confirm exact frame fitment before purchase, as rear shock size and hardware requirements vary significantly by frame.

Included

• RockShox Deluxe Re:Aktiv RT3 rear shock
• 2 volume tokens installed or included as described

Warranty and Notes

• Rear shock fitment must match eye-to-eye, stroke, mount type, width, and hardware diameter
• Includes only what is shown or described

Condition

• New
• Genuine OEM product
• Includes only what is shown or described NON RETAIL PACKAGED
