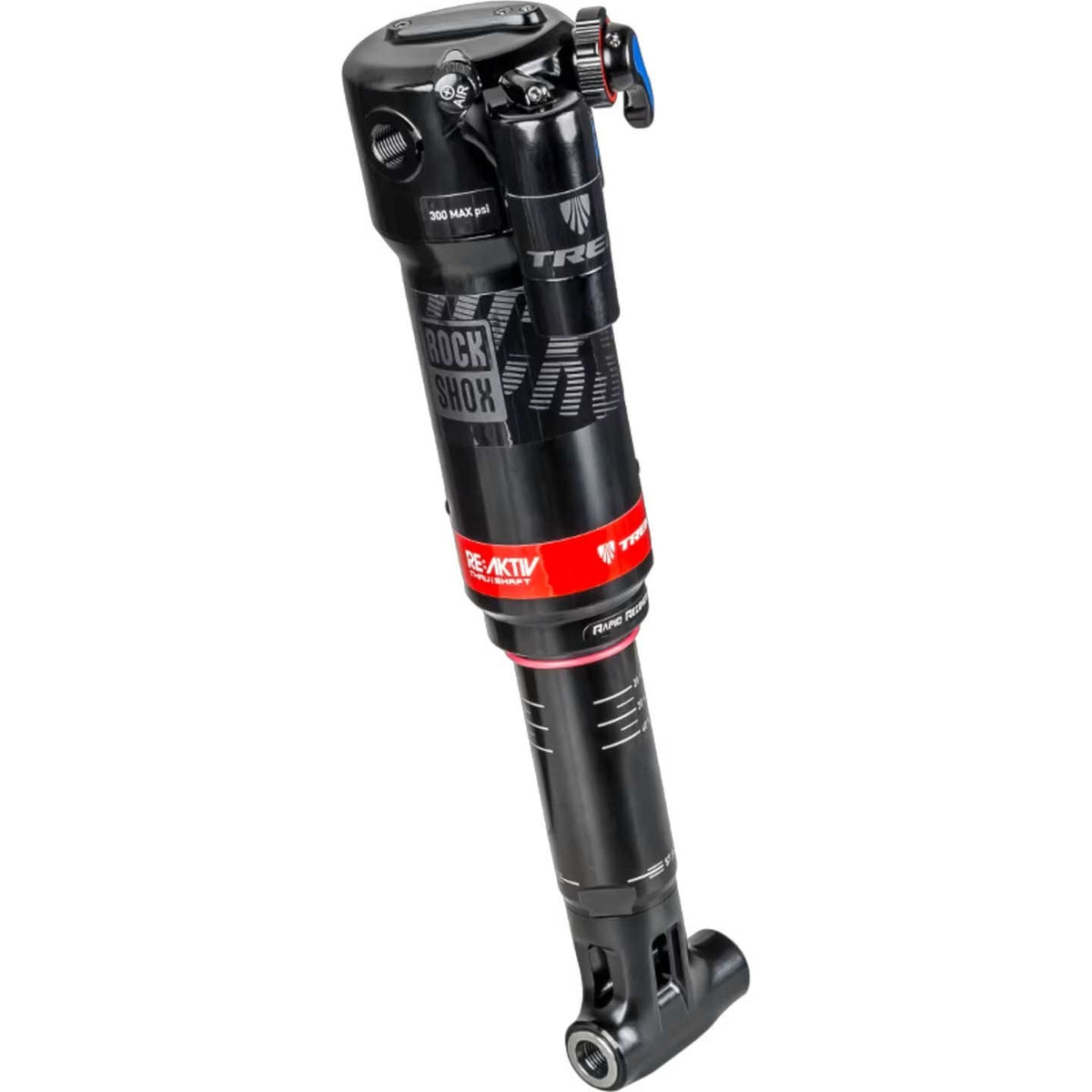

RockShox Deluxe RE:Aktiv Thru Shaft 230x57.5mm Rear Shock for Trek Bikes

Product Description
The RockShox Deluxe RE:Aktiv Thru Shaft rear shock is a genuine Trek replacement component custom tuned by the Trek Suspension Lab for compatible Trek full-suspension bikes.

This Trek-specific 230 x 57.5mm shock combines a Solo Air spring with Trek’s ultra-responsive RE:Aktiv Thru Shaft damping system. The design is engineered to provide efficient pedaling support while reacting quickly to trail impacts for improved traction, control, and suspension consistency.

External rebound adjustment and three-position compression damping allow the rider to adjust suspension behavior for changing terrain. The shock uses a trunnion upper mount and a Trek-specific offset yoke lower mount, making exact frame compatibility especially important.

Key Features

• Genuine RockShox Deluxe RE:Aktiv Thru Shaft rear shock
• Custom tuned by Trek Suspension Lab
• Trek-specific 230 x 57.5mm configuration
• RE:Aktiv Thru Shaft damping technology
• Solo Air spring
• External rebound adjustment
• Three-position compression damping
• Medium rebound tune
• Medium compression tune
• 10 rebound adjustment clicks
• One factory-installed volume-reducer token
• E-bike approved
• Black shock body and graphics

Specifications

• Brand: RockShox
• Model: Deluxe RE:Aktiv Thru Shaft
• Model Designator: Thru:Aktiv
• Model Code: RS-DLX-TKTV-A1
• Example Serial Number: 14T14606406
• Product Type: Rear Air Shock
• Eye-to-Eye Length: 230mm
• Stroke: 57.5mm
• Configuration: 230 x 57.5mm
• Air Spring: Solo Air
• Remote: No
• Rebound Adjustment: External
• Rebound Clicks: 10
• Compression Adjustment: Three-position
• Rebound Tune: Medium
• Compression Tune: Medium
• Pedal Tune: Not applicable
• Volume Reducer: 1 token
• Check Tune: Standard
• Maximum Air Pressure: 325 PSI
• E-Bike Approved: Yes
• Shaft Eyelet: Trunnion
• Body Eyelet: Yoke
• Shock Body Color: Black
• Decal Color: Black
• In-House SKU: W551821

Mounting Dimensions

Upper Mount

• Mount Type: Trunnion
• Width: 54mm
• Hardware Diameter: 10mm

Lower Mount

• Mount Type: Offset yoke
• Width: 50mm with offset
• Hardware Diameter: 10mm

Compatibility
Designed for compatible Trek frames requiring all of the following:

• 230mm eye-to-eye length
• 57.5mm stroke
• Trek RE:Aktiv Thru Shaft shock design
• 54mm-wide upper trunnion mount
• 10mm upper hardware diameter
• 50mm offset lower yoke mount
• 10mm lower hardware diameter
• Compatible Trek Suspension Lab tune

RE:Aktiv Thru Shaft shocks use a specialized Trek mounting and damping configuration. A standard 230 x 57.5mm rear shock should not be assumed to be interchangeable.

Please confirm the bicycle model, model year, frame size, lower-mount offset, mounting dimensions, and required suspension tune before purchase.

Included

• RockShox Deluxe RE:Aktiv Thru Shaft 230 x 57.5mm rear shock
• Factory-installed volume-reducer token
• Includes only what is pictured and described

Warranty and Notes

• Genuine Trek and RockShox replacement component
• Custom Trek Suspension Lab tune
• 14T14606406 is an example serial number for model reference only
• The serial number on the item received may differ
• Frame mounting bolts and additional hardware are included only when pictured or stated
• Professional installation and suspension setup are recommended
• Do not exceed the maximum air pressure of 325 PSI

Condition

• New
• Genuine RockShox and Trek OEM product
• Includes only what is pictured and described
