Shimano Deore XT M8100 Rear Hydraulic Disc Brake 2-Piston 1700mm I-SPEC EV

Product Description
The Shimano Deore XT M8100 rear brake combines the BL-M8100 lever with the BR-M8100 2-piston caliper for powerful, controlled braking across XC, trail, and general mountain bike use.

The BL-M8100 lever uses Shimano’s Servo Wave Action for quick pad engagement and a responsive lever feel. Its reinforced lever-body design improves support under hard braking, while tool-free reach adjustment allows the rider to fine-tune lever position.

This rear brake is supplied pre-bled with Shimano mineral oil, a 1700mm hydraulic hose, and metallic finned brake pads for dependable braking and improved heat management.

Key Features

• Shimano Deore XT M8100 hydraulic brake
• Complete rear brake and lever assembly

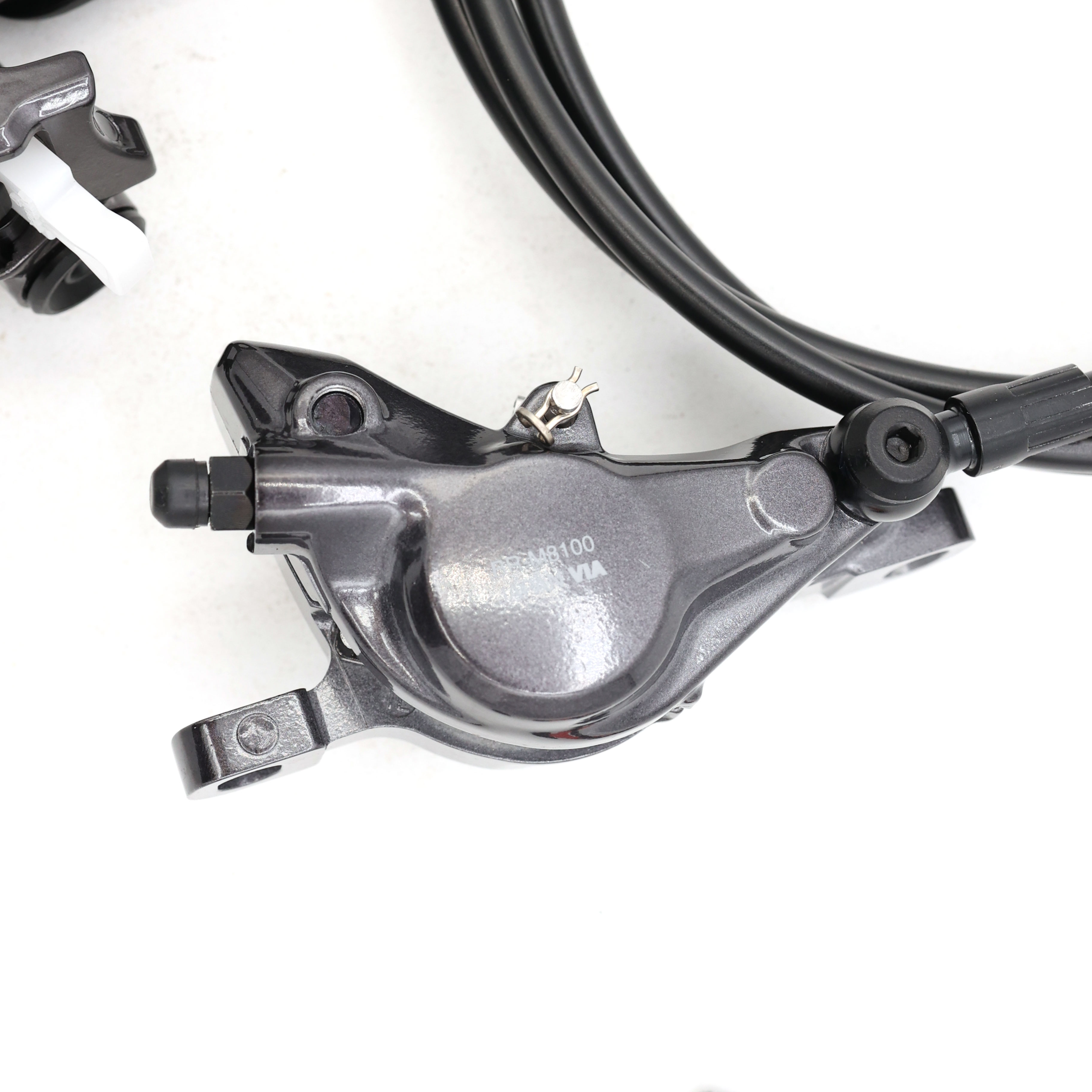

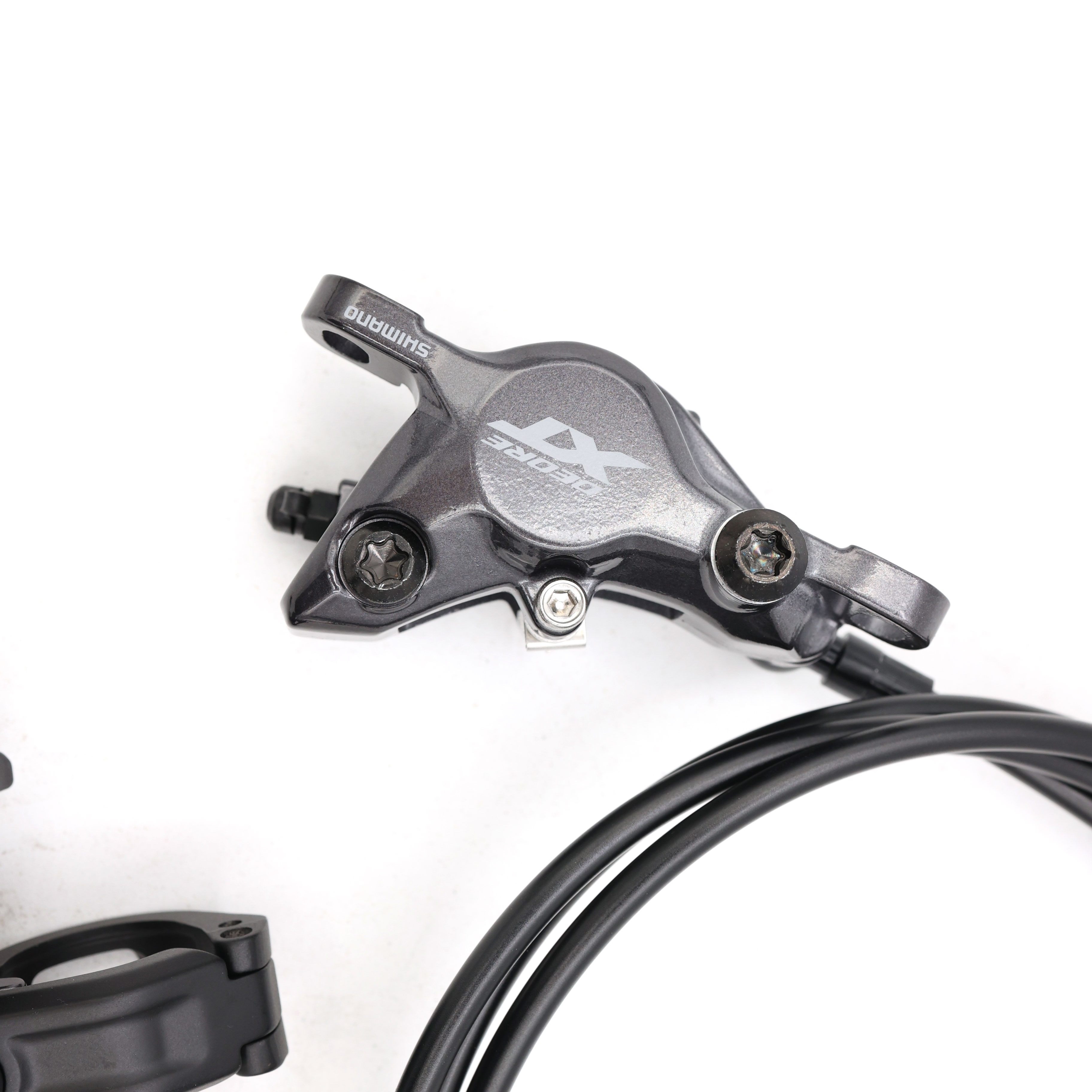

• BR-M8100 2-piston post-mount caliper

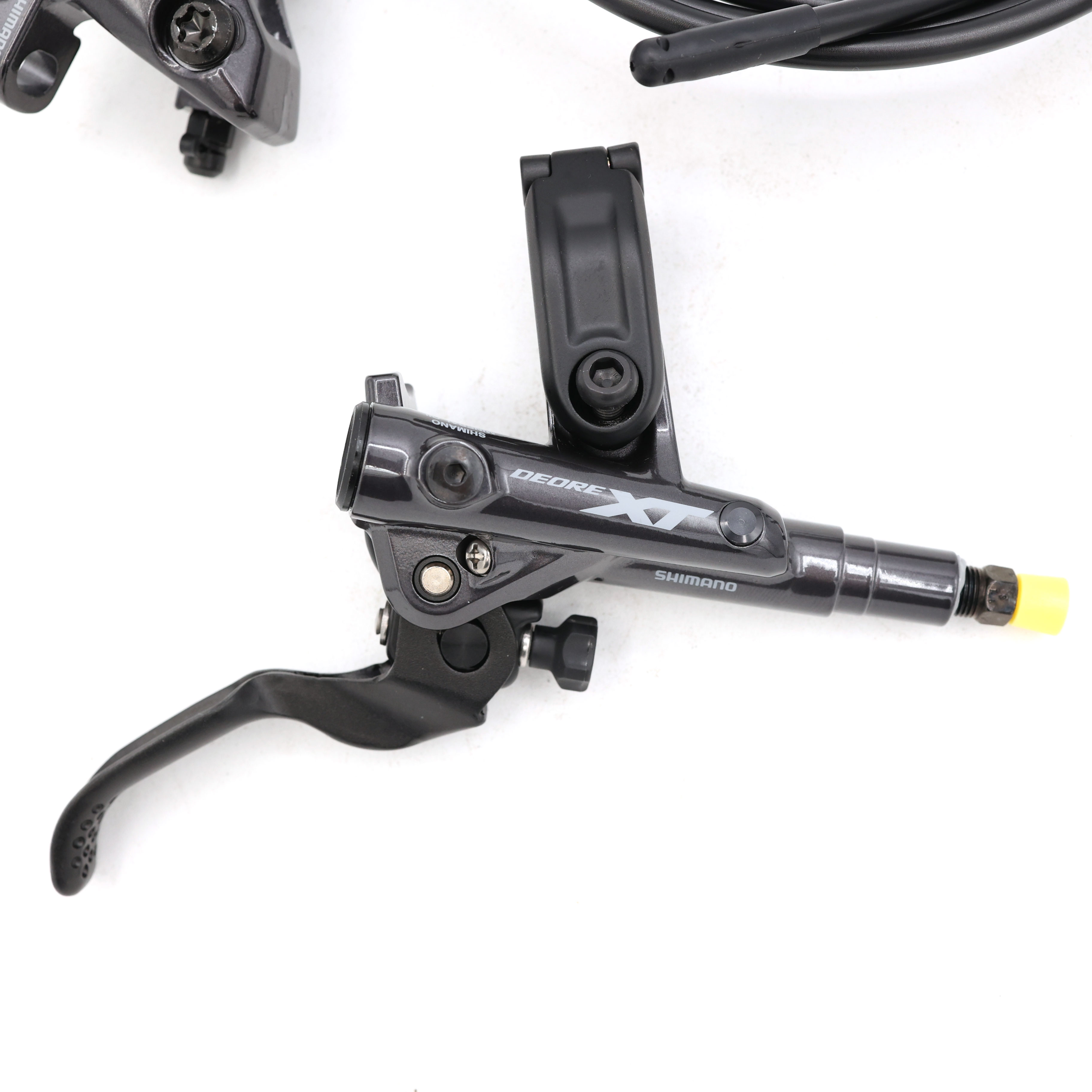

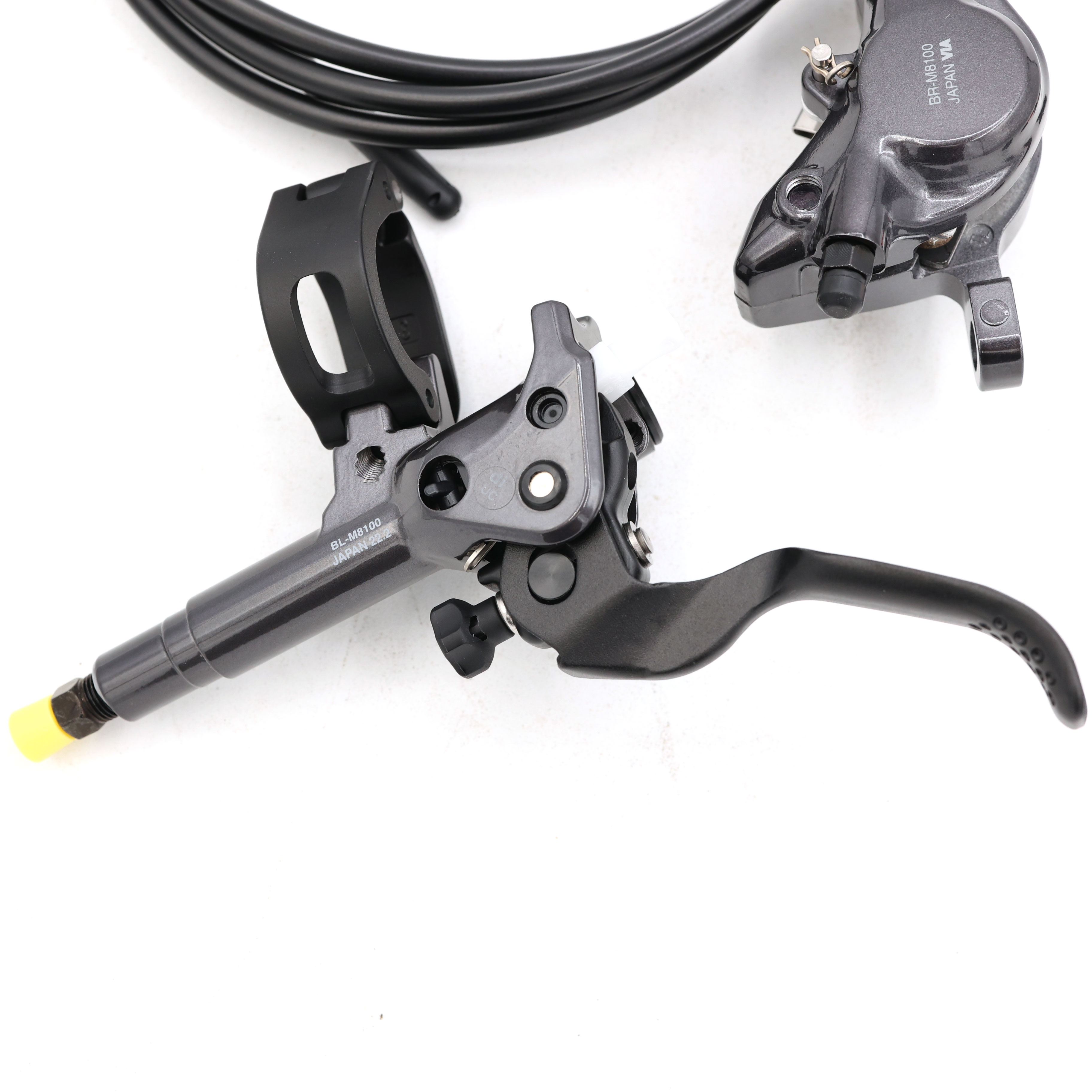

• BL-M8100 right brake lever
• Servo Wave Action
• Tool-free adjustable reach
• Stiffer lever design for improved braking support
• I-SPEC EV compatible
• Metallic finned brake pads
• Pre-bled with Shimano mineral oil
• 1700mm hose length

Specifications

• Brand: Shimano
• Series: Deore XT M8100
• Lever Model: BL-M8100
• Caliper Model: BR-M8100
• MPN: IM8100JRRXNA170
• Position: Rear
• Lever Side: Right
• Brake Type: Hydraulic Disc
• Caliper Pistons: 2
• Caliper Mount: Post Mount
• Hose Length: 1700mm
• Hydraulic Fluid: Shimano Mineral Oil
• Pad Compound: Metallic
• Pad Type: Finned
• Reach Adjustment: Yes
• Contact Point Adjustment: No
• Shifter Integration: I-SPEC EV
• Color: Black

Compatibility
Designed for compatible mountain bikes using a post-mount disc brake setup and Shimano mineral-oil hydraulic system.

The BL-M8100 lever supports Shimano I-SPEC EV integration with compatible Shimano shifters and controls.

Confirm rear hose length, frame brake mount, rotor size, and any required caliper adapter before installation.

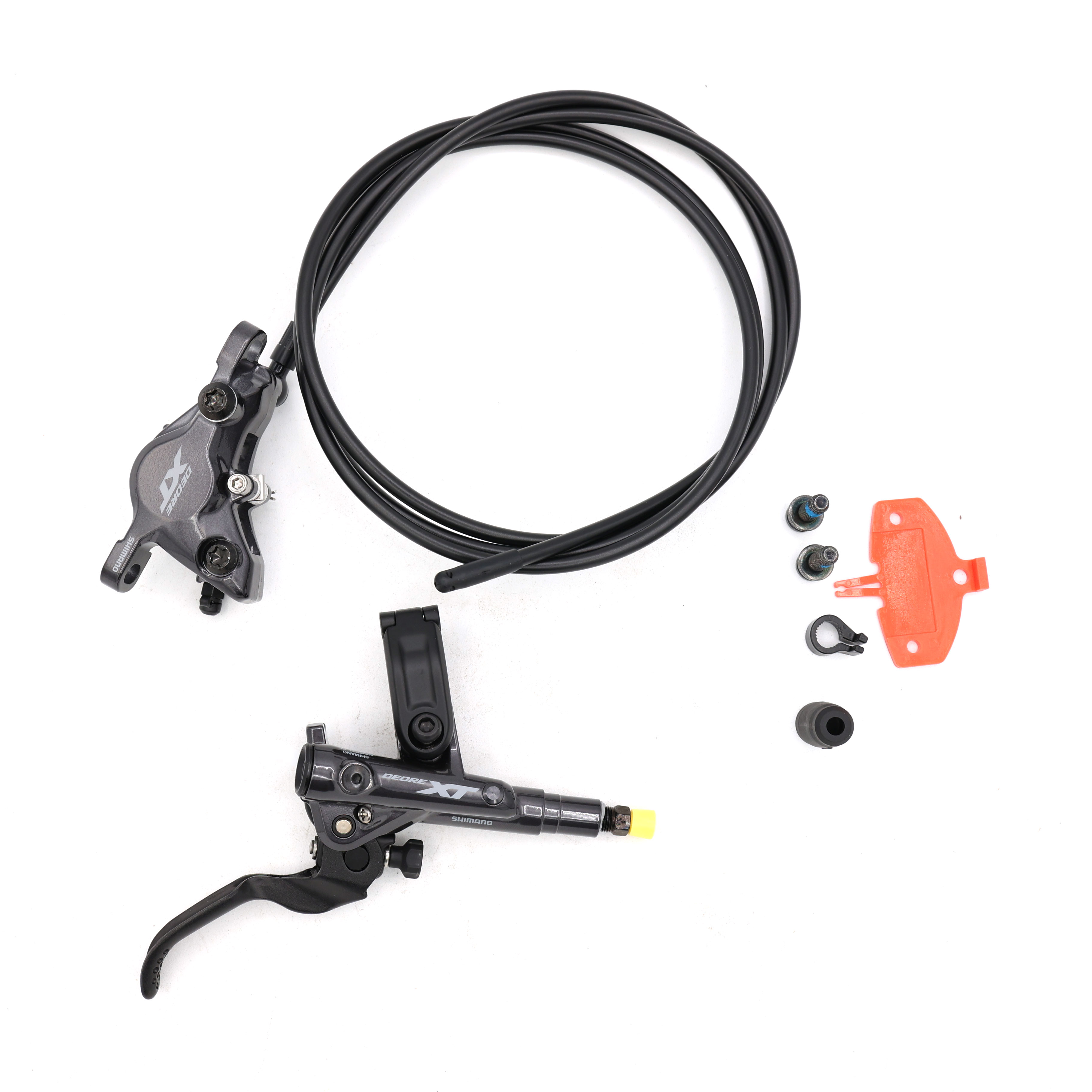

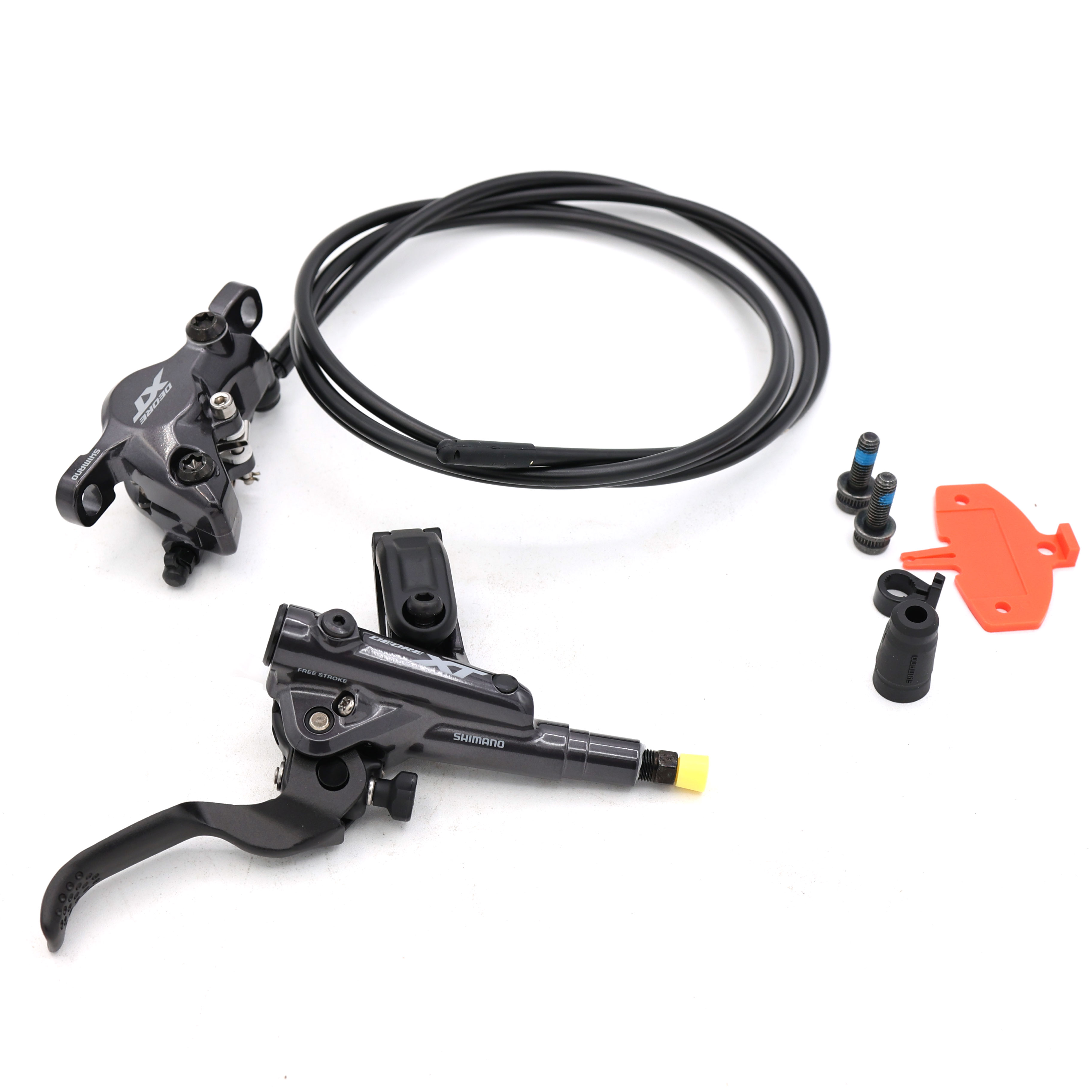

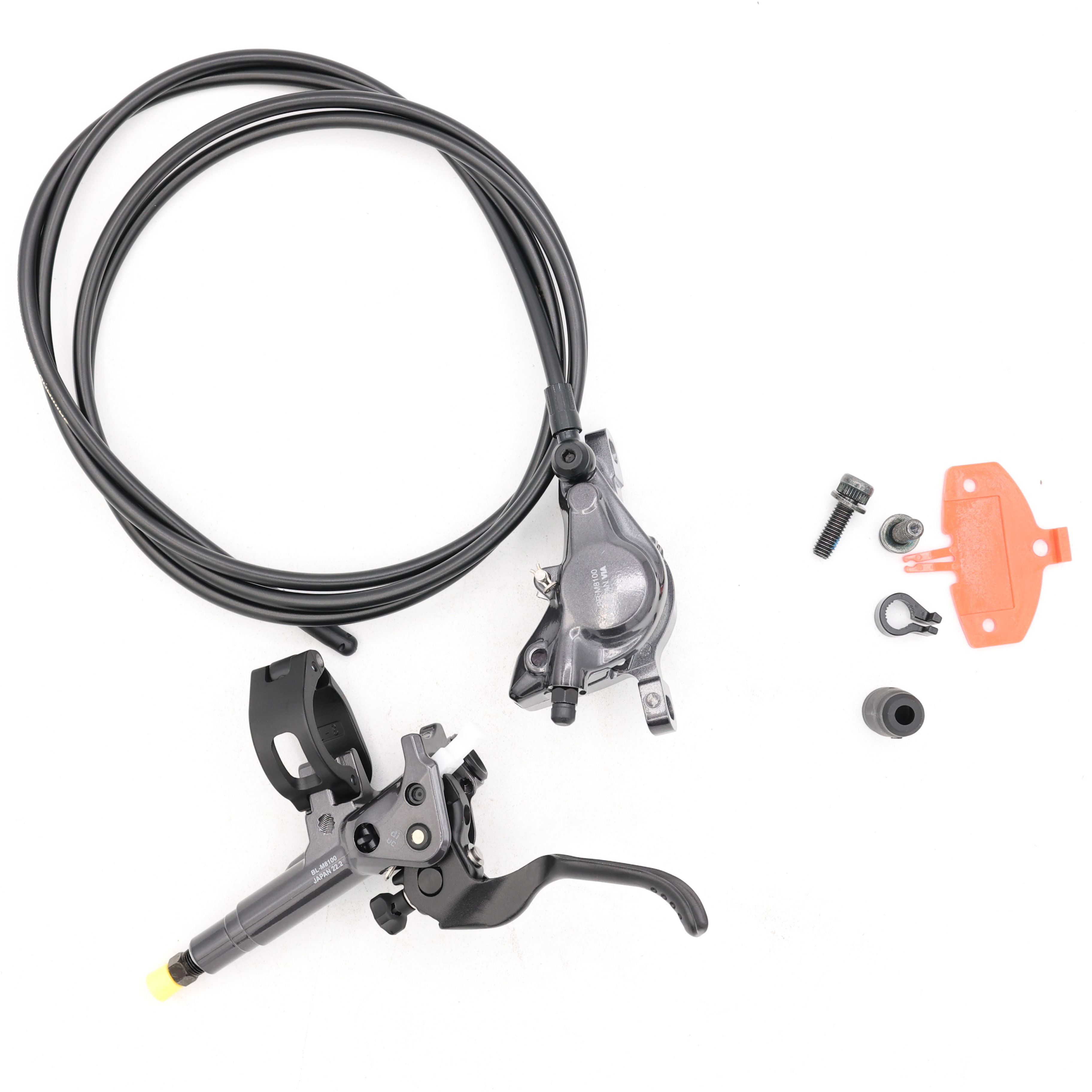

Included

• Shimano BL-M8100 right brake lever
• Shimano BR-M8100 2-piston caliper
• 1700mm hydraulic hose
• Metallic finned brake pads
• Factory mineral-oil fill

Not Included

• Brake rotor
• Rotor bolts
• Frame-specific brake adapter unless pictured or stated

Condition

• New
• Non-retail packaged
