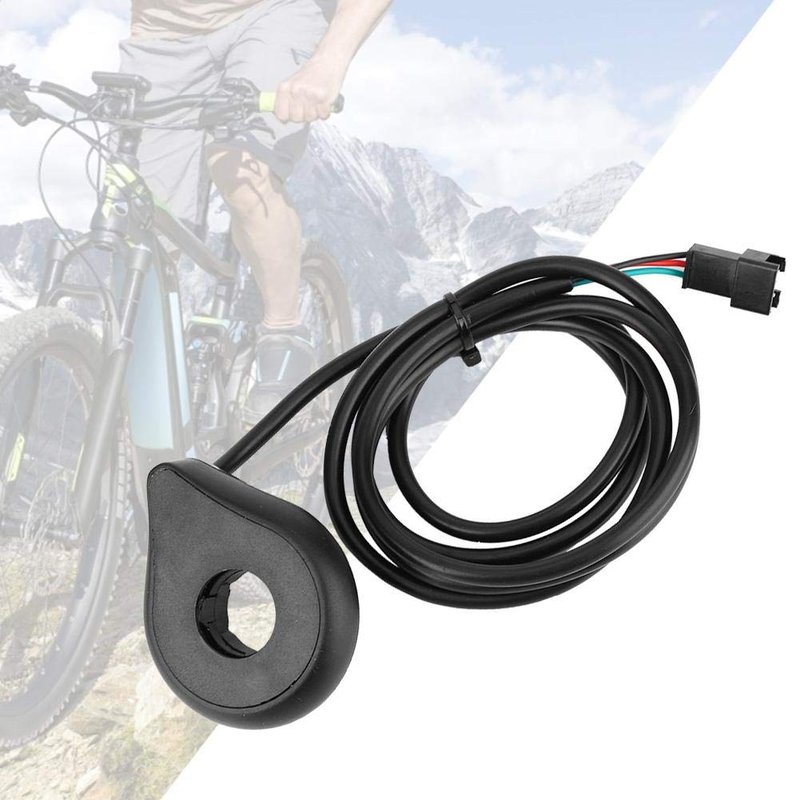

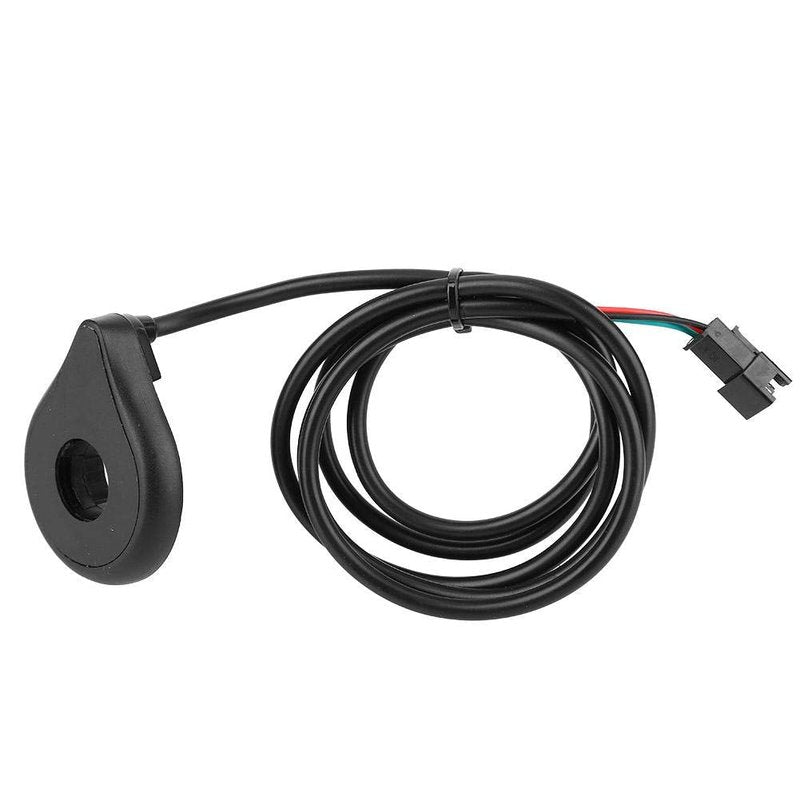

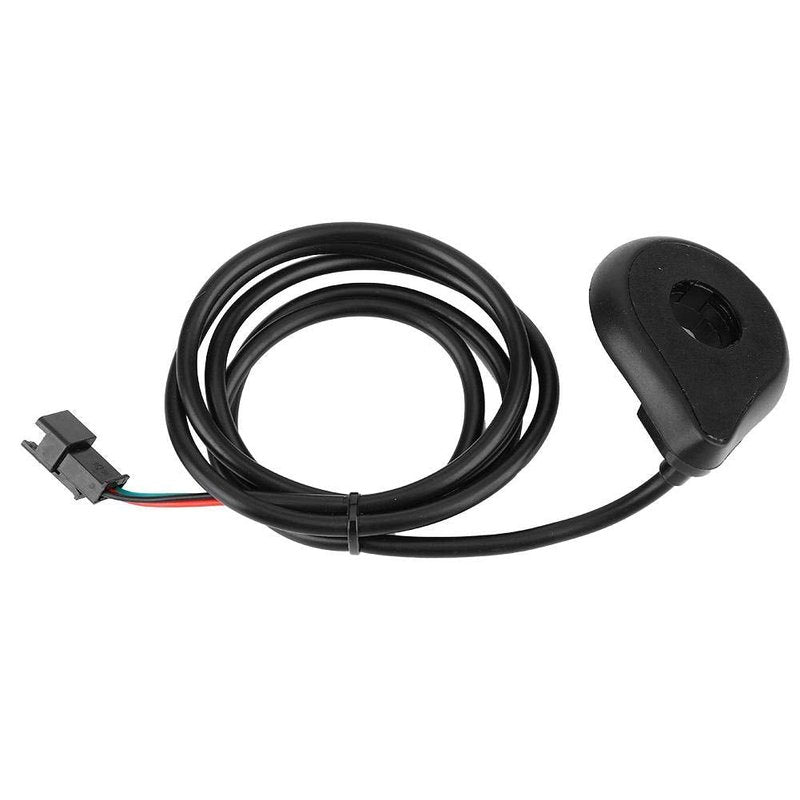

SolUptanisu Pedal Assist Sensor, Accessory Electric Bike Pedal 12 Magnets Assistant Sensor Speed Sensor

Brand: SolUptanisu

Color: black

Features:

• Applicable to:Electric Pedal Assist Hall Sensor Applicable to almost all electric ycles on the market, it is a good helper for electric ycles.This auxiliary sensor is suitable for pedal-assisted electric ycle drive system, saving time and effort.
• ABS Material:Bike Power Pedal Assist Sensor is made of ABS material, which is and not easy to wear.Good quality not only can provide a safer guarantee for your life,but also good materials can increase product life.
• Function:E Assistant Speed Sensor,Hall sensor has the advantages of small size, light weight, shockproof, anti-, , etc. Electric Pedal Assist Sensor is suitable for use in electric ycles.
• Excellent Performance:Electric Pedal Sensor, hining, assembly, excellent quality.Line color definition:1. Red 5V;2. Green power ;3. Black GND.
• Installation:The middle shaft card slot rotates following the middle shaft, and the outer casing sensor is fixed.There is no need to disassemble the middle shaft, as long as the inner ring is caught in the middle shaft and the outer casing is fixed to the frame, it is convenient to install, stable and reliable.Right side installation: Step on the output pulse and reverse the step to not output.Left side installation: step forward output pulse , reverse step will not output.

Details: Features:
This product is made of ABS material, which is and not easy to wear.Hall sensor has the advantages of small size, light weight, shockproof, anticorrosion, , etc. It is suitable Compatible with use in electric ycles. hining, assembly, excellent quality.This auxiliary sensor is suitable Compatible with pedalassisted electric ycle drive system, saving time and efCompatible witht.Applicable to almost all electric ycles on the market, it is a good helper Compatible with electric ycles.

Specifications:
Condition: Brand New
Material: ABS

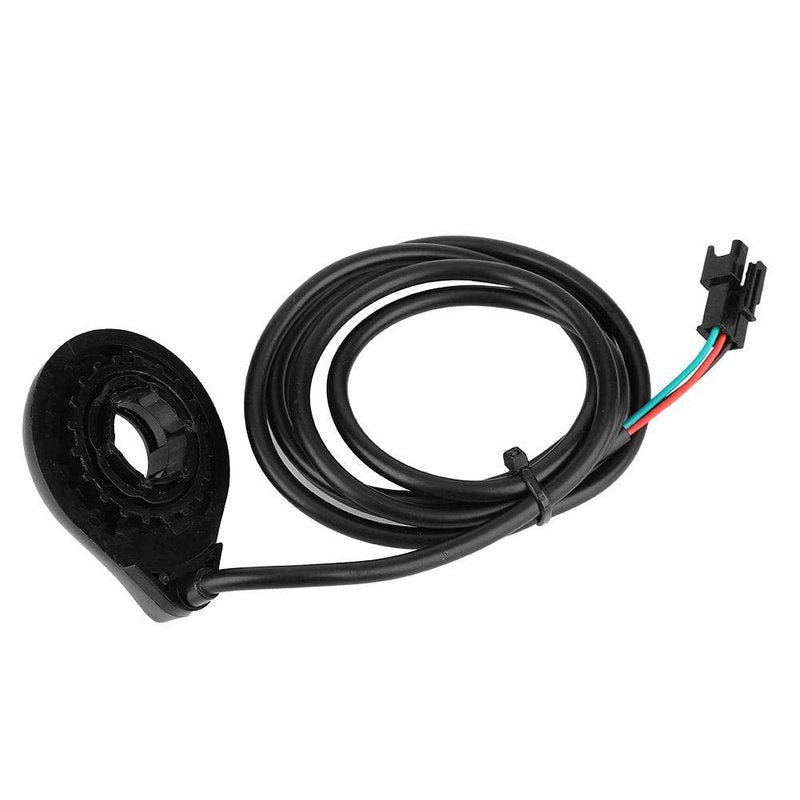

Magnets: 12

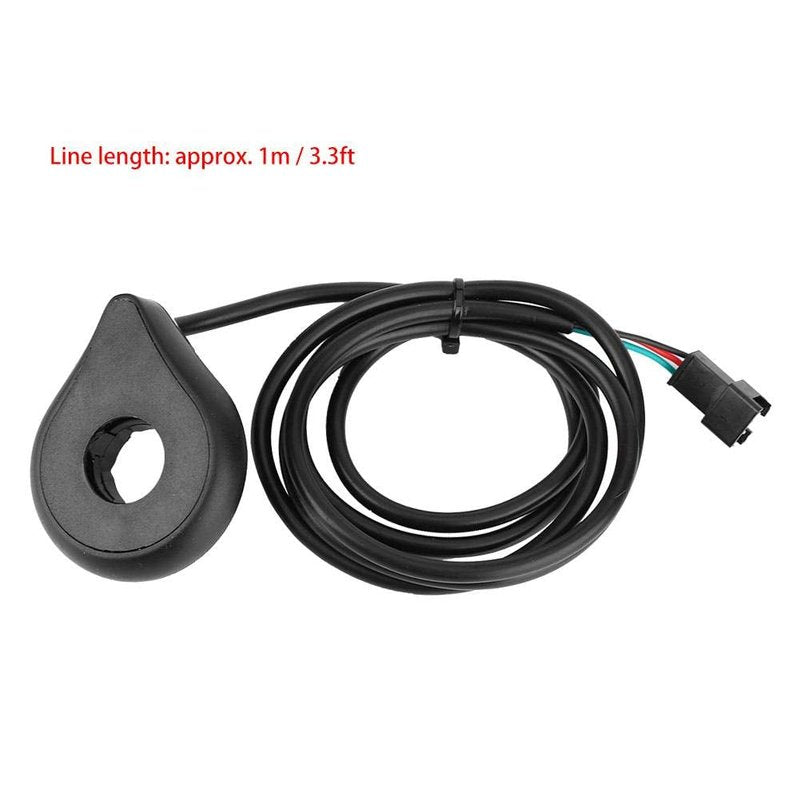

Line length: approx. 1m / 3.3ft

Line color definition:
1. Red 5V
2. Green power
3. Black GND

Installation and use:
The middle shaft card slot rotates following the middle shaft, and the outer casing sensor is fixed.
There is no need to disassemble the middle shaft, as long as the inner ring is caught in the middle shaft and the outer casing is fixed to the frame, it is convenient to install, stable and reliable.
Right side installation: Step on the output pulse and reverse the step to not output.
Left side installation: step Compatible withward output pulse , reverse step will not output.

Package list:
1 * Pedal Assist Sensor

Package Dimensions: 5.1 x 3.1 x 2.4 inches
