Description:
Condition: 100% Brand New & High Quality

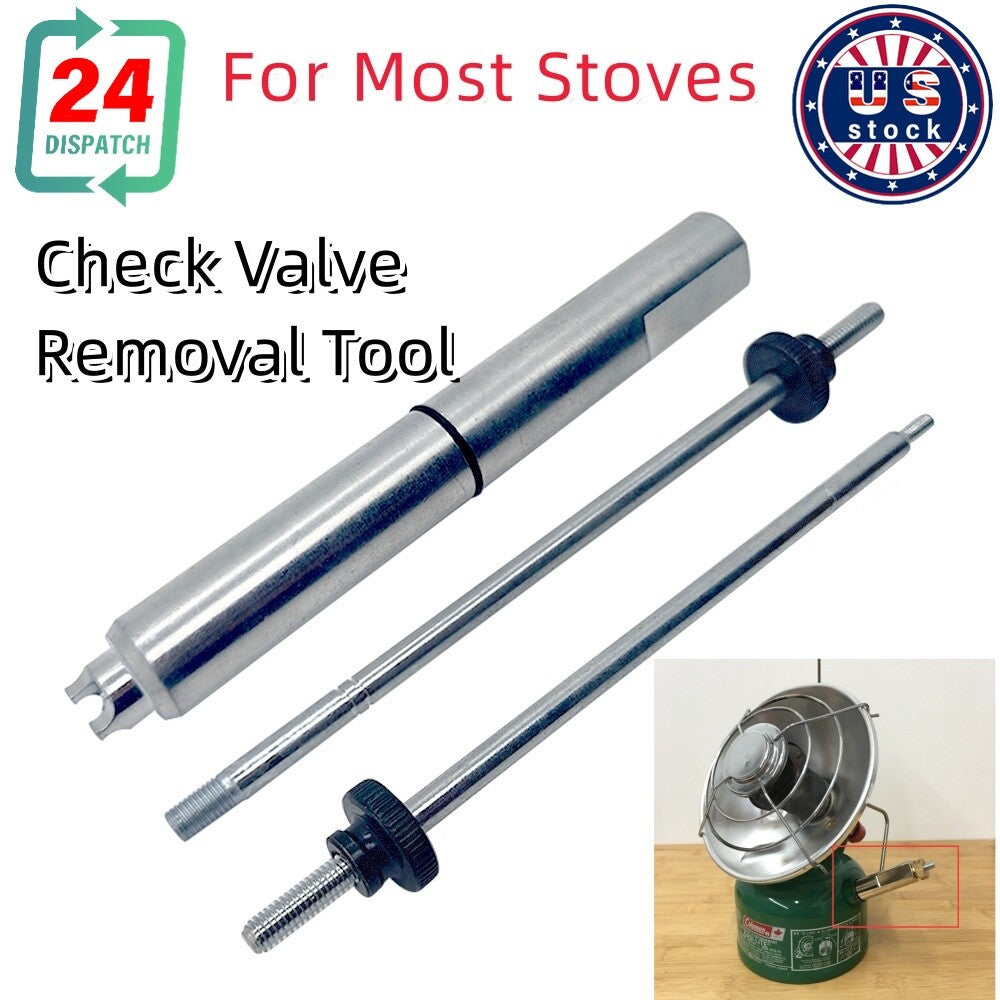

Type: Lantern & Stove Check Valve Fuel Valve Removal Tool Kit
Color: Chrome+Black
Big tool Material : Alloy Steel
Nut Tool Material : Alloy Steel
Warranty: 1 Year
Surface treatment： Chrome Plating

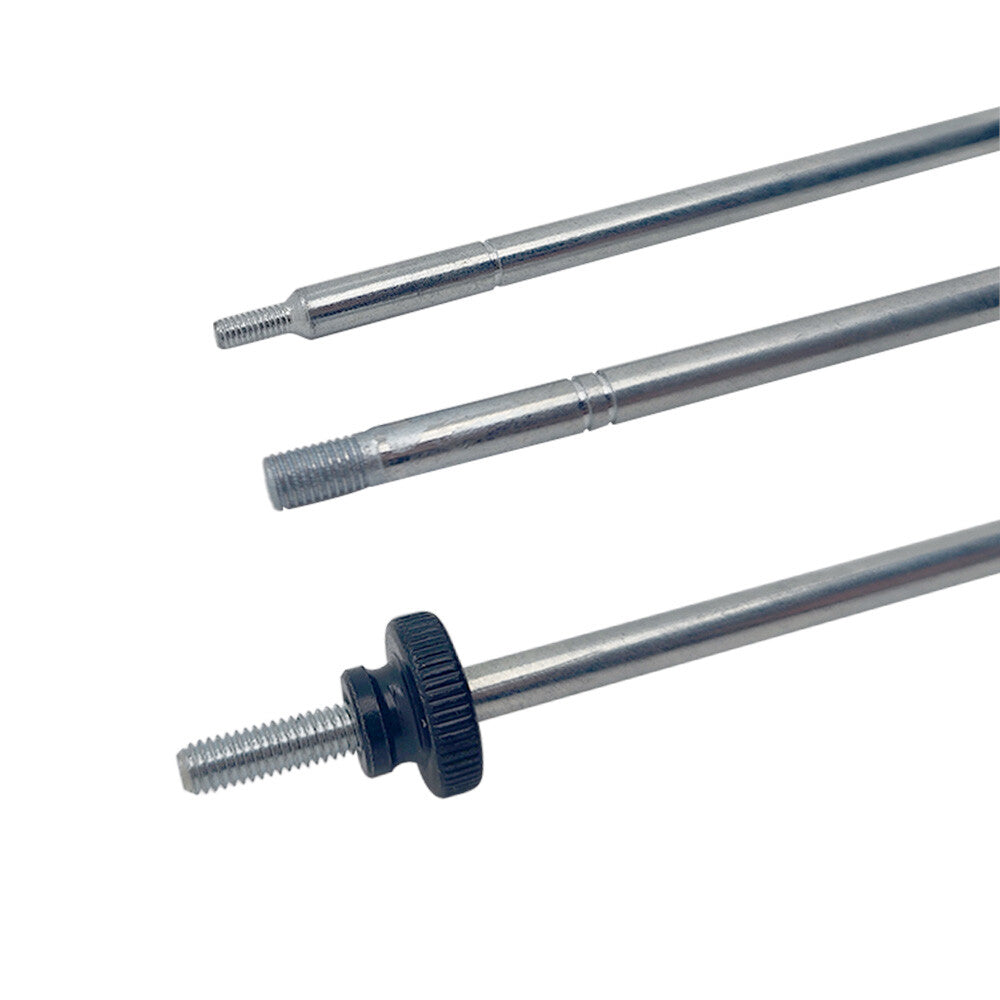

Threaded rods :8-32 or ¼-32 Thread
7/16, nuts (1/4-20 thread)
Features:
1. This is a set of portable Lantern/Stovetop Check Valve Removal tools professional tools and beautiful stowage bag;
2. The surface is chromed so that it is not easy to rust, prolong its service life and not easy to scratch;
3. Medium carbon steel has higher strength and hardness than low carbon steel and good comprehensive mechanical properties.
Fitment:
-
Adaptation check valve type : All type /USA,Canada,Current product.
-
For The Vaporization Lamp Furnace/ Portable Gas Lantern / Stove
-
For The North Star (Note A), 200A, 220,222,226,228,236,242,275,285,282,286,288,290,290,295,321,635,639 vaporization lamps and 502 , 508A , 530 , 533 ,550 vaporization furnace. 519 Heater.
Package Included:

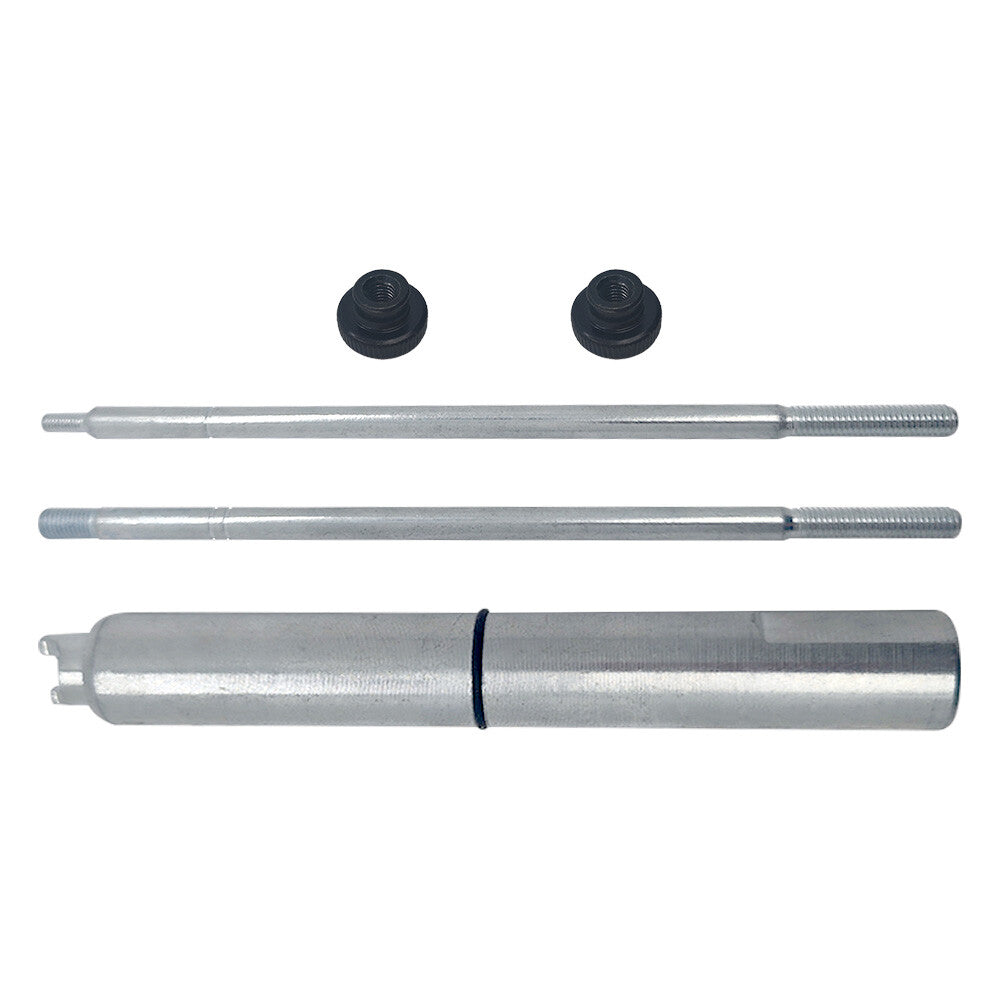

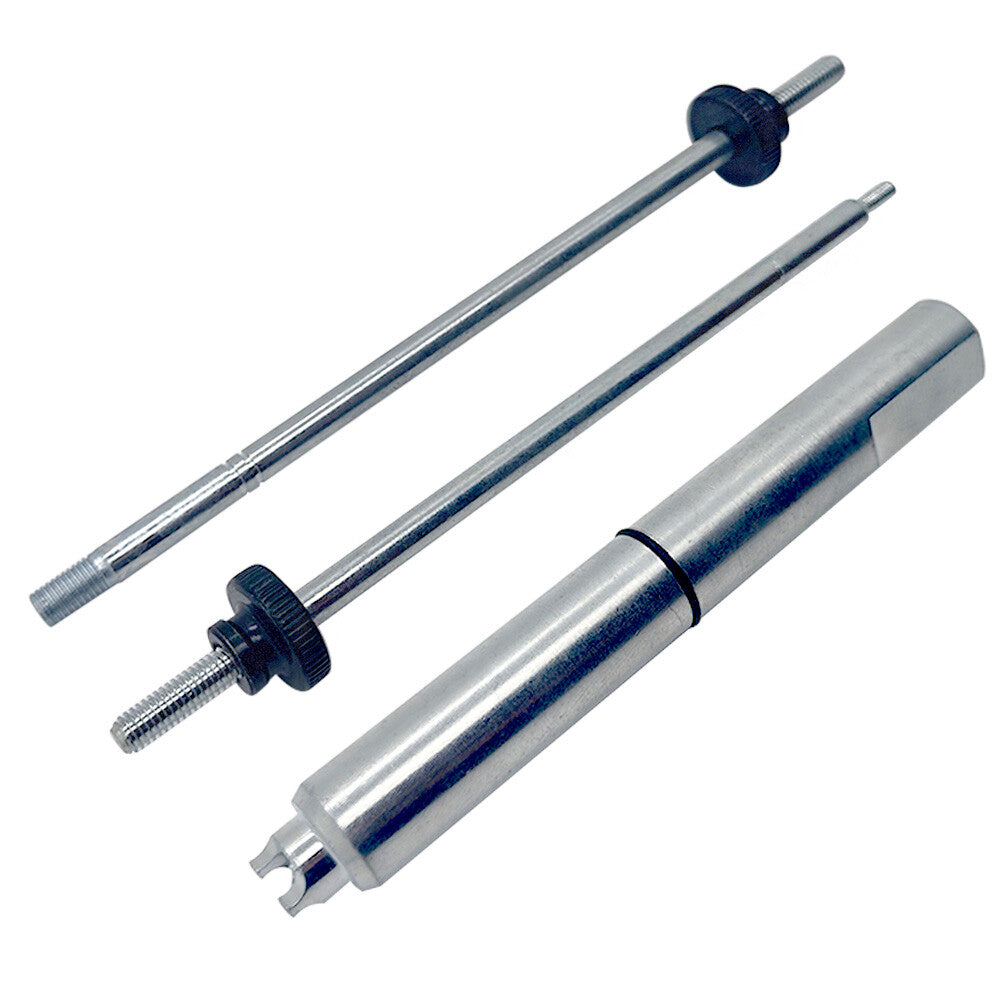

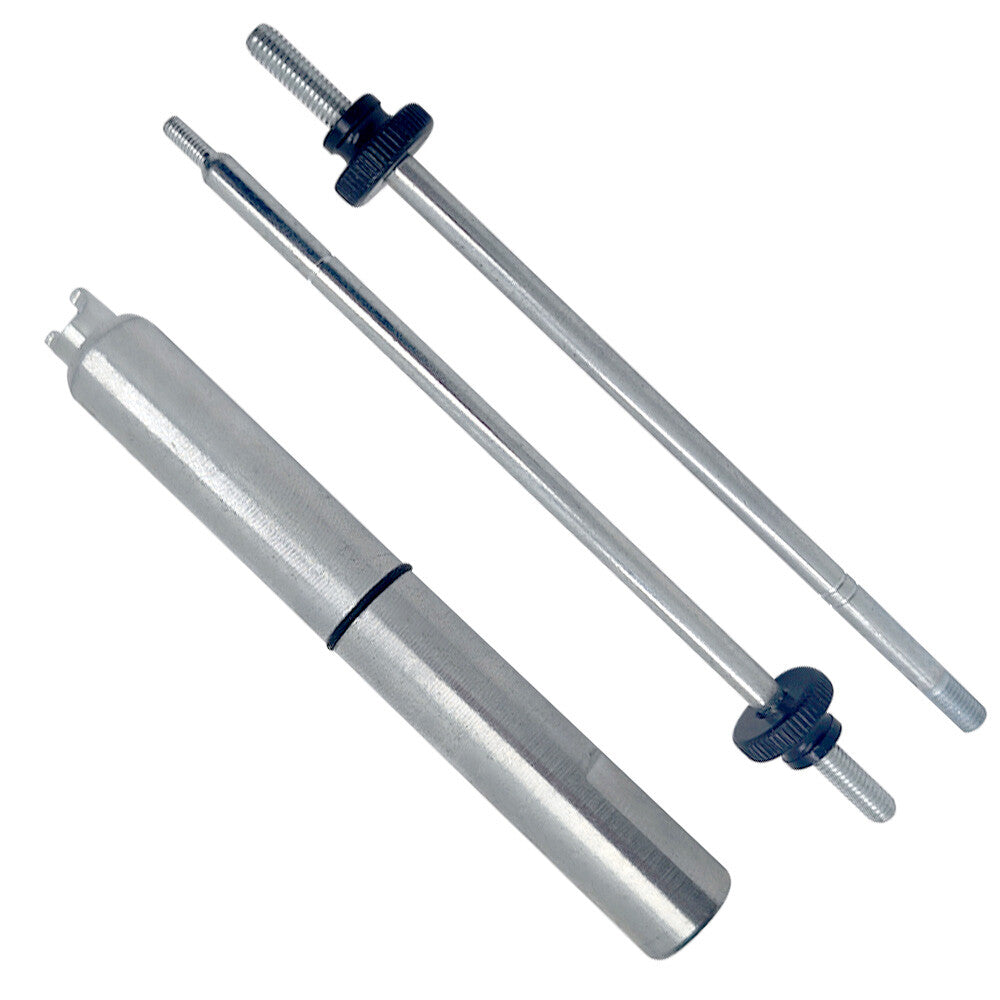

1PC of Lantern & Stove Check Valve Fuel Valve Removal Tool Kit:
1X Big Tool
2X Rods Bolts
2x Nuts
Installation guide：
1.Remove the air stem from your lantern's check valve in order to determine which of the two threaded rods to use (8-32 or ¼-32 thread)
2. Hand screw the rod into the check valve at least finger tight. Engage as much thread as possible.

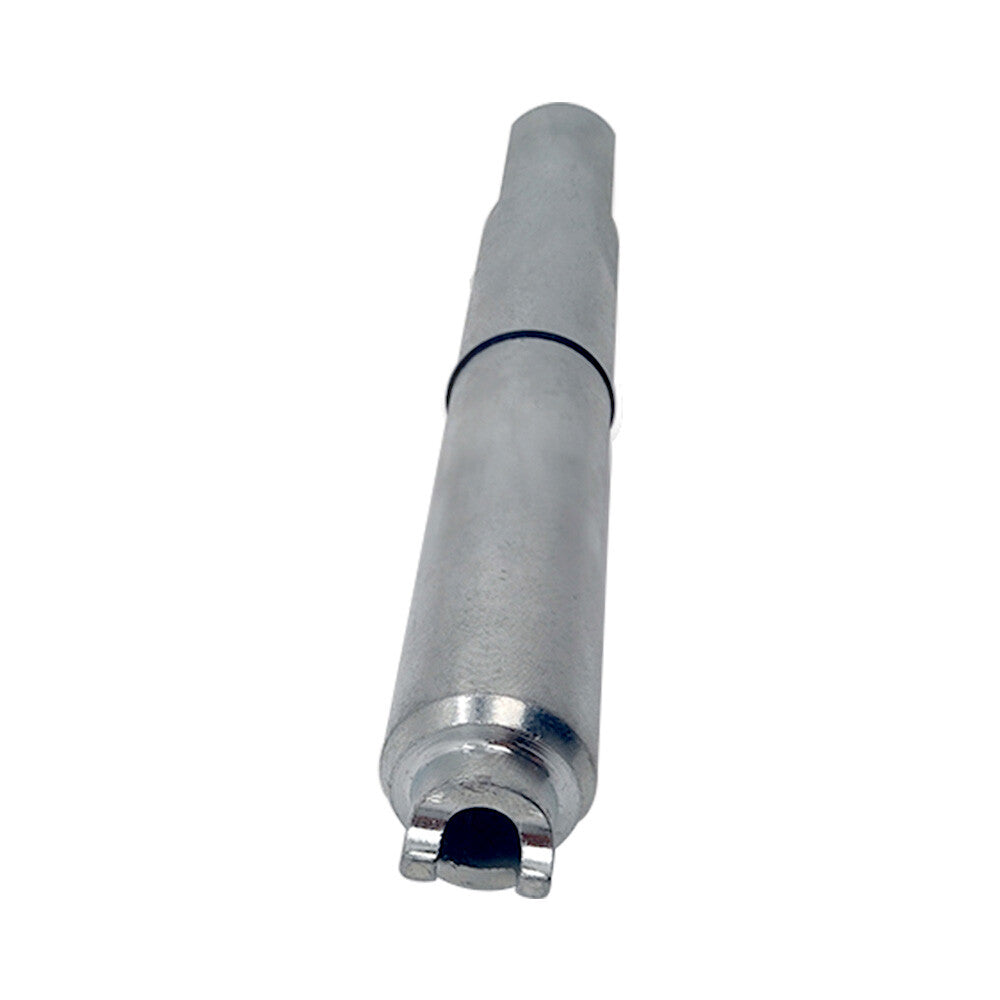

3. Slide the tube down over the rod.
4. Make sure that the ears are fully engaged in the slot. Gently turn the tube until the ears drop into the slots cut in the check valve.\
5. Drop a washer onto the rod and then screw on one of the 7/16, nuts (1/4-20 thread) and tighten just enough to eliminate any play in the tube and lock it into place. Caution: Do not over tighten as the brass threads in the check valve may strip!
6. Using adjustable wrench, fit it to the flats on the exposed end of the tube.
7. Hold the fount in a solid grip. If you have a vise, this is a great application for it. Give the wrench a solid turn counterclockwise. Do not side load the wrench. The check valve will loosen and you will be able to remove the entire assembly with the check valve attached.
8. Clean and loosen the ball bearing in the check valve and when free, screw the check valve back into the fount, or use a new replacement valve.
Be careful not to reinstall the valve too tight! It's also a good idea to lightly coat the tool with oil as it can rust in a damp environment.
