Aim7 AMOS Mini ASR (13/16 x 16) Bore size .75"

Package includes:

- 1 x Adapter

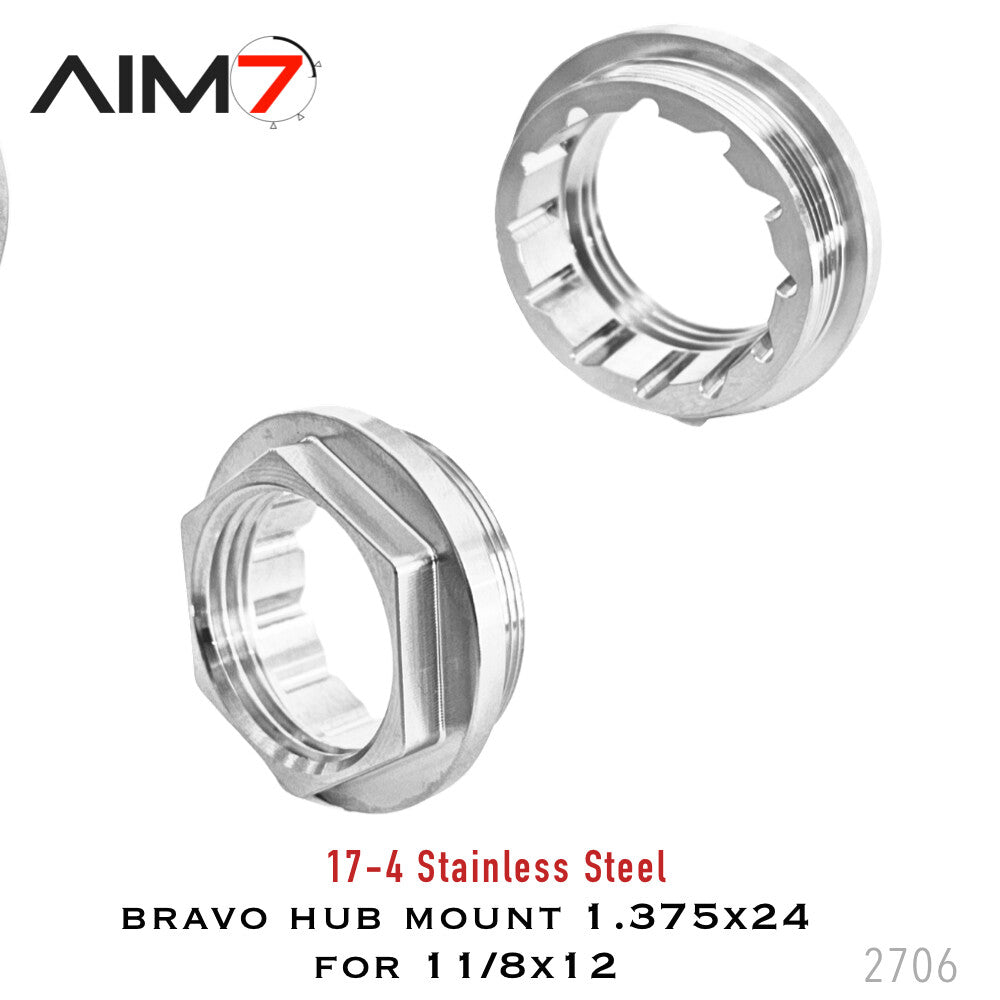

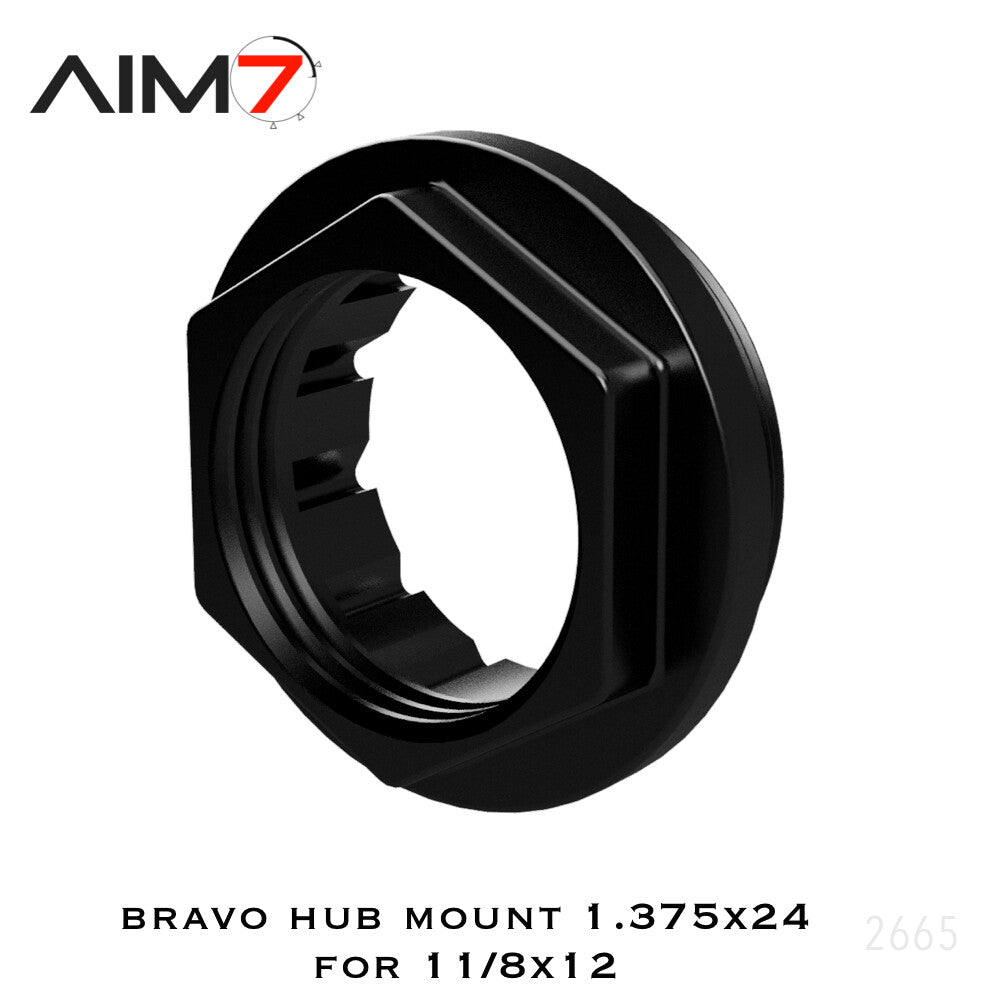

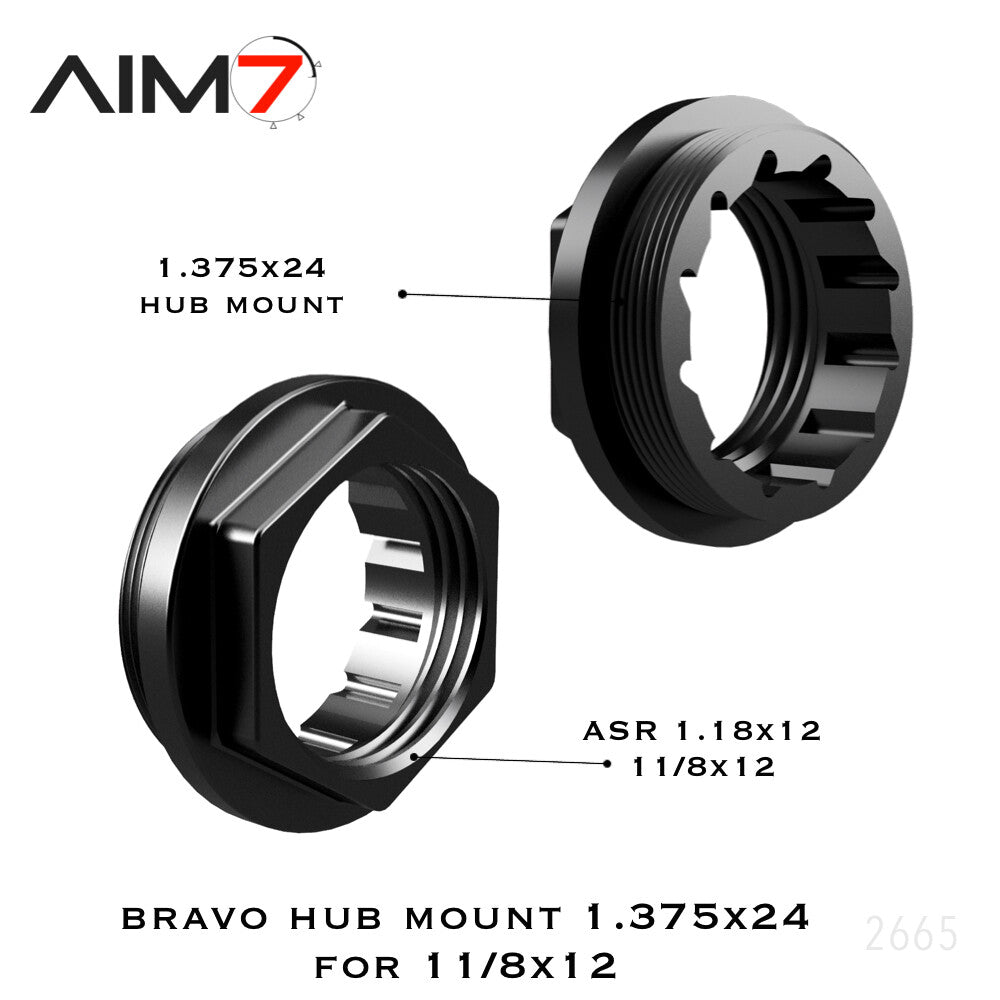

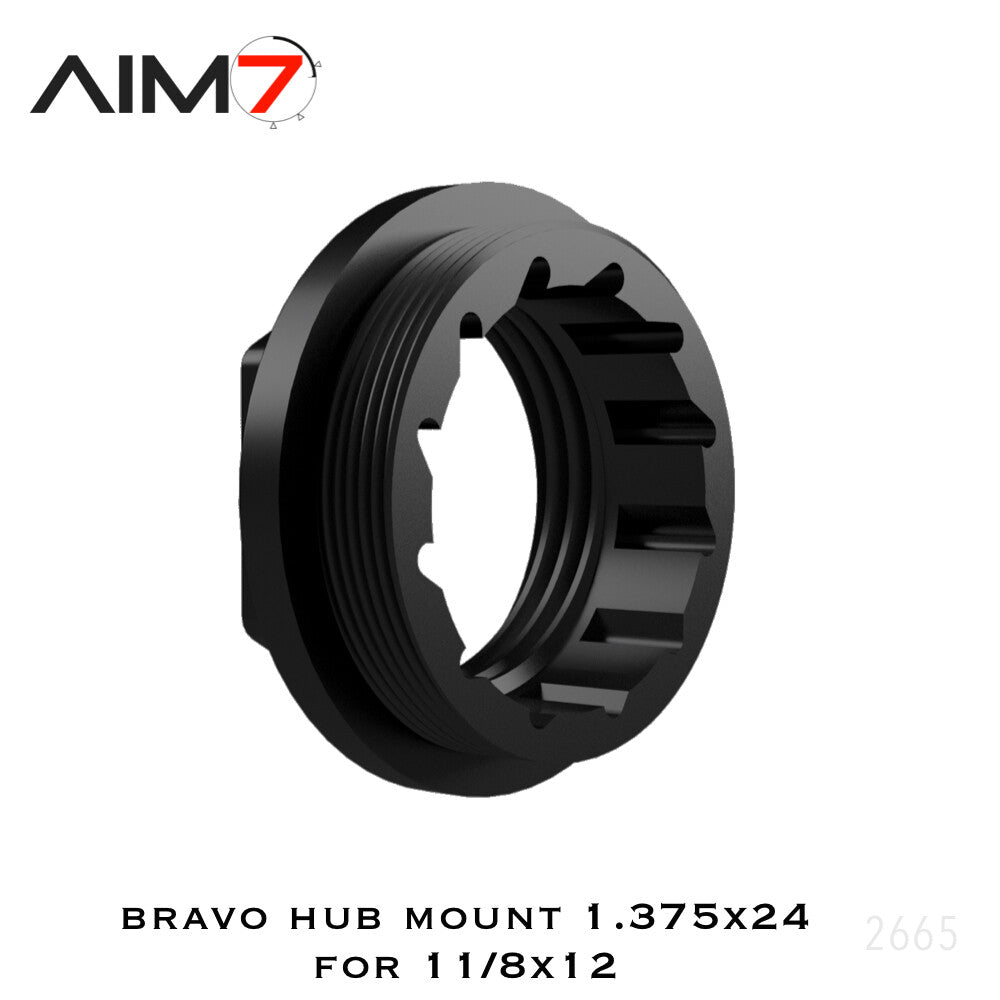

Aim7 AMOS Mini ASR-X (1-1/8 X 12) Bore size 1.05"

Please check your ASR outer thread size, Either (13/16x16 small  Or Larger.

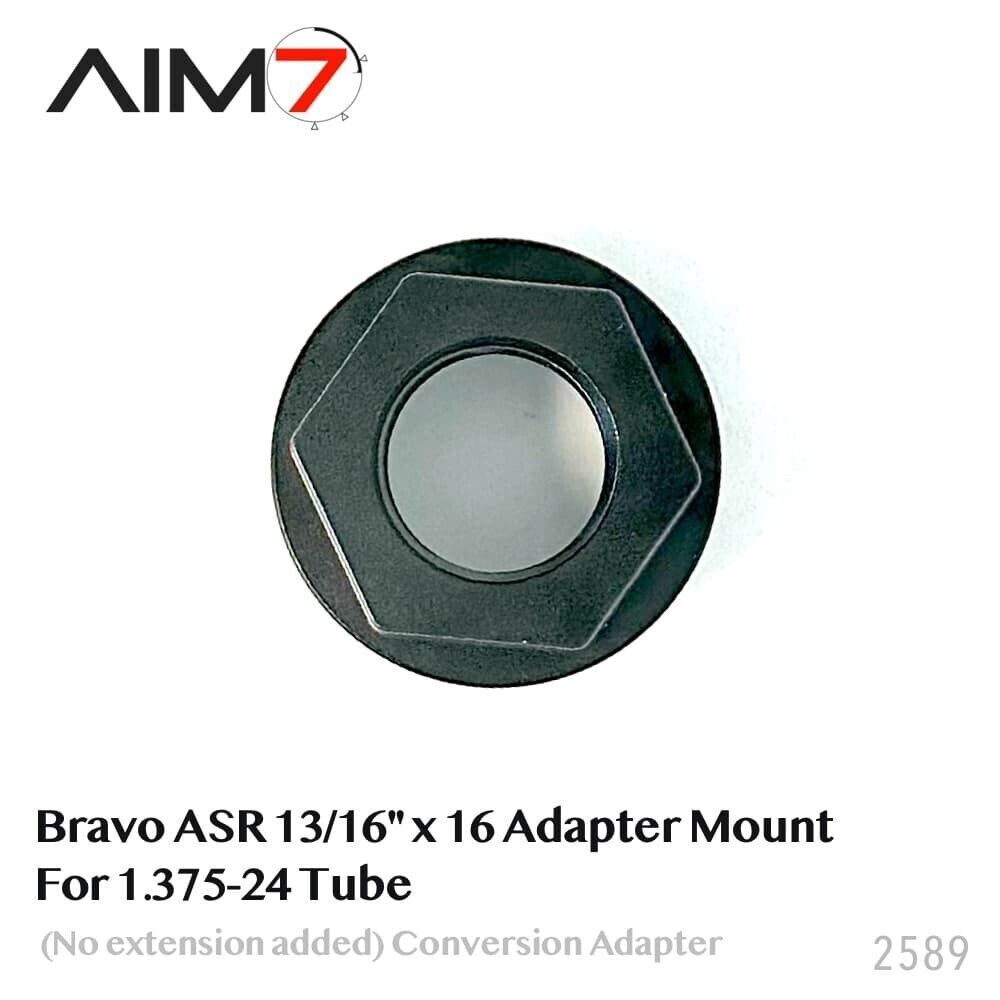

Bravo ASR 13/16″ x 16 Adapter Mount For 1.375-24 Tube

Description:

The ‘Universal’ 1.375×24 (1-3/8x24) HUB Mount

This 1.375″-24 HUB Direct Thread Mount will convert HUB-compatible suppressors to a direct thread mounting system. To install, simply remove your existing mount mechanism from your suppressor and thread on our HUB Direct Thread Mount using a 3/4″ open-end wrench. Then simply thread the suppressor onto your barrel.

This 1.375×24″ (1-3/8×24″) thread size at the base of the silencer found itself adopted by more and more manufacturers. It then earned the moniker HUB Mount, aka Hybrid Universal Base.

Today, silencers, mounts, and other accessories that are HUB-compatible are available from dozens of manufacturers. Whether you’re looking for a 3-Lug mount, a pistol booster, fixed mounts for your rifles, QD systems, etc., you can find it!

Over at Silencer Shop, a simple search because the diameter of the mount (we’ll get to that in a second) is in the sweet spot for the internal volume of the suppressor, increased hoop strength, and weight/material balance, other manufacturers took notice and used the opportunity to use the same threads specifications to capitalize on consumers loyalty to mounting systems. Dead Air brought their very popular KeyMo QD system from their Sandman suppressor to 1.375 x 24 mount suppressors and the race to win the universal system battle was on. Griffin Armament was also a front-runner in the universal mounting system adoption and now has a compatible DUAL-LOK QD system as well.

1.375 – Diameter of Threads in Inches
Looking at the below diagram can be slightly overwhelming. Forget major and minor diameters, the 1.375 or 1-3/8 value represents the diameter of the threaded portion in inches. You don’t need to do any math.

24 – Threads Per Inch
If the threaded portion of the mounting system was exactly one inch, there would be 24 threads total. It is a standard right-hand twist (righty tighty, lefty loosey for those of you who may be slightly less handy around the house). And the threads on the silencer tube are female and the threads on the mounting system are male. I’d draw you a diagram of something going into something else, but I don’t want to make anyone blush.

Specifications:

Features & Tips:

Material: 6061-T6 Aluminum

Compatibility:

- Compatible with popular suppressor attachments

The most common standard pattern is 1.375-24 (1-3/8 24 UN) threads, called Bravo threads, but also sometimes referred to as “ASR”, “Hybrid” or “Omega .300” pattern, and now also “H.U.B”. The progenitor of this pattern was SilencerCo, and that’s why most of the references incorporate their terminology. There are many, many mount adapters and direct thread mounts offered in this pattern, and most manufacturers have adopted this for their suppressors.

 Here’s a breakdown based on the compatibility lists you've provided:

### Understanding Compatibility Categories

These compatibility categories are crucial for users looking to interchange accessories (like quick-detach mounts, direct thread mounts, or end caps) across different suppressor models they own or intend to purchase. Knowing which category a suppressor falls into can greatly simplify the process of finding compatible accessories, ensuring that users can achieve a versatile and modular suppressor setup.

For specific mounting systems or to confirm compatibility, it's always best to consult directly with the manufacturer or refer to the product's technical specifications. This approach ensures that any updates or changes to compatibility are taken into account, providing the most accurate and current information.

Package includes:

- 1 x Barrel Adapter

Unless otherwise specified, 1.375-24 Bravo direct thread mounts are THROUGH THREADED; they DO NOT have an internal shoulder to register on muzzles
