Weight Tuning Spring Kit for Ruger 10/22 Trigger Adjustment

Fine-tune your 10/22® trigger with precision weight-tuning springs for the KIDD “Trigger Job” Kit.

What makes it special

• Lets you dial in your ideal trigger-breaking weight
• Replaces the factory B-40 plunger spring in Ruger® 10/22® polymer trigger groups
• Improves both pull weight and reset consistency
• Color-coded spring options from 1¾ lb to 3¾ lb
• Helpful if your trigger isn’t resetting reliably

Key specs

• Designed for use with the KIDD “Trigger Job” Kit
• Fits Ruger® 10/22® polymer trigger guards
• Five included springs with ˜ break weight: No Color 1.75, Orange 2.25, Red 2.75, Green 3.25, Blue 3.75 lbs
• Legacy kits with painted ends- white = new dyed orange
• Affects both trigger pull and return weight
• Tolerance-flexible for variations in factory housings

Fine-tuning your trigger — what to expect

These springs allow you to choose your desired trigger-breaking weight when paired with a properly installed KIDD “Trigger Job” Kit. Because Ruger® polymer trigger housings vary slightly in tolerance, final break weights are approximate. If your trigger occasionally fails to reset, stepping up to the next-stronger spring may resolve it.

Installation & break-in tips

• Pre-installation guidance:
• The spring sits directly behind the trigger blade with a plunger capping it.
• To access it, you must remove internal components including the hammer and the sear/disconnect/trigger blade sub-assembly.
• Use a slave pin to keep the sear/disconnector/trigger blade together during removal.
• Disassembly overview:
• Remove trigger group; de-cock the hammer with safety off
• Remove hammer strut assembly
• Remove ejector, bolt hold-open elements, and hammer
• Hold back the trigger blade while removing the trigger pin to prevent the plunger spring from ejecting
• Installation overview:
• Insert the trigger sub-assembly while holding the trigger blade plunger in place
• Replace slave pin with supplied dowel pin
• Reinstall hammer and spring assembly
• Reinstall bolt hold open, ejector, and magazine latch pin
• Cock hammer, re-engage safety, and verify proper movement
• Test safety engagement: trigger must not fire with safety on

If safety function is not correct after installation, contact KIDD for assistance.

Package includes

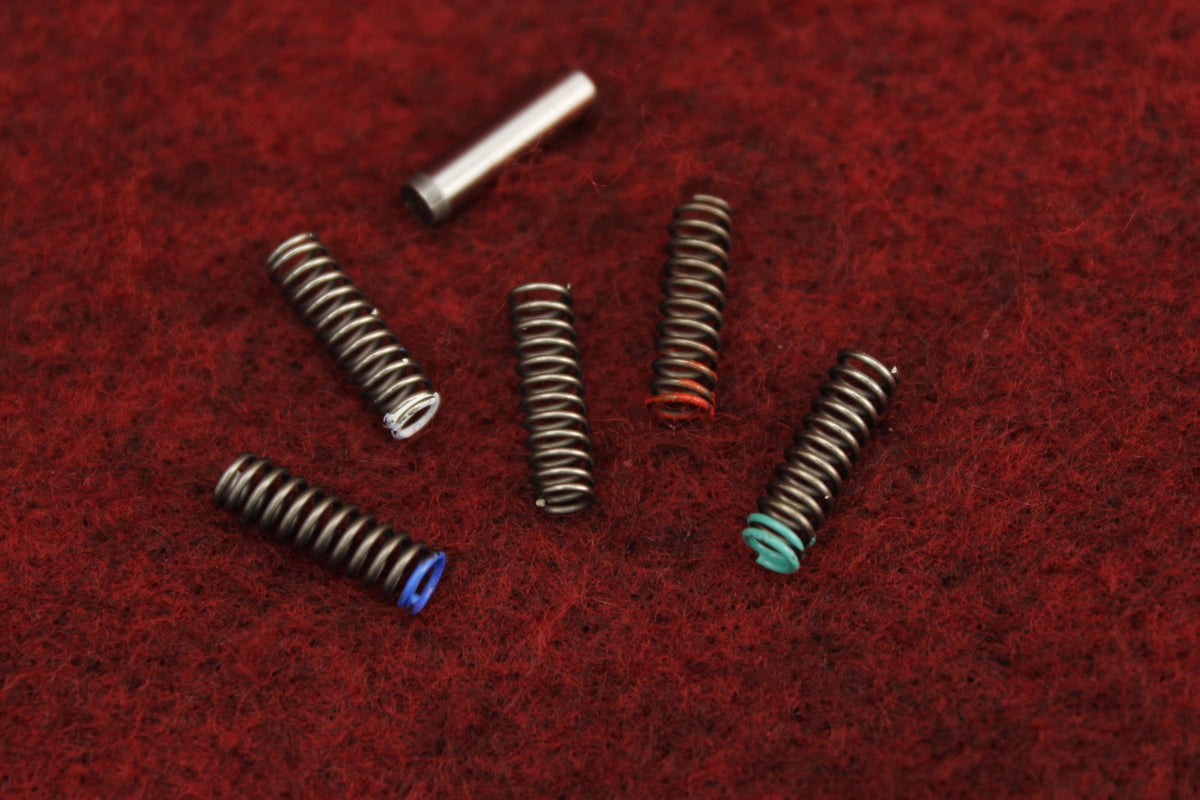

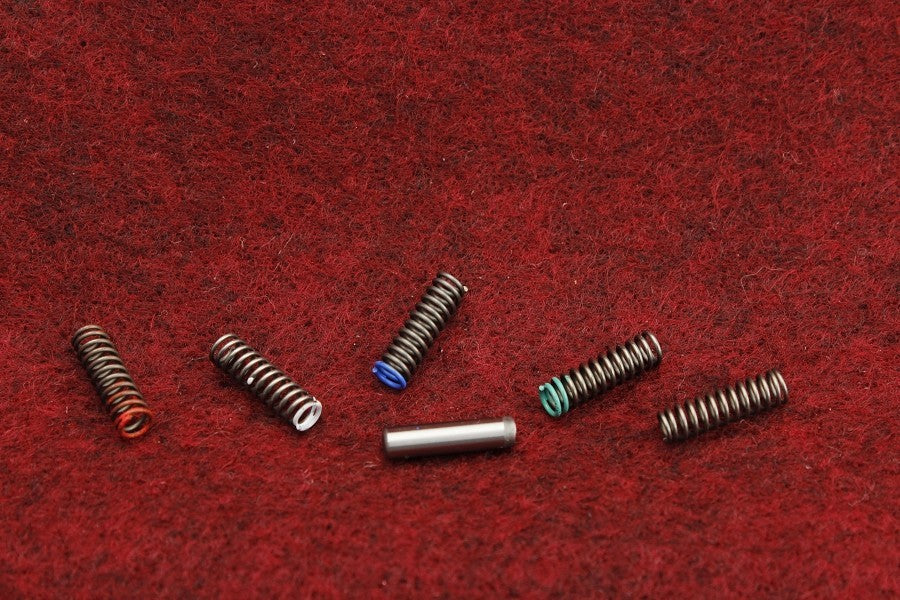

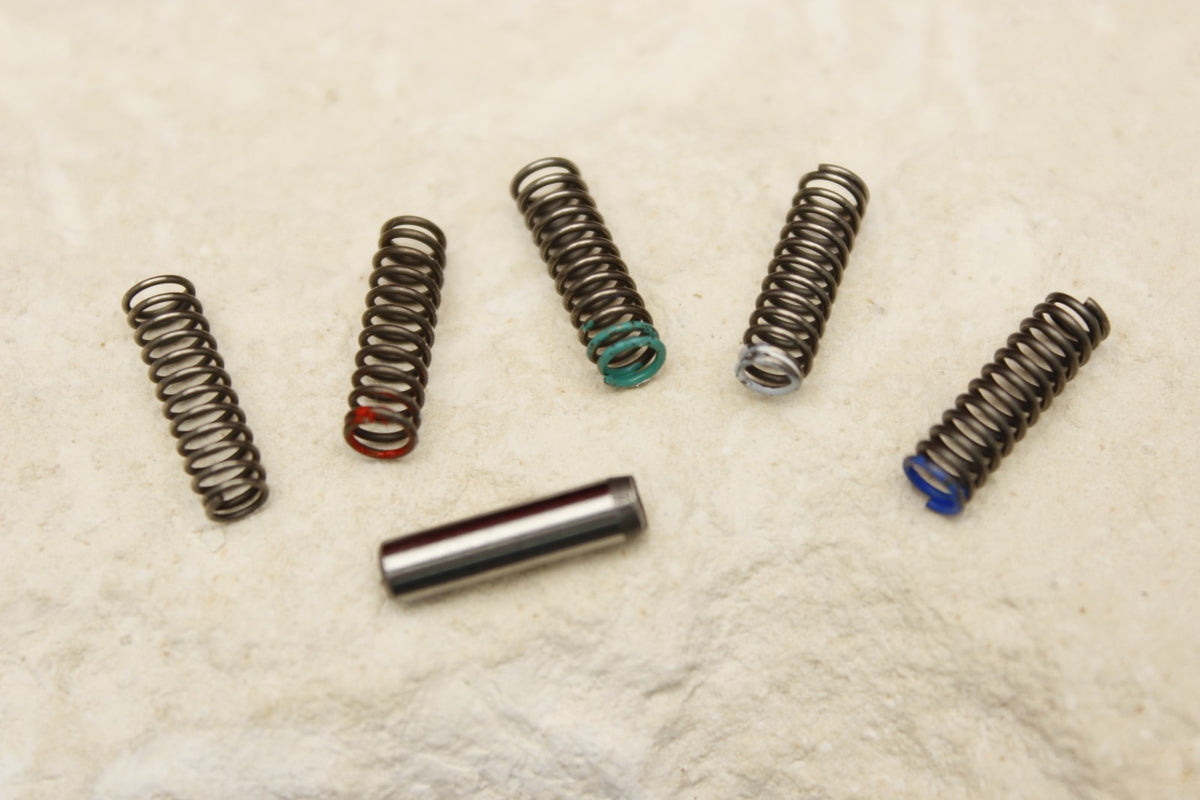

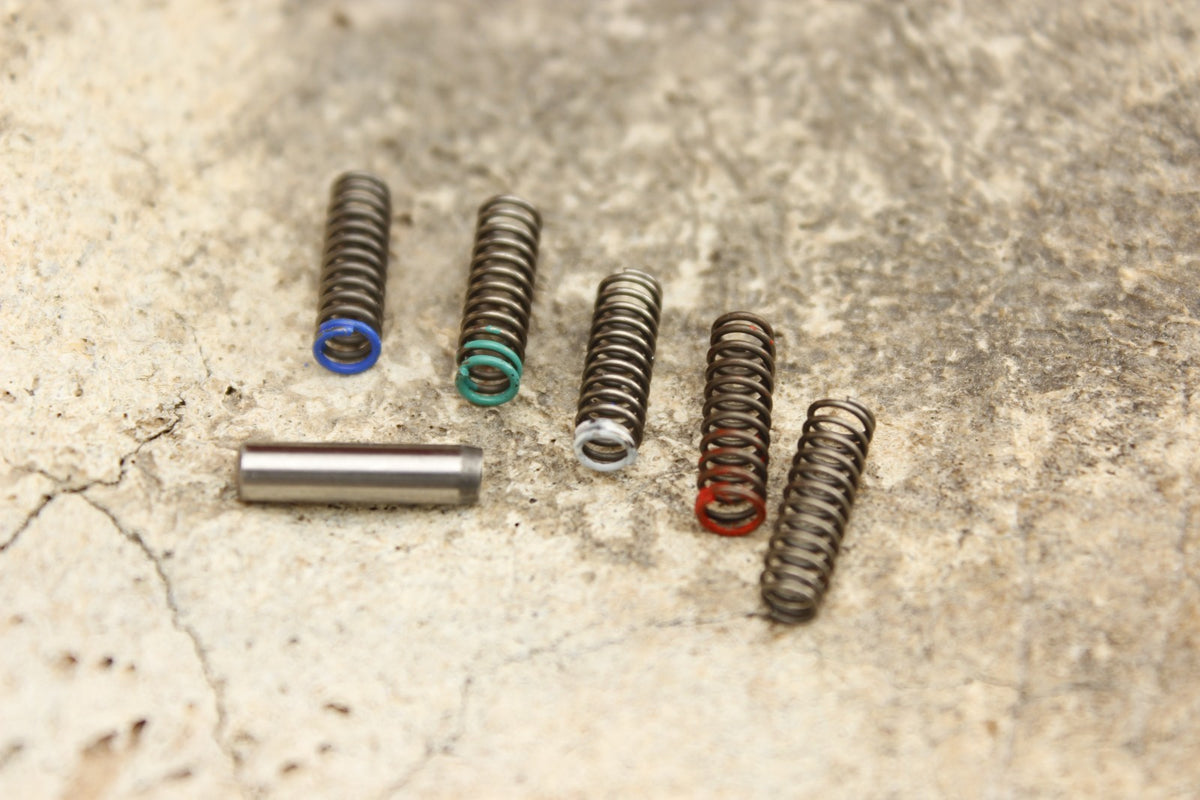

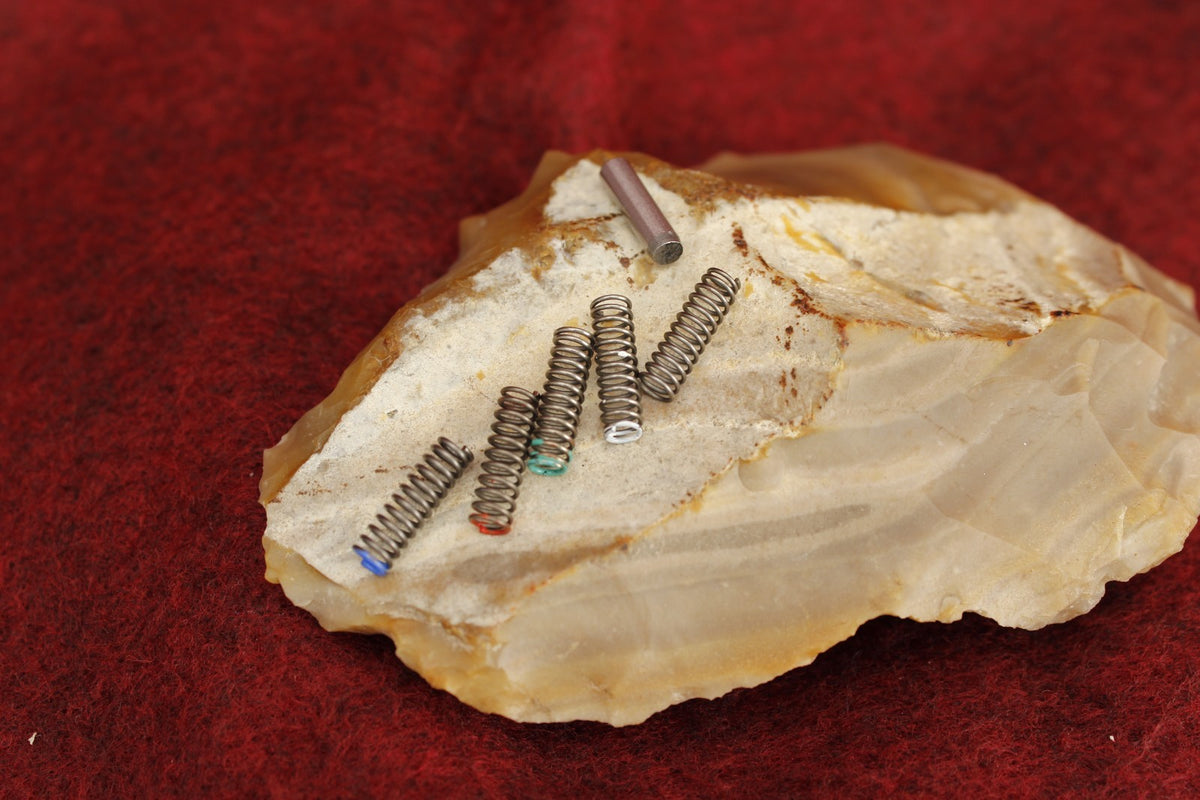

• Five weight-tuning springs (No Color, Orange, Red, Green, Blue) and slave pin
